Wave Pro

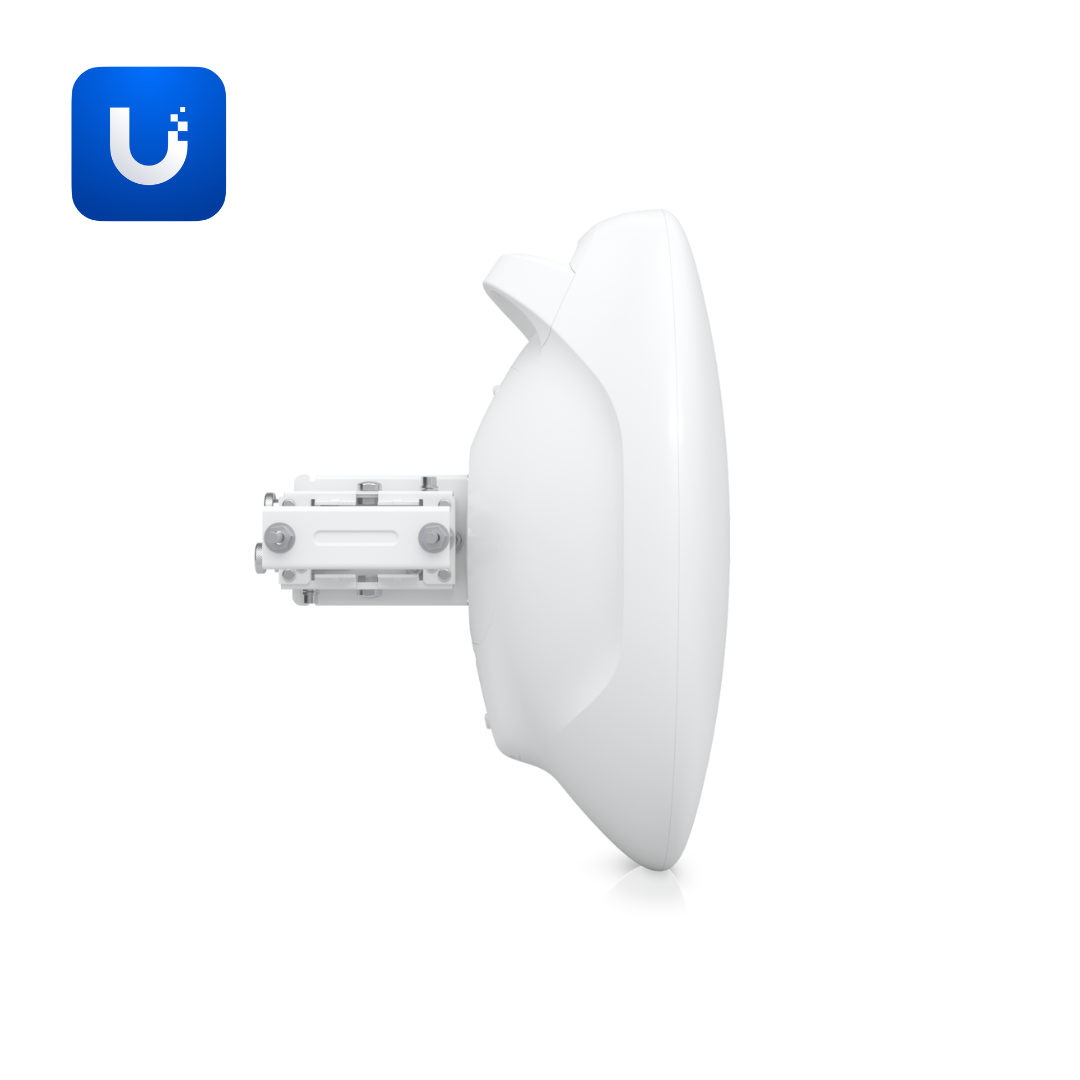

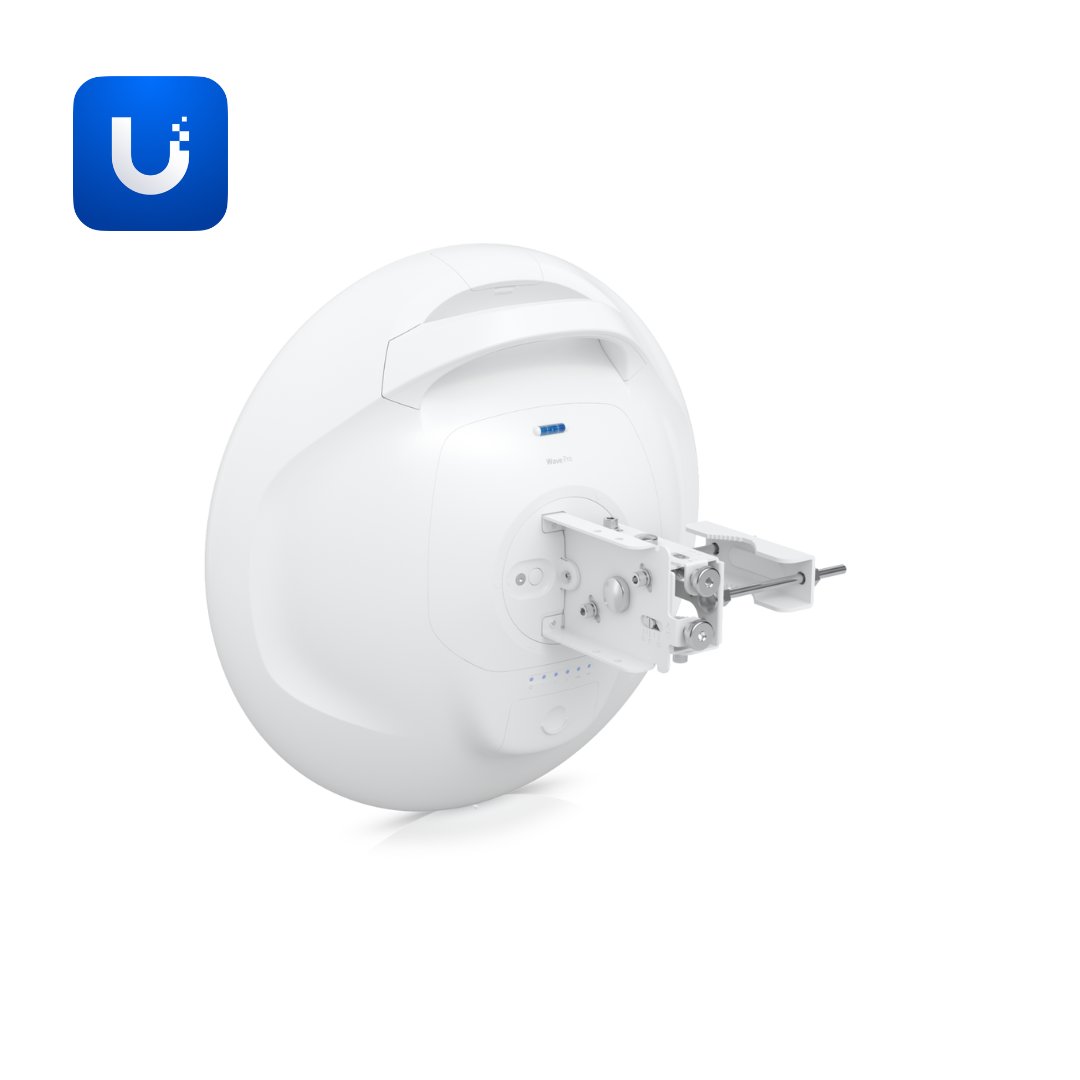

The Wave-Pro (Wave Pro) is the highest-performance 60 GHz PtP and PtMP radio in the Wave product lineup — combining a 46 dBi high-gain antenna with 1.3° × 1.3° ultra-precision beamwidth, triple-port connectivity, and Wave Technology to deliver 5.4 Gbps throughput at PtP ranges up to 15 km and PtMP ranges up to 8 km across East African mission-critical wireless backhaul deployments. Measuring ⌀424.4 × 166.2 mm (⌀16.7 × 6.5") and weighing 2.8 kg (6.2 lb) without or 4 kg (8.8 lb) with mount, the Wave-Pro features an aluminium alloy and UV-stabilised polycarbonate enclosure with stainless steel mount and IPX6 weatherproofing, supporting pole diameters of 25–76.2 mm (1–3"). An ergonomic transportation handle and precision alignment mount are included for professional field installation. Powered by a Quad-core ARM® Cortex®-A53 at 1.4 GHz with 512 MB memory. Requires UISP version 2.3.0 and later. Supports PtP and PtMP station operating modes with bridge and router mode networking. ETA: 26 April 2026.

The 60 GHz main radio operates across 57–71 GHz worldwide with channel bandwidths of 2160, 1080, and 540 MHz and 16QAM and QPSK modulation. The 46 dBi vertically-linear polarised antenna with 1.3° × 1.3° beamwidth — the tightest beam in the Wave lineup alongside the Wave Long-Range — concentrates maximum RF energy for 15 km PtP links and extended 8 km PtMP connections across East Africa's challenging terrain. The 5 GHz WiFi 6 (802.11ax) backup radio with 22 dBi dual-linear polarised antenna, 8° × 8° beamwidth, and 20 dB cross-pol isolation — matching the Wave Long-Range's backup radio specification — ensures link continuity during East Africa's tropical rain events and atmospheric disruptions. Triple-port WAN connectivity via (2) 2.5 GbE RJ45 ports and (1) 10G SFP+ port provides maximum flexibility for integration into diverse backhaul infrastructure. WPA2-PSK (AES) encryption secures all wireless links. Integrated GPS enables precise positioning and GPS synchronisation.

Advanced software features include:

• Wave AI for automated link optimisation
• Wave Technology for multi-gigabit 60 GHz performance
• Traffic shaping with burst support
• UISP integration, ping watchdog, NTP client, and SNMP
• Antenna alignment, site survey, speed test, traceroute, cable test, ping, and discovery utilities
• Bridge and router mode networking

Additional specifications:

• Wind loading: 369 N at 200 km/h (83 lbf at 125 mph)
• Supported voltage range: 44–54V DC / 22–27V DC
• Operating temperature: -40°C to 60°C (-40°F to 140°F)
• Operating humidity: 5–95% non-condensing
• FCC, IC, and CE certified, fully NDAA compliant

Ideal for long-distance ISP backhaul, mission-critical PtP links, campus networks, building-to-building wireless infrastructure, and high-capacity PtMP deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 60 GHz 5.4 Gbps flagship performance with 46 dBi ultra-precision alignment, 15 km PtP range, 8 km PtMP range, triple-port 2.5 GbE and 10G SFP+ connectivity, 5 GHz WiFi 6 backup radio, Wave Technology optimisation, and traffic shaping with burst support — arriving 26 April 2026.
