Wave Long-Range
The Wave-LR (Wave Long-Range) is a 60 GHz PtP/PtMP client station powered by Wave Technology with precision alignment mount and up to 8 km link range for long-distance wireless backhaul across East Africa. This outdoor 60 GHz PtP and PtMP station delivers:
Perfect for long-distance wireless backhaul, building-to-building links, ISP network infrastructure, and mission-critical point-to-point and point-to-multipoint deployments requiring 46 dBi high-gain precision alignment, 8 km maximum range, 2 Gbps throughput, and 5 GHz WiFi 6 backup radio across East and Central Africa.
DATASHEET
- 60 GHz main radio with 2 Gbps maximum total throughput (1 Gbps duplex)
- 5 GHz WiFi 6 weatherproof backup radio with 800+ Mbps throughput
- (1) GbE RJ45 port
- Wave AP compatibility: up to 8 km link range
- Wave AP Micro compatibility: up to 6 km link range
- 46 dBi antenna gain at 60 GHz with 1° azimuth and 1° elevation beamwidth
- 22 dBi backup radio antenna at 5 GHz with 8° azimuth and 8° elevation beamwidth
- Precision alignment mount included
- Integrated GPS and Bluetooth
- IPX6 weatherproofing and -40°C to 60°C operating range
- 286 N wind loading at 200 km/h
- Passive PoE powered at 20W maximum with included 48V DC GbE PoE adapter
- Bridge and router mode, PtP and PtMP station operating modes
Perfect for long-distance wireless backhaul, building-to-building links, ISP network infrastructure, and mission-critical point-to-point and point-to-multipoint deployments requiring 46 dBi high-gain precision alignment, 8 km maximum range, 2 Gbps throughput, and 5 GHz WiFi 6 backup radio across East and Central Africa.
DATASHEET
About the Wave Long-Range

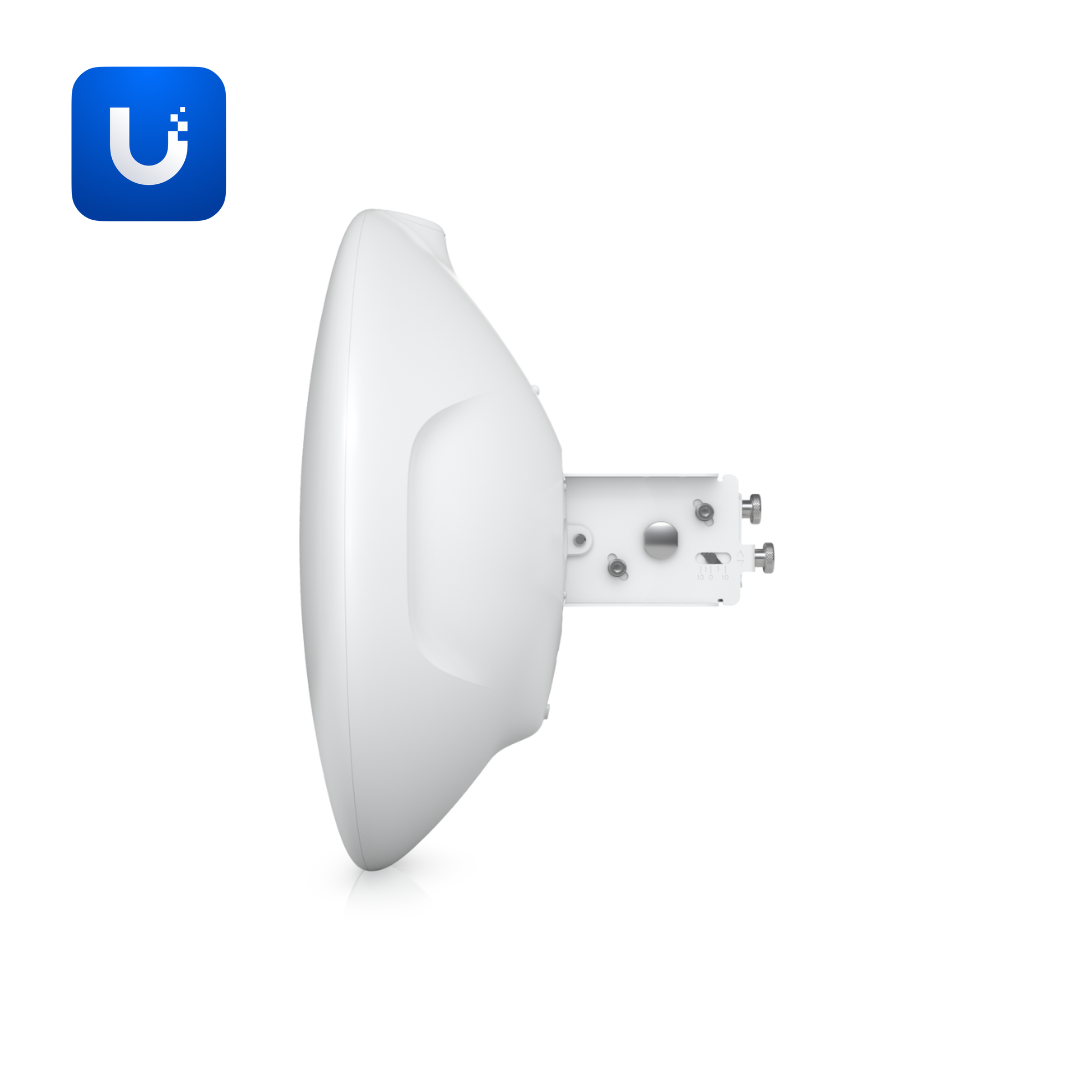

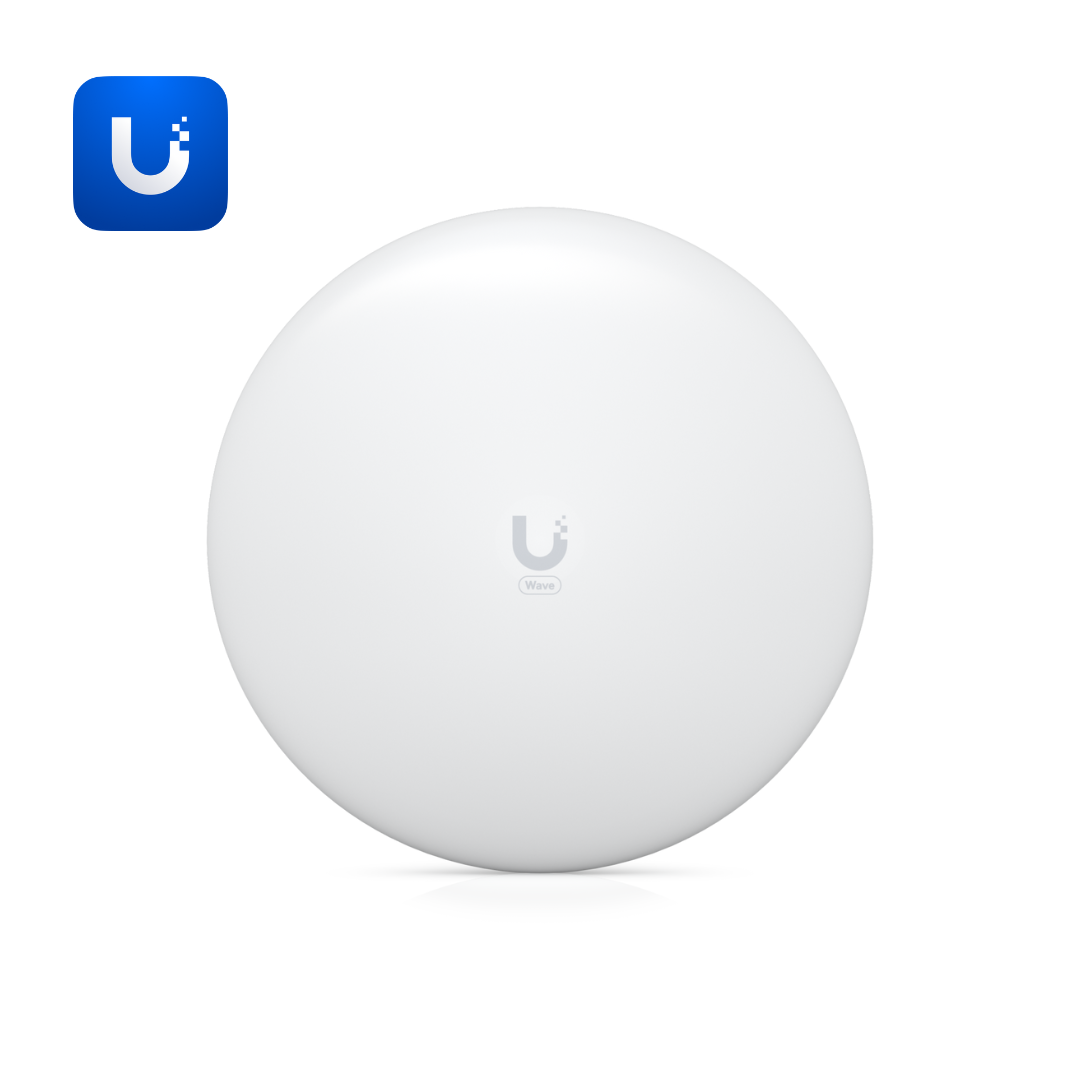

The Wave-LR (Wave Long-Range) is a high-gain 60 GHz PtP and PtMP wireless station powered by Wave Technology — combining a massive 46 dBi antenna with 1° × 1° precision beamwidth and precision alignment mount to deliver reliable 2 Gbps throughput at ranges up to 8 km across East African long-distance backhaul deployments. Measuring ⌀424.4 × 166.2 mm (⌀16.7 × 6.5") and weighing 2.6 kg (5.7 lb) without or 3.8 kg (8.4 lb) with mount, the Wave-LR features a UV-stabilised polycarbonate enclosure with stainless steel mount and IPX6 weatherproofing, supporting pole diameters of 25–76.2 mm (1–3"). Powered by a Dual-core ARM® Cortex®-A53 at 1 GHz with 512 MB memory. Requires UISP version 1.4.5 and later. Supports PtP and PtMP station operating modes with bridge and router mode networking.
The 60 GHz main radio operates across 57–71 GHz worldwide with channel bandwidths of 2160, 1080, and 540 MHz and 16QAM and QPSK modulation. The 46 dBi vertically-linear polarised antenna with 1° azimuth and 1° elevation beamwidth delivers the tightest beam in the Wave product lineup for maximum long-range concentration and interference rejection. The 5 GHz WiFi 6 backup radio with 22 dBi dual-linear polarised antenna and 8° × 8° beamwidth with 20 dB cross-pol isolation maintains link availability during adverse weather across East Africa's variable climate environments. WPA2-PSK (AES) encryption secures all wireless links.
Advanced software features include:
Ideal for long-distance wireless backhaul, building-to-building links, ISP network infrastructure, and mission-critical PtP and PtMP deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 60 GHz 2 Gbps throughput with 46 dBi high-gain precision alignment, 8 km maximum range, 5 GHz WiFi 6 backup radio, and Wave Technology optimisation.
The 60 GHz main radio operates across 57–71 GHz worldwide with channel bandwidths of 2160, 1080, and 540 MHz and 16QAM and QPSK modulation. The 46 dBi vertically-linear polarised antenna with 1° azimuth and 1° elevation beamwidth delivers the tightest beam in the Wave product lineup for maximum long-range concentration and interference rejection. The 5 GHz WiFi 6 backup radio with 22 dBi dual-linear polarised antenna and 8° × 8° beamwidth with 20 dB cross-pol isolation maintains link availability during adverse weather across East Africa's variable climate environments. WPA2-PSK (AES) encryption secures all wireless links.
Advanced software features include:
- Wave AI and Wave Technology for automated link optimisation
- Traffic shaping with burst support
- UISP integration, ping watchdog, NTP client, and SNMP
- Antenna alignment, site survey, speed test, traceroute, cable test, and discovery utilities
- Bridge and router mode networking
- Wind loading: 286 N at 200 km/h (64.3 lbf at 125 mph)
- Supported voltage range: 44–54V DC / 22–27V DC
- Operating temperature: -40°C to 60°C (-40°F to 140°F)
- Operating humidity: 5–95% non-condensing
- FCC, IC, and CE certified, fully NDAA compliant
Ideal for long-distance wireless backhaul, building-to-building links, ISP network infrastructure, and mission-critical PtP and PtMP deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 60 GHz 2 Gbps throughput with 46 dBi high-gain precision alignment, 8 km maximum range, 5 GHz WiFi 6 backup radio, and Wave Technology optimisation.
