The

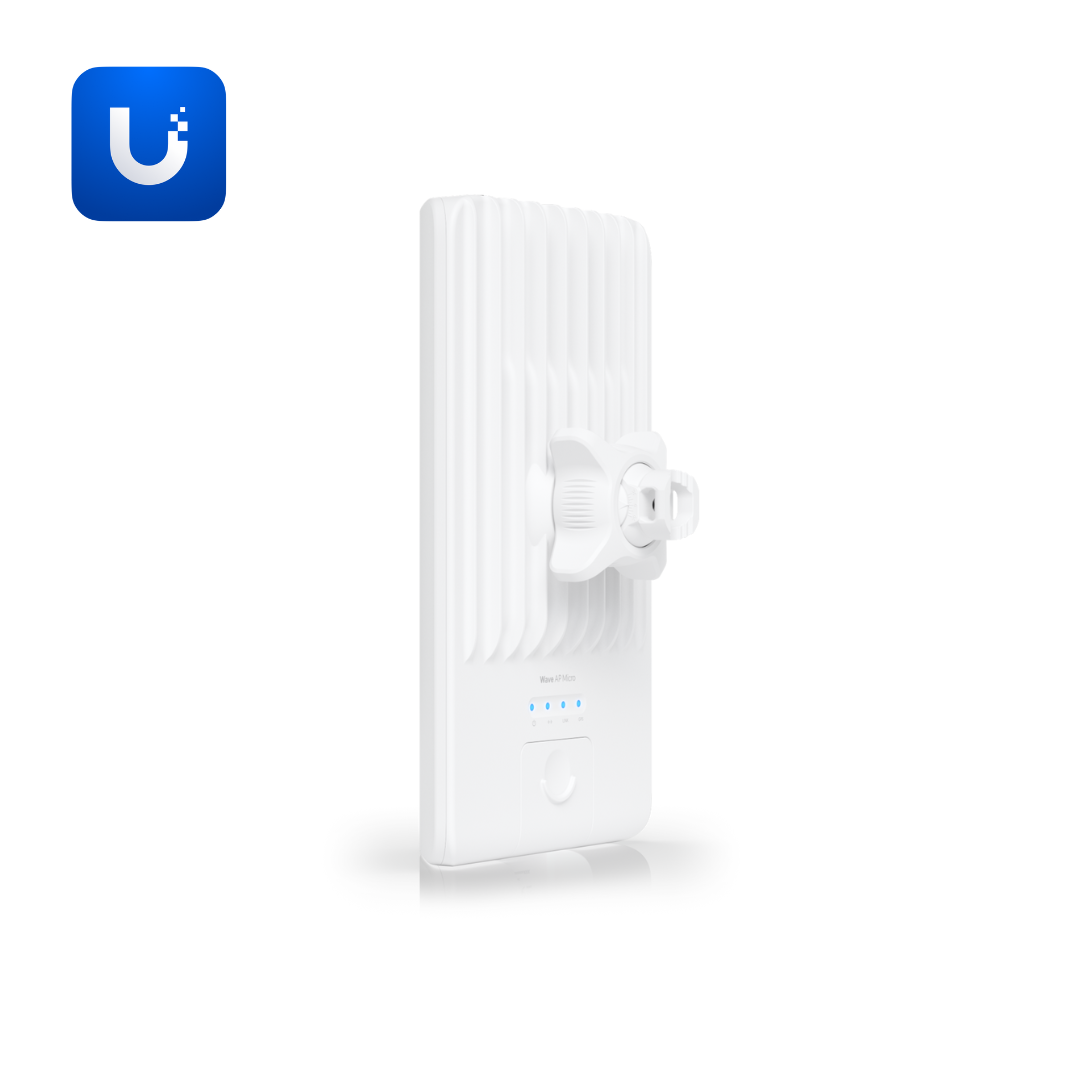

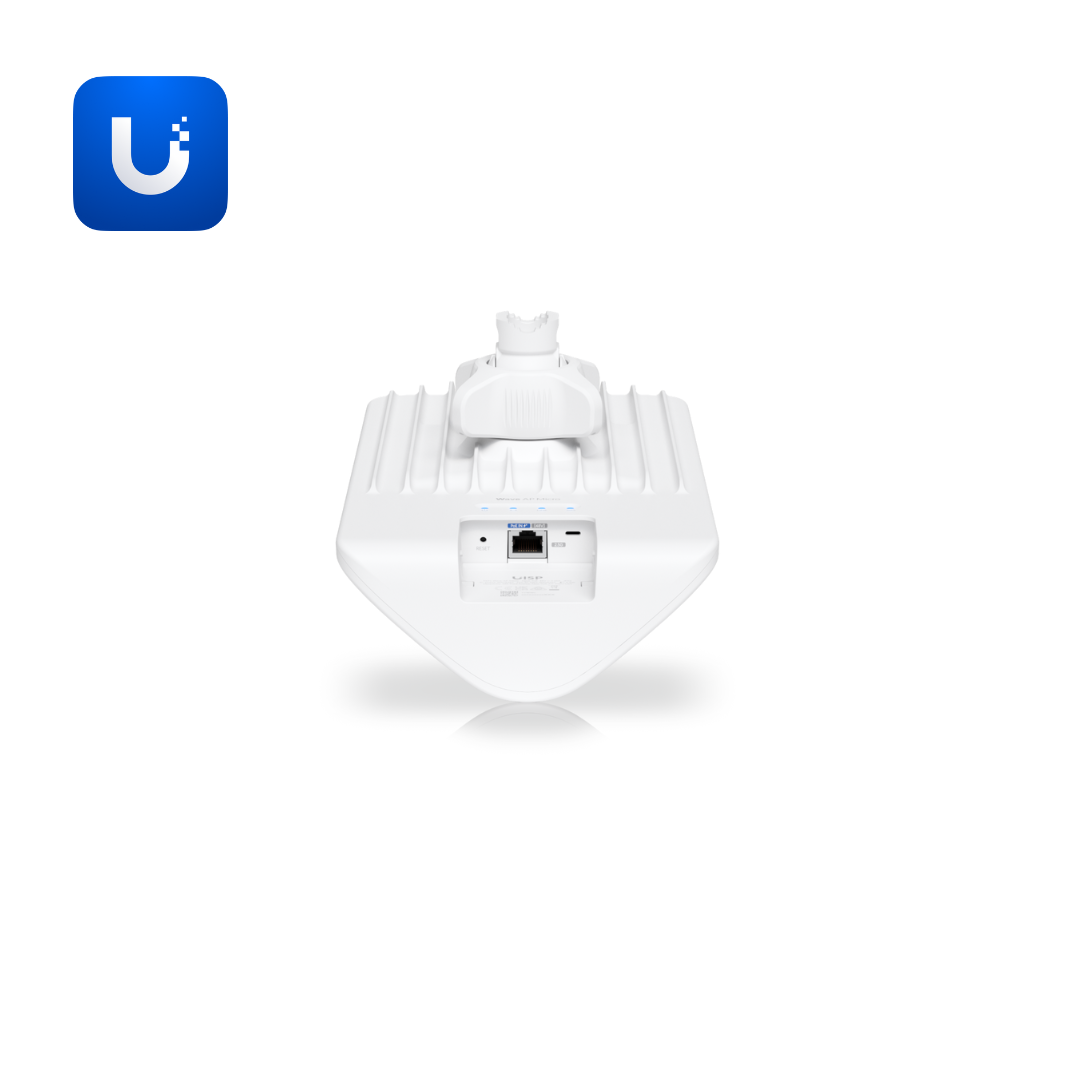

Wave-AP-Micro (Wave AP Micro) is a
wide-coverage 60 GHz Point-to-Multipoint access point powered by Ubiquiti's Wave Technology — delivering multi-gigabit wireless backhaul with a wide 90° sector to serve multiple client stations simultaneously across East African ISP and campus network deployments. Measuring
284 × 156 × 76 mm (11.2 × 6.1 × 3") and weighing
1.3 kg (2.9 lb), the Wave-AP-Micro features an
aluminium alloy and UV-stabilised polycarbonate enclosure with stainless steel and UV-stabilised polycarbonate mount, supporting pole diameters of
35–60 mm (1.4–2.4"). Powered by a
Quad-core ARM® Cortex®-A53 at 1.4 GHz with 512 MB memory. Requires
UISP web version 2.2.11 and later, UISP mobile iOS version 2.25.1 and later, and UISP mobile Android version 2.27.5 and later.
The
60 GHz main radio operates across
57–71 GHz worldwide with channel bandwidths of
2160, 1080, and 540 MHz and
16QAM and QPSK modulation. The
20 dBi vertically-linear polarised antenna delivers a precise
90° azimuth and 7° elevation beamwidth for wide-area sector coverage. The
5 GHz WiFi 6 (802.11ax) backup radio with
13.5 dBi dual-linear polarised antenna and
90° azimuth and 25° elevation beamwidth maintains connectivity during rain fade or 60 GHz interference events — essential for reliable East African outdoor deployments.
WPA2-PSK (AES) encryption secures all wireless links.
Advanced software features include:
- Wave AI for automated link optimisation
- Wave Technology for multi-gigabit 60 GHz performance
- UISP integration for centralised network management
- Traffic shaping, ping watchdog, NTP client, and SNMP
- Antenna alignment, site survey, speed test, traceroute, and cable test utilities
- Bridge mode operation
Additional specifications:
- Wind loading: 87 N at 200 km/h (20 lbf at 125 mph)
- Supported voltage range: 44–54V DC / 22–27V DC
- Operating temperature: -40°C to 60°C (-40°F to 140°F)
- Operating humidity: 5–95% non-condensing
- FCC, IC, and CE certified, fully NDAA compliant
Ideal for
wireless ISPs, campus networks, building-to-building links, last-mile connectivity deployments, and high-capacity PtMP networks across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring
60 GHz 5 Gbps wide-coverage PtMP access with 90° sector, 5 GHz WiFi 6 backup radio, 31 client capacity, and UISP-managed Wave Technology.
