Wave AP

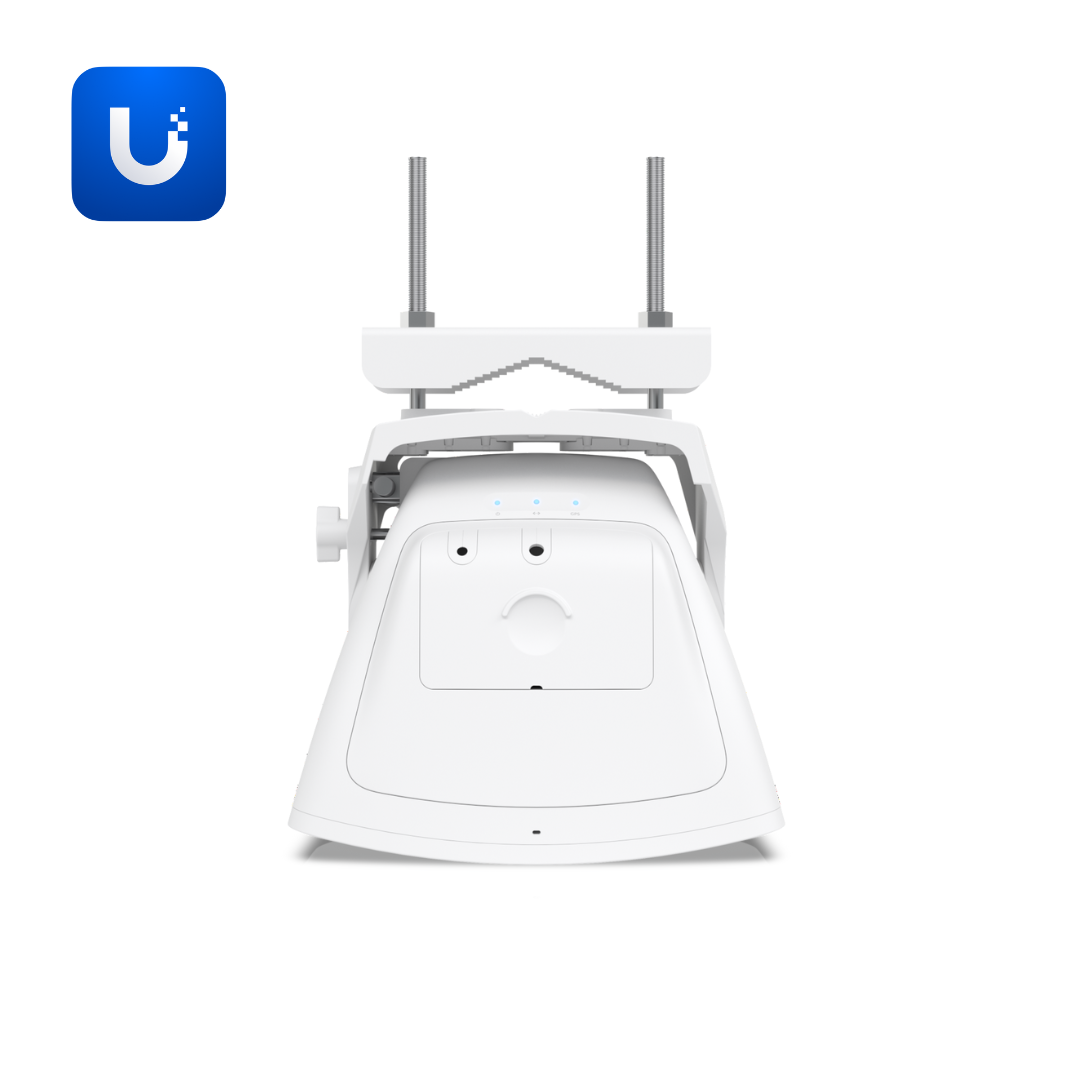

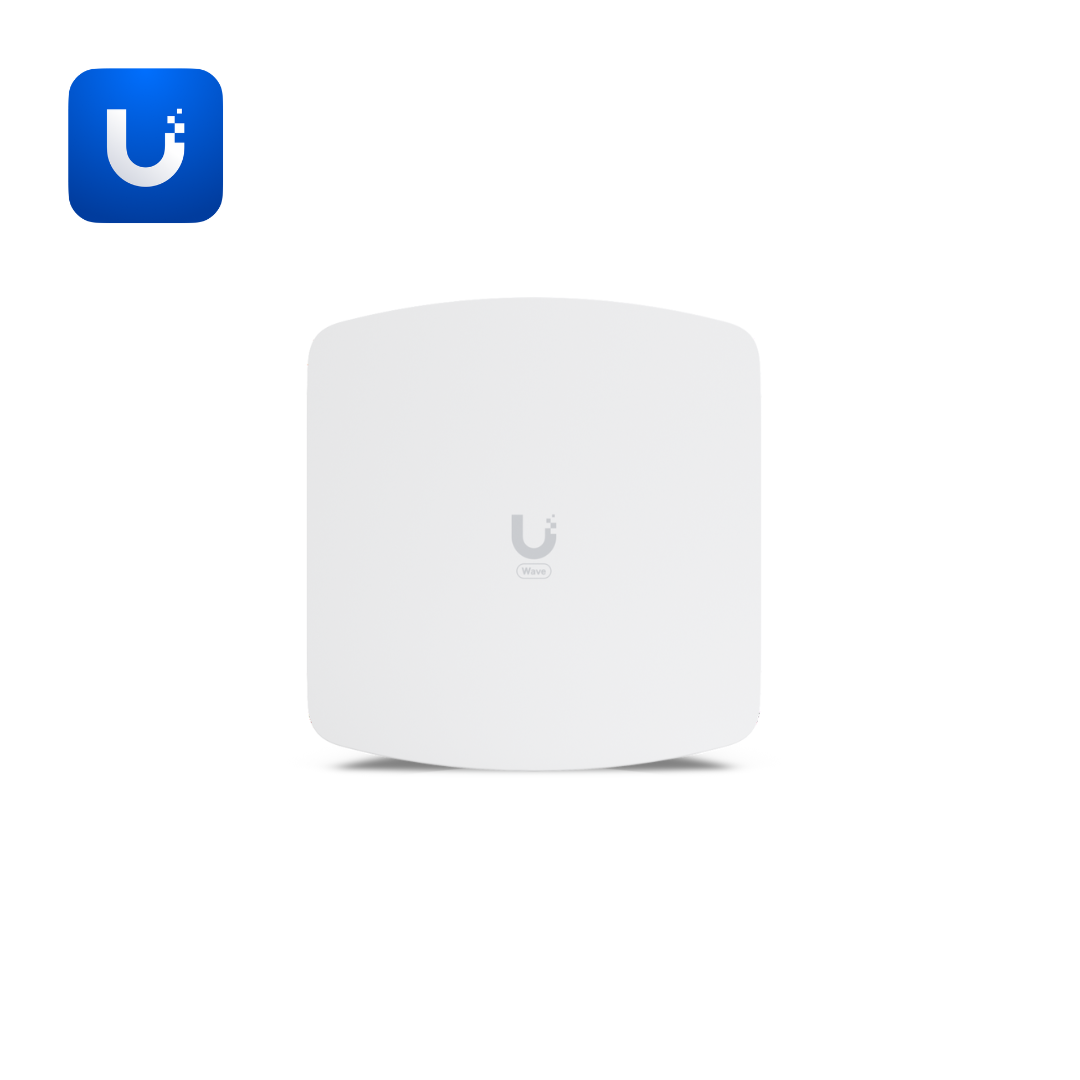

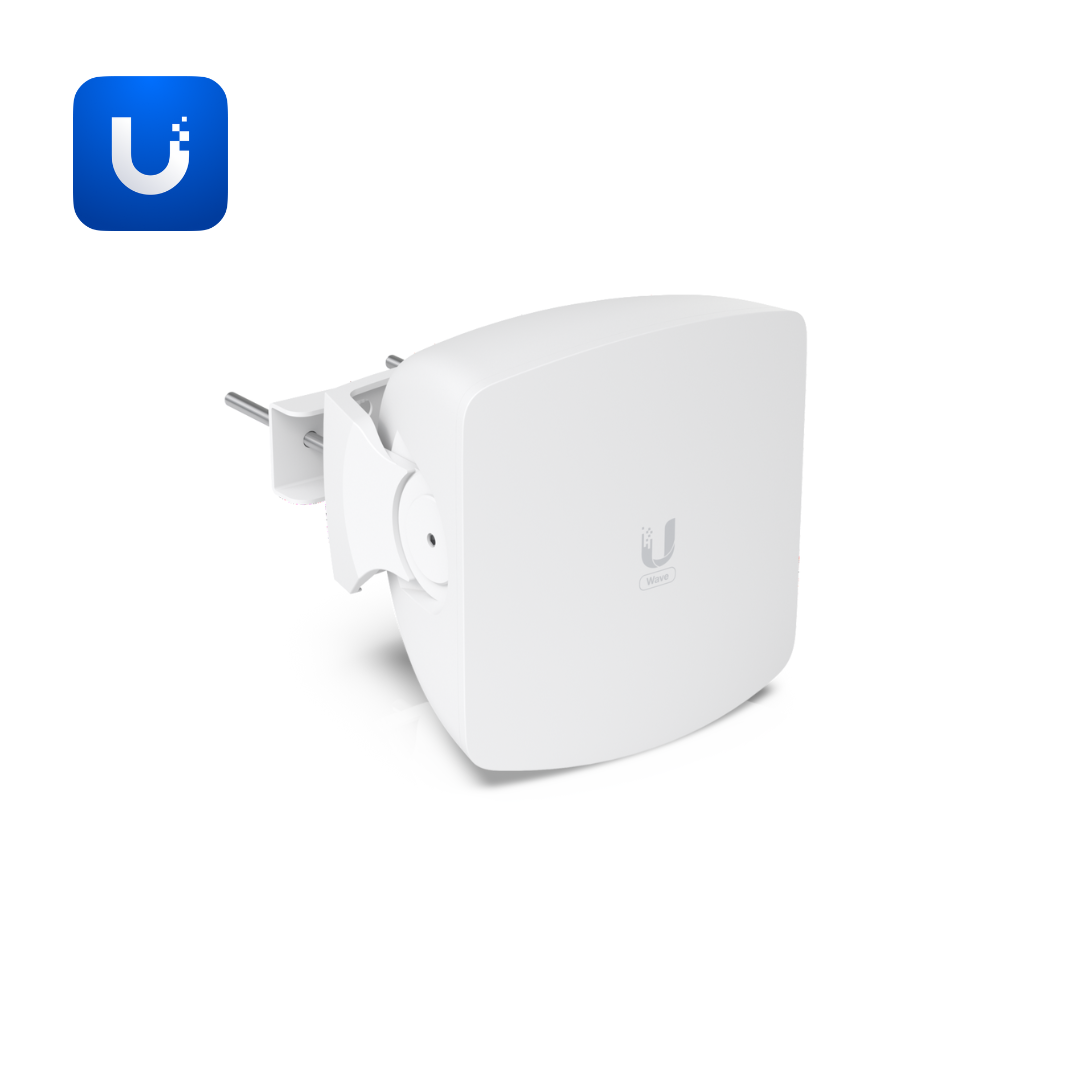

The Wave-AP (Wave AP) is a 60 GHz Point-to-Multipoint access point powered by Wave Technology with 30° precision sector coverage and dual 2.5 GbE and 10G SFP+ WAN ports for high-capacity wireless backhaul deployments across East Africa. This outdoor 60 GHz PtMP access point delivers:
Perfect for wireless ISPs, campus networks, building-to-building links, high-capacity PtMP backhaul, and any deployment requiring precision 30° sector coverage, 5.4 Gbps throughput, dual 10G connectivity, and weather-resilient 5 GHz backup radio across East and Central Africa.
DATASHEET
- 60 GHz main radio with 5.4 Gbps maximum total throughput and 30° precision sector coverage
- 5 GHz WiFi 6 weatherproof backup radio with up to 800 Mbps maximum throughput
- (1) 2.5 GbE RJ45 and (1) 10G SFP+ WAN ports
- 31 client capacity supporting Wave Pro (8 km), Wave Long-Range (8 km), Wave Nano (5 km), and Wave Pico (1.3 km) link ranges
- 24 dBi antenna gain at 60 GHz with 30° azimuth and 3° elevation beamwidth
- 12 dBi backup radio antenna at 5 GHz with 35° azimuth and 60° elevation beamwidth
- Integrated GPS and Bluetooth
- Wave AI and Wave Technology optimisation
- IPX6 weatherproofing and -40°C to 60°C operating range
- 98 N wind loading at 200 km/h and pole mount support for 25–76 mm diameter poles
- Passive PoE powered at 24W maximum with included 48V DC 2.5 GbE PoE adapter
Perfect for wireless ISPs, campus networks, building-to-building links, high-capacity PtMP backhaul, and any deployment requiring precision 30° sector coverage, 5.4 Gbps throughput, dual 10G connectivity, and weather-resilient 5 GHz backup radio across East and Central Africa.
DATASHEET
About the Wave AP
The Wave-AP (Wave AP) is a high-capacity 60 GHz Point-to-Multipoint access point powered by Wave Technology — delivering 5.4 Gbps throughput through a precision 30° sector to serve up to 31 client stations simultaneously across extended ranges up to 8 km. Measuring 212 × 205 × 187 mm (8.3 × 8.1 × 7.4") and weighing 2.3 kg (5.1 lb), the Wave-AP features an aluminium alloy and UV-stabilised polycarbonate enclosure with IPX6 weatherproofing, supporting pole diameters of 25–76 mm (1–3"). Powered by a Quad-core ARM® Cortex®-A53 at 1.4 GHz with 512 MB memory. The dual-port WAN configuration — (1) 2.5 GbE RJ45 and (1) 10G SFP+ port — provides flexible copper and fibre uplink connectivity to backhaul infrastructure. Requires UISP version 1.5.7 and later.
The 60 GHz main radio operates across 57–71 GHz worldwide with channel bandwidths of 2160, 1080, and 540 MHz. The 24 dBi vertically-linear polarised antenna delivers a precision 30° azimuth and 3° elevation beamwidth for targeted sector coverage at extended ranges. The 5 GHz WiFi 6 (802.11ax) backup radio with 12 dBi dual-linear polarised antenna maintains link availability during adverse weather — critical for continuous East African outdoor deployments. WPA2-PSK (AES) encryption secures all wireless links.
Advanced software features include:
Ideal for wireless ISPs, campus networks, building-to-building links, and high-capacity PtMP backhaul deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 60 GHz 5.4 Gbps precision 30° sector PtMP access, 31 client capacity, dual 2.5 GbE and 10G SFP+ WAN ports, 5 GHz WiFi 6 backup radio, and UISP-managed Wave Technology.
The 60 GHz main radio operates across 57–71 GHz worldwide with channel bandwidths of 2160, 1080, and 540 MHz. The 24 dBi vertically-linear polarised antenna delivers a precision 30° azimuth and 3° elevation beamwidth for targeted sector coverage at extended ranges. The 5 GHz WiFi 6 (802.11ax) backup radio with 12 dBi dual-linear polarised antenna maintains link availability during adverse weather — critical for continuous East African outdoor deployments. WPA2-PSK (AES) encryption secures all wireless links.
Advanced software features include:
- Wave AI for automated link optimisation
- Wave Technology for multi-gigabit 60 GHz performance
- UISP integration for centralised network management
- Ping watchdog, NTP client, and SNMP
- Antenna alignment, site survey, speed test, traceroute, and cable test utilities
- Bridge mode operation
- Wind loading: 98 N at 200 km/h (22 lbf at 125 mph)
- Supported voltage range: 44–54V DC / 22–27V DC
- Operating temperature: -40°C to 60°C (-40°F to 140°F)
- Operating humidity: 5–95% non-condensing
- FCC, IC, and CE certified, fully NDAA compliant
Ideal for wireless ISPs, campus networks, building-to-building links, and high-capacity PtMP backhaul deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 60 GHz 5.4 Gbps precision 30° sector PtMP access, 31 client capacity, dual 2.5 GbE and 10G SFP+ WAN ports, 5 GHz WiFi 6 backup radio, and UISP-managed Wave Technology.
