Network Video Recorder (UNVR)

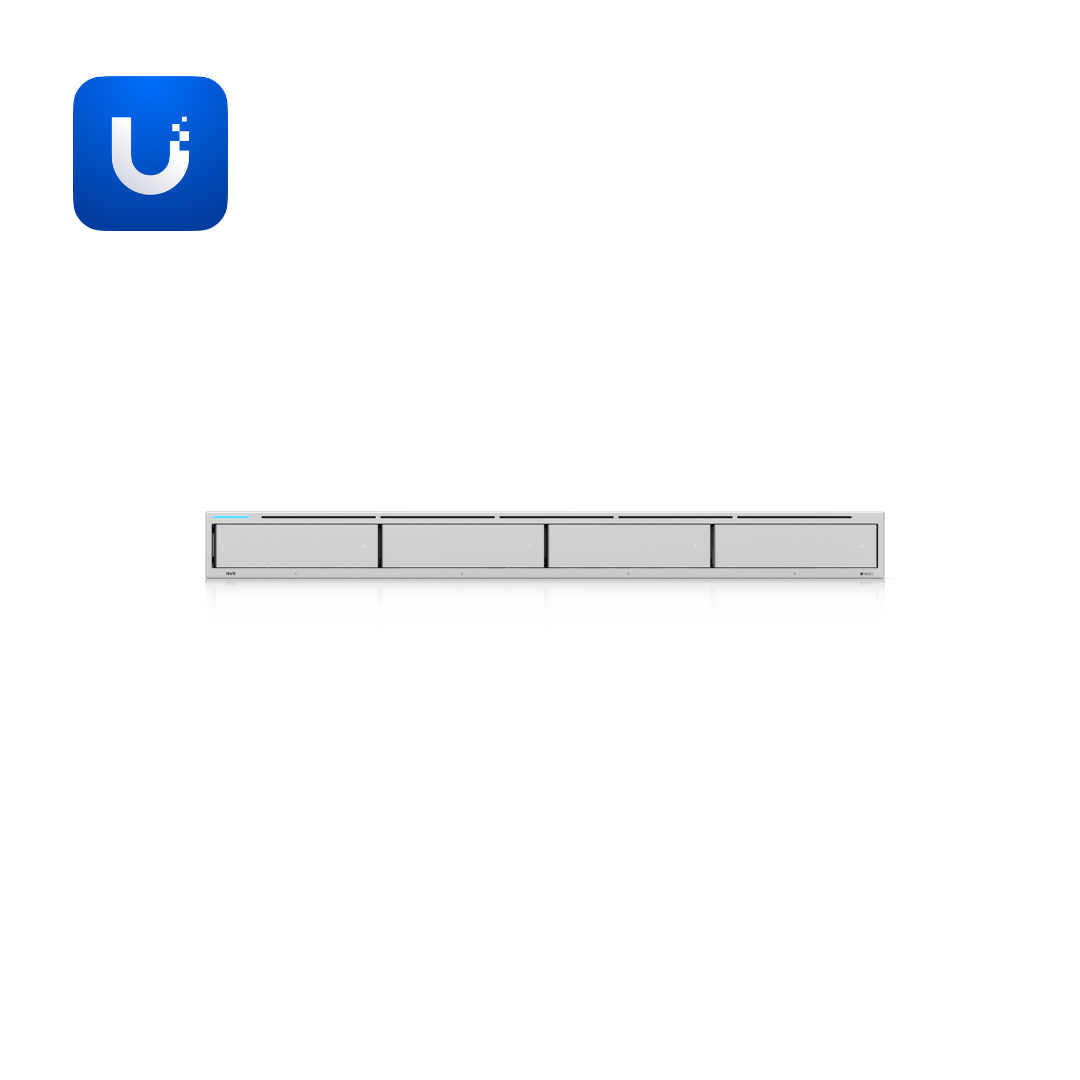

The Network Video Recorder (UNVR) is a professional video surveillance solution delivering reliable recording for up to (60) Full HD, (30) 2K, or (18) 4K cameras with approximately 30 days of retention. Housed in a 1U rack-mount chassis (442 × 325 × 44 mm), the UNVR features (4) 2.5/3.5" drive bays supporting both HDDs and SSDs with RAID data protection to prevent video loss during drive failures. Powered by a quad-core ARM Cortex-A57 processor at 1.7GHz with 4GB memory, the system handles multiple camera streams efficiently. Networking includes (1) 10G SFP+ port and (1) Gigabit Ethernet port for high-speed uplinks and flexible connectivity. DC power backup support (USP-RPS input, 11.5V DC, 10.43A) ensures continuous recording during power outages. The internal 120W AC/DC power supply (100-240VAC, 50/60 Hz) provides 75W max power budget for drives with 100W total system consumption. Runs UniFi Protect for video management and UniFi Access for door control (150 Access Hubs). Features Vantage Point support for enhanced monitoring workflows. Weighs 5.1 kg (11.3 lb) without brackets, 5.2 kg (11.5 lb) with mounting brackets. SGCC steel construction operates from -5 to 40°C with 5-95% non-condensing humidity tolerance. NDAA compliant with CE, FCC, IC, SRRC, and Anatel certifications. Ideal for retail stores, corporate offices, educational campuses, healthcare facilities, and any professional environment requiring centralized, reliable video surveillance recording with expandable storage and enterprise-grade data protection.

Technical Specifications

• Camera Capacity: (60) HD, (30) 2K, or (18) 4K cameras (~30 days retention)
• Storage: (4) 2.5/3.5" HDD/SSD bays with RAID data protection
• Access Control: Supports 150 managed Access Hubs

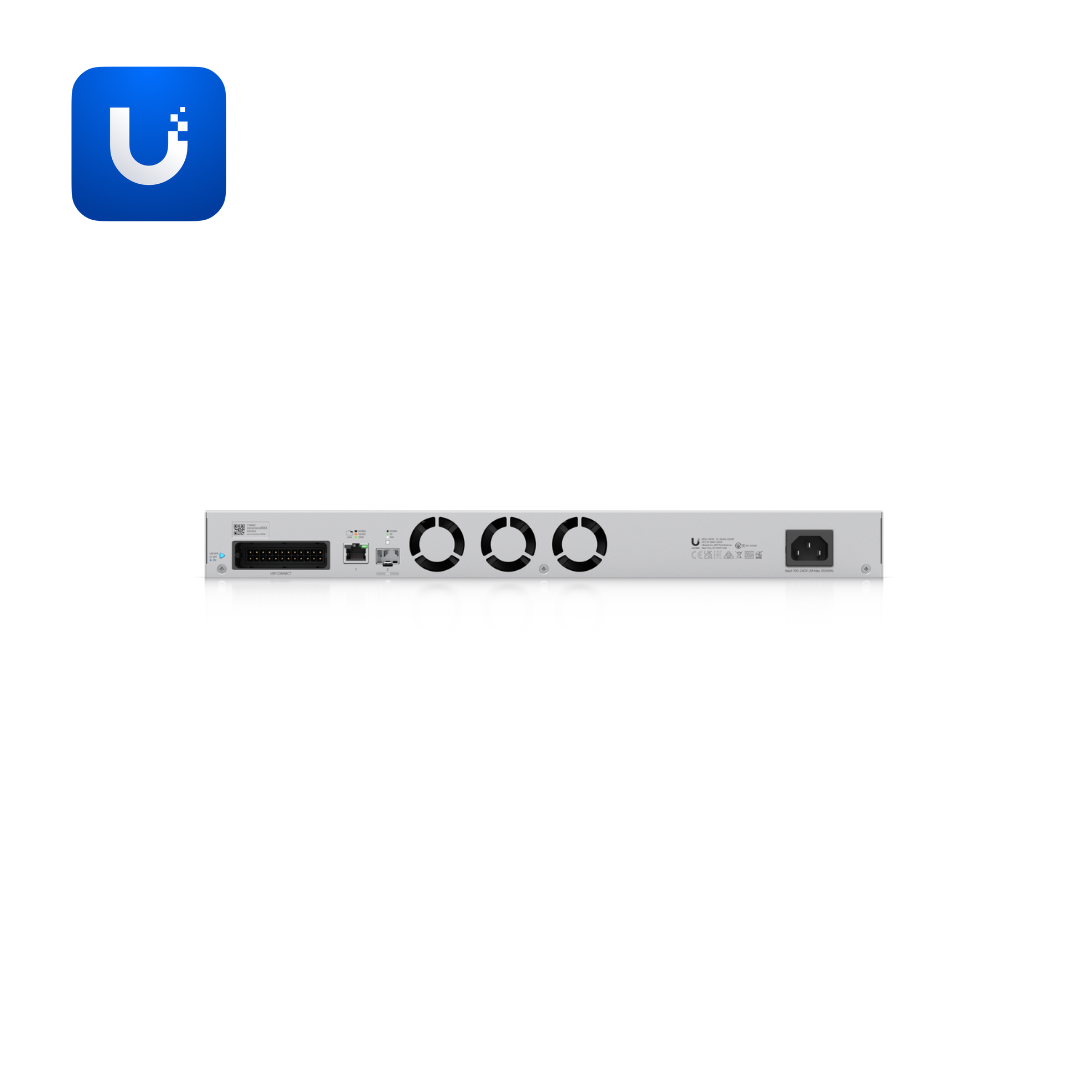

• Networking: (1) 10G SFP+ port, (1) GbE RJ45 port
• Processor: Quad-core ARM Cortex-A57 at 1.7GHz
• Memory: 4GB
• Power: 120W AC/DC internal PSU (100-240VAC, 50/60 Hz), 100W max consumption, 75W max for drives
• Power Backup: USP-RPS DC input (11.5V DC, 10.43A)
• Dimensions: 442 × 325 × 44 mm (17.4 × 12.8 × 1.7"), 1U rack-mount
• Weight: 5.1 kg (11.3 lb) without brackets, 5.2 kg (11.5 lb) with brackets
• Material: SGCC steel enclosure and mounting
• Operating Temperature: -5 to 40°C (23 to 104°F)
• Humidity: 5-95% non-condensing
• Applications: UniFi Protect, UniFi Access, Vantage Point
• Management: Ethernet
• Certifications: NDAA compliant, CE, FCC, IC, SRRC, Anatel: 01924-21-08356
