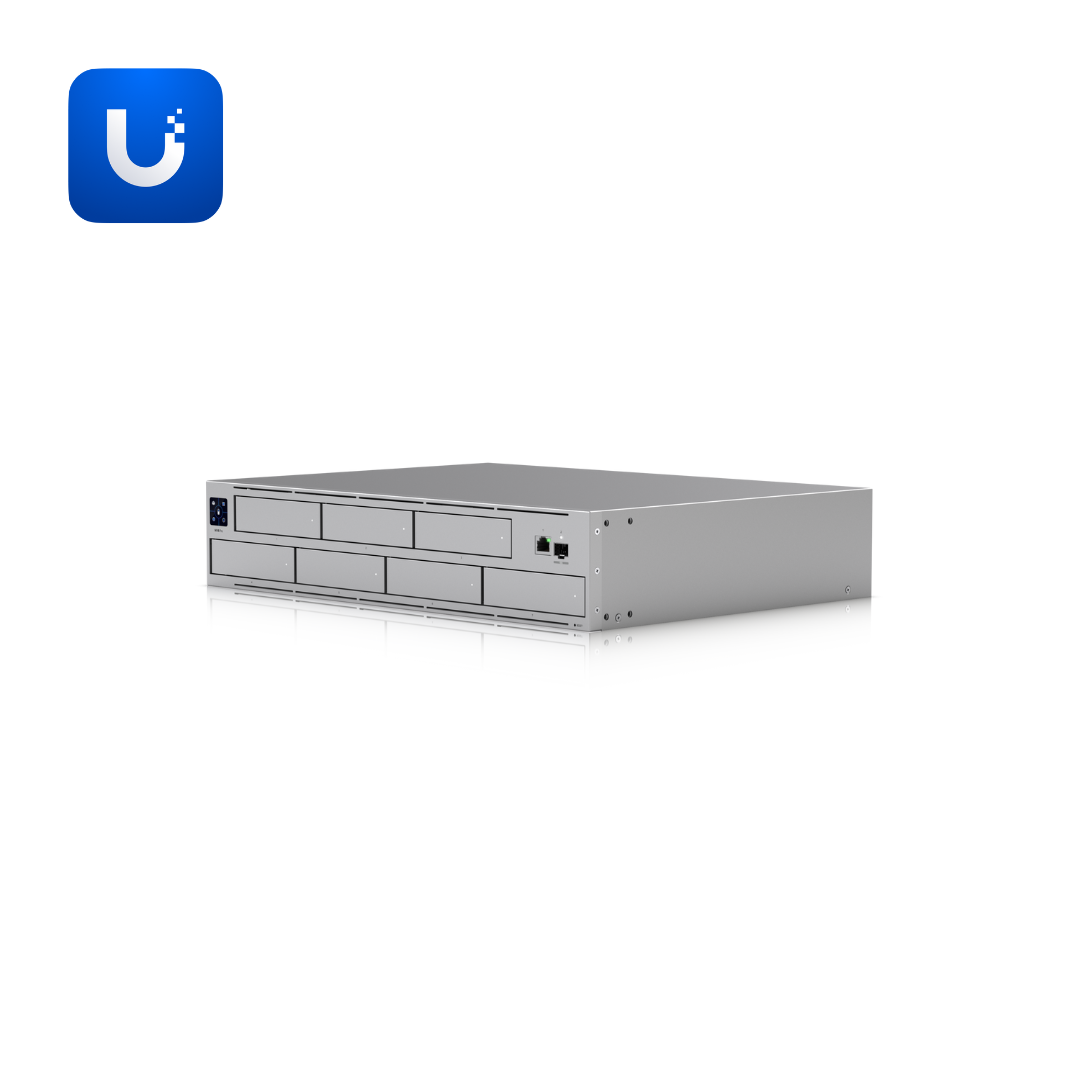

Network Video Recorder Pro
The UNVR-Pro (Network Video Recorder Pro) is a professional 2U rack-mount NVR with 7-bay HDD storage, RAID protection, and 10G SFP+ uplink supporting up to 60 days of storage for (24) 4K cameras or (70) Full HD cameras across East Africa. This 2U rack-mount enterprise NVR with RAID and DC power backup delivers:
Perfect for large businesses, educational campuses, healthcare facilities, government institutions, hotels, enterprise security operations centres, and any professional surveillance deployment requiring extensive multi-day 4K NVR storage capacity, RAID protection, DC power backup, and management of up to 70 cameras and 150 access hubs across East and Central Africa.
DATASHEET
- (7) 2.5/3.5" HDD/SSD drive bays — user-expandable
- Manages (70) HD, (35) 2K, and (24) 4K cameras
- Manages 150 UniFi Access hubs
- (1) 10G SFP+ uplink port and (1) GbE RJ45 port
- RAID data protection
- DC power backup readiness via USP-RPS (11.5V DC, 13.91A)
- Quad ARM® Cortex®-A57 cores at 1.7 GHz processor and 8 GB memory
- UniFi Protect and UniFi Access management
- Vantage Point video wall support
- 1.3" touchscreen display
- 200W internal AC power supply supporting 100–240V AC universal input
Perfect for large businesses, educational campuses, healthcare facilities, government institutions, hotels, enterprise security operations centres, and any professional surveillance deployment requiring extensive multi-day 4K NVR storage capacity, RAID protection, DC power backup, and management of up to 70 cameras and 150 access hubs across East and Central Africa.
DATASHEET
About the Network Video Recorder Pro
The UNVR-Pro (Network Video Recorder Pro) is a professional 2U rack-mount NVR built for East African enterprise surveillance deployments requiring maximum camera capacity, extensive storage, RAID data protection, and hardware redundancy in a single appliance. Measuring 442 × 325 × 87 mm (17.4 × 12.8 × 3.4") and weighing 9.2 kg (20.3 lb) without or 9.5 kg (20.8 lb) with mounting brackets, the UNVR-Pro features an SGCC steel enclosure and mount with a 1.3" touchscreen display for direct on-unit management. Powered by a Quad ARM® Cortex®-A57 processor at 1.7 GHz with 8 GB memory. DC power backup readiness via USP-RPS (11.5V DC, 13.91A) ensures continued NVR operation during power interruptions — critical for mission-critical East African surveillance deployments.
The UNVR-Pro manages (70) HD, (35) 2K, and (24) 4K cameras simultaneously via UniFi Protect — providing up to 60 days of storage capacity for a 24-camera 4K deployment. (7) user-expandable 2.5/3.5" HDD/SSD drive bays with a maximum PoE power budget for drives of 135W accommodate large consumer and enterprise-grade hard drives for scalable storage. RAID data protection safeguards surveillance recordings against single drive failure. (1) 10G SFP+ uplink and (1) GbE RJ45 port provide flexible high-speed network connectivity to core switching infrastructure. 150 UniFi Access hubs are managed via UniFi Access for comprehensive access control integration. Vantage Point video wall support enables multi-screen live view monitoring across East African security operations centres.
Additional specifications:
Ideal for large businesses, educational campuses, healthcare facilities, government institutions, hotels, enterprise security operations centres, and any professional surveillance deployment across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 2U rack-mount NVR storage for up to 24 4K or 70 HD cameras, 7-bay expandable HDD storage, RAID data protection, DC power backup, 10G SFP+ uplink, and unified UniFi Protect and Access management.
The UNVR-Pro manages (70) HD, (35) 2K, and (24) 4K cameras simultaneously via UniFi Protect — providing up to 60 days of storage capacity for a 24-camera 4K deployment. (7) user-expandable 2.5/3.5" HDD/SSD drive bays with a maximum PoE power budget for drives of 135W accommodate large consumer and enterprise-grade hard drives for scalable storage. RAID data protection safeguards surveillance recordings against single drive failure. (1) 10G SFP+ uplink and (1) GbE RJ45 port provide flexible high-speed network connectivity to core switching infrastructure. 150 UniFi Access hubs are managed via UniFi Access for comprehensive access control integration. Vantage Point video wall support enables multi-screen live view monitoring across East African security operations centres.
Additional specifications:
- Max. power consumption: 160W
- Power supply: 200W internal AC/DC (100–240V AC, 3A max., 50/60 Hz)
- Management via Ethernet
- Operating temperature: -5°C to 40°C (23°F to 104°F)
- Operating humidity: 5–95% non-condensing
- CE, FCC, IC, and Anatel certified, fully NDAA compliant
Ideal for large businesses, educational campuses, healthcare facilities, government institutions, hotels, enterprise security operations centres, and any professional surveillance deployment across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 2U rack-mount NVR storage for up to 24 4K or 70 HD cameras, 7-bay expandable HDD storage, RAID data protection, DC power backup, 10G SFP+ uplink, and unified UniFi Protect and Access management.
