Network Video Recorder Instant

The Network Video Recorder Instant (UNVR-Instant) combines NVR recording, PoE switching, and camera viewing in one compact desktop device. Records up to (15) Full HD, (8) 2K, or (6) 4K cameras with (1) 3.5" HDD bay (11W max drive power) and includes data protection for video integrity. Features an integrated 6-port Gigabit PoE switch with 40W total budget (15.4W per port, 44-57V) to power cameras directly without separate switches. Built-in HDMI Viewport enables direct camera viewing on any HDMI display without additional hardware. Powered by quad-core ARM Cortex-A55 processor at 1.7GHz with 4GB memory, handling multiple camera streams efficiently. Compact 220 × 220 × 47 mm desktop design (1.04 kg) with polycarbonate enclosure includes wall mount and DIN rail mount for flexible installation. Networking includes (1) GbE uplink port, (6) GbE PoE downlink ports, and (1) HDMI port. Internal 60W AC/DC power supply (100-240VAC, 50/60 Hz) with 9W system consumption provides 40W PoE budget for cameras. Features 1.14" status display, Ethernet and Bluetooth management, Ethernet and PoE LEDs for monitoring. Runs UniFi Protect for video management and UniFi Access for door control (50 Access Hubs) with Vantage Point support. Operates 0-40°C with 5-95% non-condensing humidity tolerance. NDAA compliant with FCC, IC, CE, Electrical Safety, SRRC, and Anatel certifications. Ideal for small offices, retail stores, remote locations, branch offices, and installations requiring complete NVR, PoE switching, and display capabilities in single compact unit without rack-mount infrastructure.

Technical Specifications

• Camera Capacity: (15) HD, (8) 2K, or (6) 4K cameras

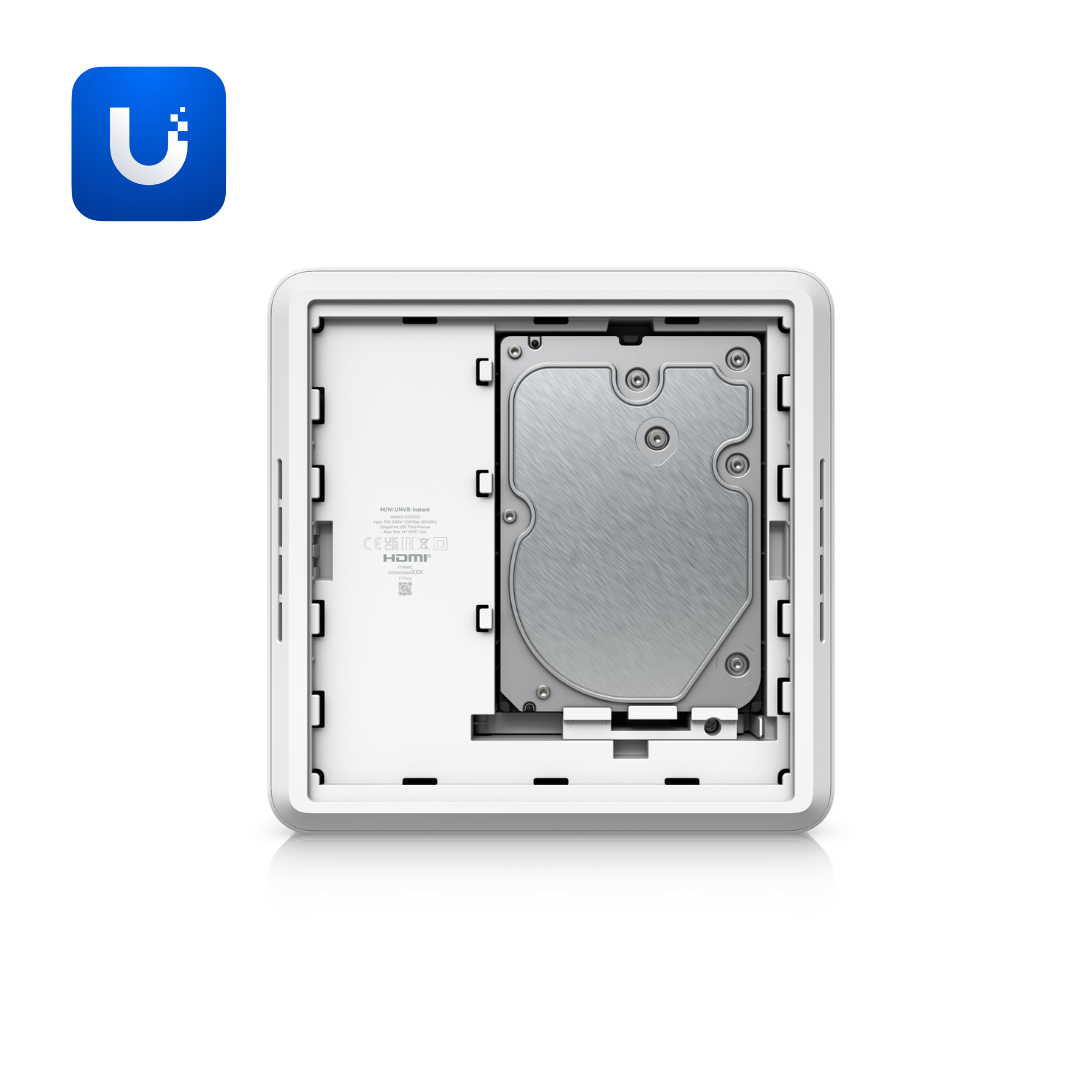

• Storage: (1) 3.5" HDD bay with data protection (11W max drive power)
• Access Control: Supports 50 managed Access Hubs
• Integrated Switch: (6) GbE PoE ports, 40W total budget, 15.4W per port (44-57V)

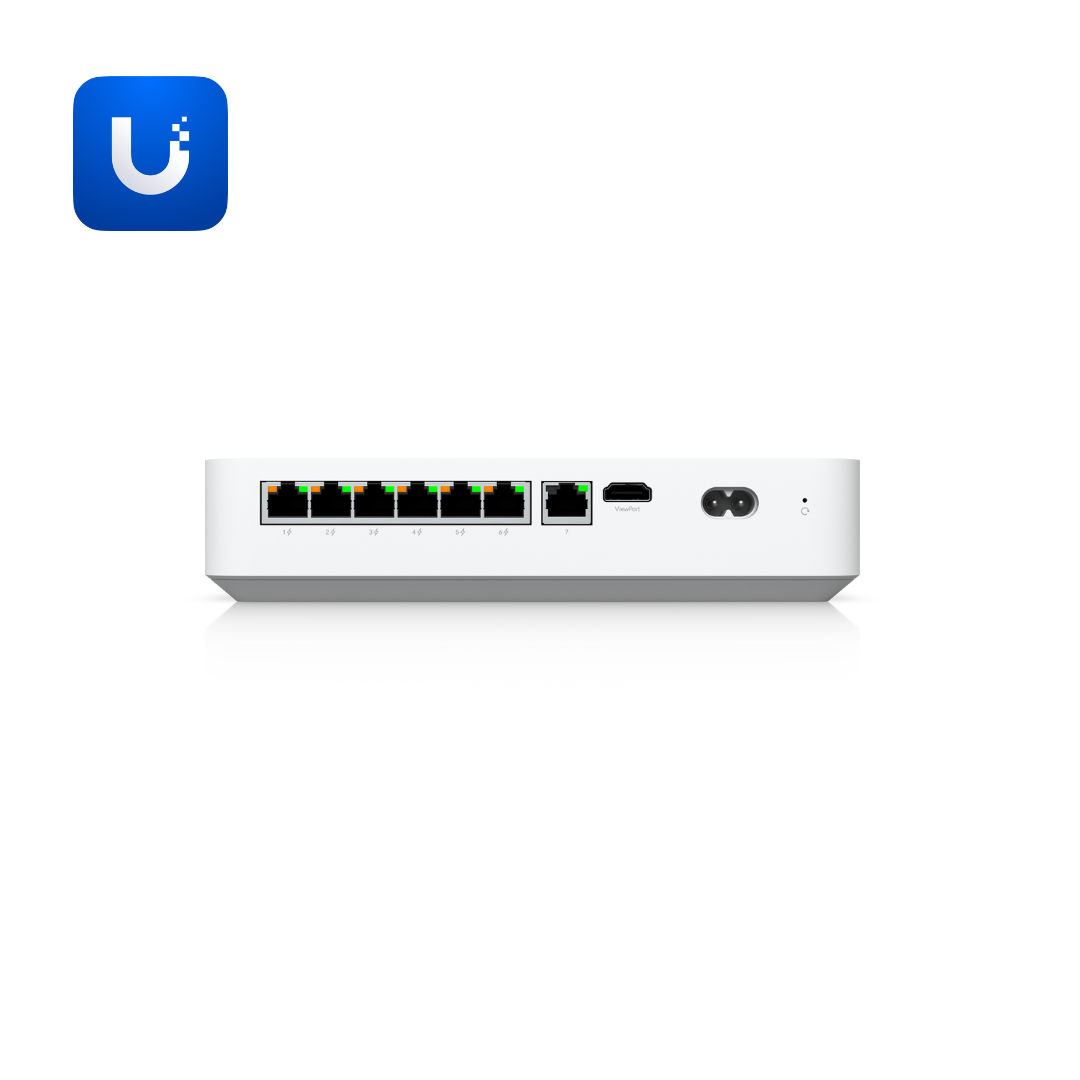

• Networking: (1) GbE RJ45 uplink port
• Display: (1) HDMI port (integrated Viewport), 1.14" status screen
• Processor: Quad-core ARM Cortex-A55 at 1.7GHz
• Memory: 4GB
• Power: 60W AC/DC internal PSU (100-240VAC, 50/60 Hz), 9W system consumption
• PoE Budget: 40W total (15.4W max per port)
• Form Factor: Compact desktop (220 × 220 × 47 mm / 8.7 × 8.7 × 1.9")
• Weight: 1.04 kg (2.3 lb)
• Material: Polycarbonate enclosure and mounts
• Mounting: Wall mount and DIN rail mount included
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Humidity: 5-95% non-condensing
• LEDs: Ethernet, PoE status indicators
• Management: Ethernet, Bluetooth
• Applications: UniFi Protect, UniFi Access, Vantage Point
• Certifications: NDAA compliant, FCC, IC, CE, Electrical Safety, SRRC, Anatel: 06781-25-08356

Order Now

Order the Network Video Recorder Instant (UNVR-Instant) today for complete surveillance infrastructure in one compact device with integrated PoE switching, NVR recording, and HDMI display output. Contact our team or request a quote for expert assistance with UniFi Protect deployments.
