LTU Rocket
The LTU-Rocket (LTU Rocket) is a 5 GHz PtMP LTU BaseStation Radio with advanced RF filtering, GPS synchronisation, 900+ Mbps throughput, and 100+ client capacity for point-to-multipoint wireless networks across East Africa. This 5 GHz LTU PtMP base station with GPS sync and IP67 weatherproofing delivers:
Perfect for WISP PtMP base station deployments, ISP tower installations, rural broadband infrastructure, long-range subscriber access networks, and any deployment requiring a high-performance 5 GHz LTU base station with 100+ client capacity, GPS synchronisation, advanced RF filtering, and 900+ Mbps throughput across East and Central Africa.
DATASHEET
- Integrated 5 GHz advanced RF filtering performance
- 900+ Mbps maximum throughput (FW 2.3.0 and later)
- 100+ client capacity
- 100+ km maximum range
- 2+ Mpps processing
- Dedicated spectral analysis radio
- Integrated GPS synchronisation with external magnetic base GPS antenna
- Dedicated management radio (2400–2483.5 MHz)
- (2) RP-SMA waterproof RF connectors and (1) SMA waterproof GPS connector
- Operating frequency: 4800–6200 MHz worldwide
- 29 dBm maximum conducted TX power
- Channel bandwidth: 10/20/30/40/50/60/80/100 MHz (FW 2.3.0 and later)
- Passive PoE 4-pair and 2-pair powered at 24W maximum (18–54V DC)
- 24V, 1A gigabit PoE adapter included
- (2) GbE RJ45 networking interfaces
- IP67 weatherproofing
- Rocket mount compatible — GPS pole mount included
- 244 × 82 × 48 mm (9.6 × 3.2 × 1.9") — 468 g (1 lb)
- WPA2-PSK (AES) encryption
- Compatible with LTU devices only
Perfect for WISP PtMP base station deployments, ISP tower installations, rural broadband infrastructure, long-range subscriber access networks, and any deployment requiring a high-performance 5 GHz LTU base station with 100+ client capacity, GPS synchronisation, advanced RF filtering, and 900+ Mbps throughput across East and Central Africa.
DATASHEET
About the LTU Rocket

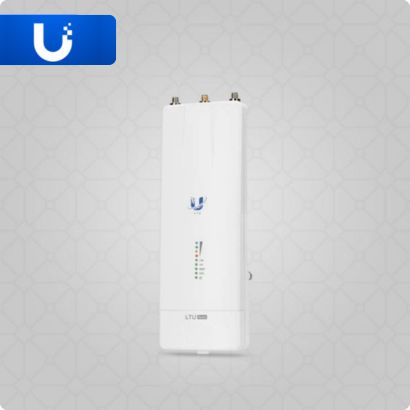

The LTU-Rocket (LTU Rocket) is a 5 GHz PtMP LTU base station radio incorporating Ubiquiti's proprietary LTU technology — breaking through the limitations of standard 802.11 Wi-Fi to deliver superior performance, 100+ client capacity, and 900+ Mbps throughput from a single base station serving East African WISP subscriber networks. In a compact diecast aluminium and polycarbonate enclosure measuring 244 × 82 × 48 mm (9.6 × 3.2 × 1.9") weighing 468 g (1 lb), the LTU-Rocket features an integrated pole mount, GPS pole mount kit included, and is Rocket mount compatible. IP67 weatherproofing. Operating temperature: -40°C to 55°C (-40°F to 131°F). Fully NDAA compliant. Compatible with LTU devices only — LTU-Pro, LTU-Lite, and LTU-LR as subscriber stations.
The LTU-Rocket operates across the wide 4800–6200 MHz worldwide frequency range delivering 900+ Mbps maximum throughput (FW 2.3.0 and later) with 100+ simultaneous client capacity over 100+ km maximum range. 29 dBm maximum conducted TX power. Channel bandwidth of 10/20/30/40/50/60/80/100 MHz with configurable uplink/downlink ratio (25/75, 33/67, 50/50) and independent TX and RX channel frequency configurations for local interference avoidance. Integrated GPS synchronisation enables multi-sector co-location without inter-sector interference. Proprietary RF filtering delivers superior interference rejection. 2+ Mpps processing. Software features include airView, speed test, alignment, discovery, ping, traceroute, cable test, constellation, auto distance and power adjustment, SNMP, SSH, dynamic DNS, remote log, ping watchdog, Bluetooth management via UISP App. WPA2-PSK (AES) encryption. (2) GbE RJ45 ports with passive PoE 4-pair and 2-pair input (18–54V DC) at 24W maximum.
Additional specifications:
Ideal for WISP PtMP base station deployments, ISP tower installations, rural broadband infrastructure, long-range subscriber access networks, and PtMP deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 5 GHz LTU base station performance with 900+ Mbps throughput, 100+ client capacity, GPS synchronisation, advanced RF filtering, IP67 weatherproofing, and 100+ km maximum range.
The LTU-Rocket operates across the wide 4800–6200 MHz worldwide frequency range delivering 900+ Mbps maximum throughput (FW 2.3.0 and later) with 100+ simultaneous client capacity over 100+ km maximum range. 29 dBm maximum conducted TX power. Channel bandwidth of 10/20/30/40/50/60/80/100 MHz with configurable uplink/downlink ratio (25/75, 33/67, 50/50) and independent TX and RX channel frequency configurations for local interference avoidance. Integrated GPS synchronisation enables multi-sector co-location without inter-sector interference. Proprietary RF filtering delivers superior interference rejection. 2+ Mpps processing. Software features include airView, speed test, alignment, discovery, ping, traceroute, cable test, constellation, auto distance and power adjustment, SNMP, SSH, dynamic DNS, remote log, ping watchdog, Bluetooth management via UISP App. WPA2-PSK (AES) encryption. (2) GbE RJ45 ports with passive PoE 4-pair and 2-pair input (18–54V DC) at 24W maximum.
Additional specifications:
- CE, FCC, and IC certified, fully NDAA compliant
Ideal for WISP PtMP base station deployments, ISP tower installations, rural broadband infrastructure, long-range subscriber access networks, and PtMP deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 5 GHz LTU base station performance with 900+ Mbps throughput, 100+ client capacity, GPS synchronisation, advanced RF filtering, IP67 weatherproofing, and 100+ km maximum range.
