LTU Instant (5-pack)
The LTU-Instant-5 (LTU Instant 5-Pack) is a 5 GHz LTU client with 22 dBi InnerFeed® technology high-gain antenna for point-to-multipoint deployments with the LTU Rocket base station — available as a 5-pack for efficient WISP subscriber rollout across East Africa. This 5 GHz LTU PtMP client with InnerFeed® integrated antenna — 5-pack including feeds and PoE adapters delivers:
Perfect for WISP subscriber rollout, ISP last-mile access, PtMP network expansion, rural broadband deployments, and any large-scale LTU subscriber deployment requiring 22 dBi InnerFeed® client performance with 900+ Mbps throughput in a cost-efficient 5-pack format across East and Central Africa.
DATASHEET
- 22 dBi high-gain antenna with InnerFeed® technology
- 5 GHz operation — 5.15–5.95 GHz (region dependent)
- 900+ Mbps maximum throughput (FW 2.3.0 and later)
- 22 dBm maximum conducted TX power (per chain)
- 20 dB isolation
- Channel bandwidth: 10/20/30/40/50/60/80/100 MHz (FW 2.3.0 and later)
- Uplink/downlink ratio: 25/75, 33/67, 50/50
- Passive PoE 2-pair powered at 9W maximum (22–27V DC)
- (1) GbE RJ45 networking interface — IPX6 weatherproofing
- Easily integrates with LBE 5AC Gen 2 deployments
- Bluetooth management via UISP App — PtMP CPE and PtP modes
- Kit includes (5) feeds and (5) PoE adapters
- Compatible with LTU devices only
Perfect for WISP subscriber rollout, ISP last-mile access, PtMP network expansion, rural broadband deployments, and any large-scale LTU subscriber deployment requiring 22 dBi InnerFeed® client performance with 900+ Mbps throughput in a cost-efficient 5-pack format across East and Central Africa.
DATASHEET
About the LTU Instant (5-pack)

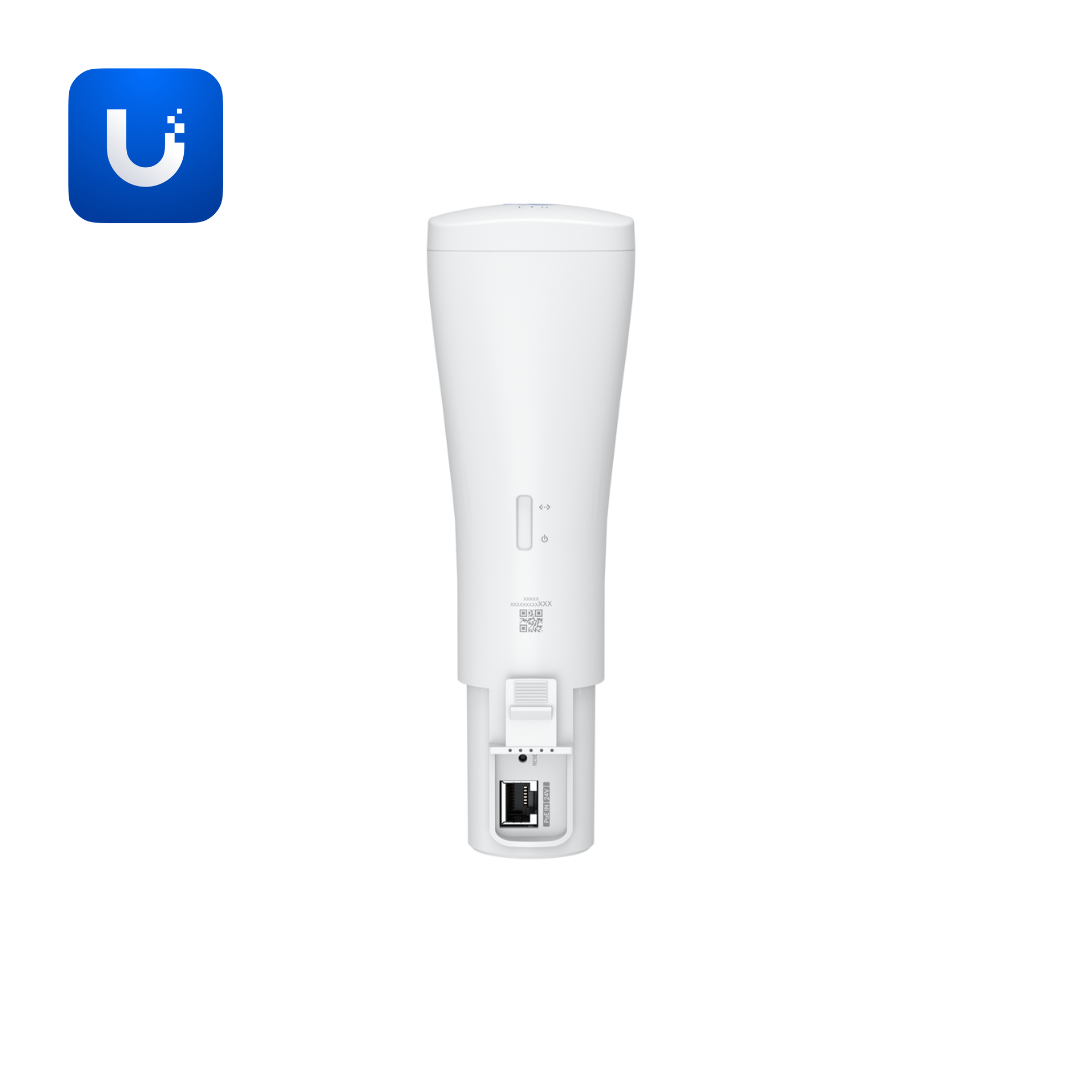

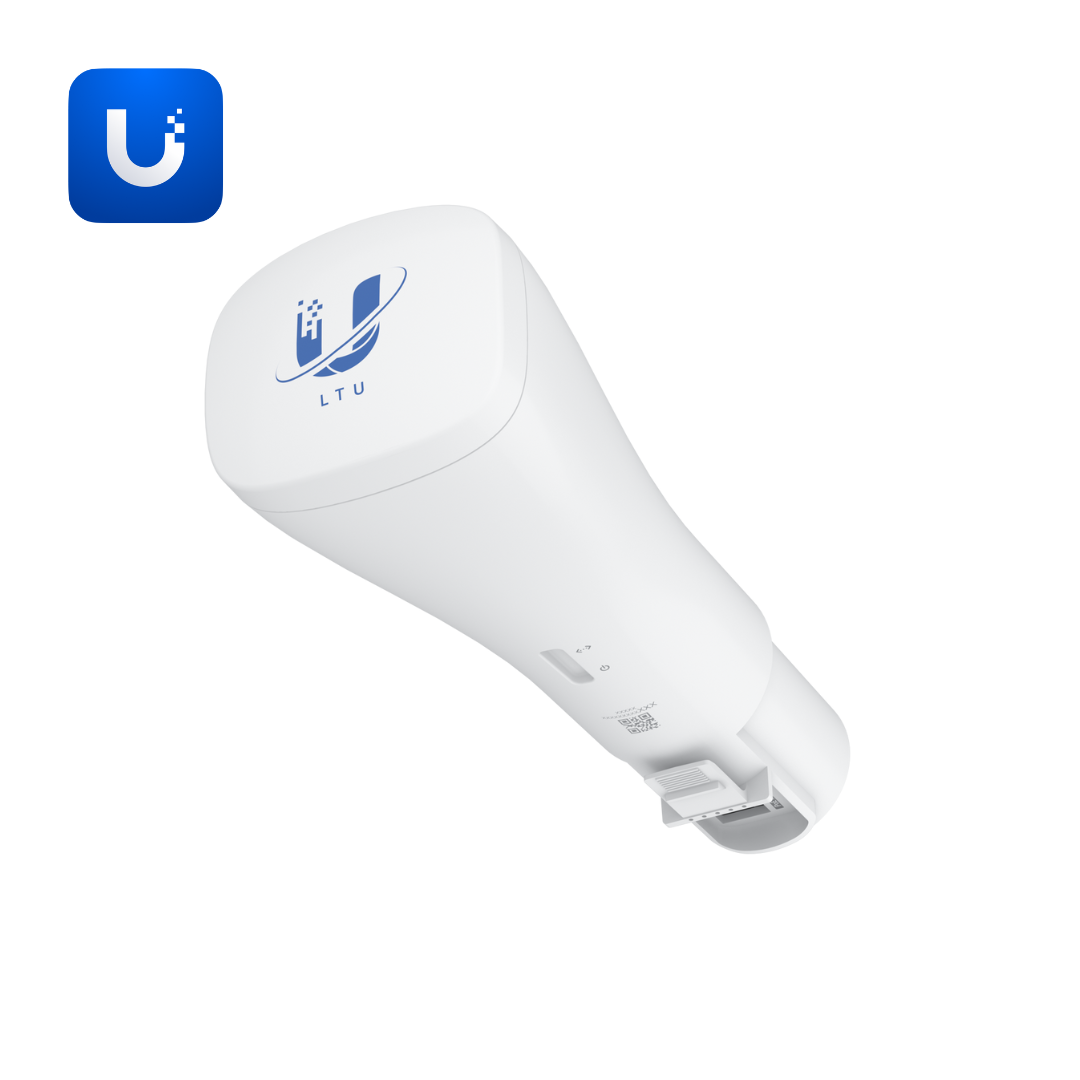

The LTU-Instant-5 (LTU Instant 5-Pack) is a 5 GHz LTU PtMP client featuring proprietary InnerFeed® technology — a design that integrates the radio feed directly into the antenna focal point for maximum gain efficiency and compact form factor. The 5-pack format includes (5) feeds and (5) PoE adapters for efficient bulk subscriber deployment across East African WISP networks. The feed measures 201.5 × 64.2 × 56.2 mm (7.9 × 2.5 × 2.2") and weighs 215 g (7.6 oz), while the antenna measures 358 × 271.9 × 288.5 mm (14.1 × 10.7 × 11.4") and weighs 890 g (2 lb) / 1.1 kg (2.4 lb) with mount. UV-stabilised polycarbonate enclosure with IPX6 weatherproofing. Wind loading of 275 N at 200 km/h (61.8 lbf at 125 mph). Operating temperature: -40°C to 60°C (-40°F to 140°F). Fully NDAA compliant. Compatible with LTU devices only. Easily integrates with existing LBE 5AC Gen 2 deployments.
The LTU-Instant operates across 5.15–5.95 GHz delivering 900+ Mbps maximum throughput (FW 2.3.0 and later) with 22 dBi integrated antenna gain and 22 dBm maximum conducted TX power per chain. Channel bandwidth of 10/20/30/40/50/60/80/100 MHz with configurable uplink/downlink ratio (25/75, 33/67, 50/50). 20 dB isolation. Software features include airView, speed test, alignment, discovery, ping, traceroute, cable test, constellation, auto distance and power adjustment, SNMP, SSH, dynamic DNS, remote log, and ping watchdog. Bluetooth management via UISP App and web UI. Operates in PtMP CPE and PtP modes. WPA2-PSK (AES) encryption.
Additional specifications:
Ideal for WISP subscriber rollout, ISP last-mile access, PtMP network expansion, rural broadband deployments, and large-scale LTU subscriber deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 22 dBi InnerFeed® 5 GHz LTU client performance with 900+ Mbps throughput in a cost-efficient 5-pack format compatible with LTU Rocket base stations.
The LTU-Instant operates across 5.15–5.95 GHz delivering 900+ Mbps maximum throughput (FW 2.3.0 and later) with 22 dBi integrated antenna gain and 22 dBm maximum conducted TX power per chain. Channel bandwidth of 10/20/30/40/50/60/80/100 MHz with configurable uplink/downlink ratio (25/75, 33/67, 50/50). 20 dB isolation. Software features include airView, speed test, alignment, discovery, ping, traceroute, cable test, constellation, auto distance and power adjustment, SNMP, SSH, dynamic DNS, remote log, and ping watchdog. Bluetooth management via UISP App and web UI. Operates in PtMP CPE and PtP modes. WPA2-PSK (AES) encryption.
Additional specifications:
- FCC, IC, and CE certified, fully NDAA compliant
Ideal for WISP subscriber rollout, ISP last-mile access, PtMP network expansion, rural broadband deployments, and large-scale LTU subscriber deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 22 dBi InnerFeed® 5 GHz LTU client performance with 900+ Mbps throughput in a cost-efficient 5-pack format compatible with LTU Rocket base stations.
