LTU Pro
The LTU-Pro (LTU Pro) is a 5 GHz PtMP LTU client with advanced RF performance, integrated radome, 24 dBi gain, and 900+ Mbps throughput for use with the LTU Rocket base station across East Africa. This 5 GHz high-performance LTU PtMP CPE with integrated radome delivers:
Perfect for WISP subscriber connections, ISP last-mile CPE deployments, rural broadband access, 25+ km PtMP coverage, and any deployment requiring high-performance LTU CPE with 24 dBi gain, integrated radome, 900+ Mbps throughput, and LTU Rocket base station compatibility across East and Central Africa.
DATASHEET
- 24 dBi integrated antenna gain
- 5 GHz operation — 5150–5875 MHz worldwide (region dependent)
- 25+ km link range
- 900+ Mbps maximum throughput (FW 2.3.0 and later)
- 22 dBm maximum conducted TX power (per chain)
- 14° beamwidth — -10 dB sidelobe level — 27 dB front-to-back ratio
- Channel bandwidth: 10/20/30/40/50/60/80/100 MHz (FW 2.3.0 and later)
- Uplink/downlink ratio: 25/75, 33/67, 50/50
- Integrated radome for weather protection
- Passive PoE 2-pair powered at 9W maximum (22–27V DC)
- 24V, 0.5A gigabit PoE adapter included
- (1) GbE RJ45 networking interface
- ±24 kV air/contact ESD/EMP protection
- 200 km/h wind survivability — 150 N wind loading (33.72 lbf at 125 mph)
- 316.5 × 316.5 × 174.3 mm (12.5 × 12.5 × 6.9") — 1.3 kg (2.9 lb)
- Bluetooth management via UISP App — PtMP CPE and PtP modes
- WPA2-PSK (AES) encryption — Compatible with LTU devices only
Perfect for WISP subscriber connections, ISP last-mile CPE deployments, rural broadband access, 25+ km PtMP coverage, and any deployment requiring high-performance LTU CPE with 24 dBi gain, integrated radome, 900+ Mbps throughput, and LTU Rocket base station compatibility across East and Central Africa.
DATASHEET
About the LTU Pro

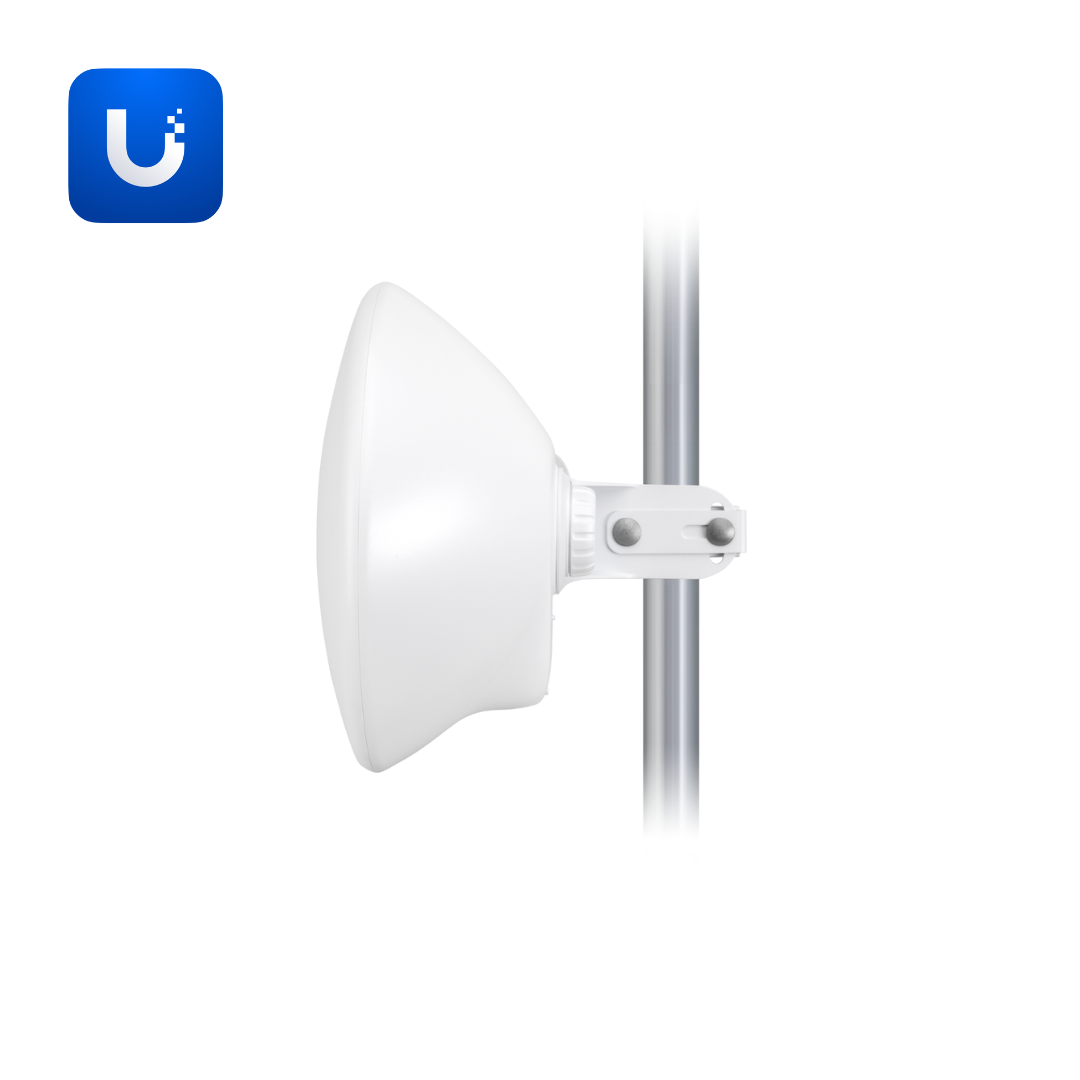

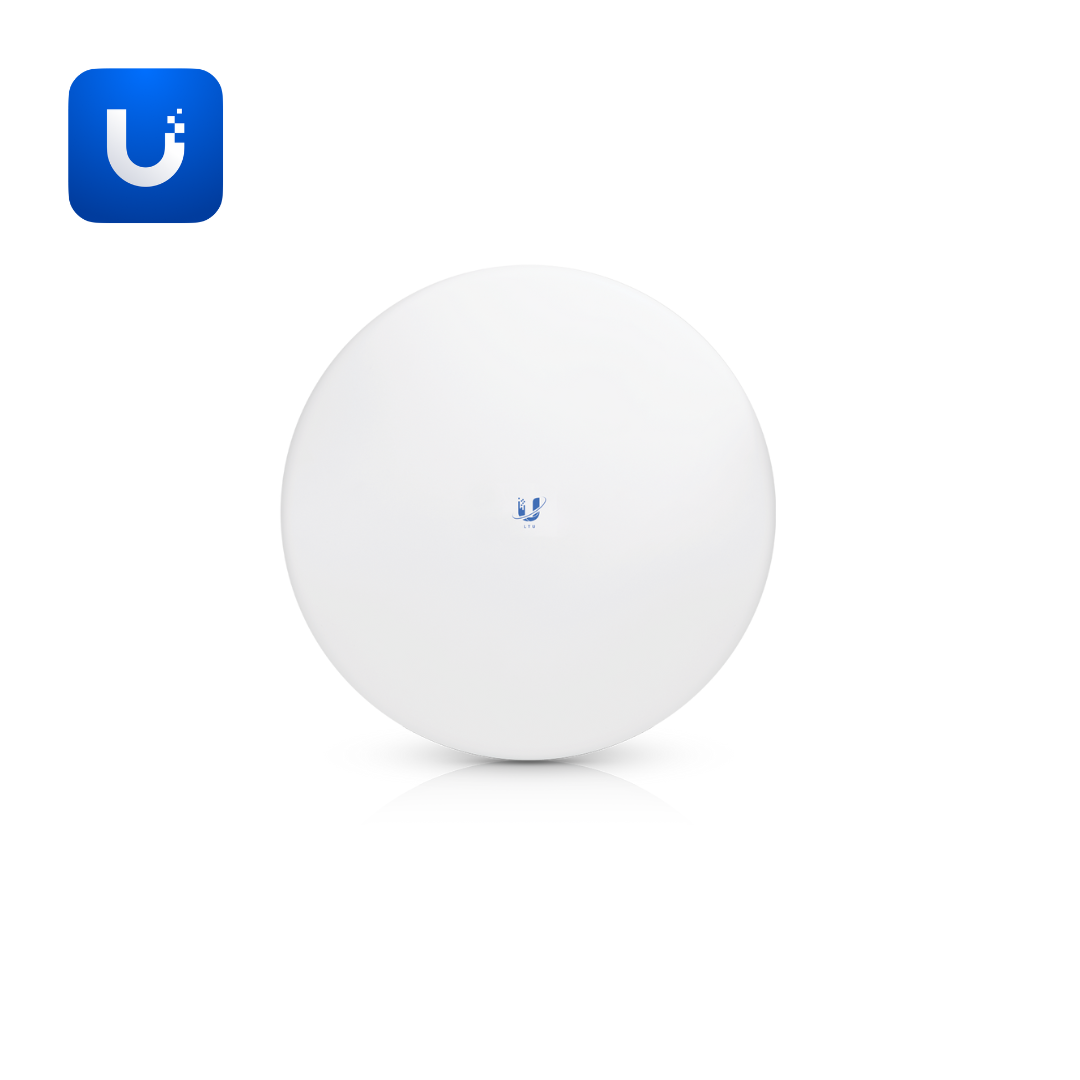

The LTU-Pro (LTU Pro) is a high-performance 5 GHz PtMP LTU subscriber station featuring an integrated high-gain dish antenna with radome and Ubiquiti's proprietary LTU technology — not impeded by the limitations of standard 802.11 Wi-Fi — delivering superior performance and flexible channel width for East African WISP subscriber deployments. Measuring 316.5 × 316.5 × 174.3 mm (12.5 × 12.5 × 6.9") and weighing 1.3 kg (2.9 lb) in a UV-stabilised polycarbonate enclosure with included pole mount kit. The integrated radome provides weather protection for the antenna feed. 200 km/h wind survivability with 150 N wind loading. ±24 kV air/contact ESD/EMP protection. Operating temperature: -40°C to 60°C (-40°F to 140°F). Fully NDAA compliant. Compatible with LTU devices only.
The LTU-Pro operates across 5150–5875 MHz worldwide delivering 900+ Mbps maximum throughput (FW 2.3.0 and later) over 25+ km links with 24 dBi integrated dish gain, 14° beamwidth, -10 dB sidelobe level, 27 dB front-to-back ratio, and 22 dBm maximum conducted TX power per chain. Channel bandwidth of 10/20/30/40/50/60/80/100 MHz allows independent TX and RX channel frequency configurations within the radio band to avoid local interference — a critical feature for dense East African WISP deployments. Configurable uplink/downlink ratio (25/75, 33/67, 50/50). Software features include airView, speed test, alignment, discovery, ping, traceroute, cable test, constellation, auto distance and power adjustment, Bluetooth management via UISP App. WPA2-PSK (AES) encryption.
Additional specifications:
Ideal for WISP subscriber connections, ISP last-mile CPE deployments, rural broadband access, 25+ km PtMP coverage, and wireless deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 5 GHz LTU CPE performance with 24 dBi gain, integrated radome, 900+ Mbps throughput, 25+ km range, advanced RF performance, and LTU Rocket base station compatibility.
The LTU-Pro operates across 5150–5875 MHz worldwide delivering 900+ Mbps maximum throughput (FW 2.3.0 and later) over 25+ km links with 24 dBi integrated dish gain, 14° beamwidth, -10 dB sidelobe level, 27 dB front-to-back ratio, and 22 dBm maximum conducted TX power per chain. Channel bandwidth of 10/20/30/40/50/60/80/100 MHz allows independent TX and RX channel frequency configurations within the radio band to avoid local interference — a critical feature for dense East African WISP deployments. Configurable uplink/downlink ratio (25/75, 33/67, 50/50). Software features include airView, speed test, alignment, discovery, ping, traceroute, cable test, constellation, auto distance and power adjustment, Bluetooth management via UISP App. WPA2-PSK (AES) encryption.
Additional specifications:
- CE, FCC, and IC certified, fully NDAA compliant
Ideal for WISP subscriber connections, ISP last-mile CPE deployments, rural broadband access, 25+ km PtMP coverage, and wireless deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 5 GHz LTU CPE performance with 24 dBi gain, integrated radome, 900+ Mbps throughput, 25+ km range, advanced RF performance, and LTU Rocket base station compatibility.
