The

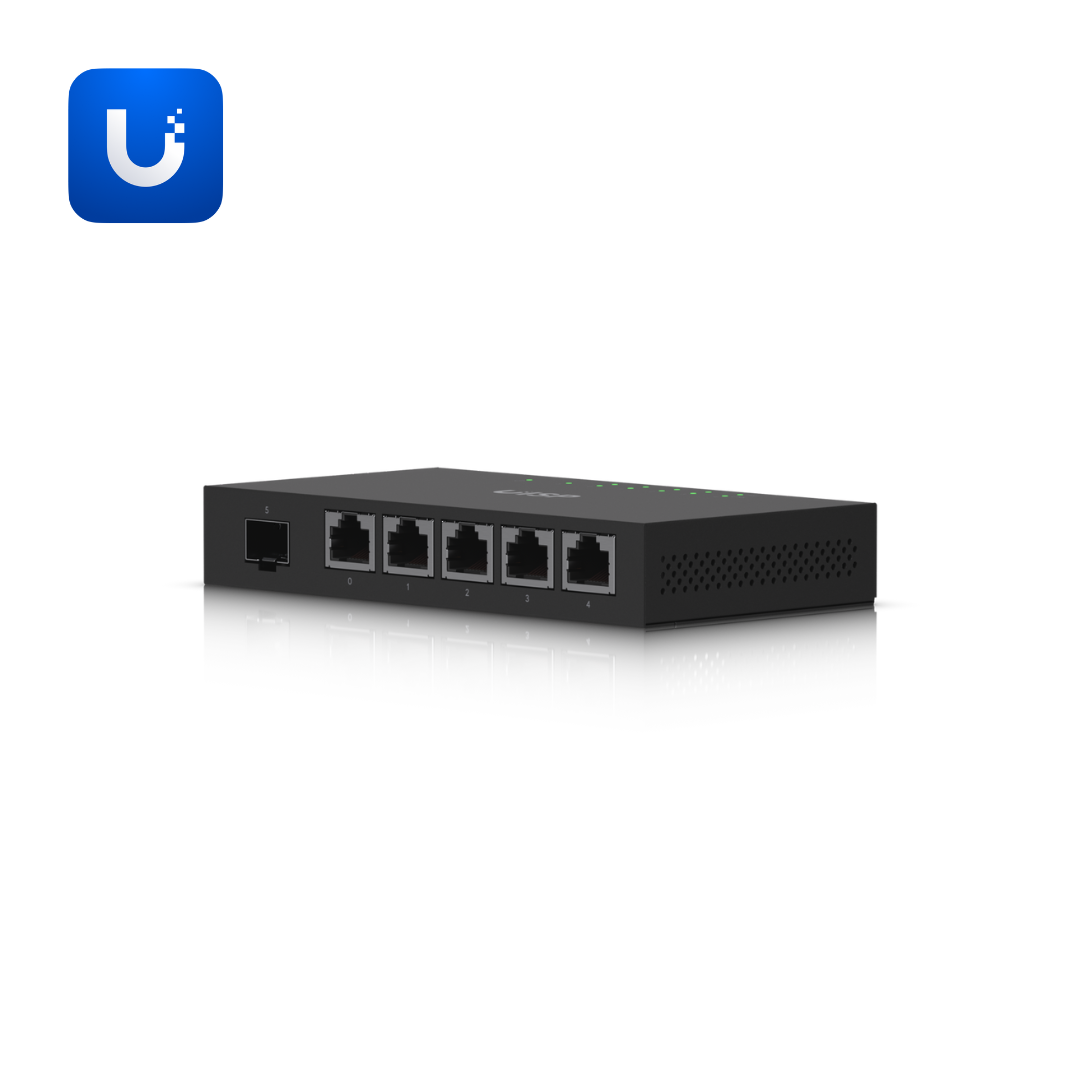

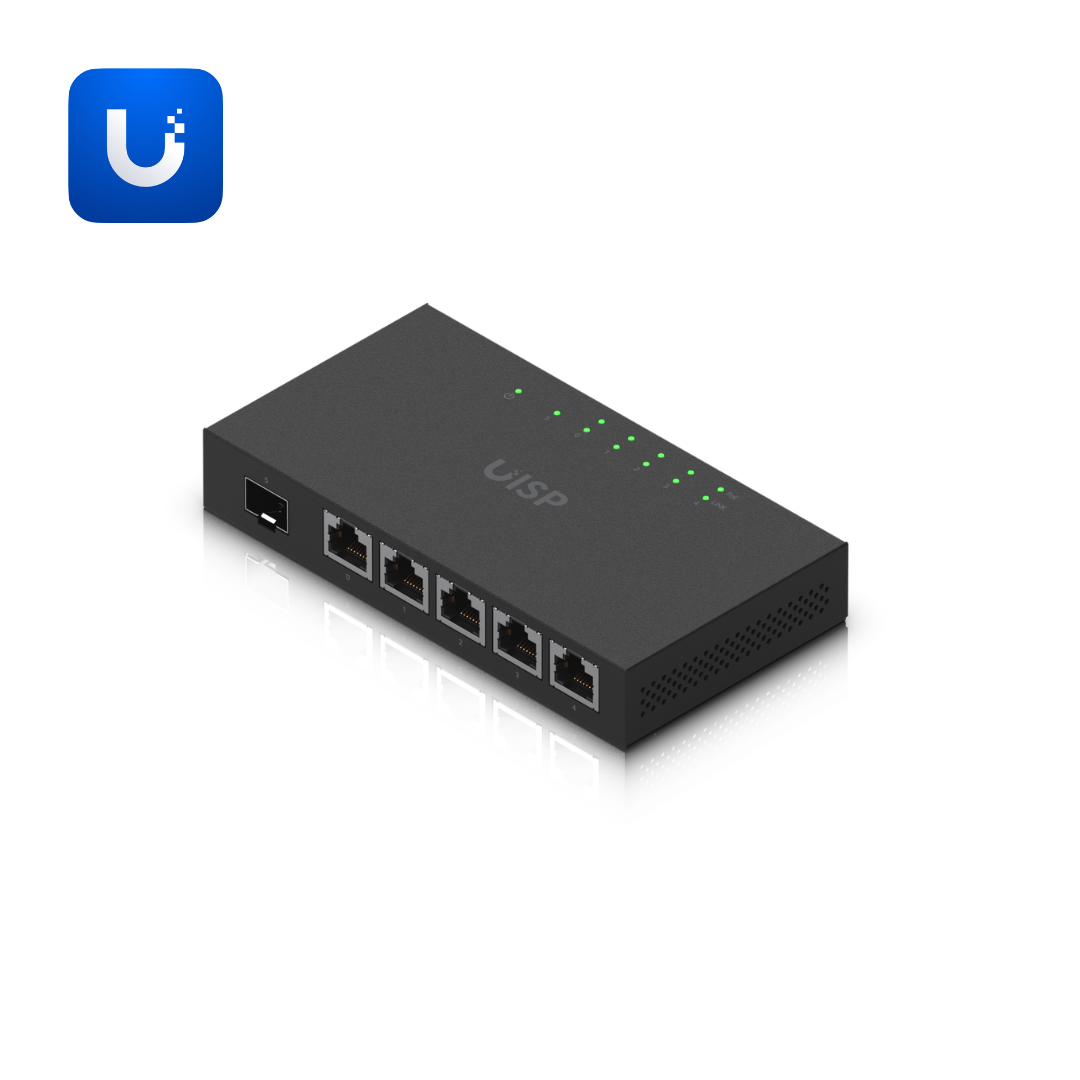

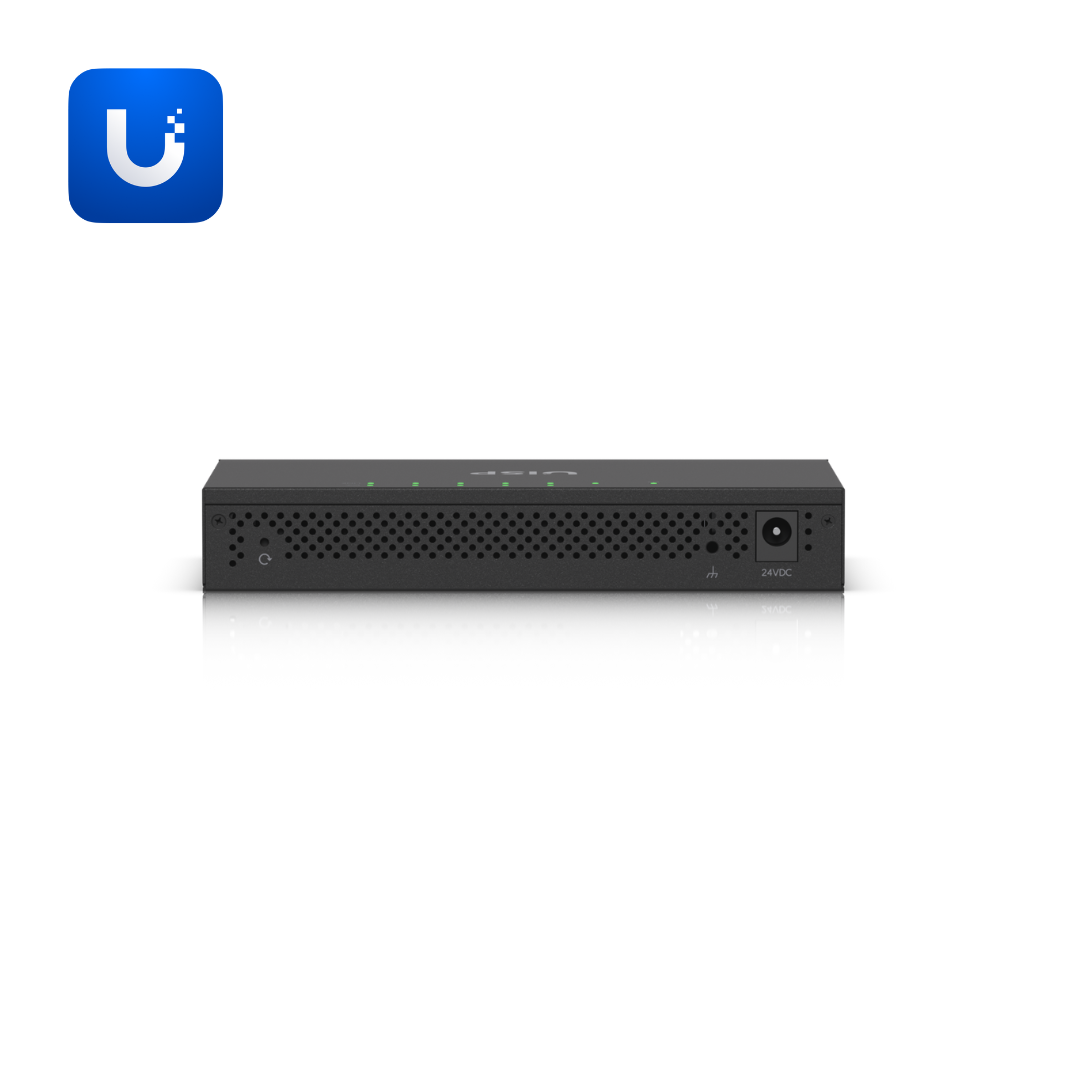

ER-X-SFP (EdgeRouter X SFP) is a
compact advanced Gigabit router combining cost-effective routing performance with 24V passive PoE support on all five RJ45 ports and an SFP port for fibre uplink connectivity in a minimal wall-mount form factor. Measuring
142 × 75 × 23 mm (5.6 × 3 × 0.9") and weighing just
215 g (7.6 oz), the ER-X-SFP delivers
50W total PoE availability at up to 12W per port — enabling simultaneous powering of multiple access points, IP cameras, or VoIP phones from a single compact device. The
±24kV ESD/EMP protection safeguards all connected equipment. Powered by an
included external 24V DC 2.5A AC/DC adapter. The
EdgeOS operating system provides advanced routing features.
Additional specifications:
- Max. power consumption: 5W excluding PoE output
- Total PoE available: 50W at 22–24V DC PoE voltage range
- Supported voltage range: 9–26V DC
- LED indicators: system status and Ethernet port PoE/link/activity
- Operating temperature: -10°C to 45°C (14°F to 113°F)
- Operating humidity: 10–90% non-condensing
- CE, FCC, and IC certified, fully NDAA compliant
Ideal for
small offices, branch locations, and distributed network deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring
compact Gigabit routing with 24V passive PoE on five RJ45 ports, 1G SFP uplink, 50W total PoE availability, ±24kV ESD/EMP protection, and EdgeOS management.
