EdgePoint R8

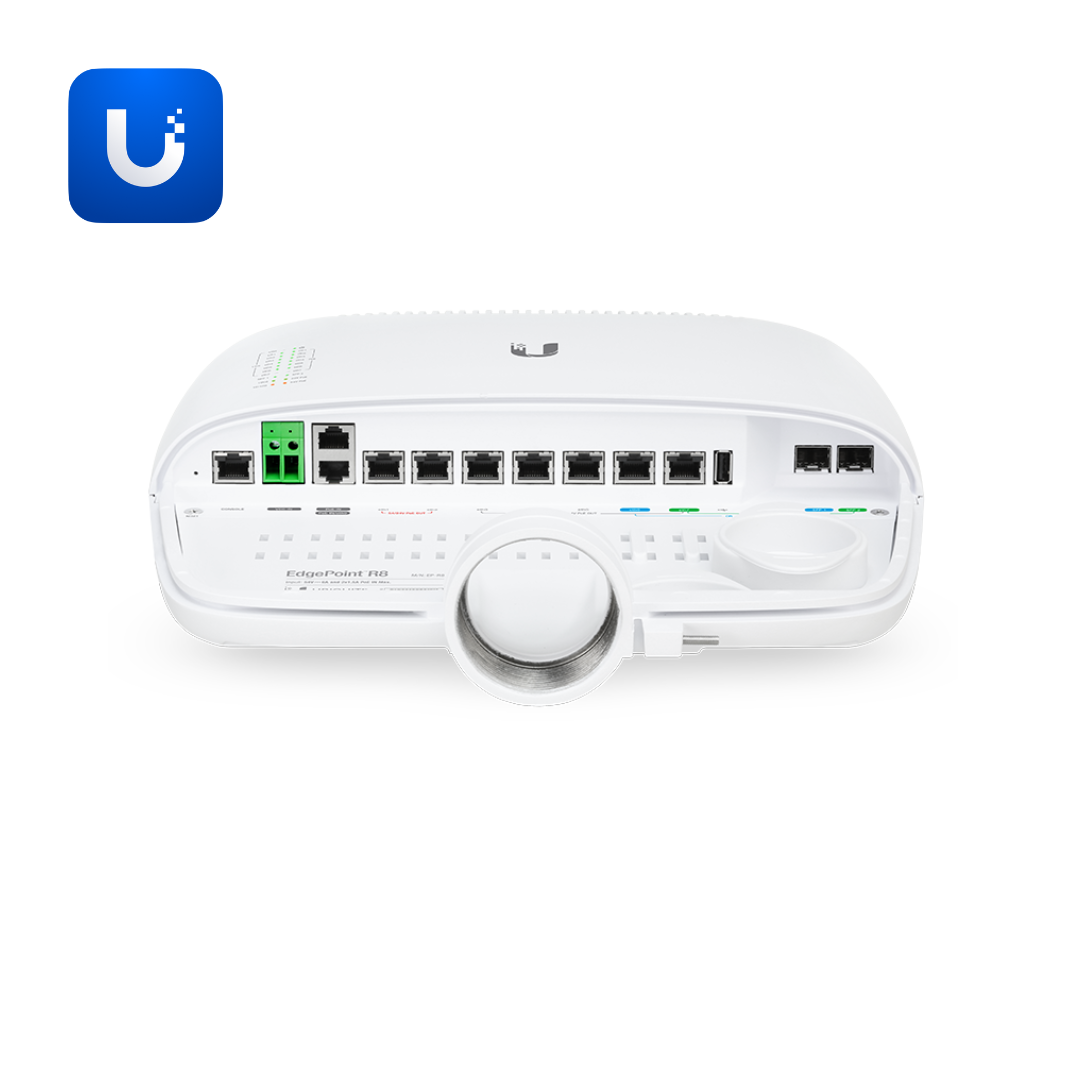

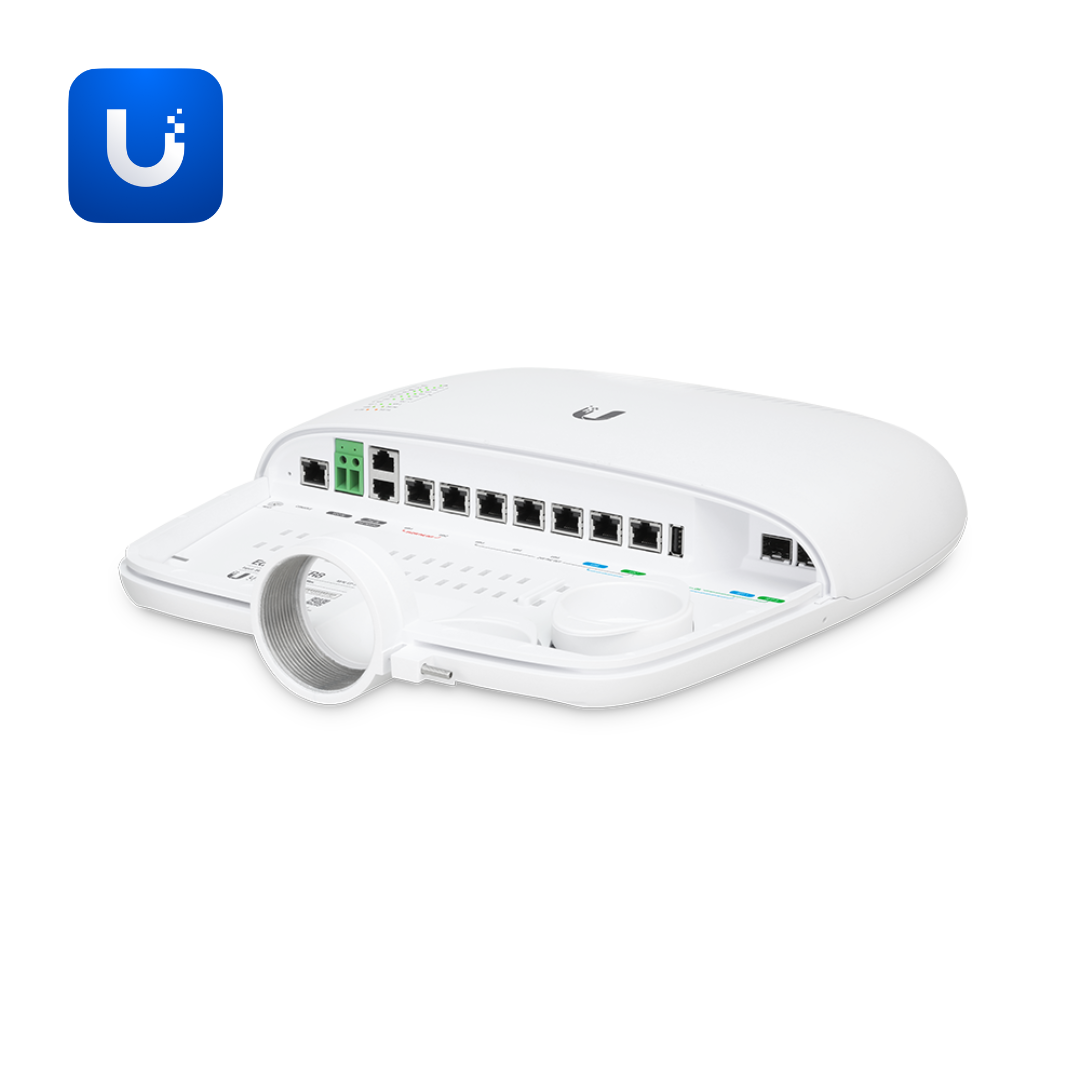

The EP-R8 (EdgePoint R8) is an application-specific WISP outdoor control point combining Layer 3 routing with flexible PoE output and dual RJ45/SFP combination ports in a weatherproof outdoor enclosure for East African wireless ISP tower and rooftop deployments. Measuring 326.6 × 382.7 × 88.8 mm (12.9 × 15.1 × 3.5") without mount and weighing 3.4 kg (7.5 lb) without or 3.8 kg (8.4 lb) with wall mount, the EP-R8 features a diecast aluminium alloy and UV-resistant polycarbonate enclosure with 153 N wind loading at 200 km/h and 200 km/h wind survivability. Powered by a dual-core 600 MHz MIPS64 processor with hardware acceleration for packet processing, 2 GB DDR3-1600 RAM, and 4 GB code storage. Extreme -40°C to 65°C operating temperature.

Power input via (1) DC terminal block (54V DC, 6A) with self-correcting polarity protection and (2) passive PoE inputs on eth0 and PoE-in (54V/1.5A, 4-pair). PoE output: eth1–eth2 at 54V or 24V/1.4A 4-pair and eth3–eth7 at 24V/0.7A 2-pair passive PoE. Power monitoring covers DC terminal block input and PoE-in/eth0 input power. Management via (1) RJ45 serial port. Supported voltage range: 42–56V DC.
Additional specifications:

• Max. power consumption: 40W excluding PoE output
• Wind loading: 153 N at 200 km/h (34 lbf at 125 mph)
• Operating humidity: 10–90% non-condensing
• LED indicators: system power, data port speed/link/activity/PoE, SFP speed/link/activity
• CE, FCC, and IC certified, fully NDAA compliant

Ideal for wireless ISP deployments, outdoor routing control points, tower and rooftop installations, and remote outdoor Layer 3 network infrastructure across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring weatherproof outdoor Layer 3 routing with dual RJ45/SFP combination ports, 54V and 24V passive PoE output, hardware-accelerated packet processing, and extreme -40°C to 65°C temperature tolerance.
