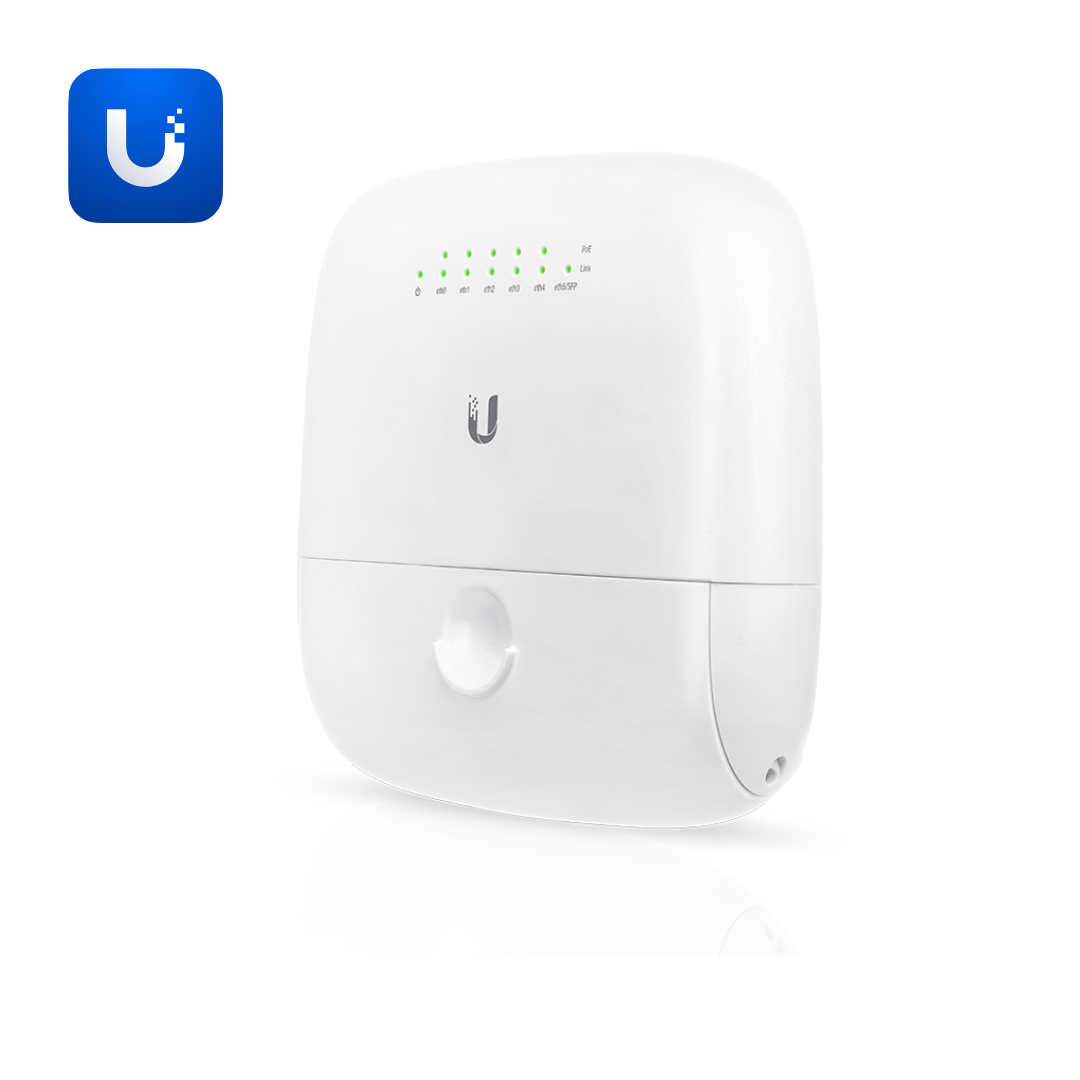

EdgePoint R6

The EP-R6 (EdgePoint R6) is a compact application-specific WISP outdoor control point delivering Layer 3 routing with 24V passive PoE output on all five RJ45 ports and 1G SFP connectivity in a lightweight weatherproof pole-mount enclosure — the most compact EdgePoint control point in the lineup. Measuring 188.6 × 177.1 × 49.8 mm (7.4 × 7 × 2") and weighing just 605 g (1.3 lb), the EP-R6 features a UV-resistant polycarbonate enclosure with pole mount and 46 N wind loading at 200 km/h with 200 km/h wind survivability. Powered by a dual-core 880 MHz MIPS1004Kc processor with 256 MB DDR3-1600 RAM and 256 MB NAND storage. Extreme -40°C to 65°C operating temperature.

Power input via (1) DC terminal block (24V DC, 3A) with self-correcting polarity protection and optional 24V passive PoE input on eth0 (4-pair, 1.4A) — note: do NOT configure eth0 in PoE output mode if using PoE input. PoE output on all five ports (eth0–eth4) at 24V/0.7A 2-pair passive PoE. Power monitoring via DC terminal block and eth0 input power. Supported voltage range: 16–26V DC.
Additional specifications:

• Max. power consumption: 7W excluding PoE output
• Minimum power supply: 24V / 0.3A excluding PoE output
• Wind loading: 46 N at 200 km/h (10.34 lbf at 125 mph)
• Operating humidity: 10–90% non-condensing
• LED indicators: system power, data port speed/link/activity/PoE, SFP speed/link/activity
• CE, FCC, and IC certified, fully NDAA compliant

Ideal for compact wireless ISP deployments, outdoor routing control points, tower and pole installations, and remote outdoor network infrastructure across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring compact weatherproof outdoor Layer 3 routing with 24V passive PoE on all five GbE ports, 1G SFP uplink, and extreme -40°C to 65°C temperature tolerance in the most lightweight WISP control point form factor.
