The
ER-X (EdgeRouter X) is an
ultra-compact advanced Gigabit router delivering cost-effective routing performance with 24V passive PoE flexibility in one of the smallest EdgeRouter form factors available. Measuring just
110 × 75 × 22 mm (4.3 × 3 × 0.9") and weighing only
175 g (6.2 oz), the ER-X supports
wall mounting and can be powered via
included 12V DC adapter or 24V passive PoE — enabling deployment wherever a PoE source is available without requiring a separate power outlet. Powered by a
dual-core 880 MHz MIPS1004Kc processor with 256 MB DDR3 RAM and 256 MB NAND flash storage. The
EdgeOS operating system provides advanced routing, security, and management features.
The
ER-X provides

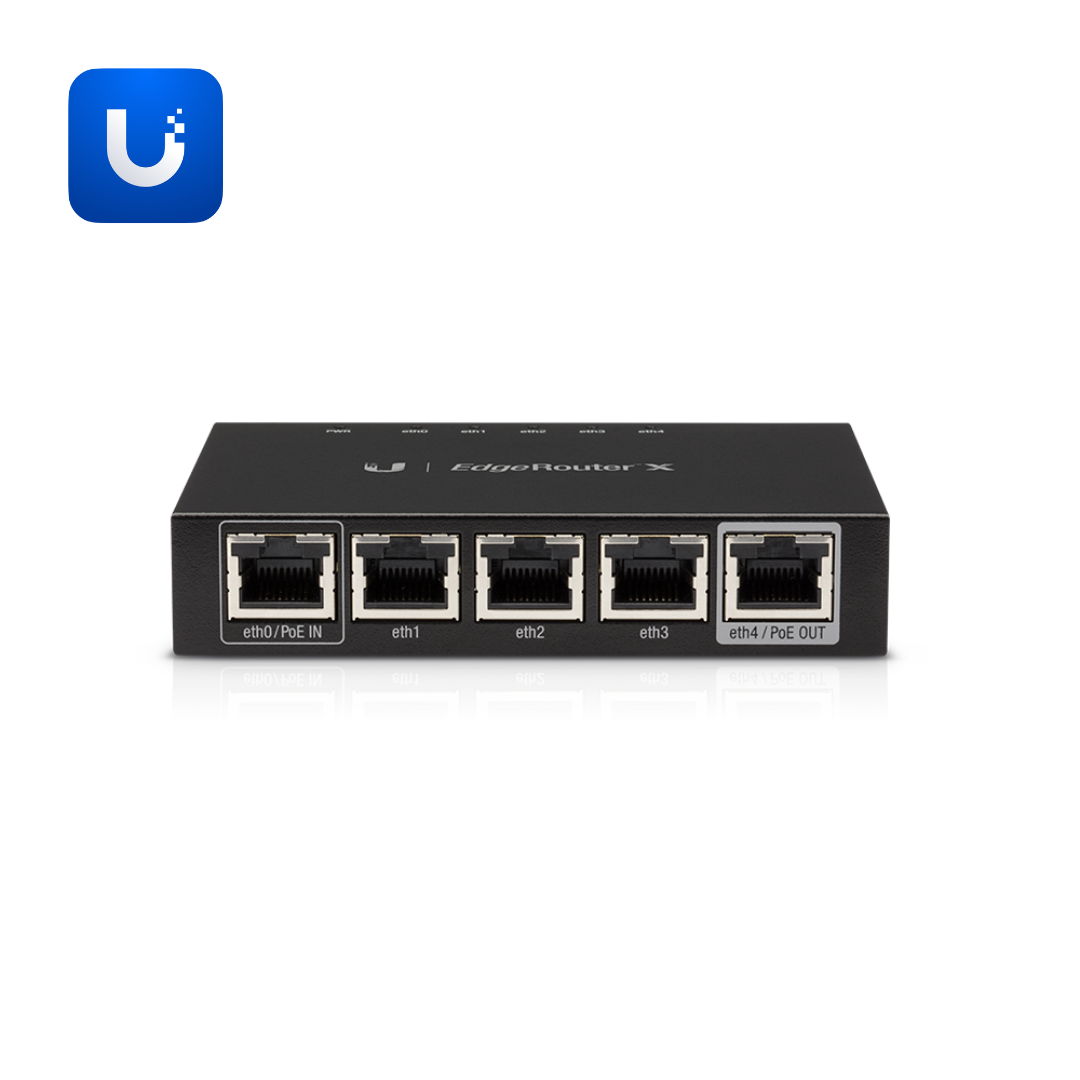

(3) GbE RJ45 ports plus (1) GbE RJ45 PoE data/input port and (1) GbE RJ45 PoE passthrough output port — enabling the router to receive power via PoE and pass it through to a connected PoE device such as an access point without requiring a separate PoE injector.
Additional specifications:
- Max. power consumption: 5W
- Supported voltage range: 9–26V DC
- Operating temperature: -10°C to 45°C (14°F to 113°F)
- Operating humidity: 10–90% non-condensing

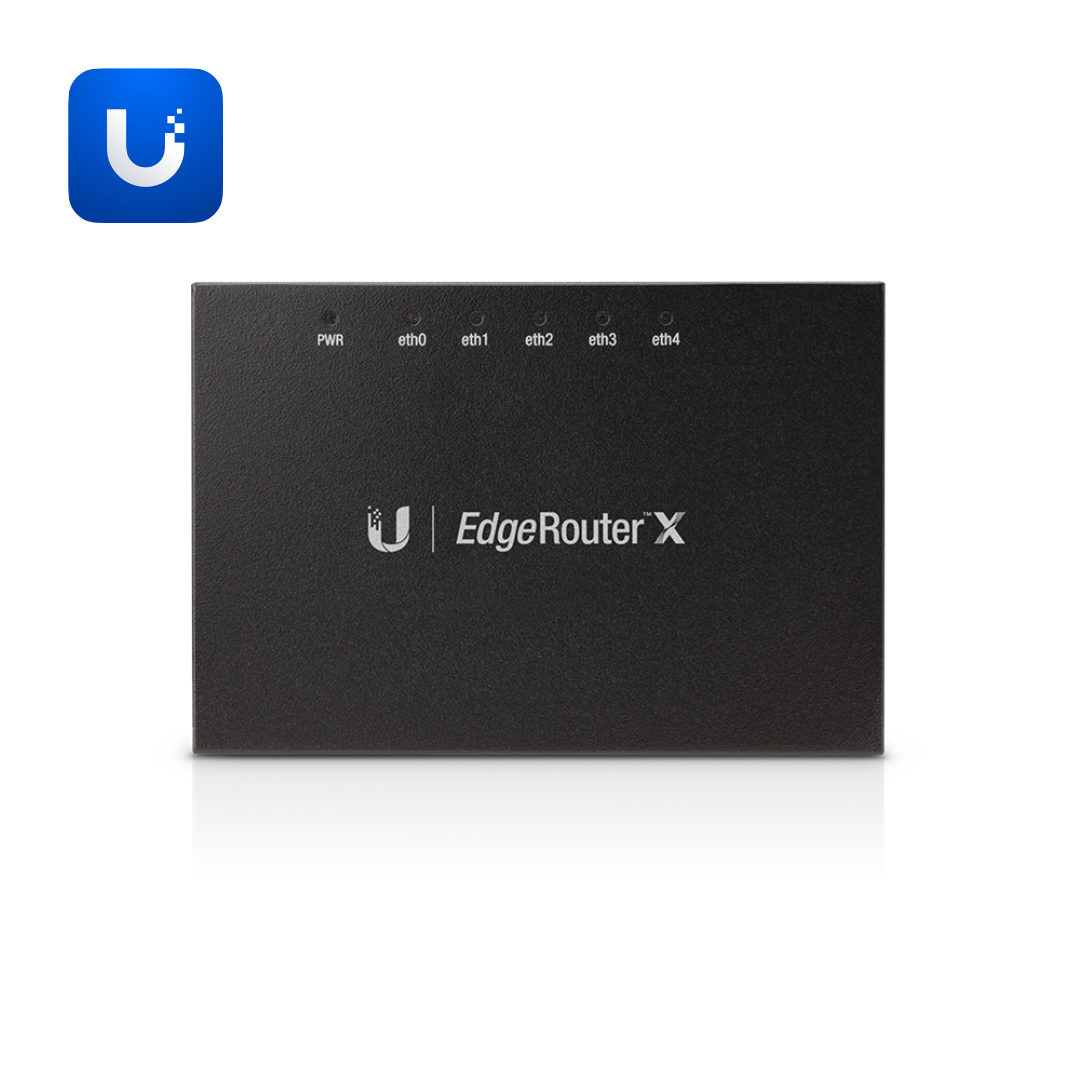

- LED indicators: power and Ethernet
- CE, FCC, and IC certified, fully NDAA compliant
Ideal for
small offices, branch locations, home offices, and remote deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring
cost-effective advanced Gigabit routing with 24V passive PoE input and passthrough, EdgeOS management, and ultra-compact wall-mount design.
