The

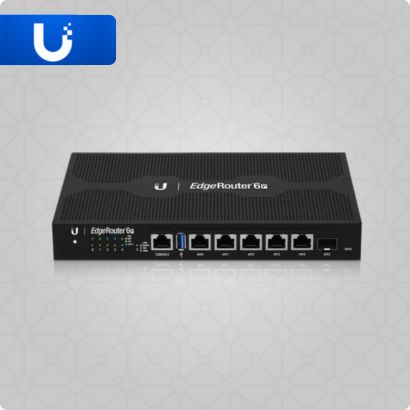

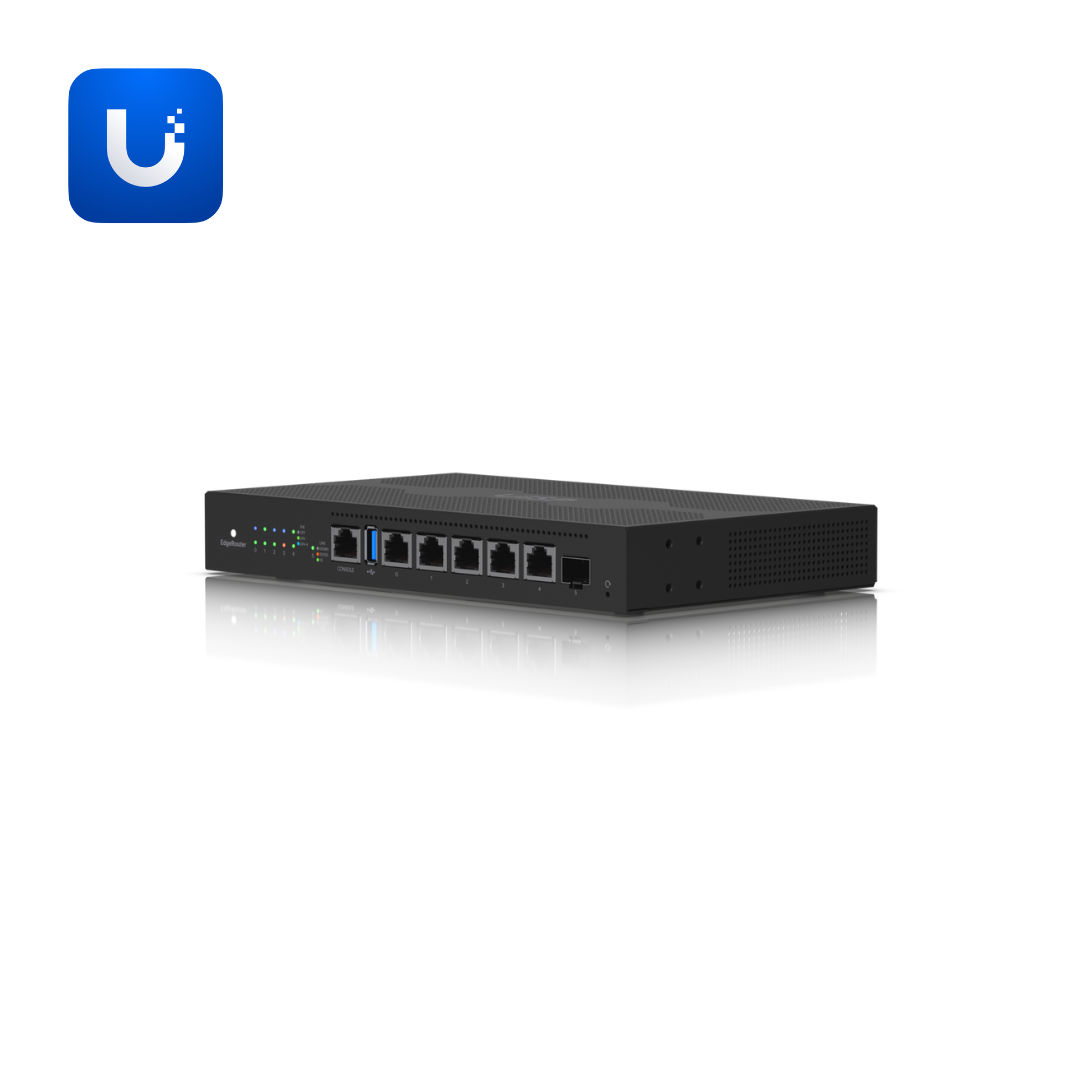

ER-6P (EdgeRouter 6 PoE) is a
fanless high-performance Gigabit PoE router delivering 50% increased performance over the EdgeRouter Pro with 24V passive PoE output on all five RJ45 ports for powering access points, IP cameras, and other PoE devices across East African ISP and enterprise deployments. Measuring
229 × 136.5 × 31.1 mm (9 × 5.4 × 1.2") and weighing
730 g (1.6 lb), the ER-6P features a
metal enclosure and supports
desk, wall, and rack mounting — with optional Rack Mount Kit model ER-RMKIT. Powered by a
four-core 1 GHz MIPS64 processor with 1 GB DDR3 RAM. The
feature-rich EdgeOS makes it a versatile tool for carrier-grade and enterprise networks. Management via
(1) RJ45 serial port.
The
ER-6P provides
(5) GbE RJ45 ports with 24V passive PoE output in both 2-pair and 4-pair modes — delivering up to
24W per port (4-pair) or 12W per port (2-pair) — alongside a
(1) 1G SFP port for fibre uplink connectivity. LED indicators cover Ethernet PoE/link/speed/activity and SFP link/activity.
Additional specifications:
- Max. power consumption: 16W excluding PoE output
- Power supply: external AC/DC adapter 60W, 24V DC, 2.5A (included)
- Supported voltage range: 16–30V DC
- Operating temperature: -10°C to 50°C (14°F to 122°F)
- Operating humidity: 10–90% non-condensing
- CE, FCC, and IC certified, fully NDAA compliant
Ideal for
carrier-grade ISP networks, enterprise routing with PoE device powering, wireless ISP deployments, and professional network infrastructure across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring
high-performance MIPS64 routing with 24V passive PoE on five GbE RJ45 ports, 1G SFP uplink, EdgeOS management, and completely fanless silent operation.
