airMAX LiteBeam 5AC Gen2

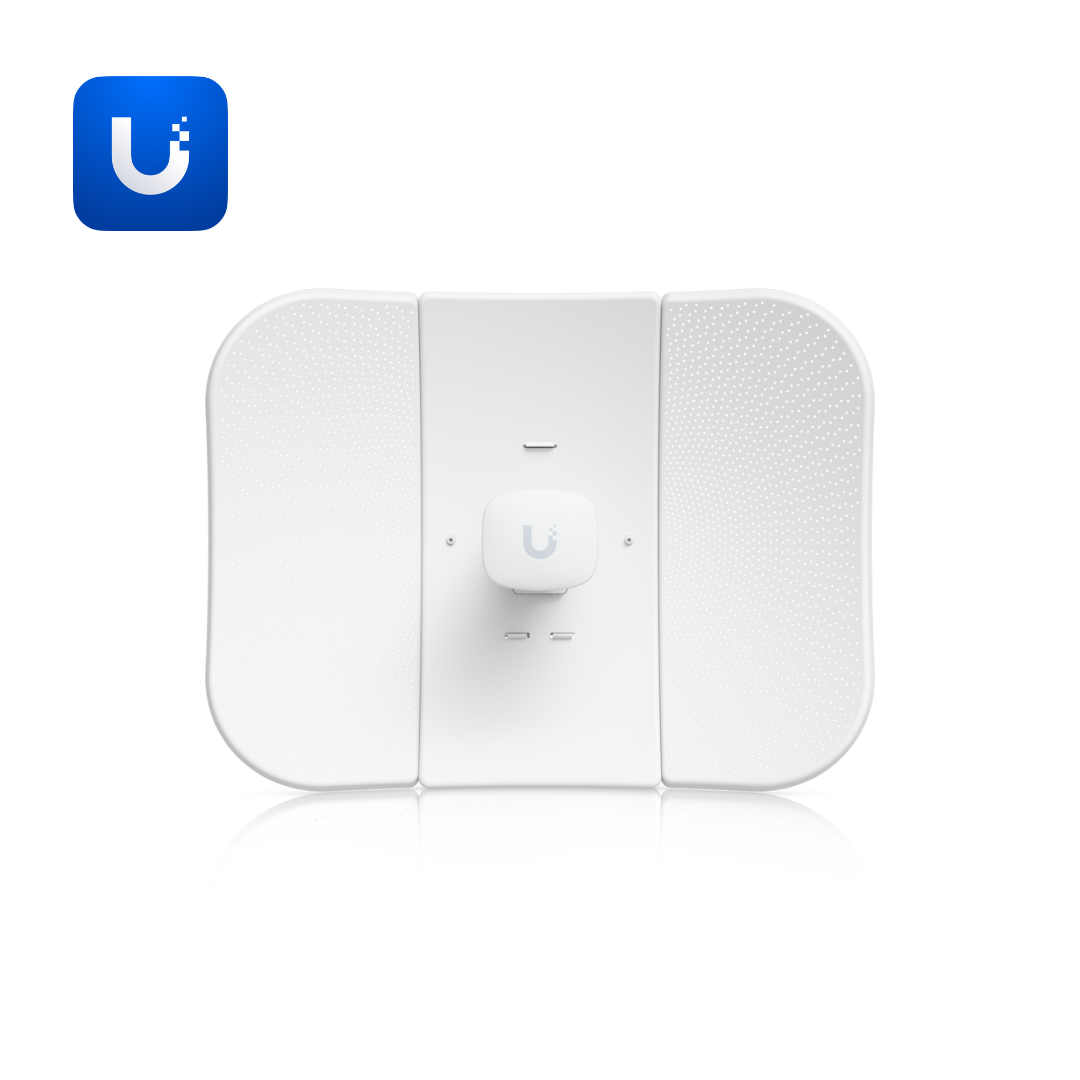

The LBE-5AC-Gen2 (airMAX LiteBeam 5AC Gen2) is an ultra-lightweight 5 GHz PtP wireless bridge designed for fast, cost-effective deployment across East African wireless backhaul and connectivity applications — combining the airMAX ac chipset with a dedicated WiFi management radio, easy assembly, and a lightweight form factor that simplifies installation on towers, rooftops, and poles. Measuring 358 × 271.95 × 272.5 mm (14.1 × 10.7 × 10.7") and weighing 800 g (1.8 lb) without mount or 980 g (2.2 lb) with mount, the LBE-5AC-Gen2 ships with a pole mount kit included. 200 km/h wind survivability with 275 N wind loading. Operating temperature: -40°C to 70°C (-40°F to 158°F). Fully NDAA compliant.

The LBE-5AC-Gen2 operates across 5150–5875 MHz worldwide delivering 450+ Mbps throughput over 15+ km links with 23 dBi integrated antenna gain and 25 dBm maximum TX power output. The dedicated WiFi management radio (2412–2472 MHz) enables UISP mobile app management and remote configuration without disrupting the main wireless link — ideal for technicians deploying across East African sites where quick setup is essential. Passive PoE 2-pair powered at 7W maximum (22–27V DC) with included 24V, 0.3A gigabit PoE adapter.
Additional specifications:

• CE, FCC, and IC certified, fully NDAA compliant

Ideal for building-to-building links, enterprise wireless backhaul, ISP last-mile, campus connectivity, remote site connections, and fast-deploy PtP deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring lightweight 5 GHz 450+ Mbps PtP bridge performance with 23 dBi gain, 25 dBm TX power, dedicated WiFi management, and easy mobile app setup.
