airFiber 60 XG

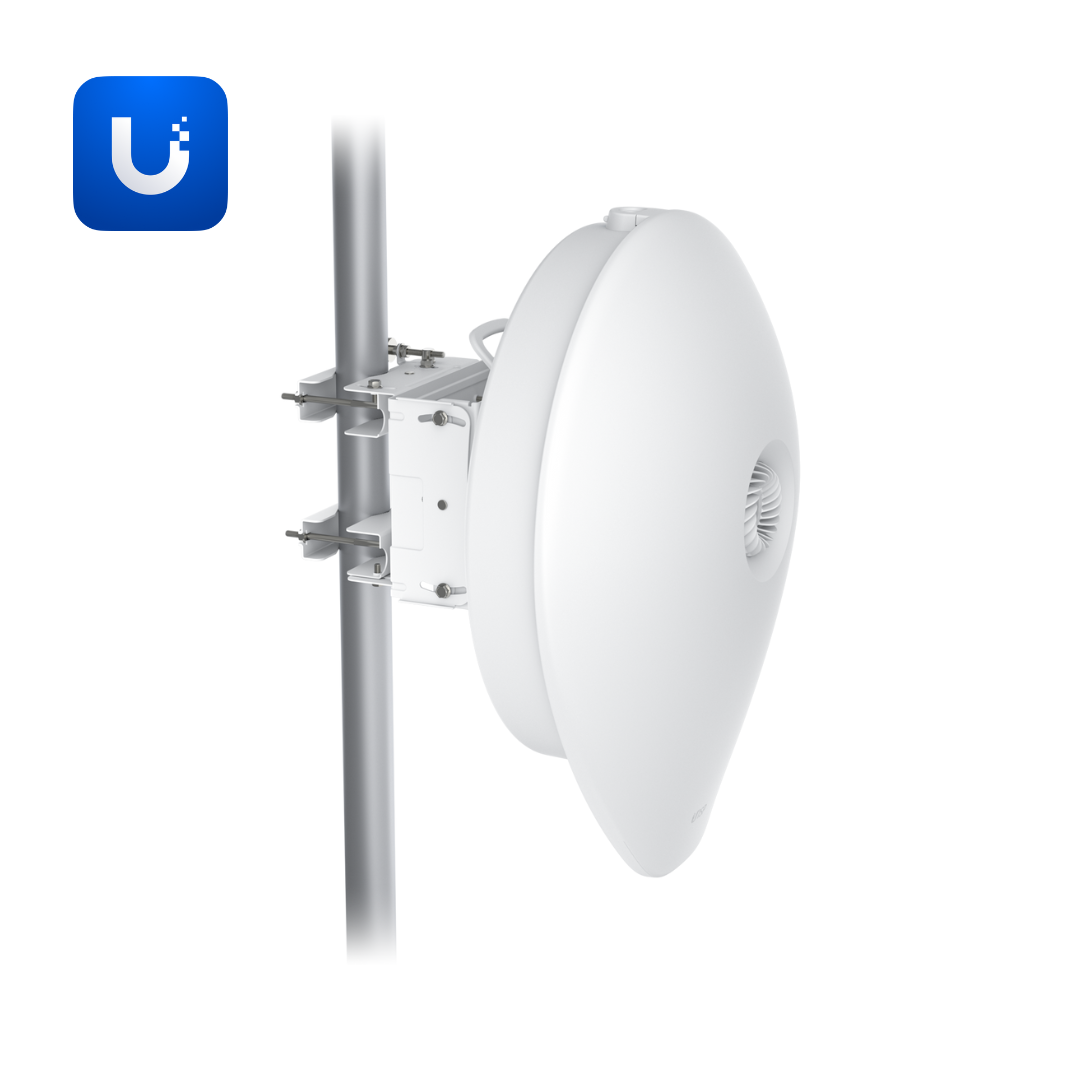

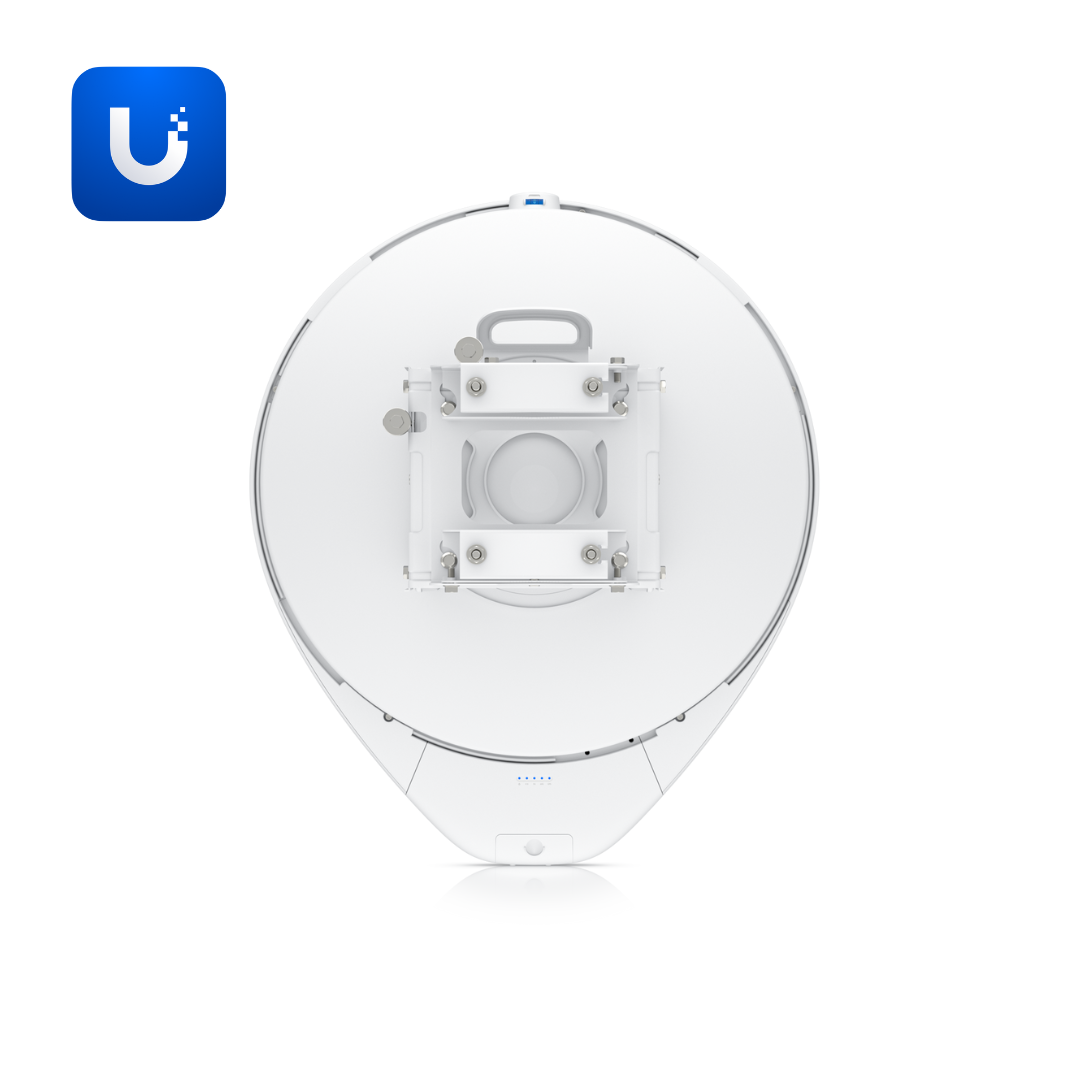

The AF60-XG (airFiber 60 XG) is a multi-gigabit 60 GHz PtP bridge certified by Terragraph — delivering up to 6 Gbps maximum throughput with channel bonding enabled across links of up to 4 km, with a 5 GHz backup radio and dual GbE/10G SFP+ connectivity for flexible East African wireless backhaul deployments. Measuring 779 × 664 × 383 mm (30.68 × 26.14 × 15.06") and weighing 8.6 kg (19 lb) without or 13 kg (28.7 lb) with mount, the AF60-XG features a UV-stabilised polycarbonate and steel enclosure with galvanised steel precision alignment mount compatible with poles of 40–80 mm outer diameter. Powered by a Quad-Core ARM® Cortex® A72 at 1.6 GHz with 2 GB DDR4 memory — the highest-performance processor in the 60 GHz lineup. Operates in PtP mode only. Requires UISP web version 1.4.3 and later, UISP iOS and Android version 2.19 and later.

The 60 GHz main radio operates across 57–66 GHz with standard 2160 MHz channel bandwidth or 4320 MHz with channel bonding enabled — unlocking the full 6 Gbps throughput capability. Vertically-linear polarised antenna with 1.6° × 1.6° beamwidth provides precise long-distance targeting. The 5 GHz backup radio with 5° × 5° dual-linear beamwidth maintains connectivity during rain fade. Dual ports — (1) GbE RJ45 and (1) 1/10G SFP+ port — enable flexible uplink to core infrastructure. WPA2-PSK (AES) encryption with GPS synchronisation and Bluetooth management.

Advanced software features include:

• UISP integration, ping watchdog, NTP client, and system log
• Antenna alignment tool, discovery utility, ping, and speed test utilities
• Terragraph certified operation

Additional specifications:

• Wind loading: 422 N at 200 km/h (94.86 lbf at 125 mph)
• Supported voltage range: 44–54V DC / 22–27V DC
• Operating temperature: -40°C to 55°C (-40°F to 131°F)
• Operating humidity: 5–95% non-condensing
• FCC, IC, CE, and Terragraph certified, fully NDAA compliant

Ideal for high-capacity PtP wireless backhaul, urban wireless infrastructure, ISP networks, and Terragraph-certified deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 60 GHz up to 6 Gbps throughput with channel bonding, dual GbE and 10G SFP+ ports, 5 GHz backup radio, and Terragraph certification at up to 4 km range.
