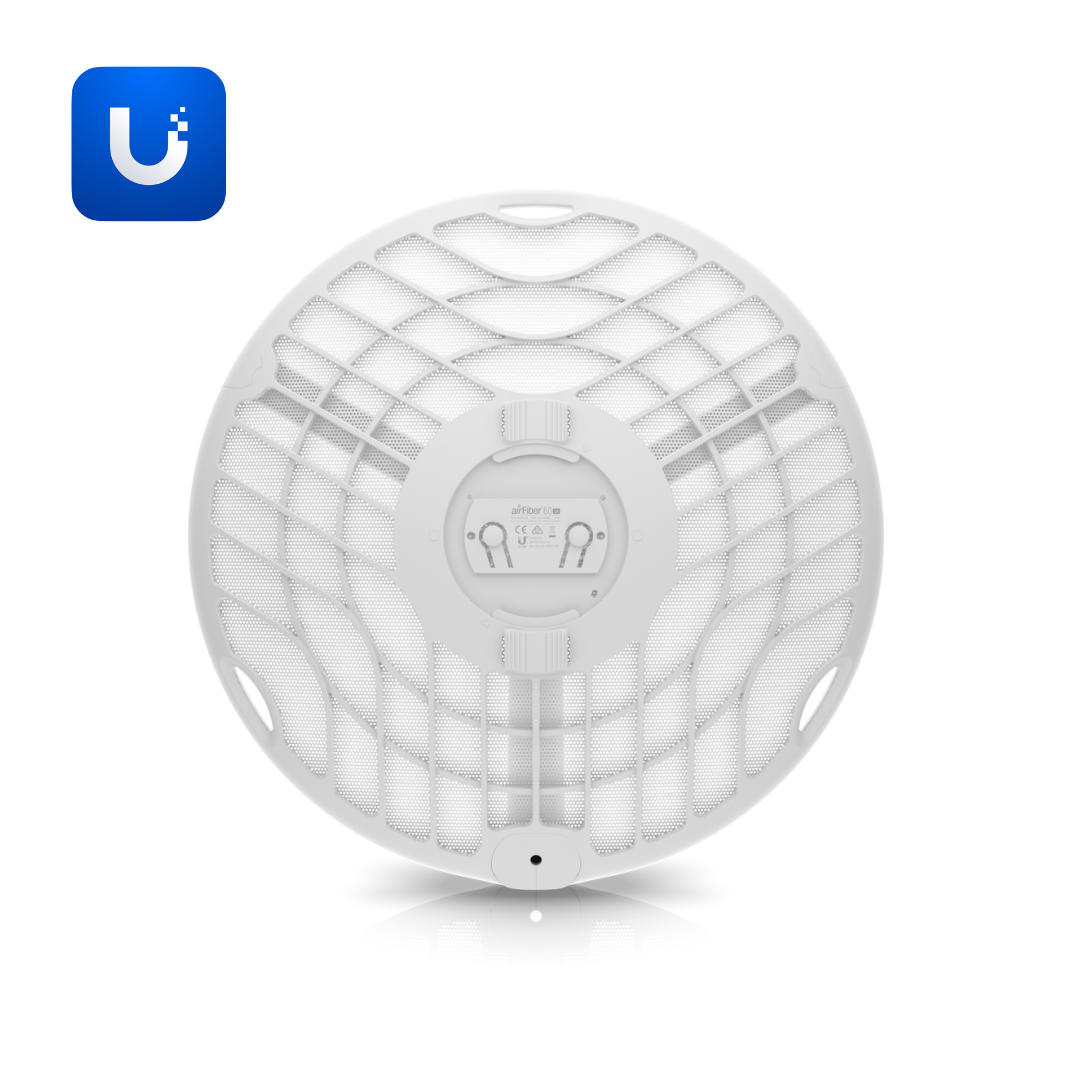

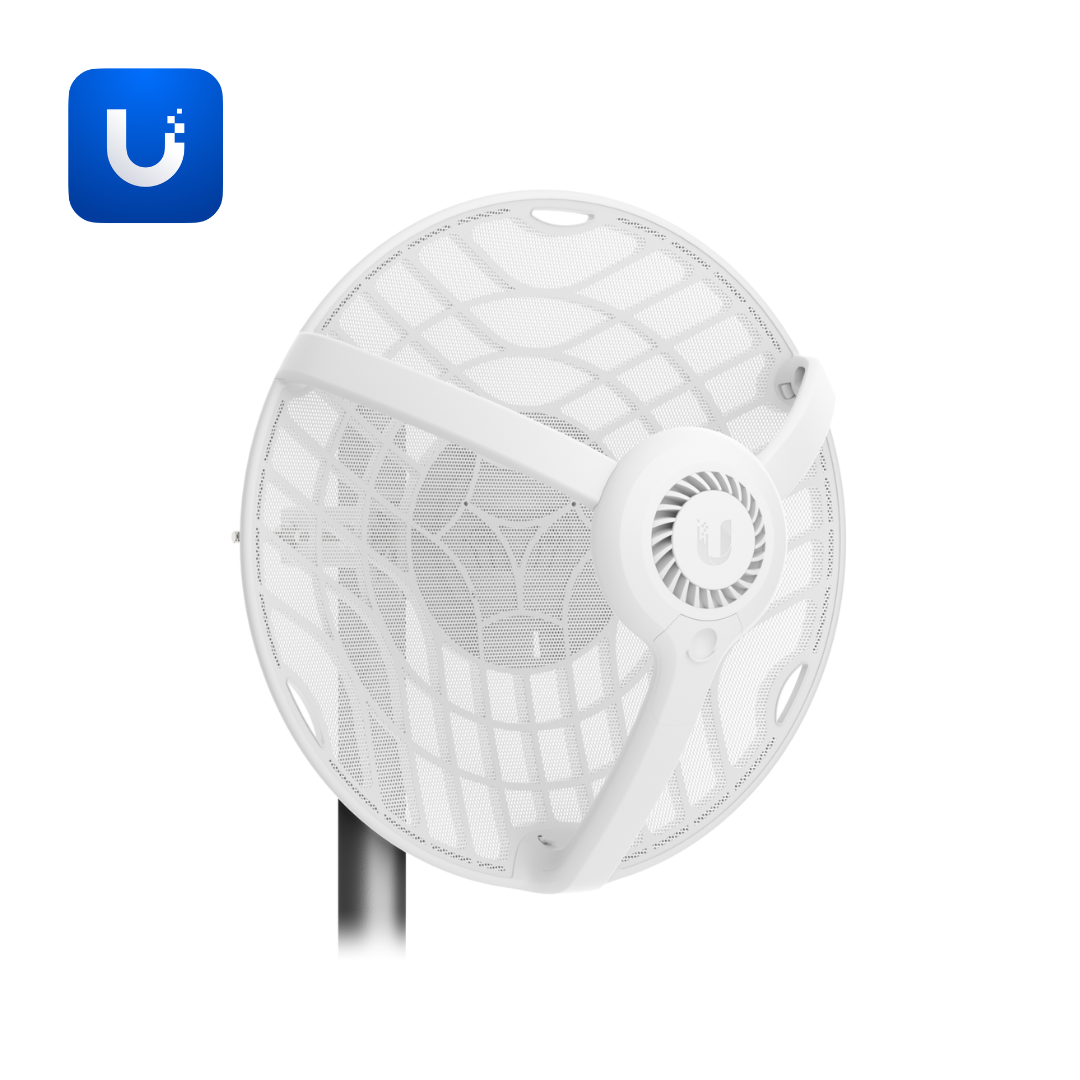

airFiber 60 Long-Range
The AF60-LR (airFiber 60 Long-Range) is a long-range 60 GHz PtP radio system powered by Wave Technology with 12+ km link range and 2 Gbps throughput for extreme-distance wireless backhaul across East Africa. This outdoor 60 GHz PtP and PtMP station delivers:
Perfect for extreme long-distance wireless backhaul, remote site connectivity, ISP backbone infrastructure, and any deployment requiring 12+ km 60 GHz range, 2 Gbps throughput, 38 dBi precision antenna alignment, and Wave Technology optimisation across East and Central Africa.
DATASHEET
- 60 GHz main radio with 2 Gbps maximum total throughput and 12+ km maximum range
- (1) GbE RJ45 port
- 38 dBi antenna gain with 1.6° azimuth and 1.6° elevation beamwidth
- Precision alignment kit included
- Integrated GPS and Bluetooth management interface
- Wave AI and Wave Technology optimisation
- -40°C to 60°C operating range
- 420 N wind loading at 200 km/h
- Passive PoE powered at 22W maximum with included 48V DC GbE PoE adapter
- Bridge mode operation, PtP and PtMP station modes
Perfect for extreme long-distance wireless backhaul, remote site connectivity, ISP backbone infrastructure, and any deployment requiring 12+ km 60 GHz range, 2 Gbps throughput, 38 dBi precision antenna alignment, and Wave Technology optimisation across East and Central Africa.
DATASHEET
About the airFiber 60 Long-Range

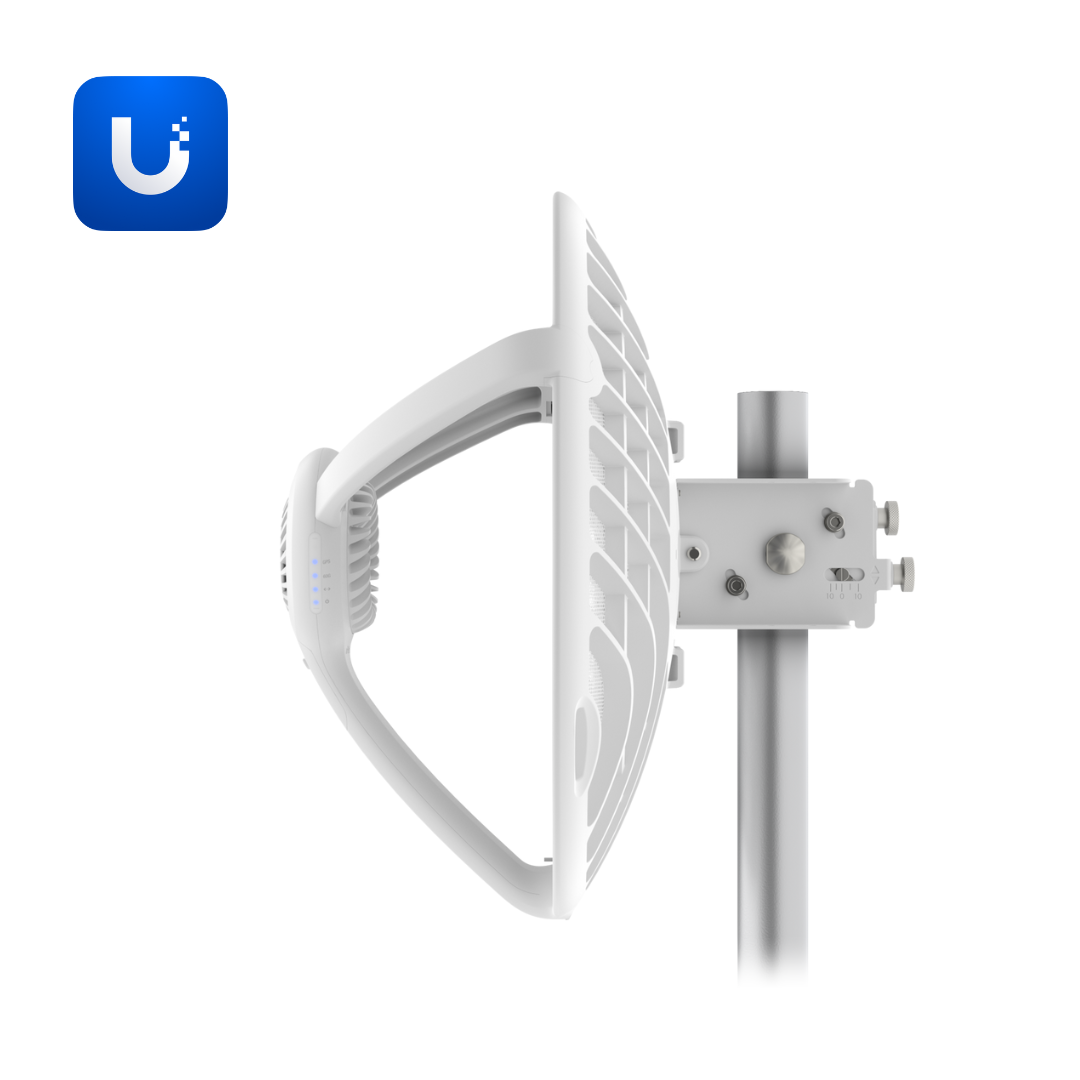

The AF60-LR (airFiber 60 Long-Range) is a high-performance 60 GHz PtP wireless radio designed for extreme long-distance backhaul across East Africa — delivering 2 Gbps throughput at ranges exceeding 12 km through a precision 38 dBi antenna with 1.6° × 1.6° beamwidth and included precision alignment kit. Measuring ⌀413 × 360 mm (⌀16.3 × 14.2") and weighing 1.5 kg (3.3 lb) without or 2.7 kg (6 lb) with mount, the AF60-LR features an aluminium and UV-stabilised polycarbonate enclosure with galvanised steel mount, supporting pole diameters of 25.4–76.2 mm (1–3"). Powered by a Quad-Core ARM® Cortex® A7 with 256 MB memory. Supports both PtP and PtMP station operating modes in bridge mode. Compatible with Wave AP as a PtMP client.
The 60 GHz main radio operates across 57–71 GHz worldwide with channel bandwidths of 2160 and 1080 MHz and 16QAM and QPSK modulation. The 38 dBi vertically-linear polarised antenna with 1.6° × 1.6° precision beamwidth concentrates RF energy for maximum long-range performance and interference immunity — critical for 12+ km East African links across varied terrain. WPA2-PSK (AES) encryption secures all wireless links. Integrated GPS enables GPS synchronisation and precise positioning.
Advanced software features include:
Ideal for extreme long-distance wireless backhaul, remote site connectivity, ISP backbone infrastructure, and mission-critical PtP deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 60 GHz 2 Gbps throughput at 12+ km range with 38 dBi precision alignment, Wave Technology optimisation, and GPS synchronisation.
The 60 GHz main radio operates across 57–71 GHz worldwide with channel bandwidths of 2160 and 1080 MHz and 16QAM and QPSK modulation. The 38 dBi vertically-linear polarised antenna with 1.6° × 1.6° precision beamwidth concentrates RF energy for maximum long-range performance and interference immunity — critical for 12+ km East African links across varied terrain. WPA2-PSK (AES) encryption secures all wireless links. Integrated GPS enables GPS synchronisation and precise positioning.
Advanced software features include:
- Wave AI and Wave Technology for automated optimisation
- UISP integration, ping watchdog, NTP client, and device discovery
- Antenna alignment, discovery utility, ping, speed test, and traceroute utilities
- Bridge mode networking
- Wind loading: 420 N at 200 km/h (94.4 lbf at 125 mph)
- Supported voltage range: 44–54V DC / 22–27V DC
- Operating temperature: -40°C to 60°C (-40°F to 140°F)
- Operating humidity: 5–95% non-condensing
- FCC, IC, and CE certified, fully NDAA compliant
Ideal for extreme long-distance wireless backhaul, remote site connectivity, ISP backbone infrastructure, and mission-critical PtP deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 60 GHz 2 Gbps throughput at 12+ km range with 38 dBi precision alignment, Wave Technology optimisation, and GPS synchronisation.
