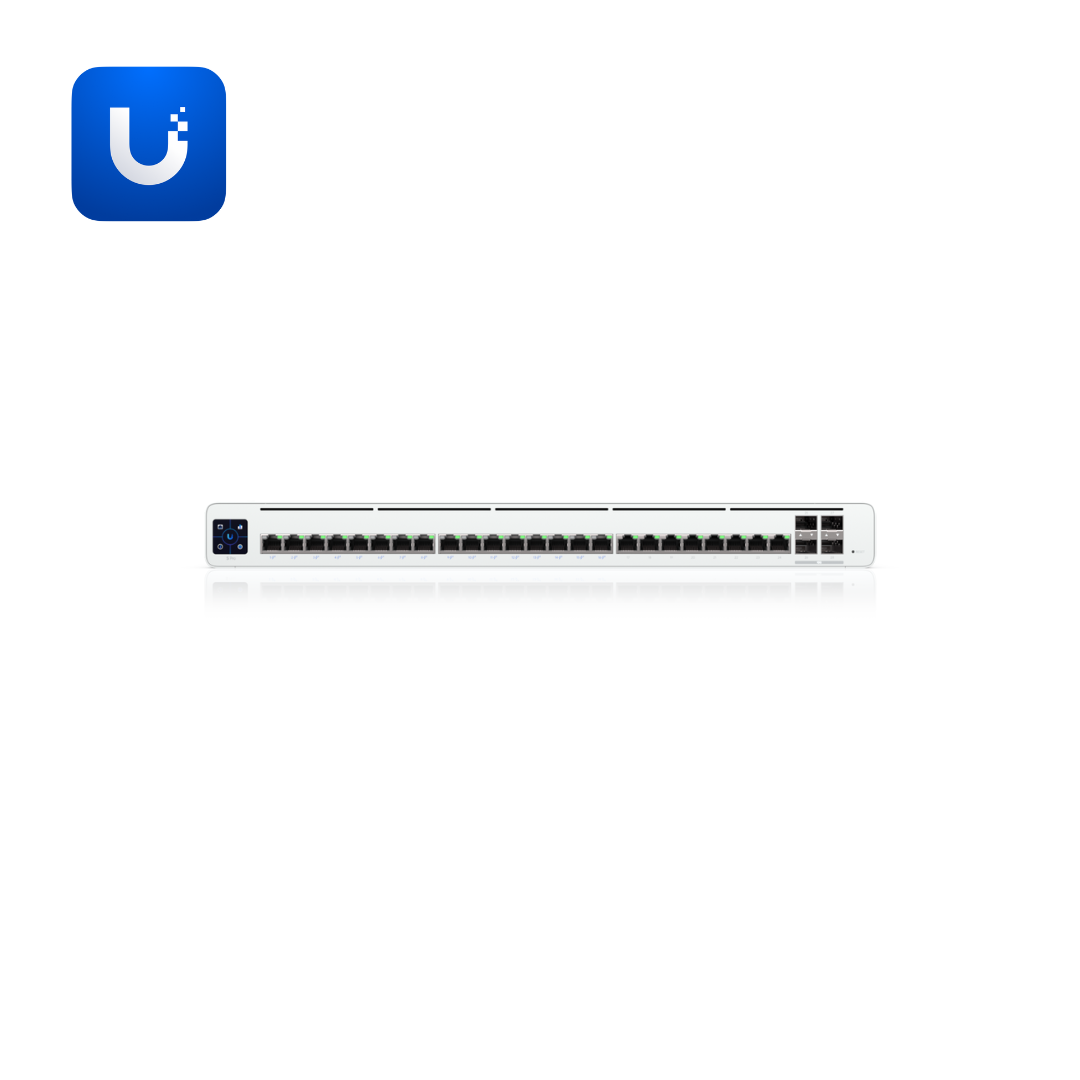

The UISP Switch Pro (UISP-S-Pro) is a professional-grade 24-port Gigabit PoE switch designed for ISP and high-density enterprise deployments. Features 24 GbE RJ45 ports with 16 ports delivering 27V passive PoE output and 4x 10G SFP+ fiber ports for high-speed uplinks. Delivers 64 Gbps non-blocking throughput and 128 Gbps switching capacity with 95.23 Mpps forwarding rate.
220W total PoE budget powers multiple devices with 15W per port (2-pair) or 30W per port (4-pair) PoE delivery on ports 1-16. Redundant power design with universal AC input (100-240V) and Power TransPort DC backup (27V DC, 9.3A) ensures maximum uptime. 1.3" color touchscreen LCM display provides intuitive local management. Advanced features include port isolation, speed limiting, and DHCP snooping for enhanced network security. Robust 442.4 × 267.5 × 43.7 mm SGCC steel enclosure (4 kg) operates in -10 to 50°C environments. Managed via standalone web interface and UISP Application (v1.5.7+). NDAA compliant with CE, FCC, IC certifications.
Technical Specifications
- Model: UISP-S-Pro
- Switch Type: 24-Port Gigabit PoE Switch
- GbE RJ45 Ports: (24) total, (16) with 27V passive PoE output
- SFP+ Ports: (4) 1/10G SFP+
- Total Non-Blocking Throughput: 64 Gbps
- Switching Capacity: 128 Gbps
- Forwarding Rate: 95.23 Mpps
- Total PoE Budget: 220W
- PoE per Port: 15W (2-pair) / 30W (4-pair)
- PoE Type: 27V passive PoE on ports 1-16 (2-pair: pins 4,5+/7,8- or 4-pair: pins 1,2,4,5+/3,6,7,8-)
- PoE Voltage Range: 27V DC
- Features: Port isolation, speed limiting, DHCP snooping
- Display: 1.3" LCM color touchscreen
- Management Interface: Ethernet in-band, Bluetooth
- Management: Standalone web interface, UISP Application integration

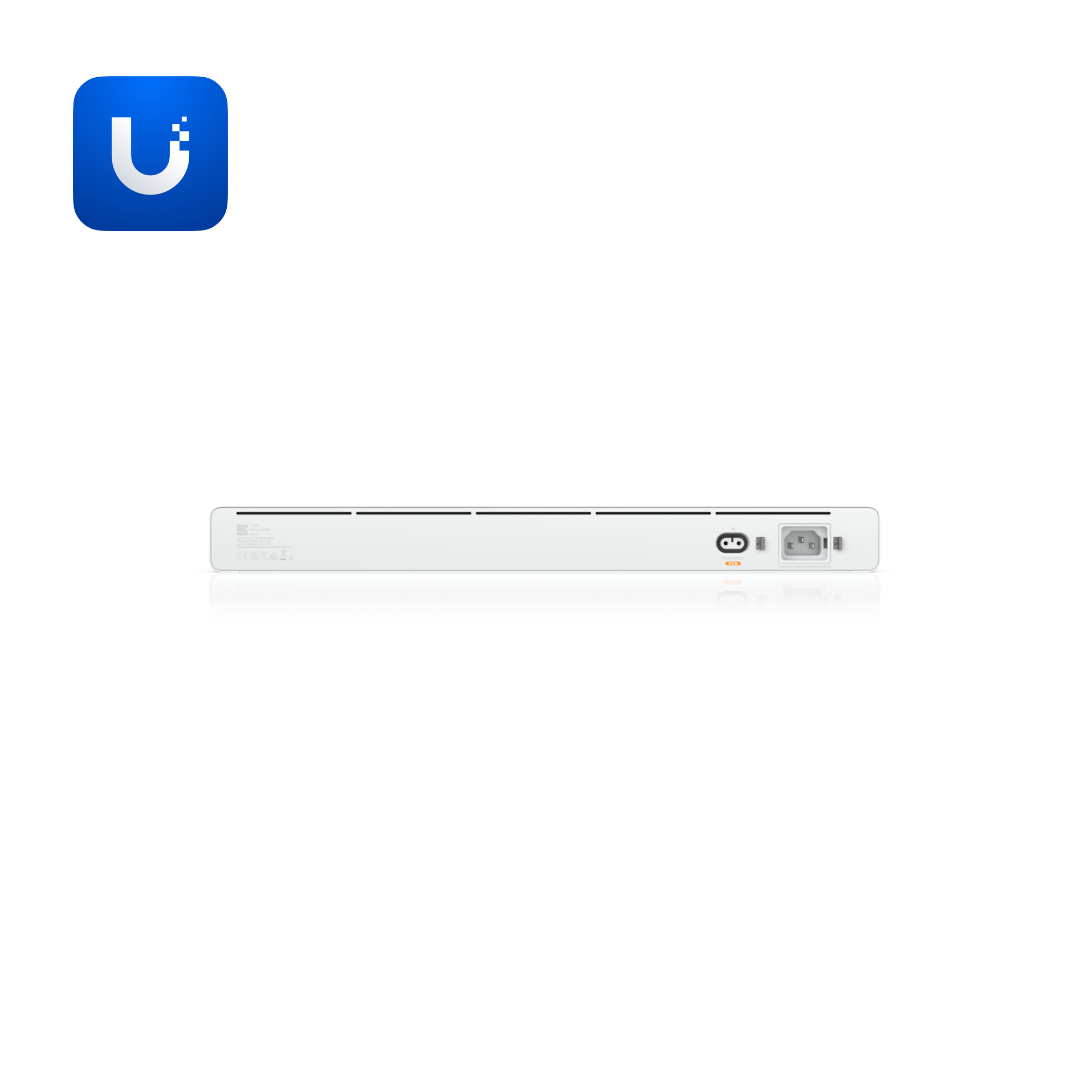

- Power Input: (1) Universal AC 100-240V, 4.4A max, 50/60 Hz; (1) Power TransPort DC 27V, 9.3A
- Power Supply: AC/DC Internal, 250W
- Supported Voltage: 100-240V AC
- Max. Power Consumption: 30W (excluding PoE output)
- ESD/EMP Protection: Air ±15kV, Contact ±8kV
- Dimensions: 442.4 × 267.5 × 43.7 mm (17.4 × 10.5 × 1.7")
- Weight: 4 kg (8.8 lb)
- Enclosure Materials: SGCC steel, polycarbonate/ABS
- Operating Temperature: -10 to 50°C (14 to 122°F)
- Operating Humidity: 5 to 95% non-condensing
- LEDs: RJ45 ports (PoE, speed/link/activity), SFP+ ports (speed/link/activity)
- Management Software: UISP Version 1.5.7 and later
- Certifications: CE, FCC, IC
- NDAA Compliant: Yes
