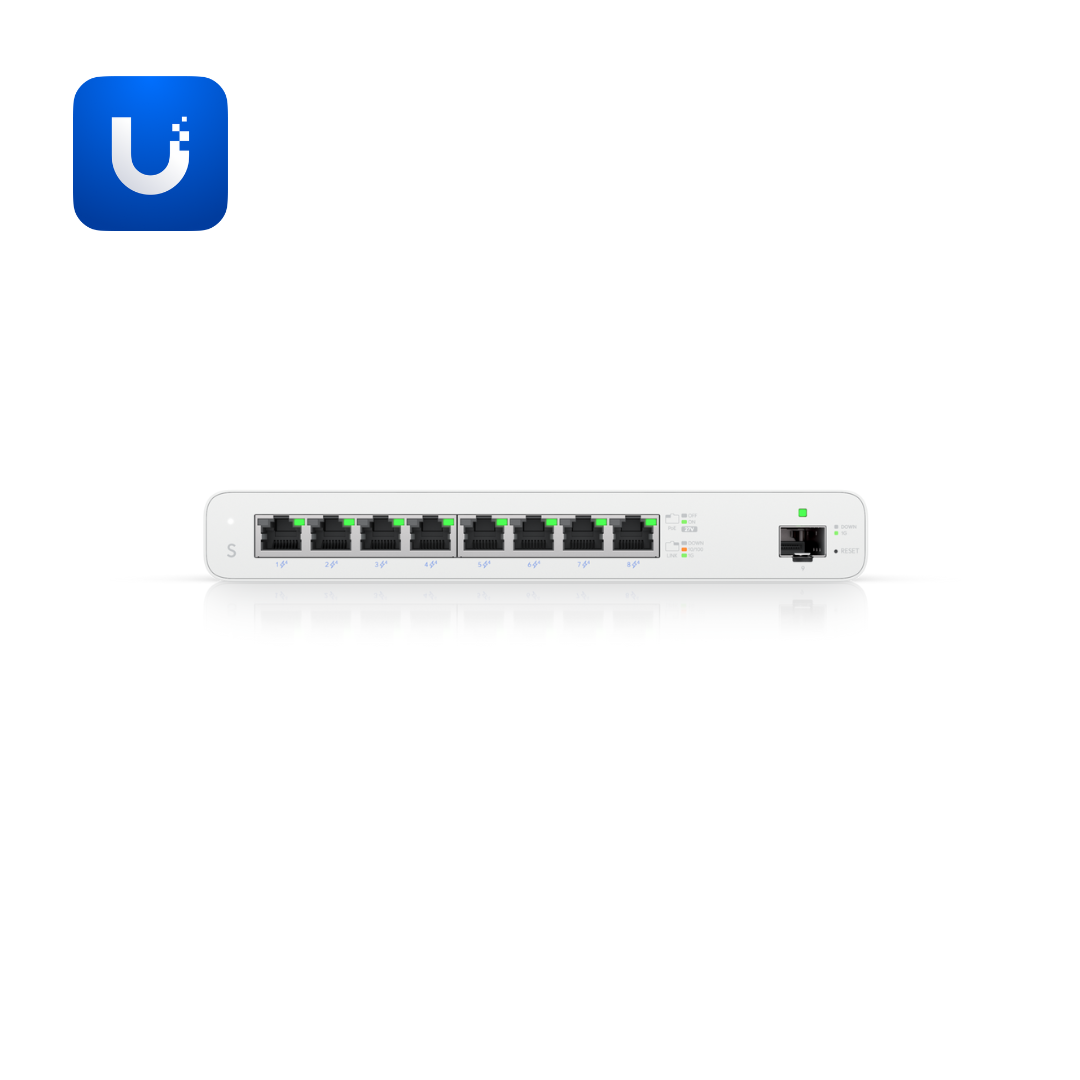

The UISP Switch (UISP-S) is a Layer 2 Gigabit PoE switch for ISP MicroPoP deployments and secure enterprise networks. Features 8 GbE RJ45 ports with 27V passive PoE output and 1 SFP fiber port for flexible uplink connectivity. Delivers 9 Gbps non-blocking throughput and 18 Gbps switching capacity with 13.392 Mpps forwarding rate.
110W total PoE budget powers multiple devices with 15W per port (2-pair) or 30W per port (4-pair) PoE delivery. Advanced features include port isolation, speed limiting, and DHCP snooping for network security. Compact 210.4 × 95 × 29 mm design (610g) operates in -10 to 50°C environments. Dual management options via standalone web interface (firmware 1.6.0+) and UISP Application integration. Includes 27V DC, 4.4A power adapter. NDAA compliant with CE, FCC, IC certifications.
Technical Specifications
- Model: UISP-S
- Switch Type: Layer 2 Gigabit PoE Switch
- GbE RJ45 Ports: (8) with 27V passive PoE output
- SFP Port: (1) 1G SFP
- Total Non-Blocking Throughput: 9 Gbps
- Switching Capacity: 18 Gbps
- Forwarding Rate: 13.392 Mpps
- Total PoE Budget: 110W (with included adapter)
- PoE per Port: 15W (2-pair) / 30W (4-pair)
- PoE Type: 27V passive PoE (2-pair: pins 4,5+/7,8- or 4-pair: pins 1,2,4,5+/3,6,7,8-)
- PoE Voltage Range: 27V DC
- Features: Port isolation, speed limiting, DHCP snooping
- Management Interface: Ethernet in-band, Bluetooth BLE
- Management: Standalone web interface (v1.6.0+), UISP Application integration
- Power Supply: 27V DC, 4.4A adapter (included)
- Supported Voltage: 24-28V DC
- Max. Power Consumption: 8W (excluding PoE output)
- ESD/EMP Protection: Air ±15kV, Contact ±8kV
- Dimensions: 210.4 × 95 × 29 mm (8.3 × 3.7 × 1.1")
- Weight: 610g (1.3 lb)
- Enclosure Material: Polycarbonate
- Operating Temperature: -10 to 50°C (14 to 122°F)
- Operating Humidity: 5 to 95% non-condensing
- LEDs: RJ45 ports (PoE, speed/link/activity), SFP port (link/activity)
- Management Software: UISP Version 1.4.0 and later
- Certifications: CE, FCC, IC
- NDAA Compliant: Yes
