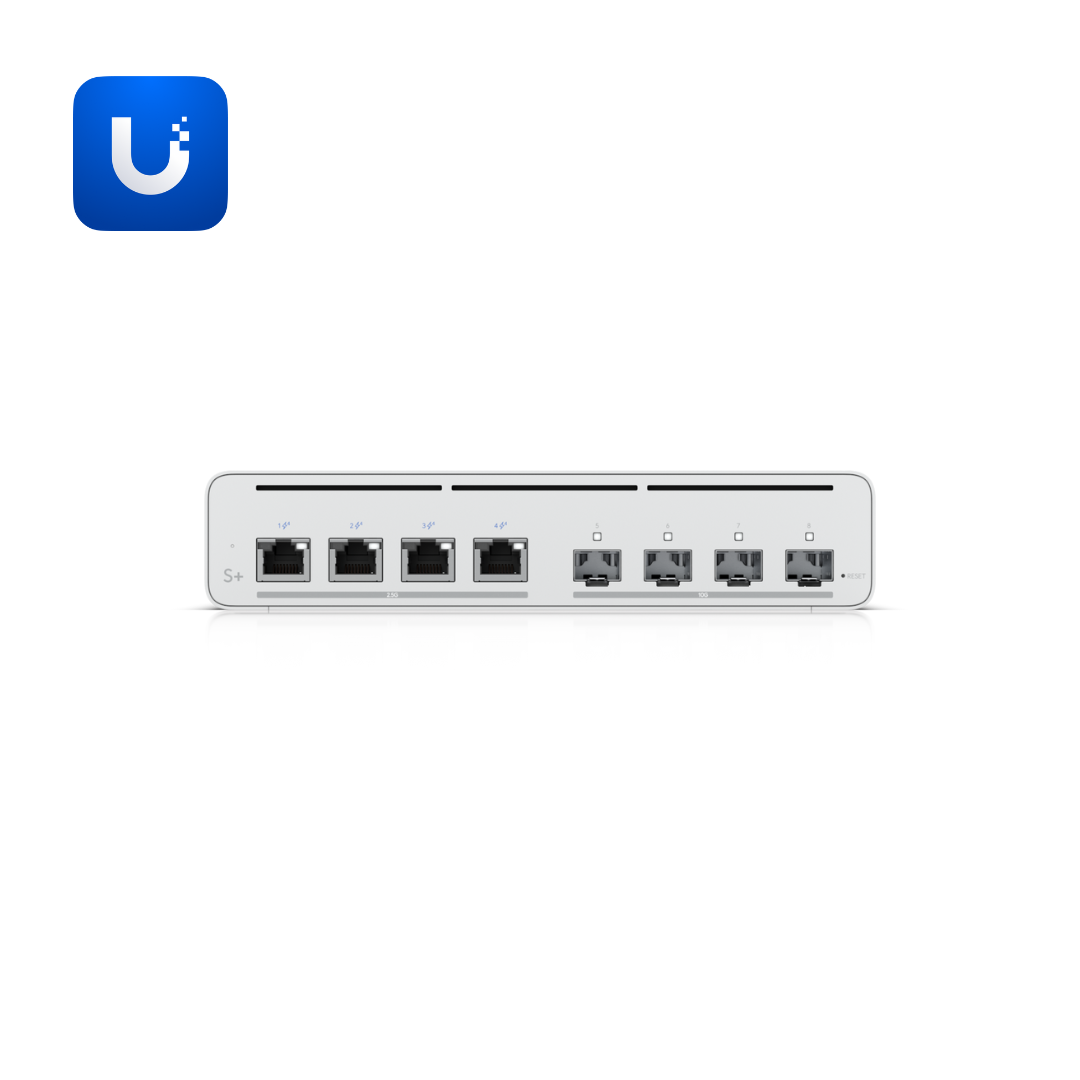

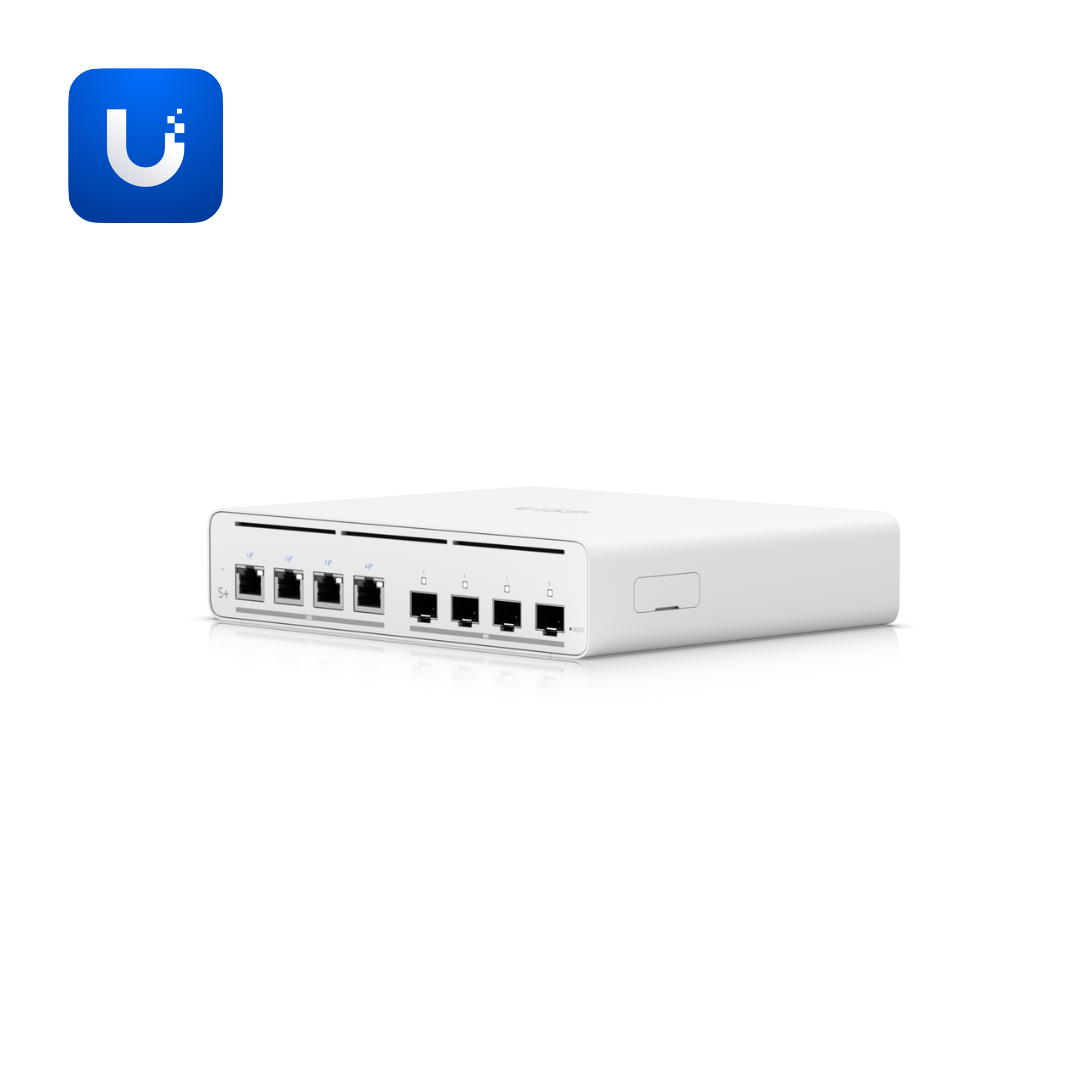

The UISP Switch Plus (UISP-S-Plus) is a high-performance 2.5 GbE PoE switch for ISP and enterprise networks, featuring 4x 2.5 Gigabit Ethernet RJ45 ports with 27V passive PoE output and 4x 10G SFP+ fiber ports for high-speed uplinks. Delivers 50 Gbps non-blocking throughput and 100 Gbps switching capacity with 74.4 Mpps forwarding rate.
160W total PoE budget powers demanding devices with 20W per port (2-pair) or 40W per port (4-pair) PoE delivery. Powered by dual-core ARM Cortex-A55 processor at 1.4 GHz with 1 GB DDR4 RAM and 256 MB NAND storage. Features Power TransPort DC redundancy input for mission-critical uptime alongside included 27V DC, 7.04A adapter. Advanced port isolation, speed limiting, and DHCP snooping enhance network security. Versatile mounting options include desk, wall, 1U rack, and outdoor installations. Managed via standalone web interface and UISP Application. NDAA compliant with CE, FCC, IC certifications.
Technical Specifications
- Model: UISP-S-Plus
- Availability: ETA April 19, 2026
- Switch Type: 2.5 GbE PoE Switch
- Processor: Dual-core ARMv8 Cortex-A55 at 1.4 GHz
- Memory: 1 GB DDR4
- Storage: 256 MB NAND flash
- 2.5 GbE RJ45 Ports: (4) 1/2.5 GbE with 27V passive PoE output
- SFP+ Ports: (4) 1/10G SFP+
- Total Non-Blocking Throughput: 50 Gbps
- Switching Capacity: 100 Gbps
- Forwarding Rate: 74.4 Mpps
- Total PoE Budget: 160W (with included adapter)
- PoE per Port: 20W (2-pair) / 40W (4-pair)
- PoE Type: 27V passive PoE on ports 1-4 (2-pair: pins 4,5+/7,8- or 4-pair: pins 1,2,4,5+/3,6,7,8-)
- PoE Voltage Range: 27V DC
- Features: Port isolation, speed limiting, DHCP snooping
- Management Interface: Ethernet in-band, Bluetooth
- Management: Standalone web interface, UISP Application integration
- Power Input: (1) External AC/DC adapter 27V DC, 7.04A (included); (1) Power TransPort DC input 27V DC, 7.04A
- Supported Voltage: 24-28V DC
- Max. Power Consumption: 25W (excluding PoE output)
- ESD/EMP Protection: Air ±15kV, Contact ±8kV
- Dimensions: 210.4 × 170.2 × 43.7 mm (8.3 × 6.7 × 1.7")
- Weight: 1.75 kg (3.9 lb)
- Enclosure Materials: SGCC steel, polycarbonate/ABS
- Mounting Options: Desk, wall, 1U rack, outdoor
- Operating Temperature: -10 to 50°C (14 to 122°F)
- Operating Humidity: 5 to 95% non-condensing
- LEDs: System status, RJ45 ports (PoE, speed/link/activity), SFP+ ports (link/activity)
- Management Software: UISP
- Certifications: CE, FCC, IC
- NDAA Compliant: Yes
Order Now
Pre-order the UISP Switch Plus today for advanced 2.5 GbE PoE switching with 160W power budget and 10G SFP+ uplinks. Contact our team or request a quote.
