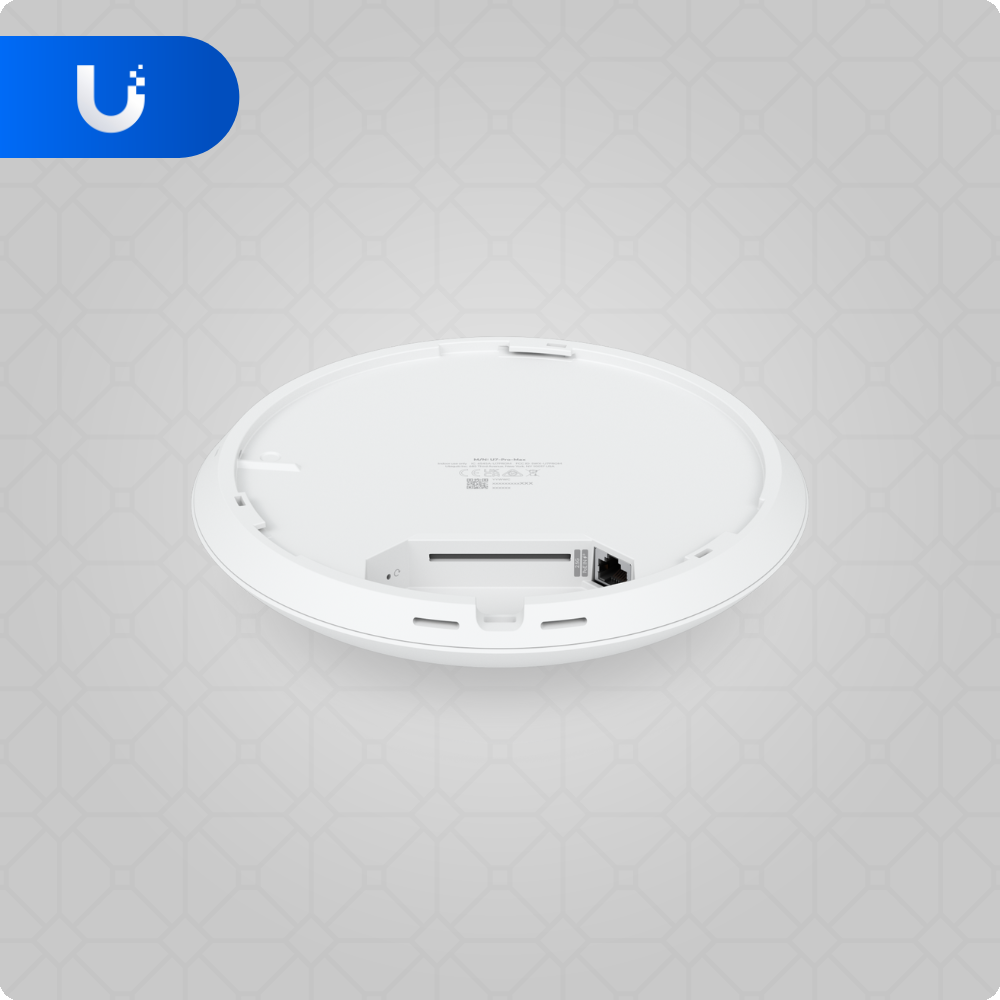

The U7-Pro-Max (U7 Pro Max) is a ceiling-mounted flagship tri-band WiFi 7 access point engineered for the most demanding large-scale enterprise environments requiring maximum throughput, real-time interference elimination, extreme client density, and 6 GHz support — all powered by a standard PoE+ connection. Measuring ⌀206 × 46 mm (⌀8.1 × 1.8") and weighing 680 g (1.5 lb), the U7-Pro-Max ships with a professional-grade pro mount in stainless steel (SUS304) and galvanised steel (SGCC) for secure ceiling and wall installation across enterprise campuses, hospitals, and large venues throughout East Africa. The polycarbonate and aluminium enclosure with white/blue system LED delivers a premium, professional finish. Management via Ethernet. Requires UniFi Network version 8.2.93 and later.
The U7-Pro-Max delivers tri-band WiFi 7 (802.11be) with 8 spatial streams across 6 GHz with 2×2 DL/UL MU-MIMO reaching 5.8 Gbps (BW320), 5 GHz with 4×4 DL/UL MU-MIMO reaching 8.6 Gbps (BW240), and 2.4 GHz with 2×2 DL/UL MU-MIMO reaching 688 Mbps (BW40). The 8.6 Gbps on 5 GHz with 4×4 MU-MIMO and EHT 240 MHz channels delivers multi-gigabit wireless performance to high-density client environments, while the 6 GHz band with EHT 320 MHz channel support provides a clean, interference-free spectrum exclusively for modern WiFi 7 clients. Antenna gain of 5.9 dBi on 6 GHz, 6 dBi on 5 GHz, and 4 dBi on 2.4 GHz with maximum TX power of 23 dBm on 6 GHz, 29 dBm on 5 GHz, and 23 dBm on 2.4 GHz delivers extended, reliable tri-band coverage across 160 m² (1,750 ft²) for 500+ simultaneously connected devices. Supported data rates span 7.3 Mbps to 5.8 Gbps on 802.11be WiFi 7 on 6 GHz (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/320), 7.3 Mbps to 8.6 Gbps on 802.11be WiFi 7 on 5 GHz (MCS0–MCS13 NSS1/2/3/4, EHT 20/40/80/160/240), 7.3 Mbps to 4.8 Gbps on 802.11ax WiFi 6/6E (MCS0–MCS11 NSS1/2/3/4, HE 20/40/80/160), 6.5 Mbps to 3.4 Gbps on 802.11ac WiFi 5 (MCS0–MCS9 NSS1/2/3/4, VHT 20/40/80/160), and 6.5 Mbps to 600 Mbps on 802.11n (MCS0–MCS31, HT 20/40). Channel bandwidth supports HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, and EHT 20/40/80/160/240/320 MHz. Up to 8 BSSIDs per radio.
The defining capability of the U7-Pro-Max is its dedicated spectral scanning engine enabling real-time spectral analysis — continuously monitoring the RF environment across all bands to identify interference sources, optimise channel selection, and maximise wireless performance without interrupting client traffic. This dedicated radio operates independently of the three data radios, meaning spectral scanning never competes with client throughput — a critical advantage in high-density East African enterprise deployments where RF environments can be congested. Combined with 802.11r fast roaming, 802.11k Radio Resource Management (RRM), 802.11v BSS Transition Management, band steering, advanced radio management, and Passpoint (Hotspot 2.0), the U7-Pro-Max delivers the most sophisticated RF management capabilities available under PoE+ power in the UniFi AP lineup.
Wired connectivity is provided via (1) 1/2.5 GbE RJ45 uplink port powered by PoE+ (44–57V DC) at a maximum of 25W — deployable from any standard PoE+ switch port without requiring PoE++ infrastructure. Captive hotspot portal capabilities include custom branding landing pages, voucher authentication, payment-based authentication, external portal server support, and password authentication — essential for large hospitality venues, conference centres, hospitals, and public WiFi deployments across East Africa. Additional features include guest network isolation, Private Pre-Shared Key (PPSK), WiFi speed limiting, client device isolation, WiFi schedules, RADIUS over TLS (RadSec), and dynamic RADIUS-assigned VLAN.
Maximum power consumption is 25W via PoE+ input (44–57V DC). Operating frequencies cover 2400–2483.5 MHz, 5150–5850 MHz, and 5925–7125 MHz worldwide — including full 6 GHz U-NII-5 through U-NII-8 band support, fully compliant with East African regulatory environments where 6 GHz spectrum is approved. Operating temperature -30°C to 50°C (-22°F to 122°F) with 5–95% non-condensing humidity — a wide range suited to the full spectrum of East African indoor environments including naturally ventilated spaces. CE, FCC, IC, and Anatel certified, fully NDAA compliant.
Ideal for enterprise offices, high-density conference centres, hotel ballrooms, healthcare facilities, education campuses, stadiums, auditoriums, manufacturing facilities, and any demanding large-scale deployment across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring flagship 8-stream WiFi 7 tri-band performance with 8.6 Gbps on 5 GHz with 4×4 MU-MIMO, 5.8 Gbps on 6 GHz with EHT 320 MHz channels, dedicated real-time spectral analysis, 500+ client support, 29 dBm maximum TX power on 5 GHz, and PoE+ powered 2.5 GbE uplink in the most capable PoE+-powered ceiling-mount access point in the UniFi lineup.
