The

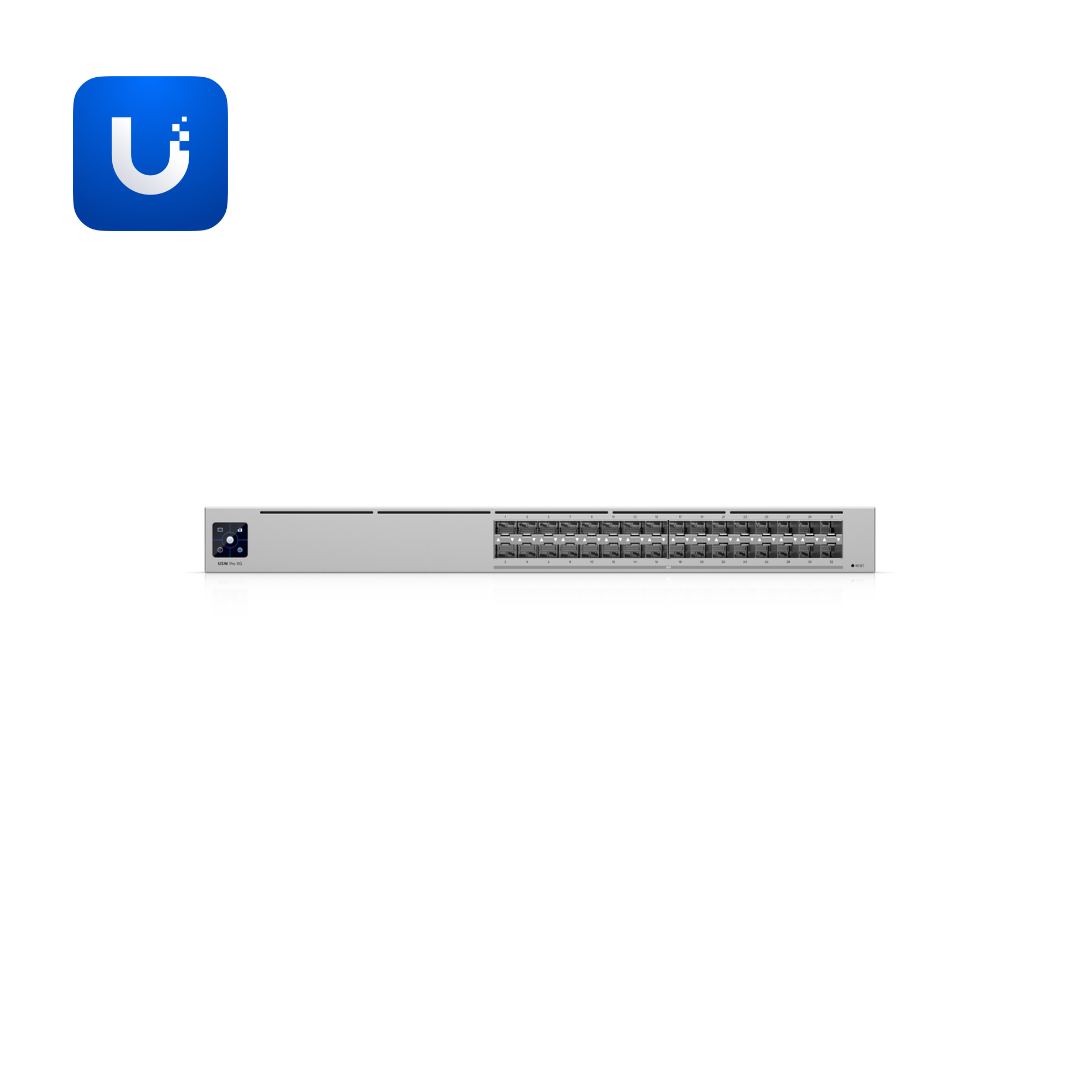

USW-Pro-XG-Aggregation (Pro XG Aggregation) is a
1U rack-mount Layer 3 Etherlighting™ managed aggregation switch delivering high-density 25G port connectivity, wire-speed 800 Gbps throughput, and a massive 256,000 IPv4 route table for East African enterprise networks, data centres, and service providers requiring scalable, future-proof aggregation infrastructure. Measuring
442.4 × 43.7 × 480 mm (17.4 × 1.7 × 18.9") and weighing
7.1 kg (15.7 lb) without or 7.2 kg (15.9 lb) with mounting bracket, the USW-Pro-XG-Aggregation is designed for
482.6 mm (19") four-post racks with post depths ranging from 600 to 1,066 mm (23.6–42"). The
SGCC steel enclosure with a
1.3" touchscreen LCM display and
RPS LED indicator delivers a data-centre-grade installation finish.

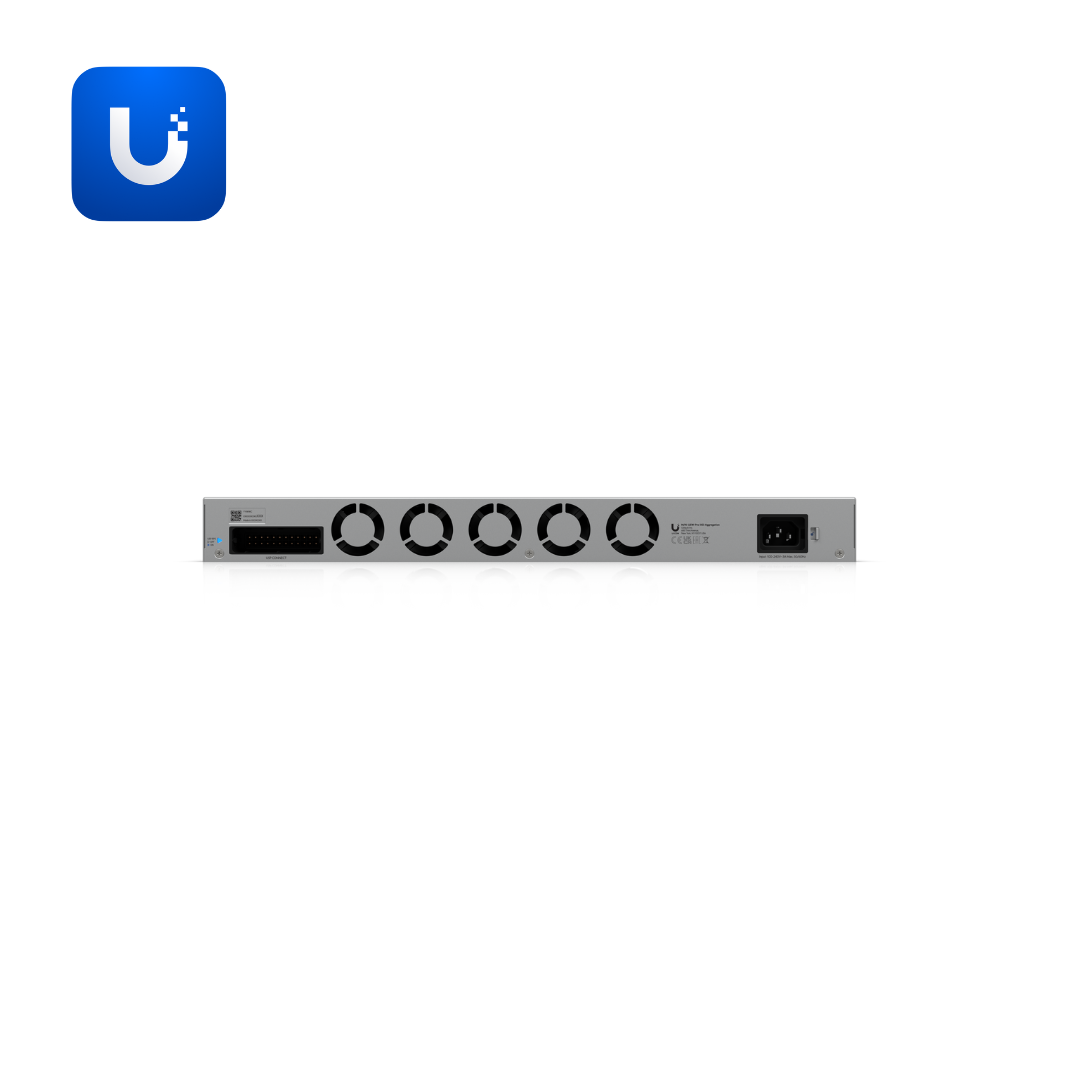

DC power backup readiness via USP RPS DC input provides resilience against power interruptions — critical for mission-critical East African deployments.
The
USW-Pro-XG-Aggregation provides
(32) 25G SFP28 ports (25G/10G/1G) — delivering uniform 25G connectivity across every port for consistent, high-bandwidth aggregation.
Switching capacity of 1.6 Tbps with 800 Gbps non-blocking throughput and 1.2 Bpps forwarding rate ensures true wire-speed performance across all 32 ports simultaneously.
Etherlighting™ illuminates all SFP28 ports for visual port identification and network status monitoring. The
8 MB packet buffer and 32,000 MAC address table support large, complex network topologies.
Layer 3 capabilities include:
- DHCP server and DHCP relay for local networks
- Inter-VLAN routing and static routing for local networks
- 128,000 ARP entries, 256,000 IPv4 routes, and 512 IPv4 static routes
The comprehensive
Layer 2 feature set includes:
- LACP port aggregation, STP/RSTP
- Advanced IGMP configuration and IGMP snooping
- 802.1X control, MAC-based and IP-based ACLs
- DHCP snooping and guarding, egress rate limiting, flow control
- Storm control, multicast/broadcast rate limiting, port isolation, port mirroring
- Jumbo frames, LLDP-MED, Voice VLAN, loop protection, virtual network override
- 256 IPv4 ACLs and 256 MAC ACLs
Additional specifications:
- Max. power consumption: 200W
- Heat dissipation: 457 BTU/hr
- ESD protection: ±12kV air / ±8kV contact
- Operating temperature: -5°C to 40°C (23°F to 104°F)
- Operating humidity: 10–90% non-condensing
- CE, FCC, IC, and Anatel certified, fully NDAA compliant
Ideal for
medium to large businesses, educational institutions, data centres, healthcare facilities, service providers, and professional deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring
32-port 25G aggregation, 800 Gbps non-blocking throughput, 256,000 IPv4 route capacity, Etherlighting™ visual intelligence, DC power backup readiness, and full UniFi Layer 3 management at exceptional price-performance value in a 1U rack-mount switch.
