Description

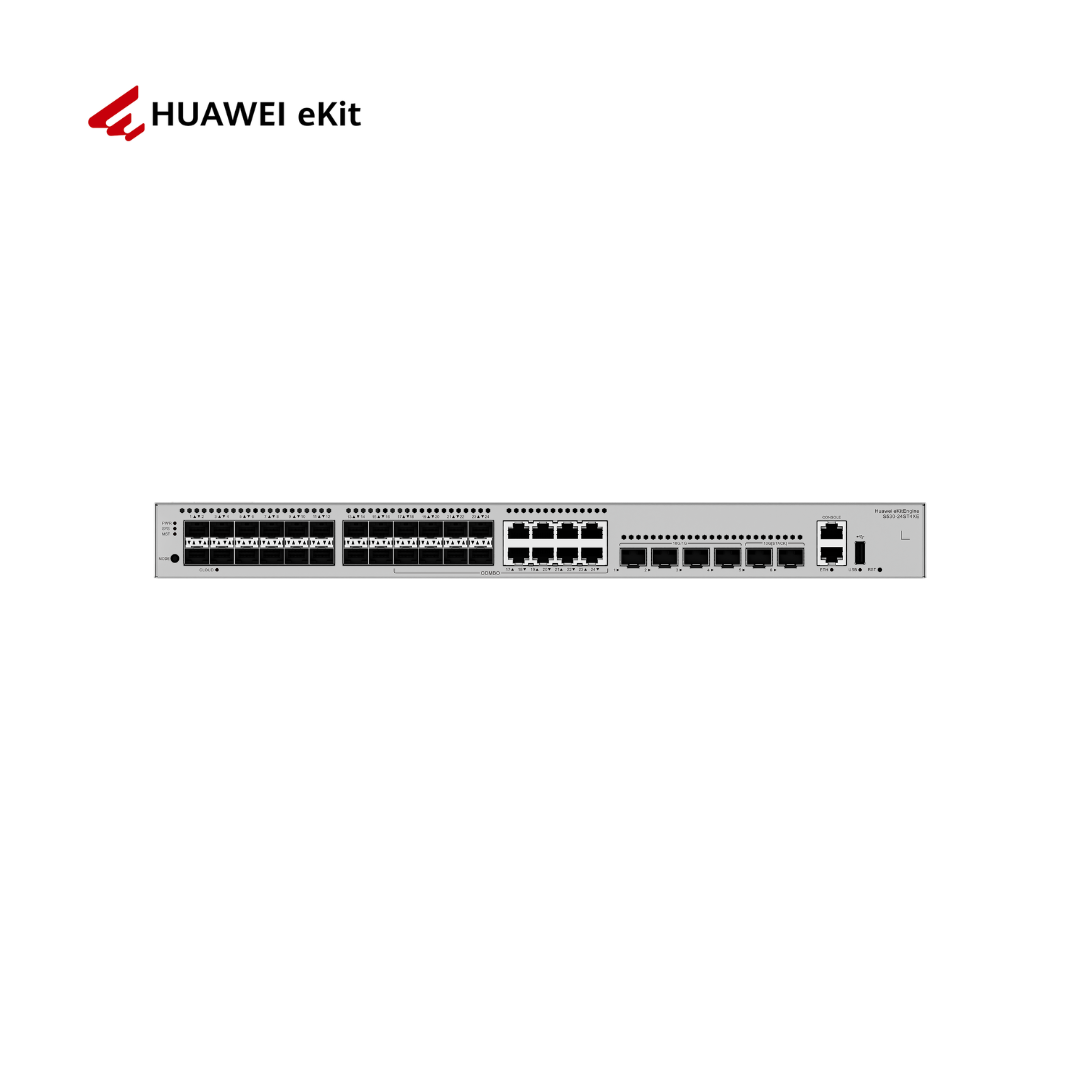

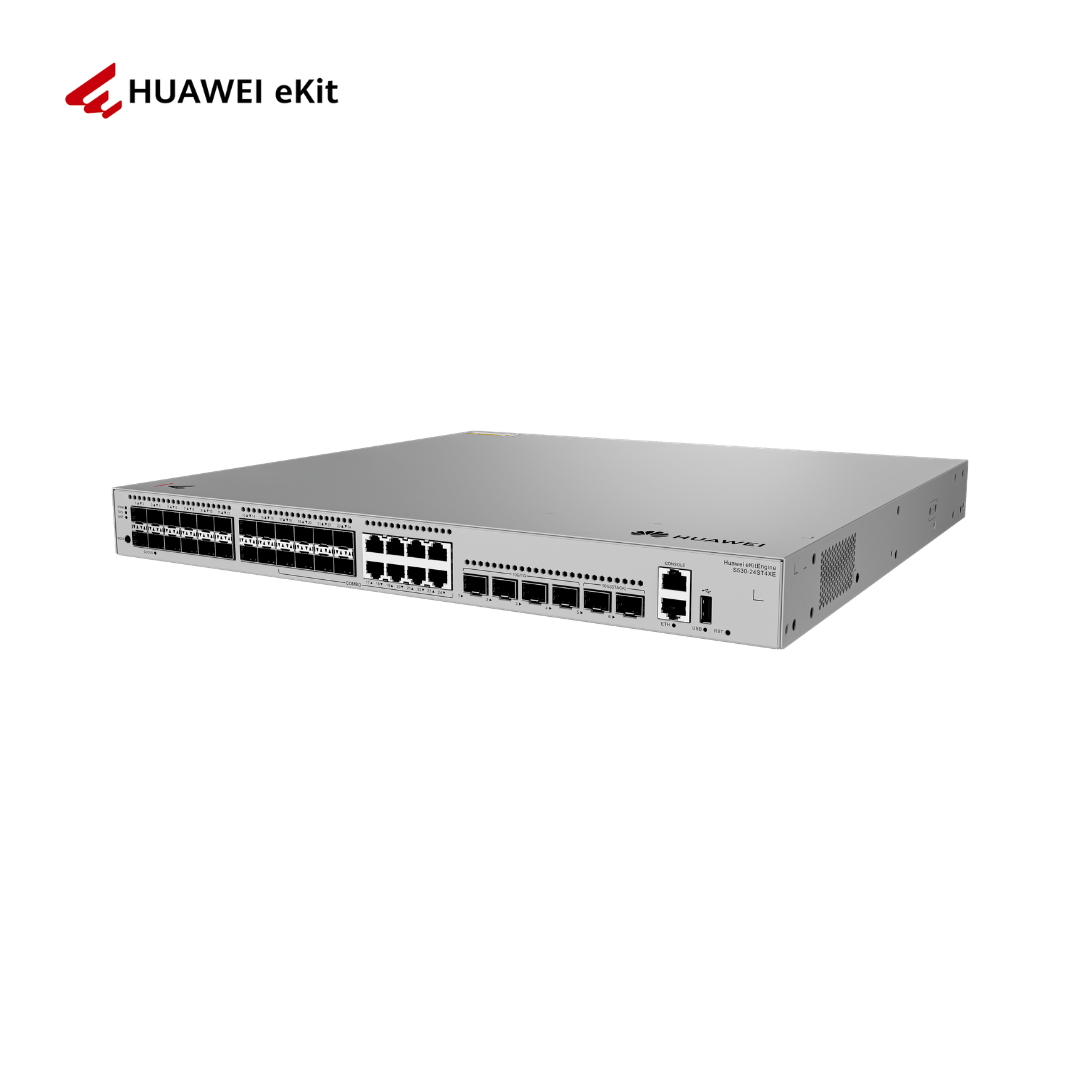

In a multi-building deployment, access switches connect upward over fiber to an aggregation switch before traffic reaches the core — and that point needs enough fiber density and redundancy that it doesn't become a single point of failure. The S530-24ST4XE is built for that role: 16 fixed optical ports and eight combo ports give flexibility for mixed fiber and copper aggregation, while four 10GE SFP+ ports carry traffic onward. Dual power modules with 1+1 redundancy matter because aggregation hardware carries more traffic risk than a single access switch, so one module failing doesn't take down every building feeding into it.
Specification Table
| Specification | Why It Matters |
|---|
| 16x 100/1000BASE-X optical ports | Provides fixed fiber density for aggregating multiple access switches or buildings. |
| 8x combo ports (optical or electrical) | Adds flexibility to mix fiber and copper connections as site needs vary. |
| 4x 10GE SFP+ uplink ports | Carries consolidated traffic to the network core without becoming a bottleneck. |
| 1+1 redundant, hot-swappable power modules | Keeps the switch running through a power module failure when many devices depend on it. |
| Dedicated stacking ports (CLI-managed) | Supports virtualizing multiple units into one logical switch for larger deployments. |
| 2 GB memory / 1 GB flash | Supports the routing and forwarding tables typical of an aggregation-layer device. |
ISPs and enterprises across Kenya and Uganda extending fiber across multiple buildings or metro sites rely on aggregation switches like this to consolidate access-layer traffic reliably before it reaches the core.
Simplifi Advantage
As an Authorized Master Distributor for Huawei enterprise networking in Kenya and Uganda, Simplifi Networks supplies genuine S530-24ST4XE hardware with official local warranty support through our Nairobi and Kampala channels. Our B2B team works with engineers on aggregation-layer design and redundancy planning, so fiber consolidation points don't become single points of failure.
