The

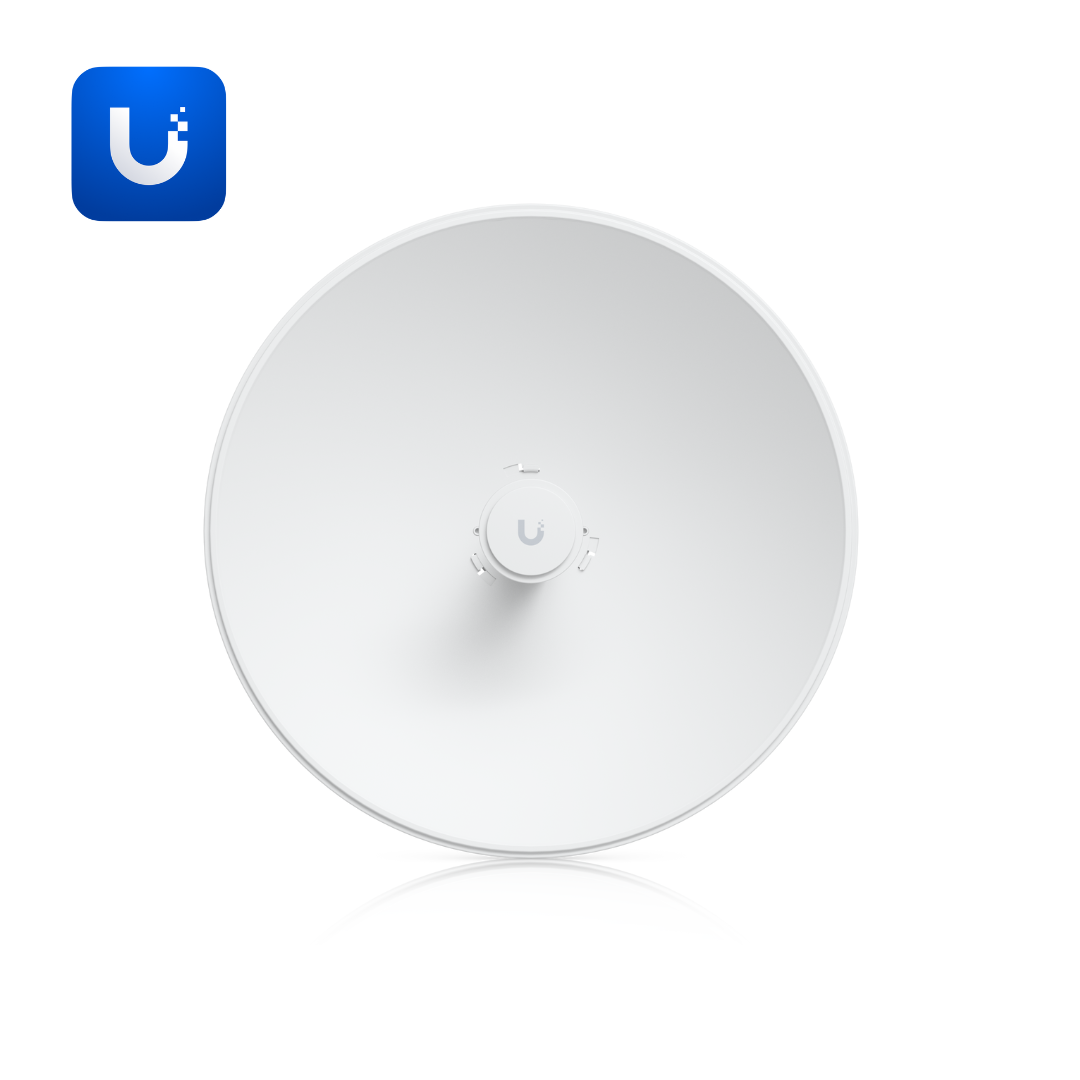

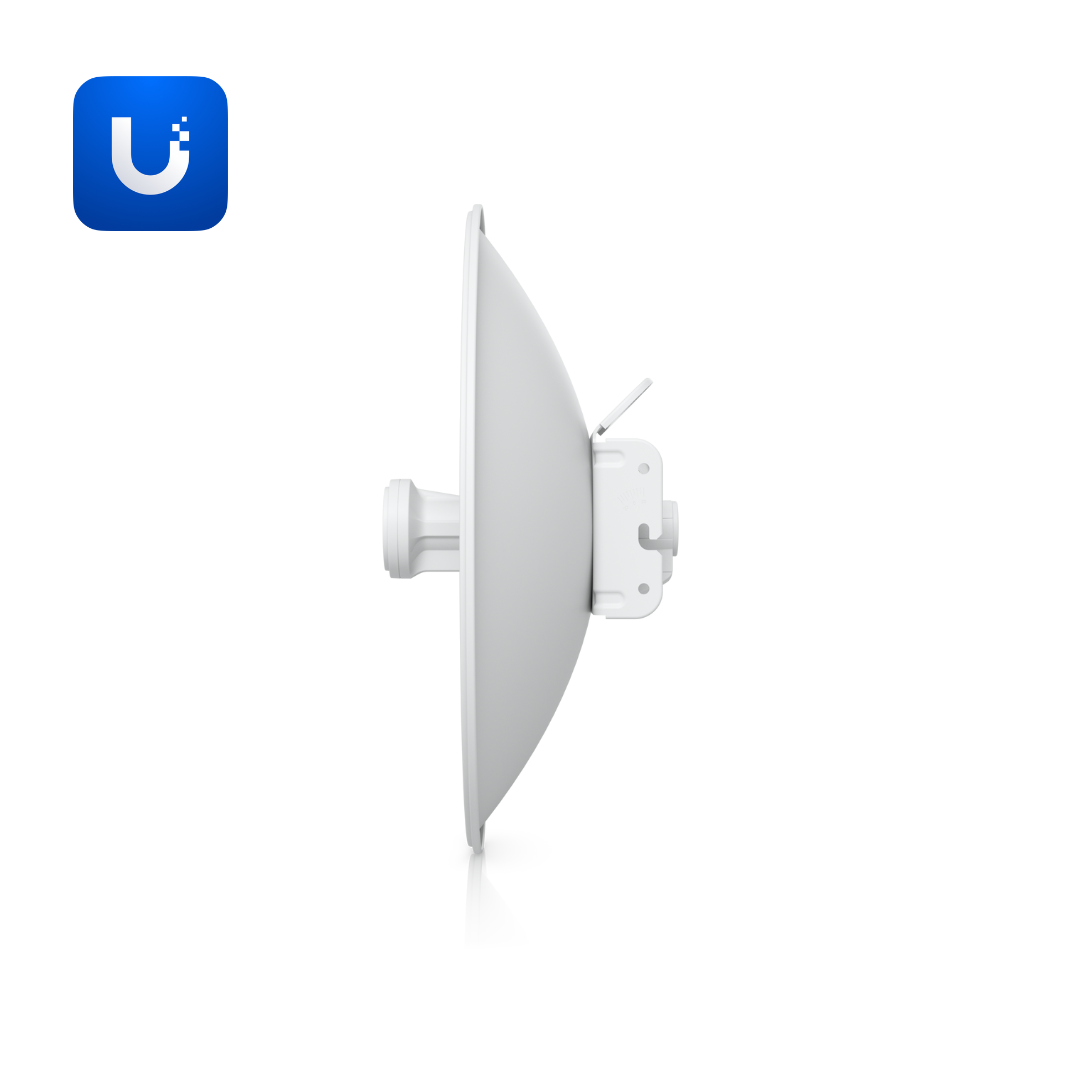

PBE-2AC-400 (airMAX PowerBeam 2AC 400) is a
2.4 GHz integrated dish wireless bridge delivering airMAX AC performance at 2.4 GHz frequencies — ideal for East African deployments where 2.4 GHz penetration characteristics, lower frequency propagation, or spectrum availability make 2.4 GHz preferable to 5 GHz. Measuring
420 × 420 × 289 mm (16.5 × 16.5 × 11.4") and weighing
1.8 kg (4 lb) in a
UV-stabilised plastic and powder-coated SPCC enclosure with included
pole mount kit.
200 km/h wind survivability with 342.5 N wind loading.
±24 kV air/contact ESD/EMP protection. Environmental testing includes salt fog, vibration, temperature shock, UV, and wind-driven rain.
Operating temperature: -40°C to 70°C (-40°F to 158°F). Fully
NDAA compliant.
The
PBE-2AC-400 operates across
2412–2472 MHz worldwide delivering
450+ Mbps throughput over 25+ km links with
18 dBi integrated dish gain and dual-linear polarization.
PtP and PtMP channel sizes of 10/20/40 MHz. The
dedicated management radio operates at 5150–5250 MHz worldwide enabling UISP management via 5 GHz without impacting the 2.4 GHz main link. Powered via
passive PoE 2-pair at 7.5W maximum (20–27V DC) with included
24V, 0.5A gigabit PoE adapter.
Power, Ethernet, and (4) signal strength LEDs.
Additional specifications:
- CE, FCC, IC, and RoHS certified, fully NDAA compliant
Ideal for
2.4 GHz PtP wireless backhaul, ISP CPE deployments, rural subscriber access, building-to-building links, and wireless deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring
2.4 GHz 18 dBi dish bridge performance with 25+ km range, 450+ Mbps throughput, dedicated spectral analysis, and 5 GHz management radio.
