The

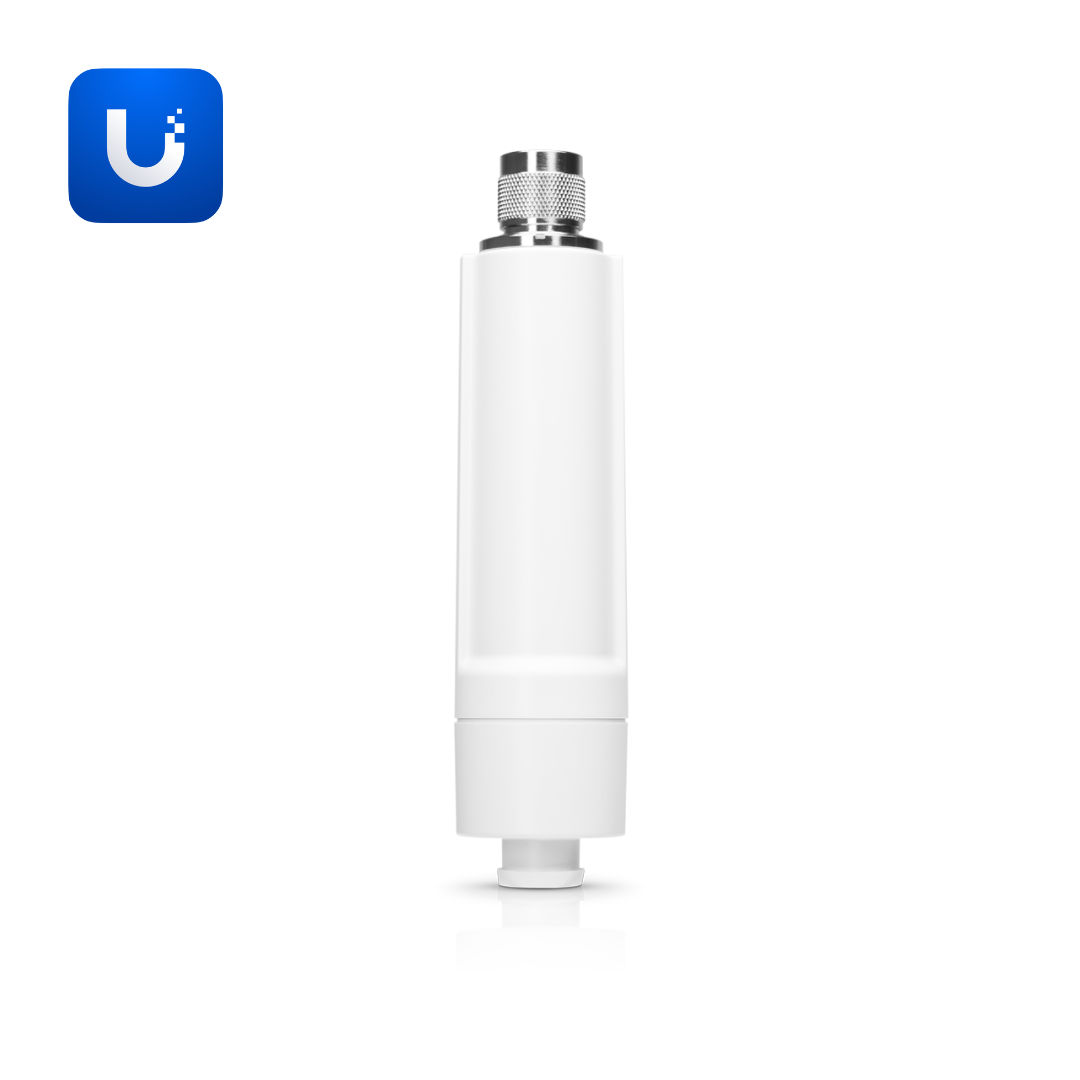

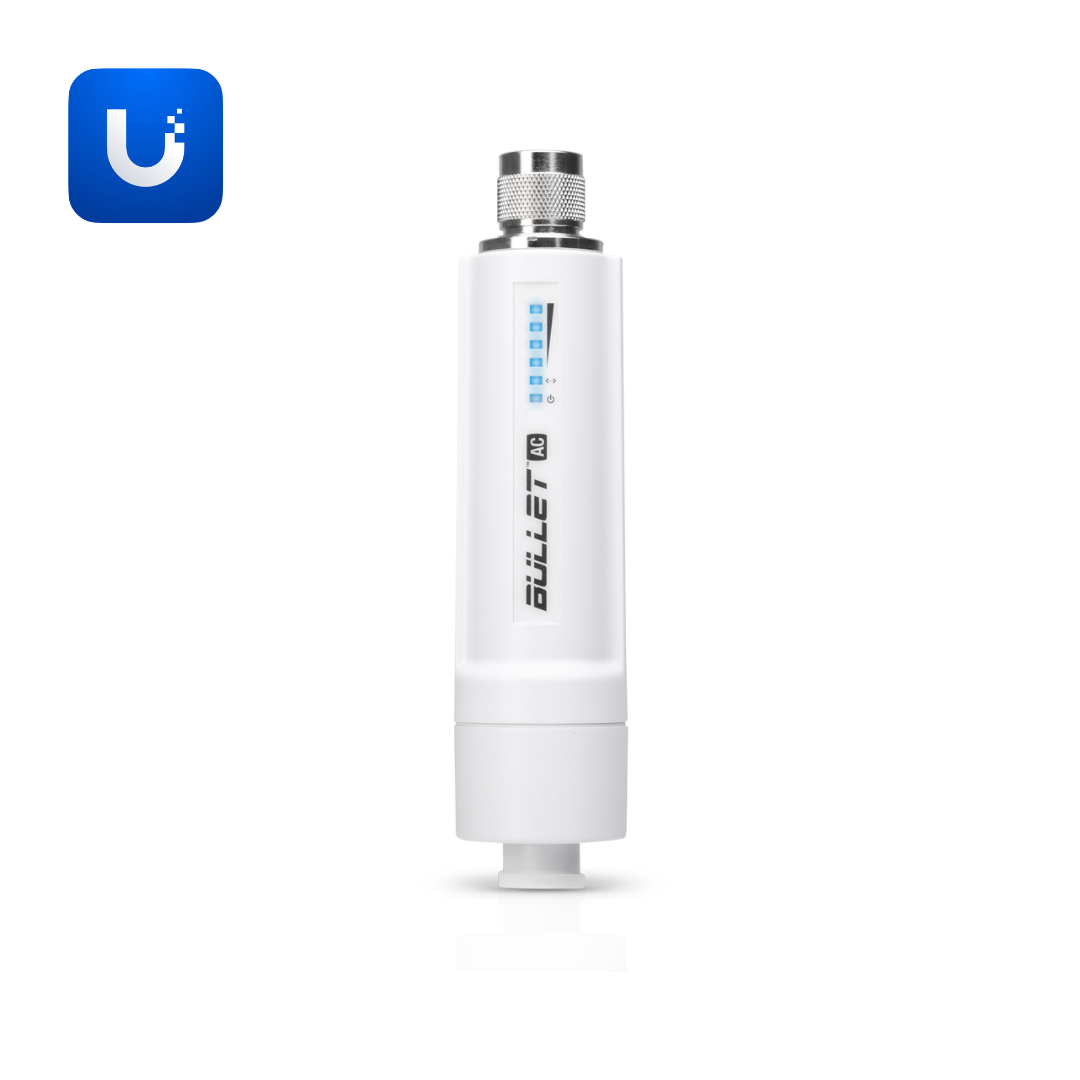

B-DB-AC (airMAX Bullet AC) is a
portable, dual-band 2.4/5 GHz Gigabit PoE wireless radio designed for maximum deployment flexibility across East African wireless networks — combining both 2.4 GHz and 5 GHz band support, plug-and-play airMAX antenna integration via an
N-type connector, and UISP application compatibility in an ultra-compact 116 g body. Measuring
190 × 46 mm (7.5 × 1.8") in a
polycarbonate enclosure, the B-DB-AC can be paired with virtually any airMAX antenna for flexible wireless link creation.
ETSI 300-019-1.4 shock and vibration testing.
±24 kV air/contact ESD/EMP protection.
Operating temperature: -40°C to 70°C (-40°F to 158°F). Fully
NDAA compliant. Note:
PoE adapter not included.
The
B-DB-AC covers
both 2400–2483.5 MHz (2.4 GHz) and 5150–5875 MHz (5 GHz) worldwide delivering
300+ Mbps on 5 GHz and 160+ Mbps on 2.4 GHz with
22 dBm output power. The

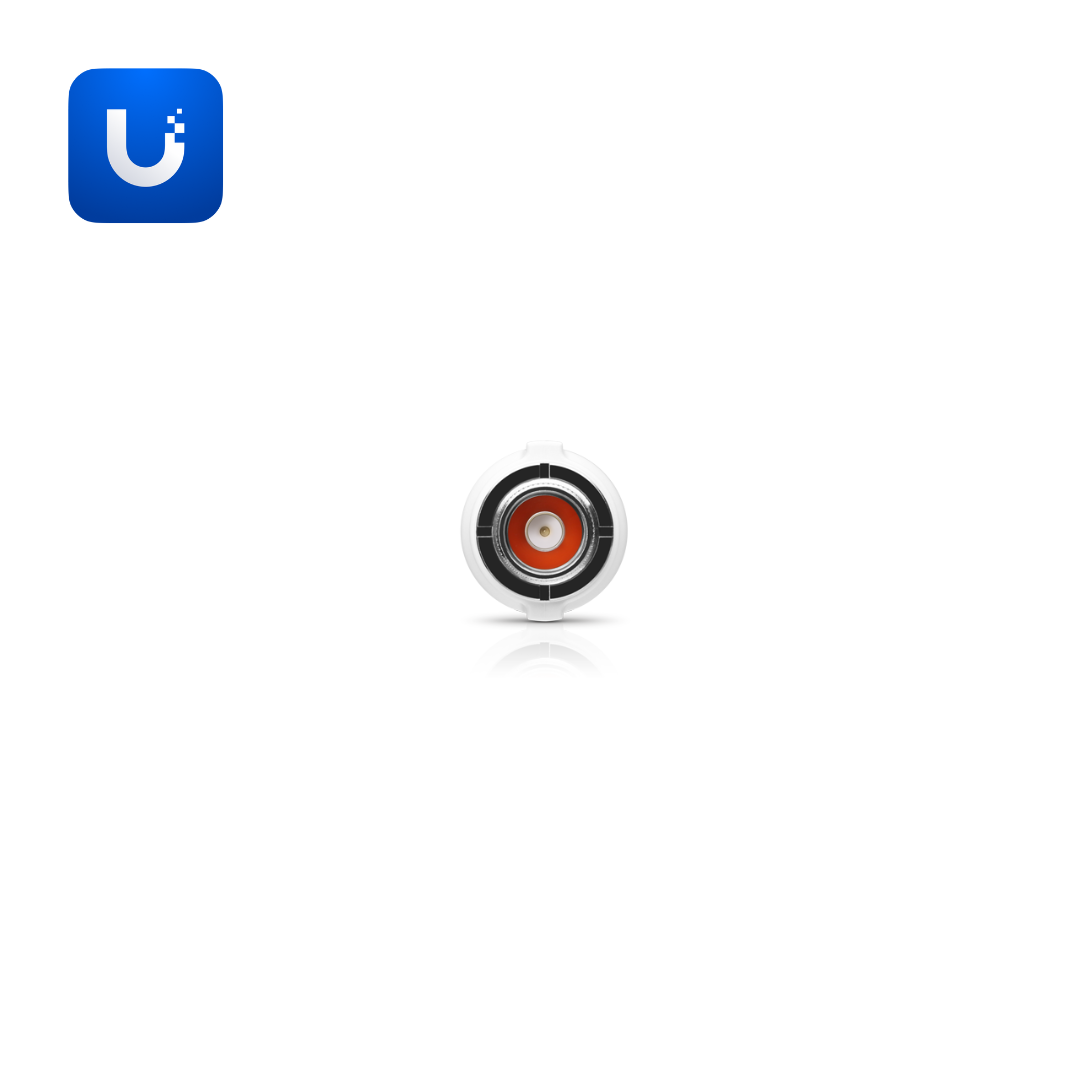

N-type antenna connector provides plug-and-play integration with the wide range of airMAX sector, omni, and dish antennas across the Ubiquiti lineup. Powered via
passive PoE 2-pair at 7W maximum (20–27V DC) — requires a separately purchased
24V DC, 0.3A gigabit PoE adapter.
Additional specifications:
- CE, FCC, and IC certified, fully NDAA compliant
Ideal for
flexible wireless deployments, antenna testing, ISP CPE installations, portable wireless connectivity, and network deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring
dual-band 2.4/5 GHz radio performance with N-type airMAX antenna compatibility, 300+ Mbps throughput, and UISP management in an ultra-compact portable form factor.
