The UniFi Express 7 (UX7) is a premium super-compact 10G Cloud Gateway engineered for organizations seeking enterprise-grade networking in the smallest possible footprint. This 6-stream 802.11be WiFi 7 access point gateway hybrid delivers blazing-fast wireless speeds up to 5.7 Gbps on 6 GHz, making it the ideal solution for remote offices, branch locations, distributed teams, small businesses, startup offices, and space-constrained deployments requiring future-proof connectivity.
Built for flexible enterprise and SMB network deployments, the UX7 combines gateway functionality with access point capabilities, allowing deployment as a wired gateway, meshed layer 2 access point, or hybrid configuration. Whether you're scaling your multi-location network infrastructure, deploying mesh-based wireless systems, establishing distributed office connectivity, or building compact network solutions for growing businesses and remote teams, the UniFi Express 7 delivers professional-grade performance in an exceptionally small package.
Key Features for Enterprise & SMB Deployments
- Super-Compact Form Factor: Measures just 117 × 117 × 42.5 mm (4.61 × 4.61 × 1.67 inches)—smallest 10G gateway available for space-constrained installations, wall mounting, or desktop deployment
- 10G Cloud Gateway: 1 × 10 GbE RJ45 WAN port delivering ultra-high-speed connectivity with 5G/2.5G/1G backward compatibility for flexible internet connections
- Integrated 6-Stream WiFi 7: Tri-band (2.4 GHz + 5 GHz + 6 GHz) 802.11be support delivering up to 5.7 Gbps (6 GHz), 4.3 Gbps (5 GHz), and 688 Mbps (2.4 GHz) with 2×2 MU-MIMO on all bands
- Mesh-Scalable Architecture: Optionally adopt as wired gateway, meshed layer 2 access point, or hybrid configuration for seamless coverage expansion and flexible network topology
- 140-160 m² Coverage: Covers up to 160 m² (1,500 ft²) for small offices, retail spaces, or home networks—expandable through mesh connectivity
- Enterprise Security Suite: Stateful firewall, application-aware Layer 7 filtering, IDS/IPS with 20,000+ signatures, DPI traffic identification, content filtering, and ad blocking
- Advanced VPN & SD-WAN: License-free SD-WAN, Site Magic VPN, IPsec, WireGuard, OpenVPN, L2TP, identity-based VPN, and zero-configuration remote access
- USB Type-C Power: Powered by standard USB-C adapter (included) at just 22W max consumption—ideal for office desks, retail counters, or mobile deployments
- Cloud-Managed Networking: Remote management via UniFi Cloud Controller with optional on-premise management for offline environments
Perfect Applications Across Organizations
- Remote & Branch Offices: Compact gateway solution for satellite offices, regional branches, and distributed team locations requiring 10G connectivity and mesh expansion
- Small Business Networks: All-in-one gateway + WiFi 7 access point for startups, SMBs, and growing companies transitioning from consumer-grade networking
- Retail & Hospitality: Compact gateway for retail locations, restaurants, cafés, and boutique hospitality venues needing guest WiFi and secure network management
- Professional Services: Legal offices, accounting firms, consulting practices, and design studios requiring enterprise security and reliable connectivity in compact spaces
- Educational Institutions: Satellite gateway for school branches, training centers, libraries, and education facilities requiring distributed network management
- Healthcare Clinics: HIPAA-compliant gateway for smaller medical offices, urgent care clinics, and healthcare remote locations with advanced security controls
- Hybrid & Home Office Networks: Premium home office solution for remote workers, freelancers, and small teams requiring professional-grade security and management
- Mesh Network Expansion: Secondary node for extending UniFi network coverage through mesh deployment alongside primary UDM-SE or UDR7 gateways
Technical Specifications
- Wireless Standard: WiFi 7 (IEEE 802.11be) tri-band (2.4 GHz + 5 GHz + 6 GHz), backward compatible with WiFi 6/6E/5/4.
- Max Data Rates: Up to 5.7 Gbps combined (6GHz: 5.7 Gbps, 5GHz: 4.3 Gbps, 2.4GHz: 688 Mbps).
- Spatial Streams / MIMO: 6-stream total: 2×2 MU-MIMO on 2.4GHz + 2×2 MU-MIMO on 5GHz + 2×2 MU-MIMO on 6GHz.

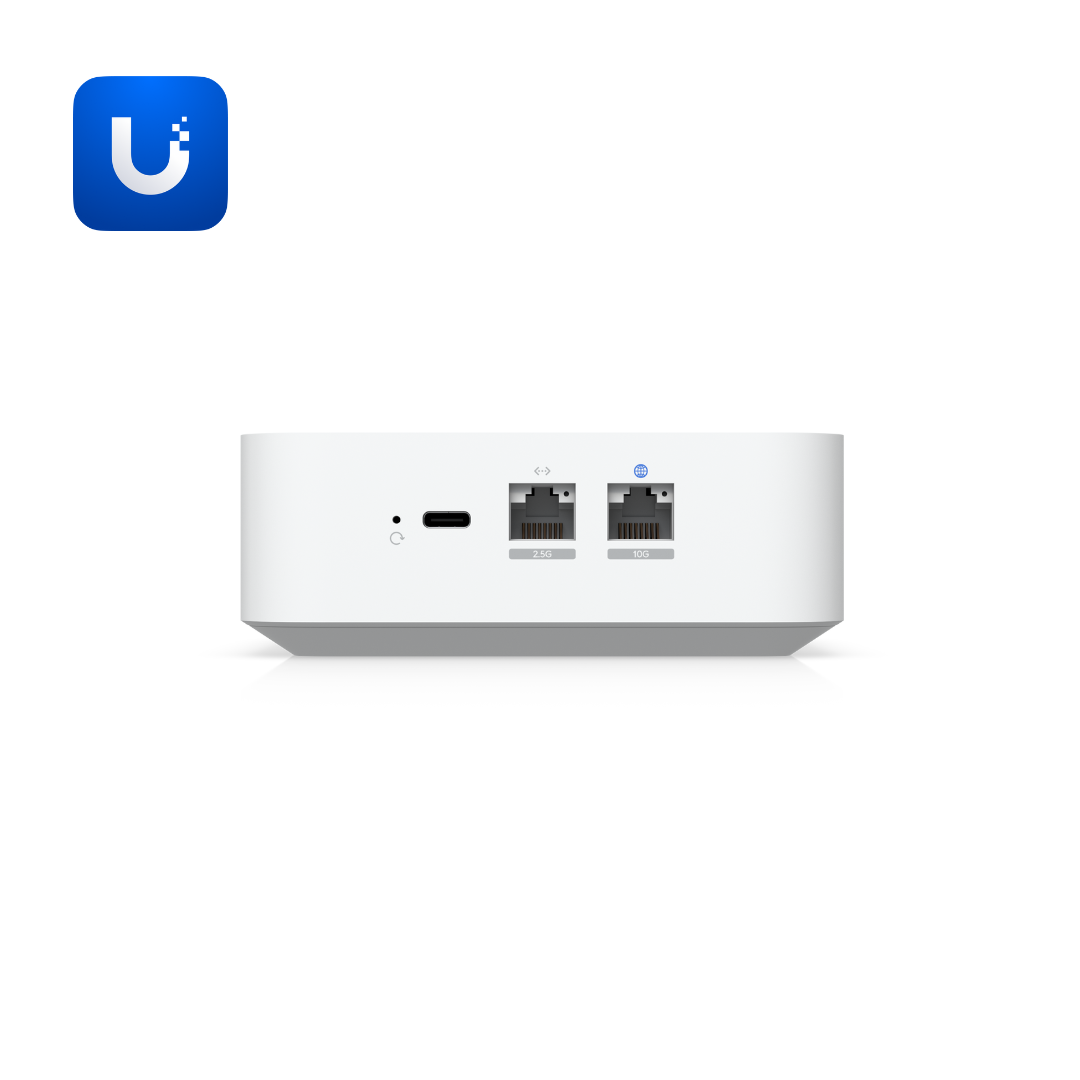

- Ethernet Ports: 1 × 10 GbE RJ45 WAN port (10G/5G/2.5G/1G/100M) + 1 × 2.5 GbE RJ45 LAN port (2.5G/1G/100M/10M).
- Power & Installation: USB Type-C power (5V DC/5A adapter included); 22W max power consumption; extremely compact desktop/wall-mount form factor.
- Form Factor: Super-compact size 117 × 117 × 42.5 mm (4.61 × 4.61 × 1.67 inches); weight 422g (14.9 oz); includes 0.96" status display and Bluetooth connectivity.
- Management & Features: UniFi Network Controller integration, advanced QoS, VLAN/subnet segmentation, multi-WAN failover with LTE backup option, dynamic routing (OSPF), IPv6 support, integrated RADIUS server.
- Security: IDS/IPS throughput 2.3 Gbps, stateful firewall, application-aware Layer 7 filtering, DPI traffic identification, zone-based advanced filtering, content filtering, ad blocking, policy-based routing, NDAA compliant.
- Deployment Modes: Wired gateway mode or Layer 2 mesh access point mode for flexible topology and coverage expansion.
- Device Management: Manages 30+ UniFi devices and supports 300+ simultaneous connected clients.
- Operating Temperature: -10°C to 40°C (suitable for diverse climate conditions and indoor installations worldwide).
Why Choose the UniFi Express 7?
- ✅ Ultra-Compact Design: Smallest 10G gateway available—perfect for space-constrained offices, retail locations, and desktop deployments without compromising performance.
- ✅ WiFi 7 Ready: Next-generation wireless standards with 5.7 Gbps capability ensure future-proof connectivity for emerging applications and devices.
- ✅ Mesh-Scalable Architecture: Deploy as gateway, access point, or hybrid configuration—add multiple UX7 units to expand coverage and create self-healing mesh networks.
- ✅ 10G Connectivity: Ultra-fast wired uplink eliminates bottlenecks and delivers professional-grade performance in compact form.
- ✅ Enterprise Security Included: Professional-grade firewall, IDS/IPS, DPI, and threat detection without per-user or per-device licensing fees.
- ✅ USB-C Powered: Standard USB-C charging with included adapter—ideal for office desks, retail counters, or mobile deployments requiring flexibility.
- ✅ Unified Management: Single control point for 30+ devices and 300+ users with cloud or on-premise management options.
- ✅ Remote-Friendly: Perfect for distributed teams, branch offices, and remote locations requiring professional networking in minimal space.
Deployment Flexibility
Gateway Mode: Deploy as primary 10G cloud gateway for remote offices, small businesses, or distributed networks.
Mesh AP Mode: Adopt as Layer 2 mesh access point to extend coverage from primary UDM-SE or UDR7 gateway in multi-floor or large-area deployments.
Hybrid Configuration: Combine multiple UX7 units in mesh topology with primary gateway for distributed network architecture and seamless roaming.
Perfect Complement to Existing UniFi Networks
- ✅ Pair with UDM-SE: Use UX7 as remote gateway or mesh AP to extend enterprise network control to branch offices and remote locations
- ✅ Extend UDR7 Networks: Add UX7 mesh nodes for WiFi 7 coverage expansion across multiple floors or large office spaces
- ✅ Multi-Site Management: Deploy UX7 at each location while maintaining unified security, routing, and device management from central console
- ✅ Scalable Growth: Start with single UX7, add additional units as network grows—no architectural changes required
