Description

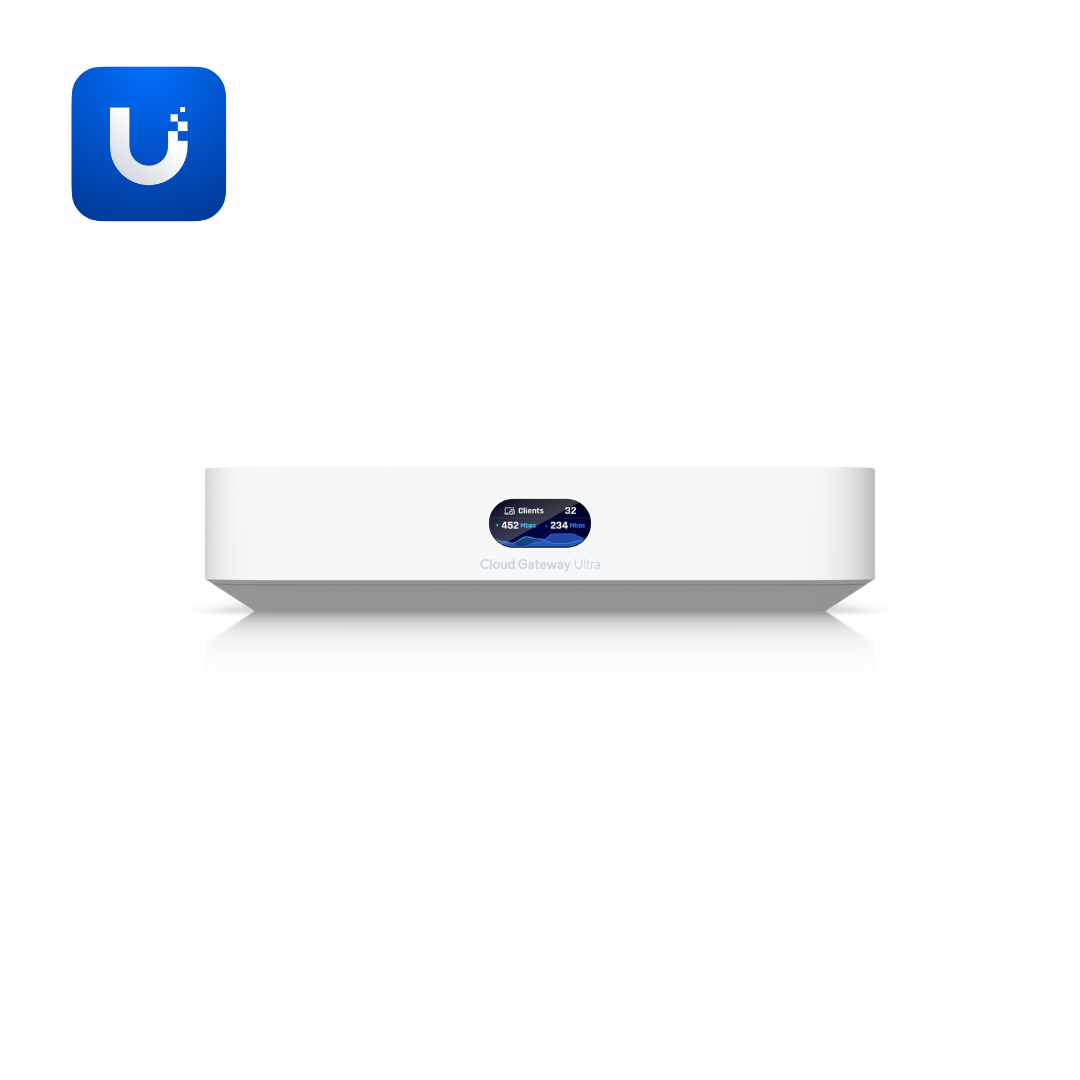

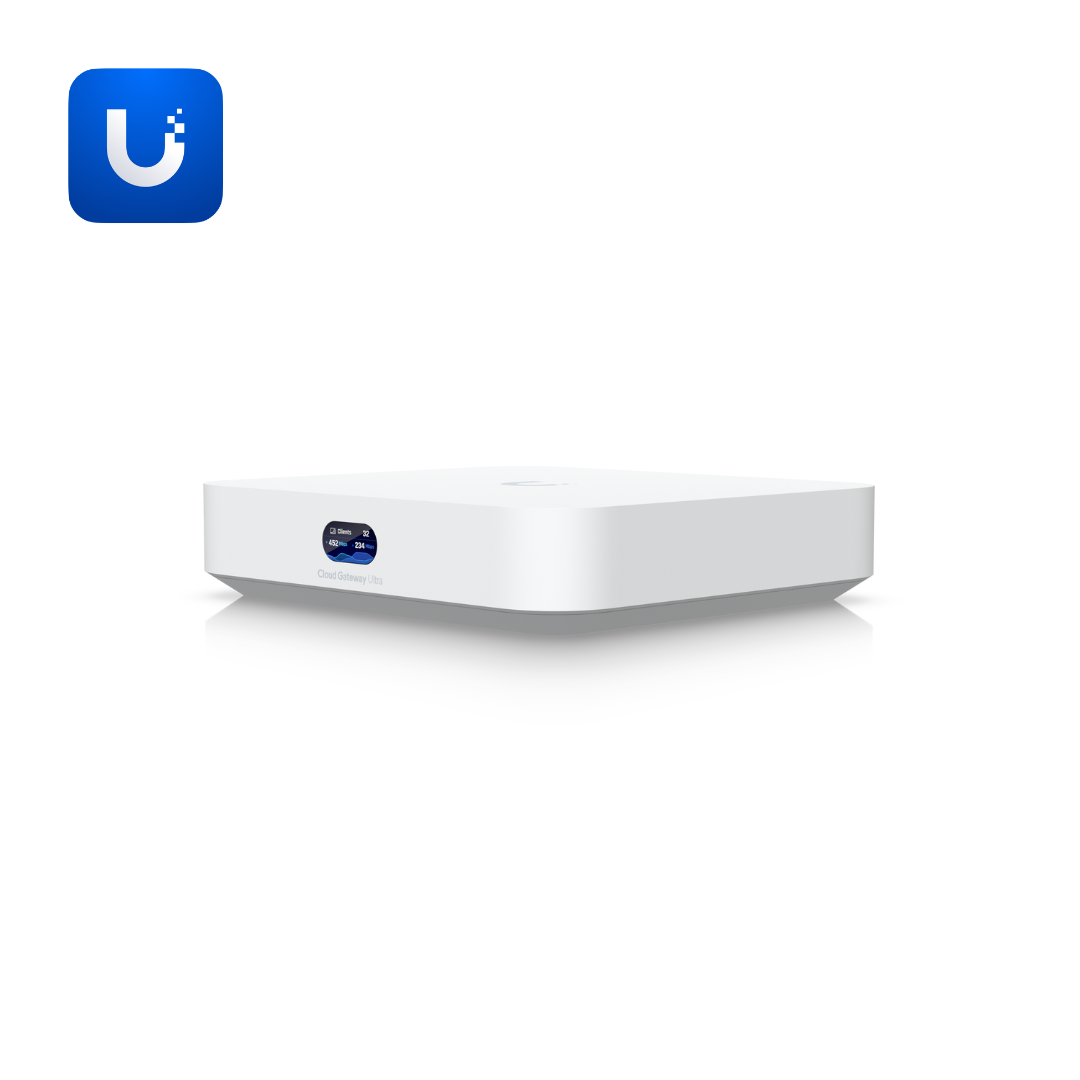

The Cloud Gateway Ultra (UCG-Ultra) is a compact cloud gateway engineered for organizations requiring advanced gateway functionality without the complexity or cost of larger appliances. This powerful yet affordable gateway delivers centralized network management, multi-WAN load balancing, enterprise-grade security, and 1 Gbps IPS routing in a compact desktop form factor. With built-in UniFi Network management, 30+ device support, and USB-C power connectivity, the Cloud Gateway Ultra is ideal for small offices, branch locations, remote sites, and organizations requiring cost-effective gateway solutions with professional-grade security and networking capabilities.
Key Features
- Compact Gateway Design: Small desktop form factor (141.8 x 127.6 x 30 mm) for flexible deployment in space-constrained environments
- 30+ Device Management: Support for 30+ UniFi Network devices and 300+ simultaneous clients in unified platform
- 1 Gbps IPS Routing: Professional-grade routing with 1 Gbps intrusion prevention and detection capabilities
- Multi-WAN Load Balancing: Up to 4 WAN ports with intelligent load balancing across multiple internet connections
- Advanced Security: Stateful firewall, Layer 7 application firewall, IDS/IPS, DPI, content filtering, and ad blocking
- License-Free SD-WAN: SD-WAN capabilities without licensing fees for multi-location networks
- Multiple VPN Options: Site Magic, IPsec, OpenVPN, WireGuard, L2TP, and Teleport zero-config VPN support
- USB-C Powered: Simple USB-C power connection (adapter included) enables flexible placement and reduces cable complexity
- 0.96" Status Display: Compact LCM display for real-time gateway status and quick management access
- Integrated UniFi Management: Built-in UniFi Network application for centralized device and network management
Perfect Applications
- Small Office Networks: Complete gateway solution for small offices requiring multi-WAN and advanced security
- Branch Office Deployments: Cost-effective gateway for branch locations with limited IT resources
- Remote Site Connectivity: Compact gateway for remote locations requiring secure multi-WAN connections
- Retail Store Networks: Gateway solution for retail locations with guest WiFi and traffic segmentation needs
- Professional Services Offices: Secure network gateway for law firms, consulting, and accounting offices
- Educational Facilities: Campus and classroom network gateway with multi-WAN failover capabilities
Technical Specifications
- Device Support: Manages 30+ UniFi Network devices and 300+ simultaneous connected clients

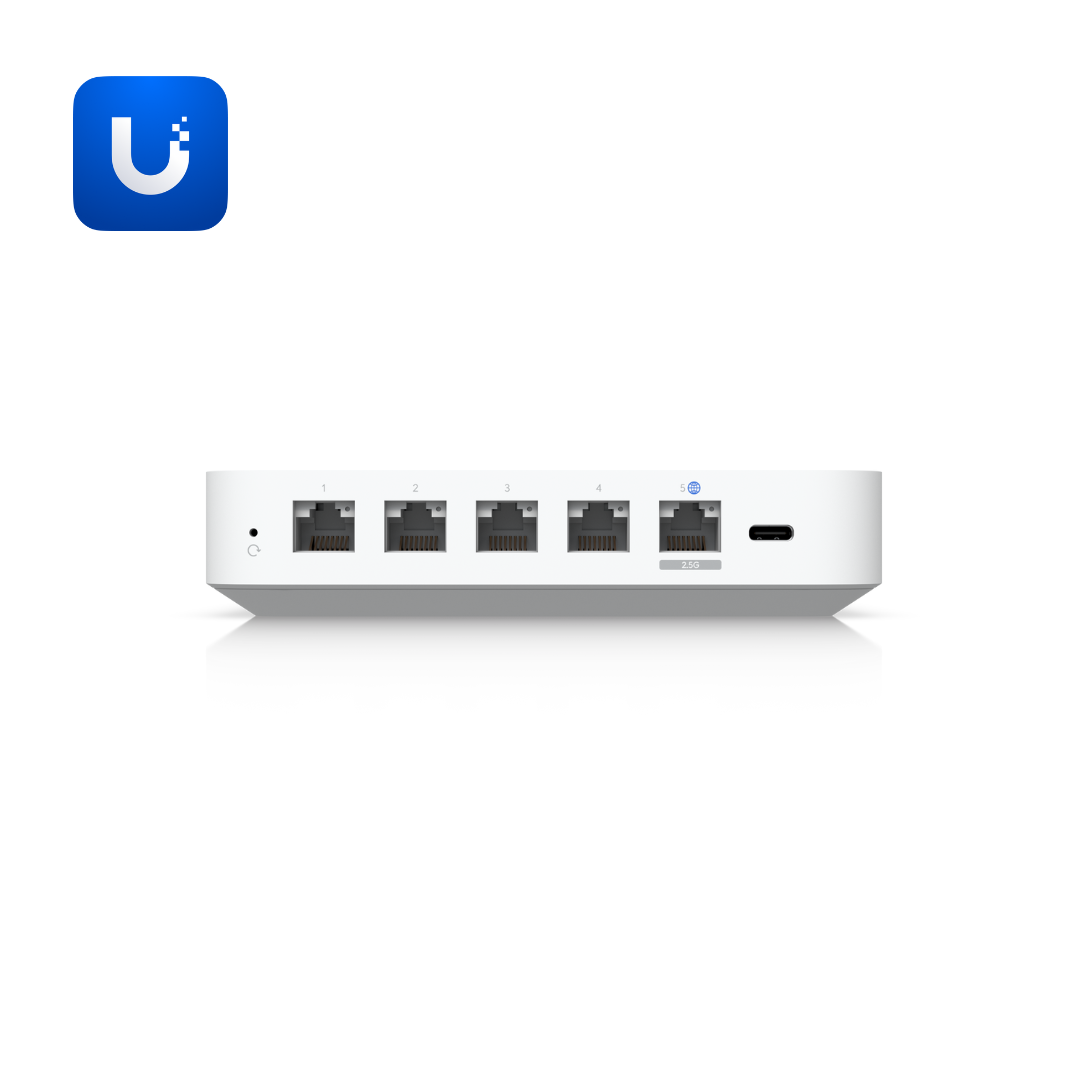

- WAN Connectivity: 1 × 2.5 GbE RJ45 WAN port + 4 × 1 GbE RJ45 LAN ports; supports up to 4 WAN ports total
- Routing Performance: 1 Gbps IDS/IPS throughput with professional-grade routing capability
- Processor: Quad-core ARM Cortex-A53 at 1.5 GHz for efficient gateway operations
- Memory: 3GB system RAM for smooth multi-tasking and concurrent operations
- Storage: 16GB on-board storage for configuration and operational data
- Power: USB type C (5V DC/3A) with included adapter; maximum 6.2W power consumption
- Firewall: Stateful firewall, Layer 7 application firewall, 55,000+ IDS/IPS signatures with CyberSecure
- Form Factor: Compact desktop (141.8 x 127.6 x 30 mm); polycarbonate enclosure
- Display: 0.96" LCM status display for real-time gateway monitoring
- Management: Ethernet, Bluetooth, LED indicators, factory-reset button
- Temperature: Operating temperature -10°C to 40°C; humidity 5% to 95% non-condensing
- Weight: 520g (1.1 lb)—lightweight portable design
- Certifications: NDAA compliant; CE, FCC, IC, Anatel certified
Why Choose Cloud Gateway Ultra?
- ✅ Compact Size: Small desktop form factor fits any office space or location without installation complexity
- ✅ Cost-Effective: Affordable gateway solution for businesses with limited IT budgets
- ✅ Multi-WAN Support: Up to 4 WAN ports with intelligent load balancing and failover capabilities
- ✅ Enterprise Security: Advanced firewall, IDS/IPS, DPI, and content filtering for professional protection
- ✅ Integrated Management: Built-in UniFi Network eliminates need for separate management infrastructure
- ✅ Flexible VPN: Multiple VPN protocols including Site Magic and Teleport for secure remote connectivity
- ✅ USB-C Power: Simple USB-C connection with included adapter enables flexible deployment
- ✅ Easy Deployment: Compact design and minimal power requirements enable rapid installation
- ✅ Government Certified: NDAA compliant for secure government and sensitive deployments
Advanced Gateway Features
Multi-WAN Load Balancing: Distribute traffic across up to 4 WAN connections for optimal performance and internet redundancy.
1 Gbps IDS/IPS Protection: 55,000+ threat signatures with CyberSecure for comprehensive network threat detection and prevention.
License-Free SD-WAN: Advanced SD-WAN optimization without additional licensing fees for multi-location networks.
Application-Aware Firewall: Layer 7 firewall with deep packet inspection and traffic identification for granular control.
Zero-Config VPN Options: Teleport and Site Magic deliver one-click VPN connectivity without complex configuration.
Security & Networking Capabilities
Advanced Threat Protection: Stateful firewall, IDS/IPS, DPI, content filtering, ad blocking, and VLAN-based traffic segmentation.
Dynamic Routing: OSPF support, advanced QoS, policy-based routing, and customizable DHCP server capabilities.
VPN Flexibility: Site Magic, IPsec, OpenVPN, WireGuard, L2TP, and integrated RADIUS authentication.
Internet Reliability: Multi-WAN failover, LTE backup compatibility, and internet quality reporting for continuous connectivity.
Perfect for Growing Networks
- ✅ Expandable Foundation: Works as gateway foundation with additional UniFi devices and access points
- ✅ Multi-Location Ready: License-free SD-WAN enables seamless expansion to multiple offices
- ✅ Professional Security: Enterprise-grade protection suitable for sensitive business networks
- ✅ Scalable Features: Advanced routing, VPN, and segmentation support growing network complexity
Integration with UniFi Ecosystem
- UniFi Access Points – Extend wireless coverage with WiFi 5 and WiFi 6E devices
- UniFi Switches – Add Gigabit and multi-gigabit switching for network expansion
- UniFi Cloud Console – Centralized management of gateway and multiple locations
- UniFi Protect – Integrate video surveillance with gateway security infrastructure
- UniFi Dream Machine – Alternative all-in-one gateway and WiFi solution
Related Products & Solutions

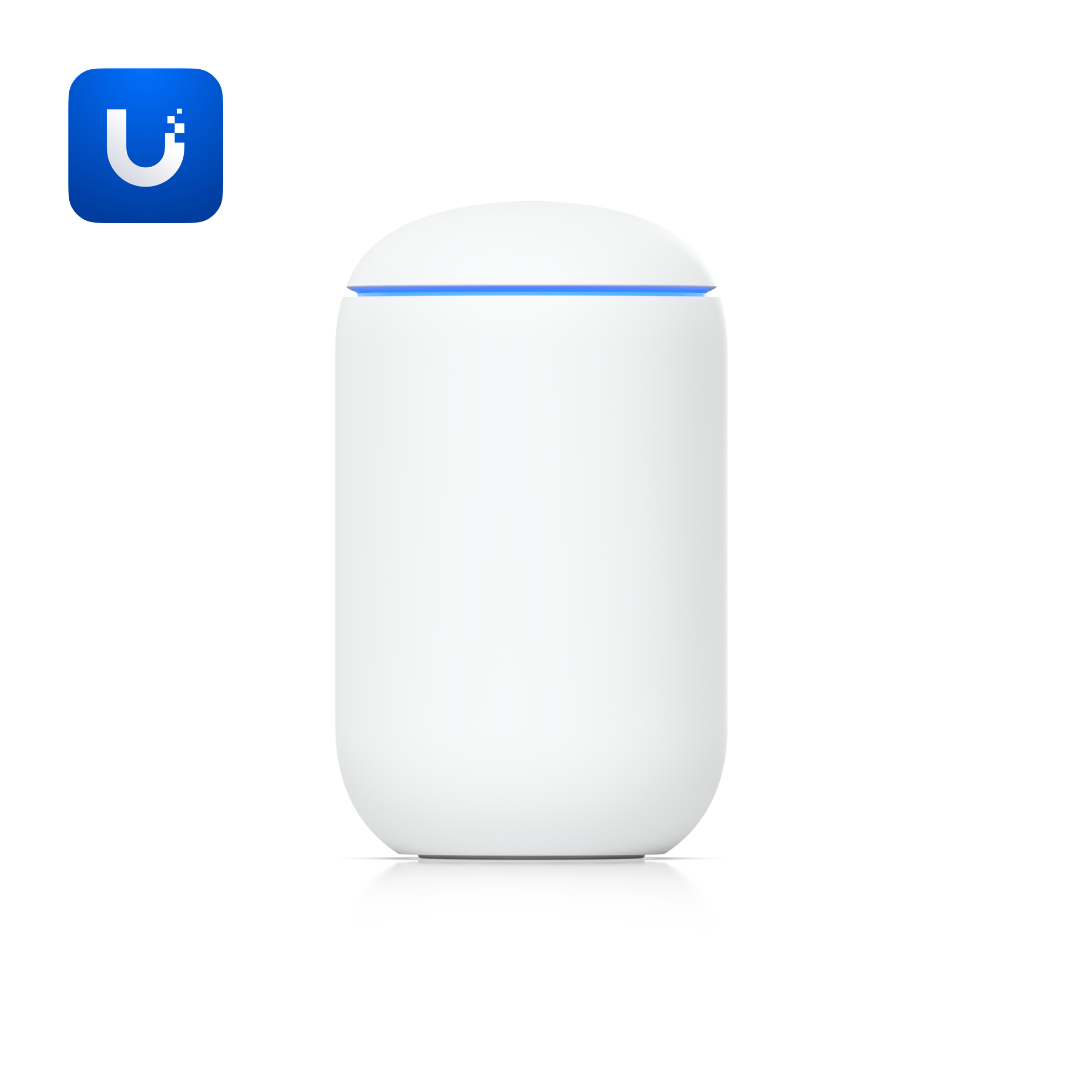

- Dream Machine (UDM) – All-in-one gateway with built-in WiFi 5 access point
- CloudKey Enterprise (CK-Enterprise) – Enterprise management console for massive deployments
- UniFi Gateway Pro (UFG) – Advanced 10G enterprise gateway for large networks
- UniFi Access Points – WiFi 5 and WiFi 6E wireless infrastructure
- UniFi Switches – Gigabit and multi-gigabit network switches
Order Now
Deploy the Cloud Gateway Ultra as your cost-effective network gateway today.
Order the Cloud Gateway Ultra (UCG-Ultra) today and establish a powerful, affordable gateway solution for your office, branch, or remote location. Perfect for small businesses, branch offices, remote sites, and organizations requiring professional gateway functionality in a compact form factor.
For gateway deployment, multi-WAN configuration, security setup, or UniFi ecosystem integration—contact our team or request a technical consultation today. We provide professional support for Cloud Gateway Ultra deployments and complete network infrastructure solutions.
