The
UP-Chime (WiFi Smart Chime) is a
plug-in WiFi smart chime designed to complete UniFi doorbell and intercom deployments with wireless, cable-free chime functionality across East African residential and commercial properties. Measuring
⌀62 × 68.3 mm (⌀2.4 × 2.7") without prong and weighing
135 g (4.8 oz), the UP-Chime plugs directly into any standard AC outlet and pairs wirelessly with compatible UniFi doorbells and intercoms via
UniFi WiFi Auto-Link (802.11 b/g/n) — with third-party WiFi configuration also available during setup via the
UniFi Protect mobile app. The

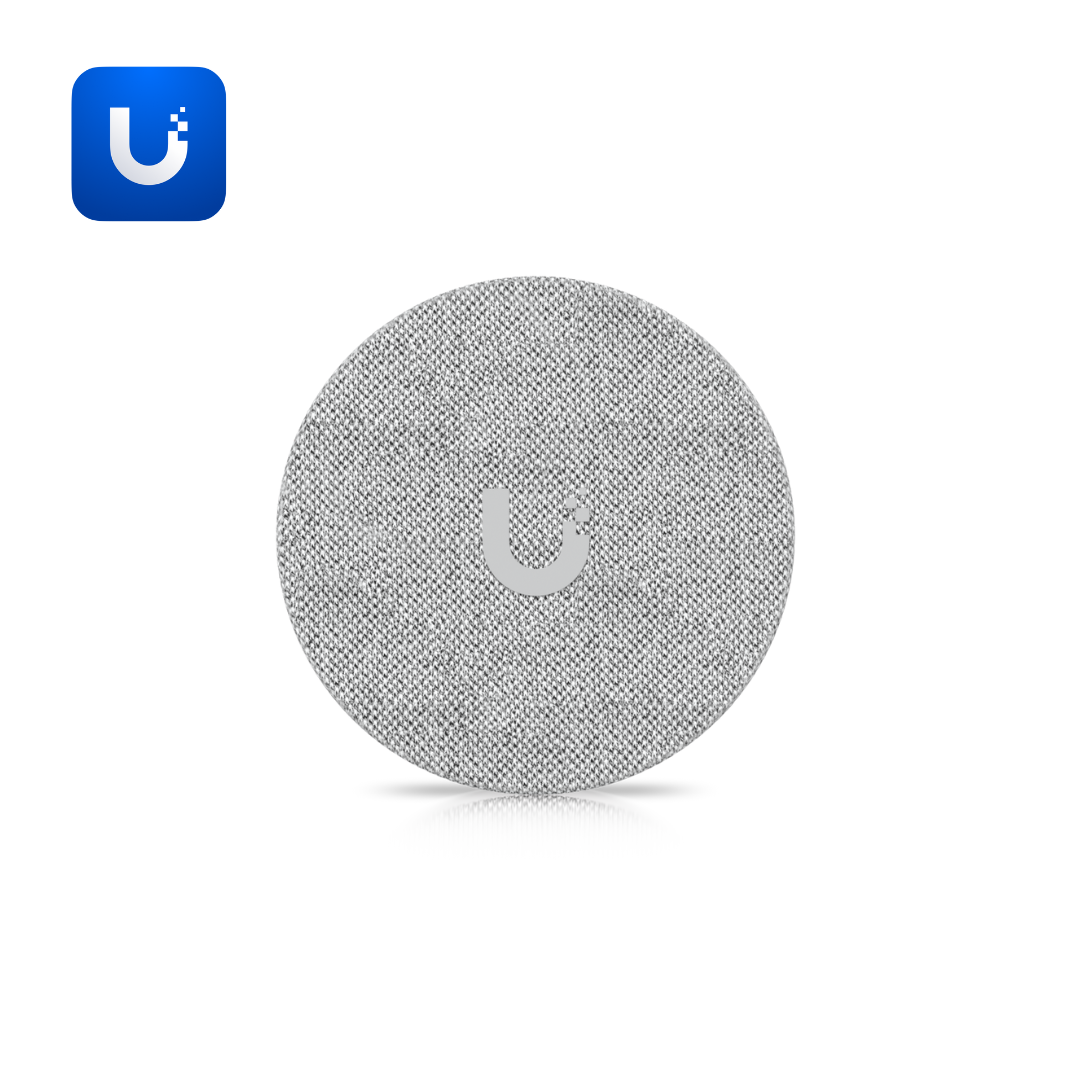

polycarbonate and fabric enclosure provides a premium, home-friendly finish. Requires
UniFi Protect version 2.0 and later, UniFi Protect iOS version 1.6.2 and later, and UniFi Protect Android version 1.6.0 and later.
The
UP-Chime delivers
up to 80 dB speaker sound with a
built-in speaker and buzzer for clear chime alerts across rooms and open-plan spaces.
(5) white LED indicators provide visual notification status.
AC powered at 100–240V, 50/60 Hz at a maximum of 3.7W — compatible with East African power standards.
±16kV air and ±8kV contact ESD/EMP protection safeguards against electrical surges.
Compatible UniFi devices include:
- UA-G3-Pro-B, UA-G3-Pro-W, UVC-G4 Doorbell Pro, UVC-G4 Doorbell Pro PoE Kit
- UA-G3-Intercom, UA-G2-Pro, UA-G2-Pro-Black, UA-G3-SK-Pro, UA-G2-SK-Pro
- UA-Intercom, UVC-Doorbell-Lite-B, UVC-Doorbell-Lite-W
- UVC-G6-Pro-Entry, UVC-G6-Entry, UVC-G4-DoorBell
Additional specifications:
- Operating temperature: 0°C to 40°C (32°F to 104°F)
- Operating humidity: 10–90% non-condensing
- CE, FCC, and IC certified, fully NDAA compliant
Ideal for
residential properties, offices, retail stores, hotels, apartments, and any deployment across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring
wireless plug-in chime functionality for UniFi doorbells and intercoms with 80 dB sound output, WiFi Auto-Link connectivity, and universal AC power compatibility.
