The

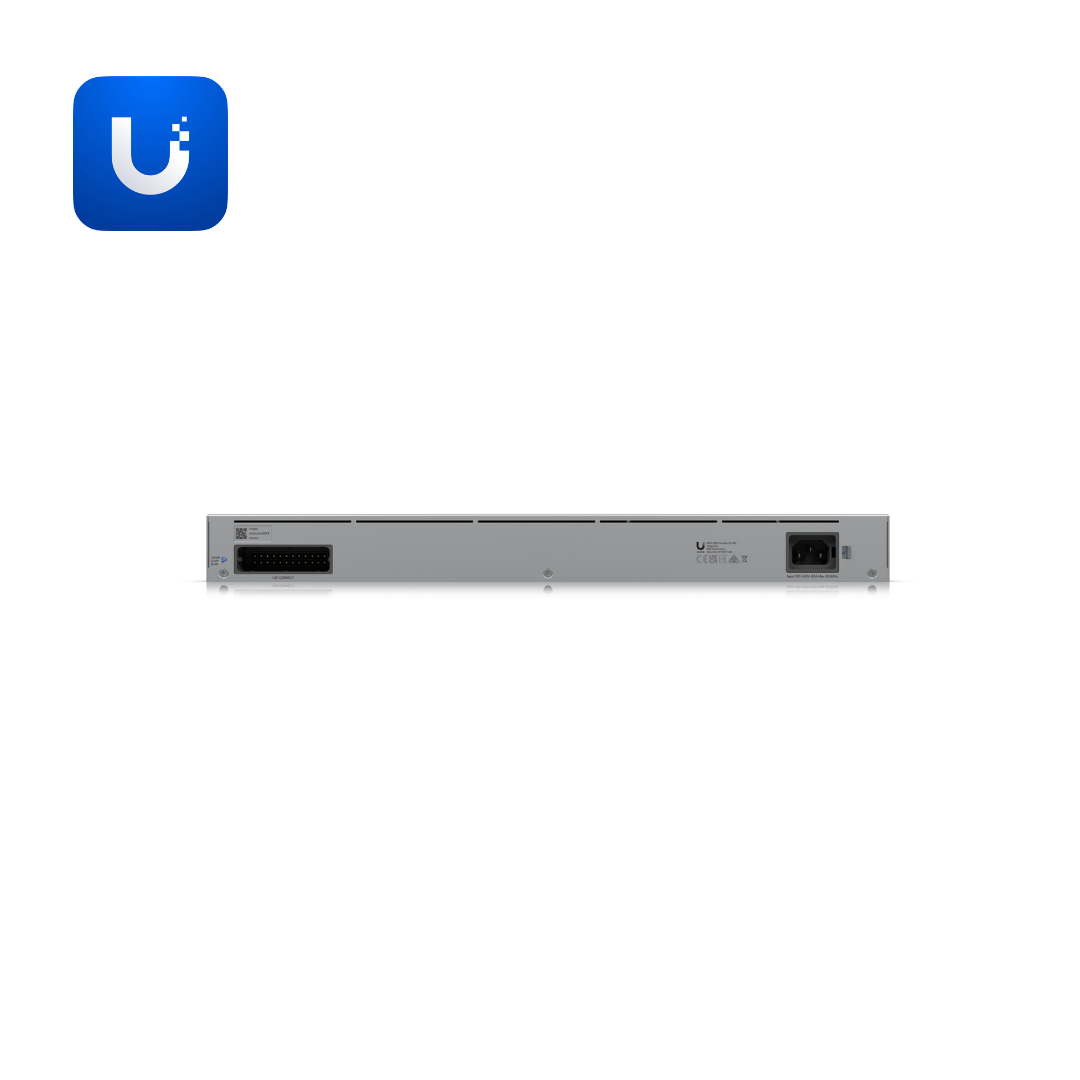

USW-Pro-Max-24-PoE (Pro Max 24 PoE) is a
1U rack-mount Layer 3 Etherlighting™ managed switch engineered for high-power PoE++ delivery, multi-gigabit 2.5 GbE switching, and advanced AV and enterprise networking in East Africa's most demanding environments. Measuring
442 × 325 × 44 mm (17.4 × 12.8 × 1.7") and weighing
5.1 kg (11.3 lb) without or 5.2 kg (11.5 lb) with mounting brackets, the USW-Pro-Max-24-PoE features an
SGCC steel enclosure and mount, a
1.3" touchscreen LCM display, and supports rack depths of
400–1,200 mm (15.7–47.2").
DC power backup readiness via USP RPS DC input ensures continued switching and PoE operation during power interruptions — critical for mission-critical East African deployments. Requires
UniFi Network version 8.0.24 and later.
The
USW-Pro-Max-24-PoE delivers an industry-leading
400W total PoE availability across
(8) 2.5 GbE PoE++ ports and (8) GbE PoE++ ports at up to 64W per port, and (8) GbE PoE+ ports at up to 32W per port — supporting the full PoE++ power requirements of UniFi U7 and E7 access points, high-power IP cameras, pan-tilt-zoom cameras, digital signage displays, and industrial IoT devices simultaneously.
Dual 10G SFP+ uplinks ensure high-speed uplink capacity.
Switching capacity of 112 Gbps with 56 Gbps non-blocking throughput and 83 Mpps forwarding rate delivers wire-speed performance across all 26 ports.

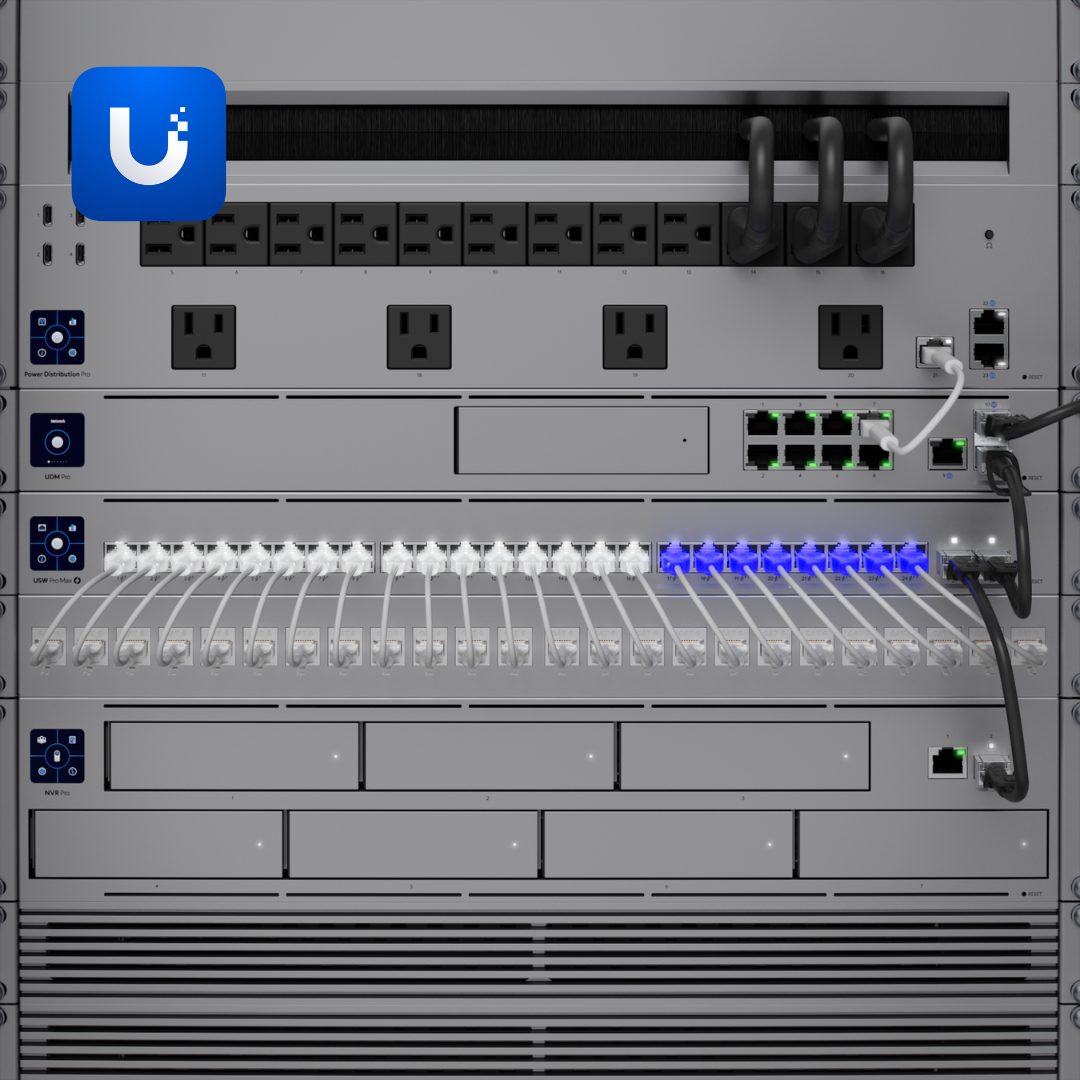

Etherlighting™ on all Ethernet and SFP+ ports provides visual port identification — pair with
UniFi Etherlighting Patch Cables for optimal brightness.
Layer 3 capabilities include:
- DHCP server and DHCP relay for local networks
- Inter-VLAN routing for local networks
- Static routing for local networks
- 6,000 ARP entries and 256 IPv4 static routes
Pro AV profiles for one-click optimisation include:
- Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, and Crestron
The comprehensive
Layer 2 feature set includes:
- LACP port aggregation, STP/RSTP, QoS (DSCP)
- Advanced IGMP configuration and IGMP snooping
- 802.1X control, MAC-based and IP-based ACLs
- DHCP snooping and guarding, egress rate limiting, flow control
- Storm control, multicast/broadcast rate limiting, port isolation, port mirroring
- Jumbo frames, LLDP-MED, Voice VLAN, loop protection, virtual network override
- 128 IPv4 ACLs and 128 MAC ACLs
Additional specifications:
- Max. power consumption: 50W excluding PoE output / 450W including PoE output
- Heat dissipation: 119 BTU/hr excluding PoE output
- Operating temperature: -5°C to 40°C (23°F to 104°F)
- Operating humidity: 10–90% non-condensing
- CE, FCC, IC, and Anatel certified, fully NDAA compliant
Ideal for
professional broadcast facilities, enterprise networks, large corporate deployments, mission-critical infrastructures, AV integration environments, and high-power PoE deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring
24-port Layer 3 switching with Etherlighting™, 400W PoE++ availability, 2.5 GbE multi-gigabit ports, dual 10G SFP+ uplinks, DC power backup readiness, Pro AV profiles, and full UniFi management in a 1U rack-mount switch.
