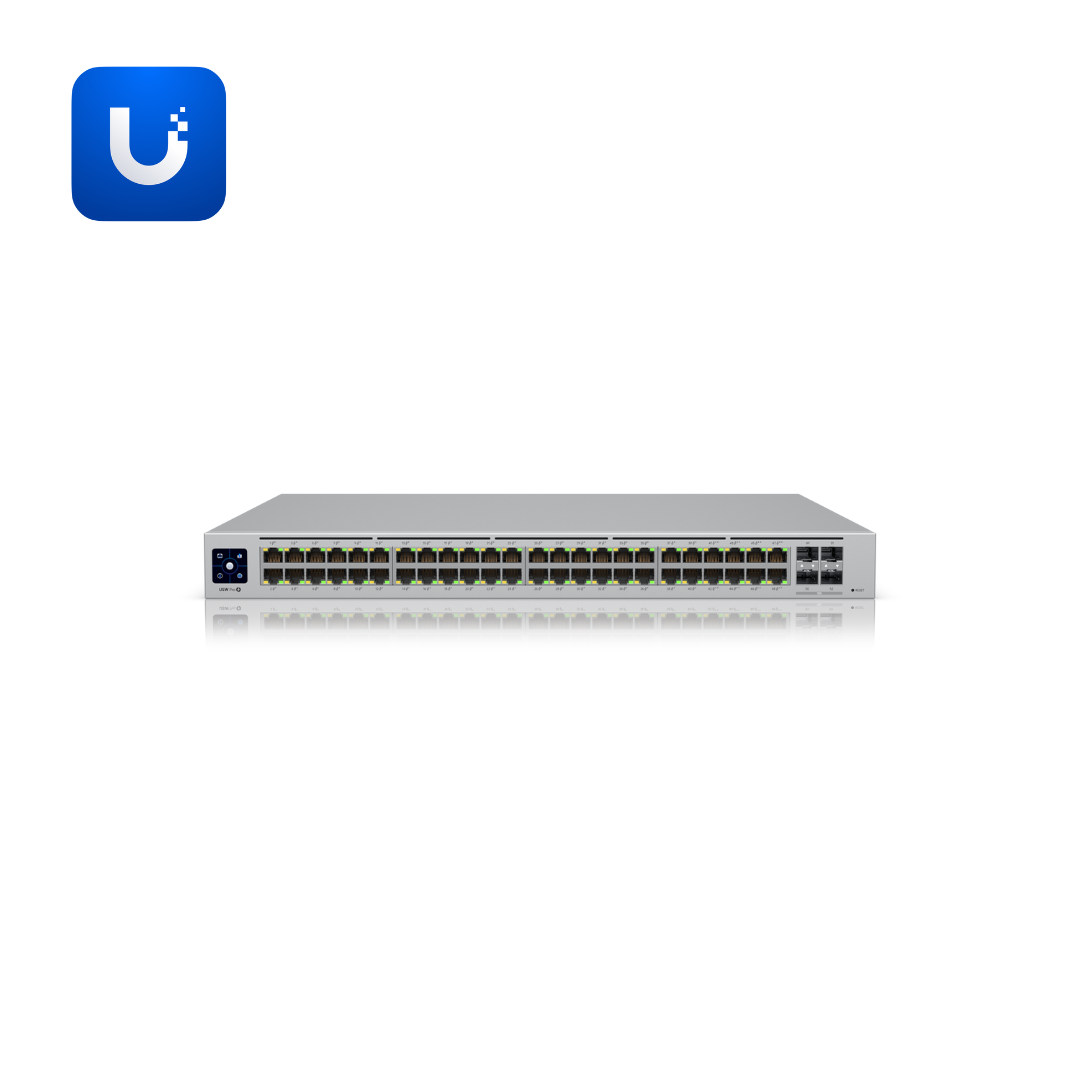

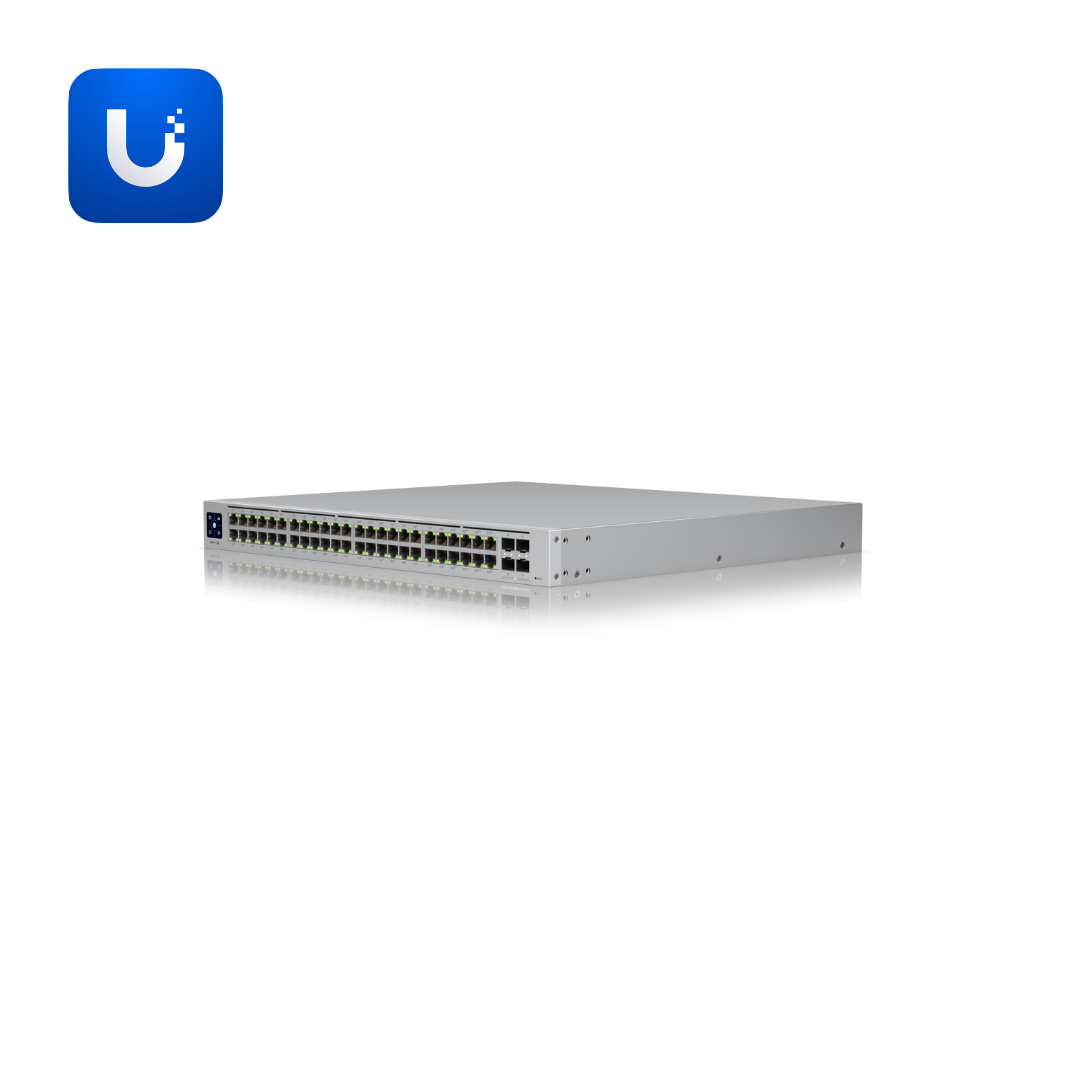

The Pro 48 PoE (USW-Pro-48-POE) is the ultimate **48-port Layer 3 managed switch** engineered for organizations deploying massive-scale professional switching infrastructure with industry-leading PoE++ delivery and advanced routing intelligence. This **rack-mount 1U professional enterprise switch** consolidates extensive port connectivity, high-capacity PoE++ power delivery, Layer 3 routing intelligence, comprehensive professional AV optimization, and mission-critical redundancy capabilities into a single powerhouse appliance. With 40 × PoE+ ports, 8 × PoE++ ports, 4 × 10G SFP+ uplinks, 176 Gbps switching capacity, 88 Gbps non-blocking throughput, 600W total PoE availability, Layer 3 routing capabilities, Pro AV profiles, and DC power backup readiness, the Pro 48 PoE is the ideal solution for large broadcast facilities, global enterprise networks with professional requirements, massive data centers, mission-critical operations, and organizations requiring maximum scale with industry-leading PoE++ power and sophisticated Layer 3 routing in professional 1U rack-mounted form factor.
Whether you're deploying large-scale professional broadcast infrastructure with advanced Layer 3 routing and maximum PoE power, establishing massive enterprise networks with extreme PoE capacity and intelligent routing, building professional AV ecosystems at global scale requiring maximum power delivery, implementing mission-critical networks with redundancy and sophisticated routing, or creating sophisticated networks combining professional features with extreme PoE capacity and advanced routing, the Pro 48 PoE delivers industry-leading performance, advanced routing, and comprehensive PoE++ delivery for the most demanding global professional environments.
Key Features for Large-Scale Professional Deployments
- 48 Total Gigabit Ports: Forty GbE PoE+ (32W) + eight GbE PoE++ (64W) deliver extreme port capacity with flexible power options
- 600W Total PoE Availability: High-capacity PoE output—sufficient for powering 15+ high-performance access points plus extensive professional broadcast equipment simultaneously
- Quad 10G SFP+ Uplinks: Four 10 Gigabit SFP+ ports for fiber connectivity with redundancy and aggregation options enabling extreme core capacity
- 176 Gbps Switching Capacity: Extreme non-blocking 88 Gbps throughput with 131 Mpps forwarding rate for massive professional applications
- Layer 3 Routing Capabilities: Integrated DHCP server, DHCP relay, inter-VLAN routing, and static routing for sophisticated global professional networks
- DC Power Backup Ready: Compatible with Universal Serial Power (USP) RPS DC input—enables UPS integration for mission-critical global redundancy
- Pro AV Profiles: Pre-configured optimization for Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron—optimized for professional global workflows
- QoS (DSCP): Differentiated Services Code Point support for prioritizing professional AV and broadcast traffic at global scale
- 16,000 MAC Address Table: Extensive capacity for managing large enterprise deployments with thousands of devices
- Near-Silent Cooling: Advanced passive cooling system provides near-silent operation essential for professional environments
- 1.3" Touchscreen Management: Professional management interface with hybrid cloud/local control
Perfect Applications Across Global Professional Environments
- Large Broadcast Facilities: Professional broadcast infrastructure with high-capacity PoE power, advanced routing, and quad 10G redundancy
- Global Enterprise Networks: Worldwide headquarters with advanced Layer 3 routing, extreme PoE power, and professional management
- Large Data Centers: Enterprise-scale core switching with mission-critical redundancy and high-capacity PoE delivery
- Professional AV at Scale: Massive AV deployments requiring extreme PoE power and professional optimization
- Broadcasting Empires: Multi-facility broadcast networks with professional SDVoE, Dante support, and unified routing
- Media Production Networks: Large media production facilities requiring Dante, Q-SYS, NDI, SDVoE support at scale
- Performing Arts Organizations: Large theater groups and performing arts networks with professional AV infrastructure
- Government & Defense Networks: Large government and defense networks requiring advanced routing and redundancy at scale
- Telecom Infrastructure: Carrier-grade telecom networks supporting massive customer operations
- Financial & Global Banking: Large financial institutions requiring mission-critical redundancy and global routing
Technical Specifications
- Port Configuration: 48 × Gigabit RJ45 ports: 40 × PoE+ (up to 32W each) + 8 × PoE++ (up to 64W each) + 4 × 10G SFP+ uplink ports (10G/1G).
- Switching Capacity: 176 Gbps total switching capacity with 88 Gbps non-blocking throughput and 131 Mpps forwarding rate.
- PoE++ Output: 8 × PoE++ ports delivering up to 64W per port for demanding broadcast and professional equipment.
- PoE+ Output: 40 × PoE+ ports delivering up to 32W per port for extensive device connectivity.
- Standard PoE Output: 15.4W standard PoE capability on ports as needed.
- Total PoE Availability: 600W total PoE output for powering extensive professional infrastructure simultaneously.
- Uplink Connectivity: Quad 10G SFP+ ports for high-speed fiber connectivity with redundancy and aggregation options.
- Layer 3 Routing: DHCP server (local networks), DHCP relay, inter-VLAN routing (local networks), and static routing for sophisticated global networks.
- Layer 3 Table Size: 4,000 ARP entries and 1,000 IPv4 routes for managing large professional network topologies.
- Redundancy: DC Power Backup ready—compatible with Universal Serial Power (USP) RPS for UPS integration and mission-critical redundancy.
- Professional AV Profiles: Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron—optimized for professional workflows.
- QoS Support: DSCP (Differentiated Services Code Point) support for prioritizing professional AV and broadcast traffic.
- Layer 2 Features: LACP port aggregation, STP/RSTP, advanced IGMP configuration, IGMP snooping, 802.1X authentication, MAC and IP-based ACLs (128 IPv4, 128 MAC), DHCP snooping/guarding, egress rate limiting, flow control, storm control, multicast/broadcast rate limiting, MAC address blocking, port isolation, port mirroring, jumbo frames, LLDP-MED, voice VLAN, loop protection, and virtual network override.
- VLAN Support: 1,000 VLAN support for advanced network segmentation and professional organization.
- MAC Address Table: 16,000 entry table for managing large professional deployments with thousands of endpoints.
- Packet Buffer: 4 MB buffer for handling traffic bursts and optimizing performance during peak professional operations.
- Power Consumption: 60W base consumption (excluding PoE output); 660W maximum with full PoE utilization.
- Power Supply: Internal 660W AC/DC power supply with universal AC input (100-240VAC) + USP RPS DC input option.
- Cooling System: Advanced passive/near-silent cooling—provides near-silent operation essential for professional environments.
- Form Factor: Rack-mount 1U chassis (442 × 400 × 44 mm); professional SGCC steel construction; supported rack depth 400-1200 mm.
- Management: Full UniFi Network integration (version 5.10.5+) plus 1.3" touchscreen for hybrid cloud/local management.
- ESD Protection: ±16kV air and ±12kV contact ESD protection for reliable operations in professional environments.
- Weight: 6.2 kg (13.7 lb) without brackets; 6.3 kg (13.9 lb) with mounting brackets.
- Operating Temperature: -5°C to 40°C (23°F to 104°F)—suitable for professional broadcast facilities and data centers.
- Certifications: NDAA compliant for government deployments; CE, FCC, IC certified for international operations.
Why Choose the Pro 48 PoE?
- ✅ Industry-Leading PoE Power: 600W total with 8 × PoE++ ports—deliver maximum power to demanding professional equipment at scale
- ✅ Extreme Port Capacity: 48 Gigabit + 4 × 10G SFP+ ports in single 1U—maximize port density in professional data centers
- ✅ Layer 3 Routing Integrated: Built-in DHCP, DHCP relay, inter-VLAN routing, and static routing for sophisticated professional networks
- ✅ Mission-Critical Redundancy: DC power backup ready enables UPS integration for continuous operations during power events
- ✅ Professional AV Optimization: Dante, Q-SYS, NDI, SDVoE profiles optimize for professional audio/video at scale
- ✅ Quad 10G Uplinks: High-speed fiber with redundancy for professional broadcast and media centers
- ✅ Near-Silent Operation: Advanced cooling minimizes noise—essential for professional environments and server rooms
- ✅ Advanced Security & Routing: 256 total ACLs, 4,000 ARP entries—professional-grade network control
- ✅ QoS & Traffic Control: DSCP support ensures professional and broadcast traffic receives priority
- ✅ Professional Management: Touchscreen plus UniFi integration—sophisticated control for mission-critical operations
High-Capacity Professional PoE++ Delivery
600W Total PoE Capacity: Deliver up to 600W total PoE—power 15+ high-performance access points plus extensive professional broadcast equipment simultaneously.
8 × PoE++ Ports: Eight ports deliver extreme 64W power for the most demanding broadcast systems and professional equipment.
40 × PoE+ Ports: Forty ports deliver 32W power for flexible device connectivity and extended infrastructure.
Flexible Power Allocation: Mix PoE++ (64W) and PoE+ (32W) across ports for diverse professional equipment requirements at scale.
Enterprise-Scale Delivery: Deliver simultaneous power to multiple high-capacity devices without separate power infrastructure at global scale.
Advanced Layer 3 Routing for Professional Networks
176 Gbps Switching Fabric: Professional-grade capacity handles simultaneous high-speed traffic across all ports and 10G uplinks without bottlenecks.
88 Gbps Non-Blocking Throughput: True non-blocking performance ensures full line-rate switching between any port combinations.
Integrated Layer 3 Routing: DHCP server, DHCP relay, inter-VLAN routing, and static routing support sophisticated professional network topologies.
4,000 ARP Entries: Extensive addressing for complex professional networks with thousands of endpoints.
1,000 IPv4 Routes: Support for advanced routing policies and multi-network professional deployments.
Professional AV & Broadcast Optimization
Pro AV Profiles: Pre-configured optimization for Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron professional systems at scale.
Dante Support: Native optimization for professional audio networking across broadcast and media centers.
NDI Capability: Network Device Interface support for professional video distribution and media workflows.
SDVoE Support: Software Defined Video over Ethernet for broadcast centers and professional media infrastructure.
Large-Scale Professional Deployments: Handle extensive professional equipment networks with high-capacity PoE and routing capabilities.
Mission-Critical Redundancy & Reliability
DC Power Backup Ready: Compatible with Universal Serial Power (USP) RPS—enables UPS integration for continuous operations during power events.
Quad 10G Redundancy: Four independent 10G SFP+ connections enable multiple core paths with automatic failover.
Dual Power Input: Universal AC input (100-240VAC) plus USP DC input enables hybrid power configurations for redundancy.
PoE Power Delivery: Deliver PoE power during AC outages when connected to UPS—maintains professional operations during critical events.
Perfect Complement to Enterprise Networks
- ✅ Enterprise Core Switching: Serve as primary switching hub for large organizations with extreme PoE and routing needs
- ✅ Broadcast Infrastructure: Professional broadcast backbone with PoE++, advanced routing, and professional AV support
- ✅ Large Data Centers: Core switching for mission-critical operations with redundancy and high-capacity PoE
- ✅ Campus Distribution Hub: Central switching for large campuses with thousands of access points and devices
- ✅ Mission-Critical Operations: Connect via quad 10G uplinks with DC backup for continuous operations
Management & Integration
- UniFi Network Integration: Full managed switch support with version 5.10.5 and later—monitor and control from central console
- Local Touchscreen Management: 1.3" display for real-time monitoring and professional configuration
- Centralized Monitoring: Real-time port monitoring, PoE delivery, redundancy status, and health status visible from UniFi Controller
- Professional Configuration: Apply VLAN, routing, and professional AV profiles from central management point
- Multi-Facility Visibility: Manage Pro 48 PoE switches across all enterprise locations from single unified console
Related Products & Solutions
- Pro Max 48 PoE – Etherlighting™ variant with visual port intelligence for professional deployments
- UniFi Power Backup / UPS – Redundant power backup for mission-critical operations with Pro 48 PoE
- UniFi Gateway Pro (UFG) – 10G enterprise security gateway for core network infrastructure
- UniFi Switches (High-Performance) – Additional high-speed switches for expanding enterprise infrastructure
- UniFi Access Points – WiFi 6/7 infrastructure powered by Pro 48 PoE's extreme capacity
- CloudKey+ / CloudKey Enterprise – Centralized management for Pro 48 PoE and entire UniFi ecosystem
Order Now
Deploy the Pro 48 PoE at your enterprise switching hub today.
Order the **Pro 48 PoE (USW-Pro-48-POE)** today and add professional 48-port switching with high-capacity 600W PoE++, quad 10G redundancy, advanced Layer 3 routing, mission-critical redundancy, and professional AV optimization to your broadcast facility, data center, or mission-critical deployment. Perfect for extreme PoE power, professional audio/video, advanced routing, and redundancy-critical operations at global scale.
For enterprise network architecture consultation, mission-critical deployment planning, broadcast infrastructure design, large-scale PoE strategy, redundancy and backup planning, professional AV integration, Layer 3 routing optimization, quad 10G architecture, or comprehensive enterprise switching solutions—contact our team or **request a detailed enterprise quote today**. We provide comprehensive technical support for mission-critical deployments, large-scale enterprise implementations, broadcast center design, professional AV infrastructure, power backup integration, redundancy planning, global network architecture, and end-to-end UniFi ecosystem solutions. Whether you're an enterprise IT director, broadcast engineer, data center operator, professional AV integrator, or systems integrator specializing in mission-critical infrastructure, our team specializes in sophisticated, redundant, high-capacity professional networking solutions for demanding organizations.
