Pro Max 16 PoE (USW-Pro-Max-16-PoE)

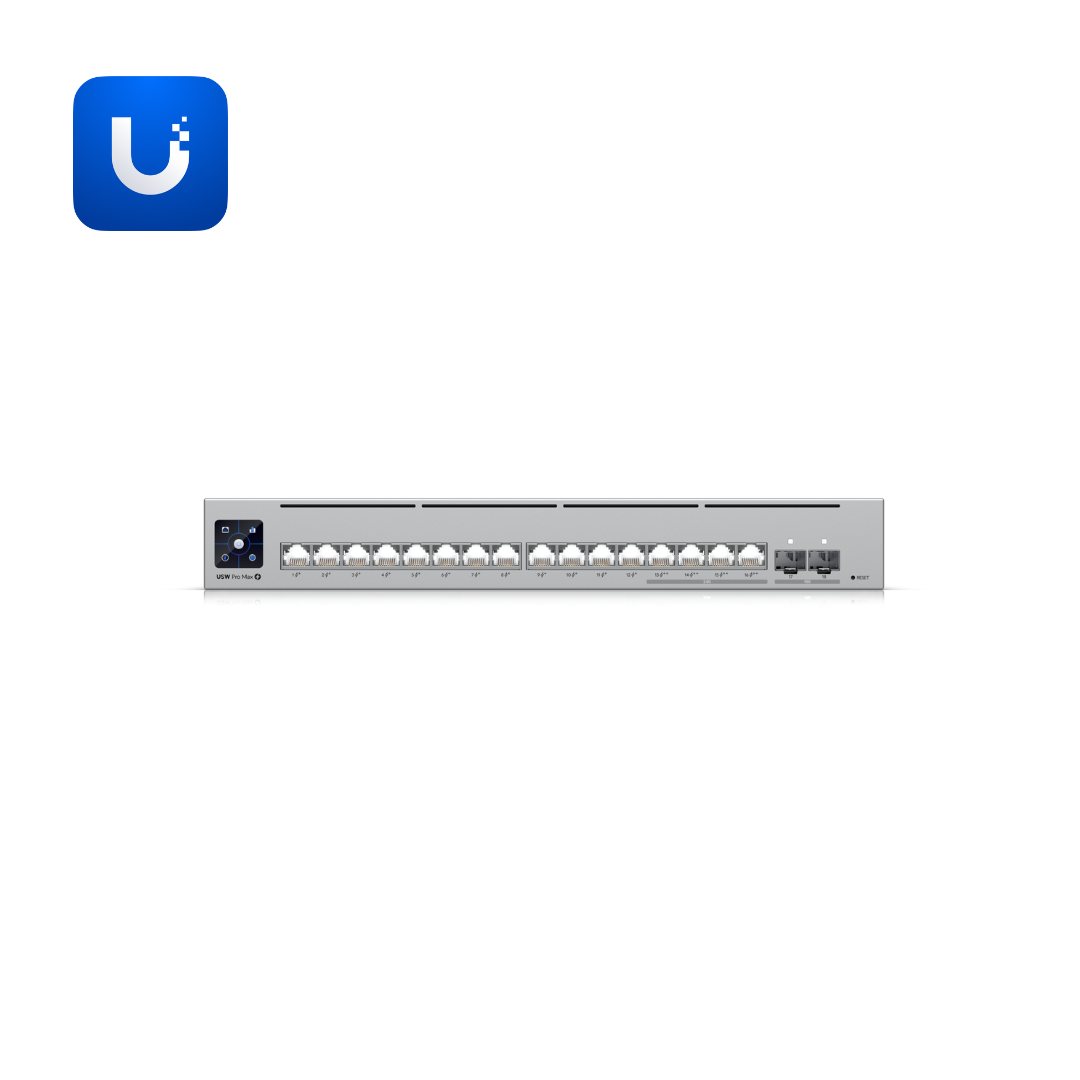

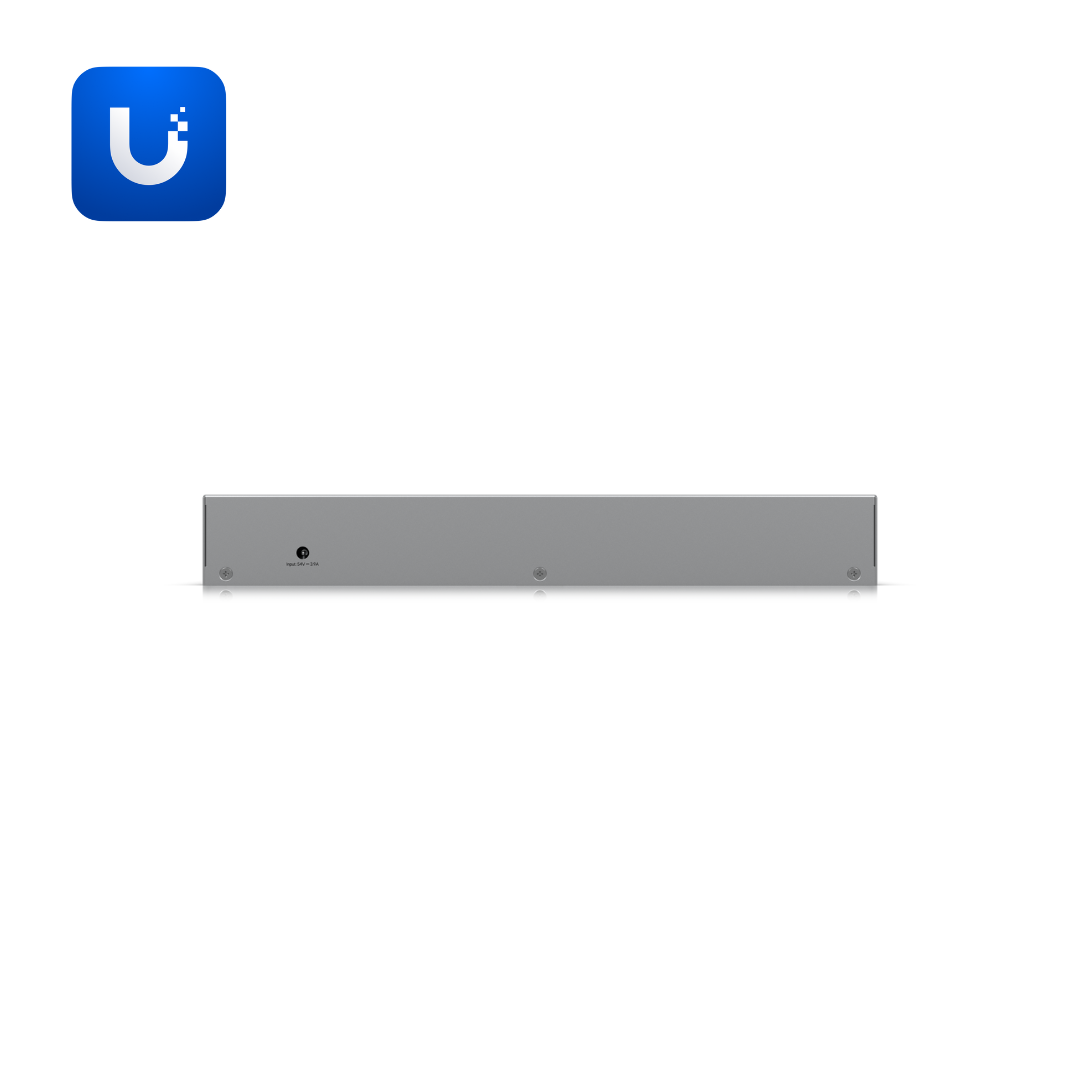

The USW-Pro-Max-16-PoE (Pro Max 16 PoE) is a versatile Layer 3 Etherlighting™ managed switch combining high-power PoE++ delivery, multi-gigabit 2.5 GbE switching, dual 10G SFP+ uplinks, and innovative illuminated port identification in a flexible desktop, wall, and rack-mount form factor. Measuring 325.1 × 160 × 43.7 mm (12.8 × 6.3 × 1.7") and weighing 2.1 kg (4.6 lb), the USW-Pro-Max-16-PoE features an SGCC steel enclosure and mount, a 1.3" touchscreen LCM display, silent fanless cooling, and supports rack depths of 400–1,200 mm (15.7–47.2"). Requires UniFi Network version 8.0.24 and later.

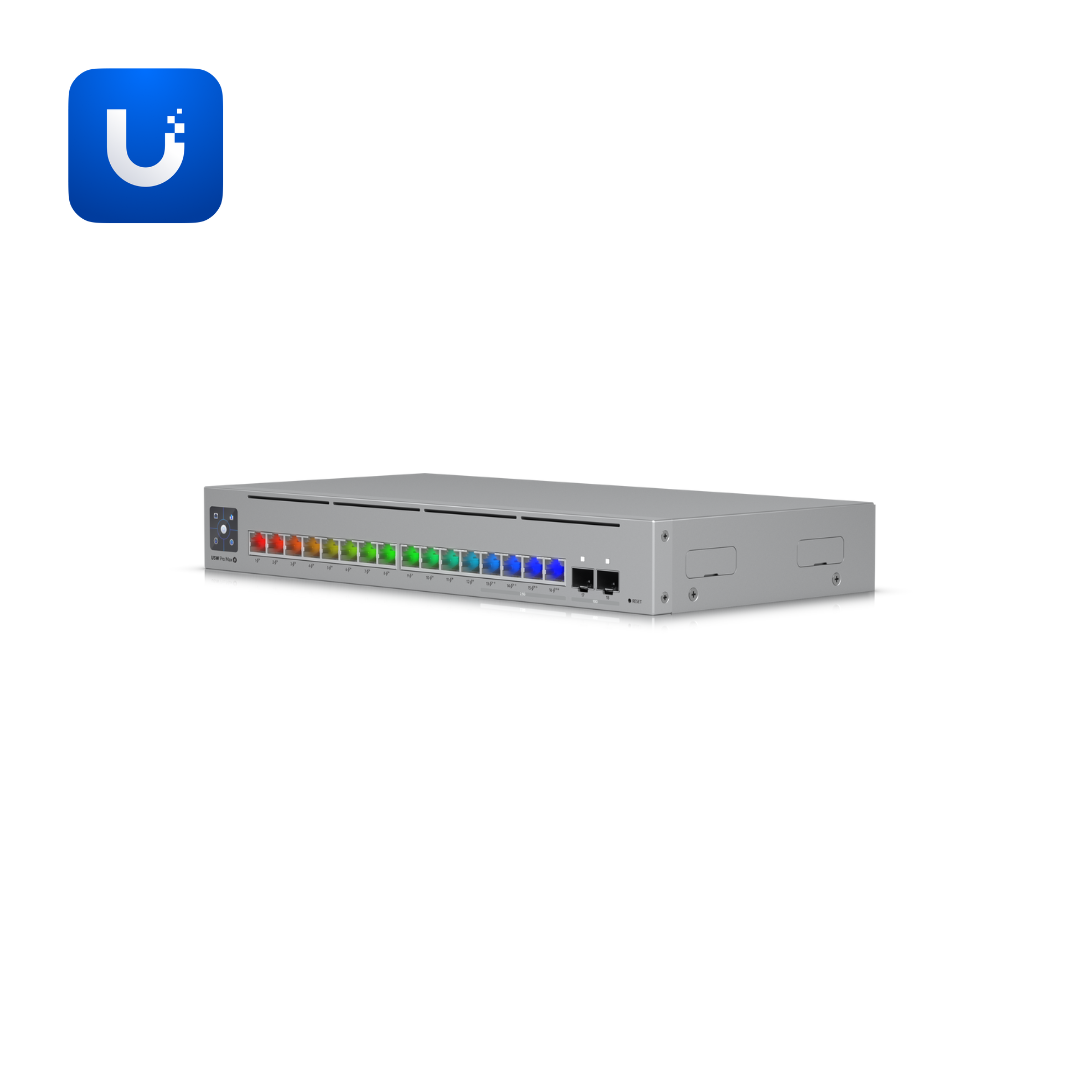

The USW-Pro-Max-16-PoE features Etherlighting™ on both Ethernet and SFP+ ports — each port illuminates to indicate its physical location for easy identification, link speed, and native VLAN or network assignment. Pair with UniFi Etherlighting Patch Cables for optimal brightness. The switch provides (4) 2.5 GbE PoE++ ports at up to 64W per port — fully compatible with the PoE++ power requirements of UniFi U7 and E7 access points — and (12) GbE PoE+ ports at up to 32W per port, delivering 180W total PoE availability. Dual 10G SFP+ uplinks provide high-speed connectivity to core infrastructure. Switching capacity of 84 Gbps with 42 Gbps non-blocking throughput and 62 Mpps forwarding rate ensures wire-speed performance across all ports.

Layer 3 capabilities include:

• DHCP server and DHCP relay for local networks
• Inter-VLAN routing for local networks
• Static routing for local networks
• 6,000 ARP entries, 512 IPv4 routes, and 256 IPv4 static routes

Pro AV profiles for one-click optimisation include:

• Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, and Crestron

The comprehensive Layer 2 feature set includes:

• LACP port aggregation, STP/RSTP, QoS (DSCP)
• Advanced IGMP configuration and IGMP snooping
• 802.1X control, MAC-based and IP-based ACLs
• DHCP snooping and guarding, egress rate limiting, flow control
• Storm control, multicast/broadcast rate limiting, port isolation, port mirroring
• Jumbo frames, LLDP-MED, Voice VLAN, loop protection, virtual network override
• 128 IPv4 ACLs and 128 MAC ACLs

Additional specifications:

• Max. power consumption: 25W excluding PoE output / 210W including PoE output
• Heat dissipation: 68 BTU/hr excluding PoE output
• Operating temperature: -5°C to 40°C (23°F to 104°F)
• Operating humidity: 10–90% non-condensing
• CE, FCC, IC, and Anatel certified, fully NDAA compliant

Ideal for professional AV environments, broadcast facilities, pro audio deployments, corporate offices, conference rooms, and enterprise deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 16-port Layer 3 switching with Etherlighting™, PoE++ delivery for U7/E7 APs, 2.5 GbE multi-gigabit ports, dual 10G SFP+ uplinks, 180W PoE availability, Pro AV profiles, and full UniFi management in a versatile desktop, wall, and rack-mount form factor.
