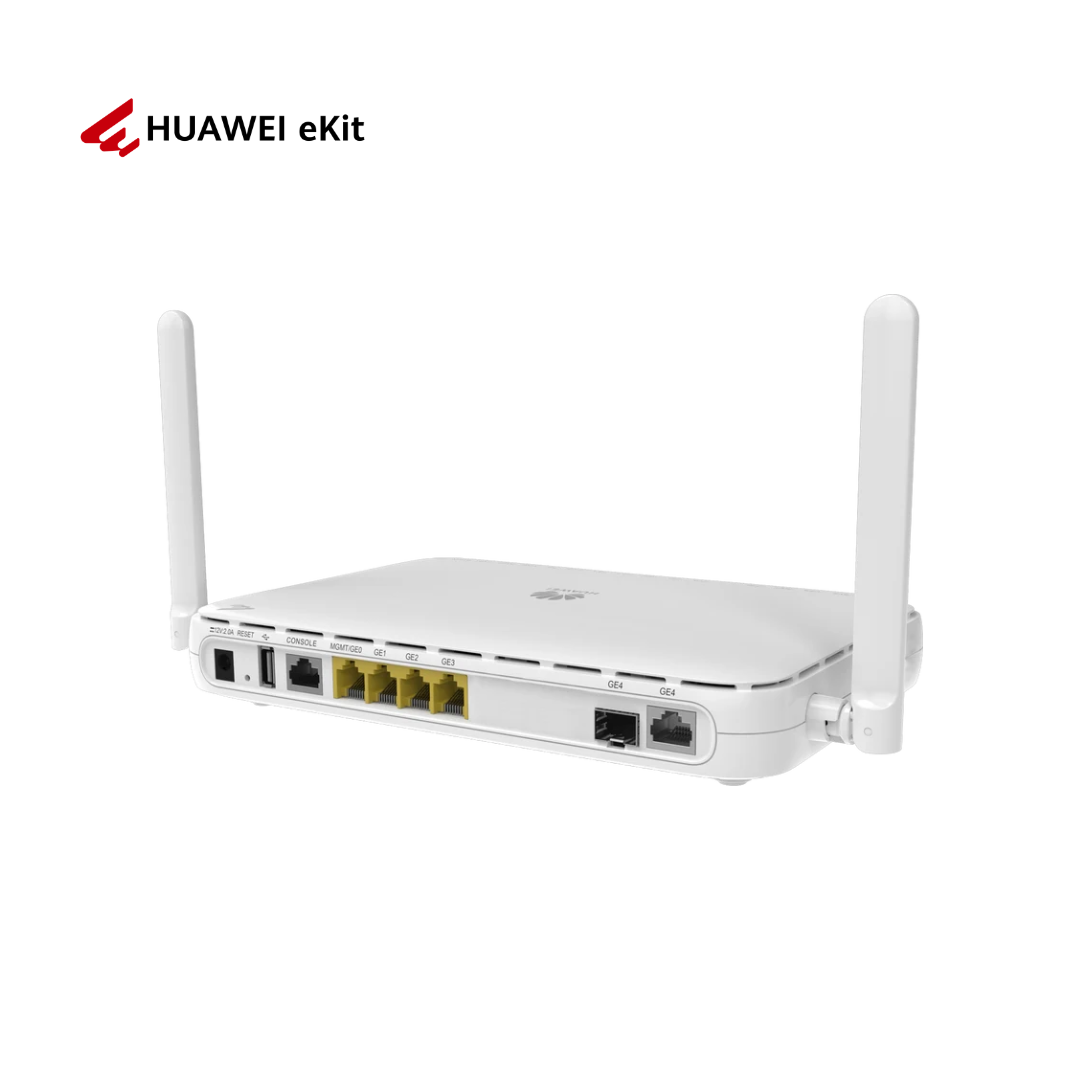

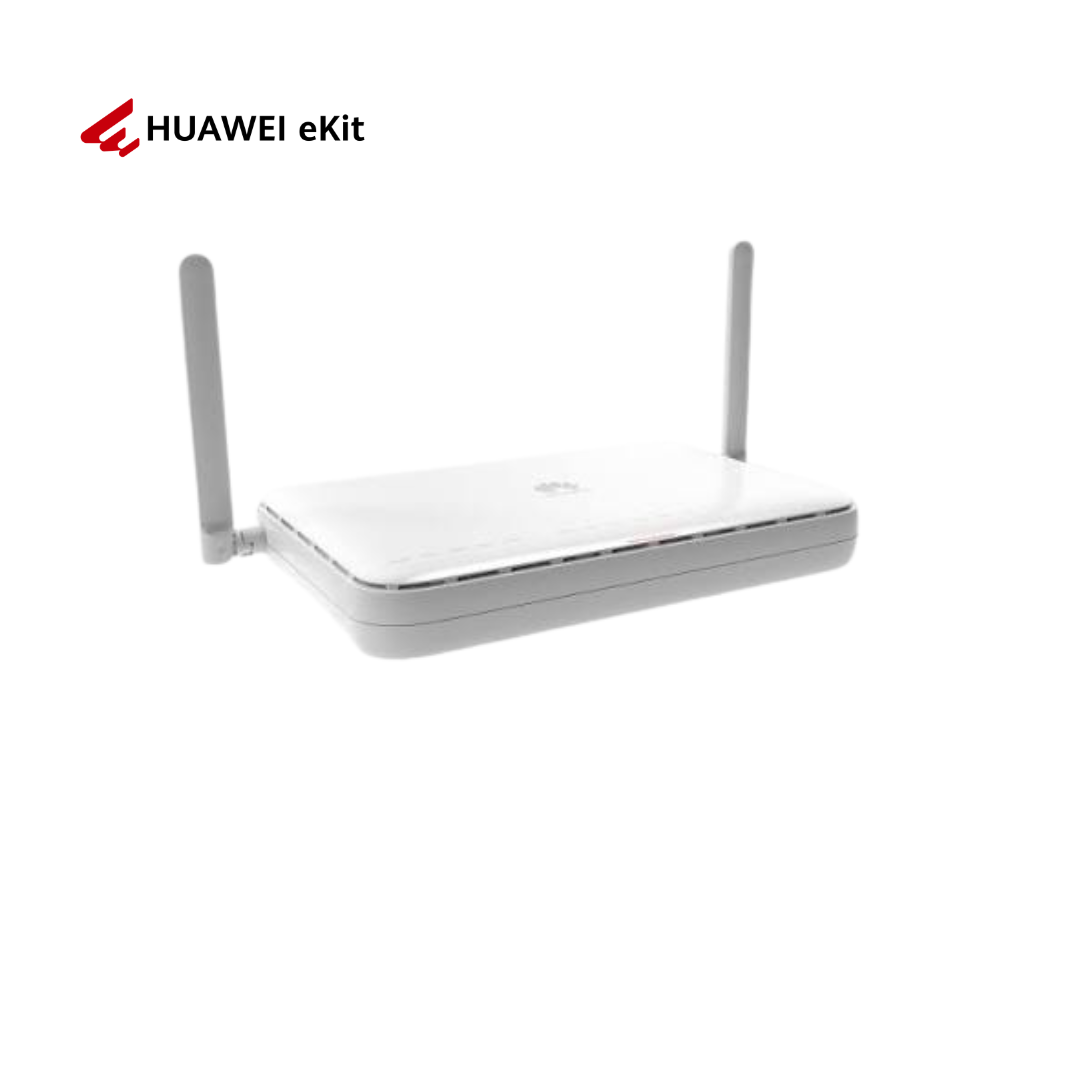

One router covering routing, switching, security, and WiFi Rather than pairing a separate router, switch, and access point, the AR303W combines all three into one device, with 4 GE LAN ports that can be reconfigured as WAN ports, a GE combo WAN port, and integrated 802.11ac WiFi. For a small office or branch with straightforward requirements, this reduces both the equipment footprint and the number of devices that need separate configuration and maintenance.
Dual-core processing for more concurrent applications The AR303W uses dual-core processors with the data plane and forwarding plane separated, which allows it to run more enterprise applications concurrently without one function starving another of processing capacity. This matters as a branch office adds services such as VPN tunnels, firewall rules, and QoS policies on top of basic routing.
Quick deployment for non-technical sites Plug-and-play operation, intelligent configuration without manual IP addressing, and USB-based deployment mean the AR303W can be set up at a branch location without requiring a network engineer on site for every rollout. PPP and VPN status indicators on the unit itself also make it easier to confirm a link is up without logging into a management console.
Built on Huawei's VRP operating system The AR303W runs Huawei's VRP operating system, the same software foundation used across Huawei's wider router portfolio, giving it a consistent command set and feature behaviour for teams already familiar with Huawei networking equipment. A fanless design keeps operating noise low, which suits placement in a shared office space rather than a dedicated equipment room.
VPN and routing options for connecting branches Support for IPsec VPN, GRE VPN, DSVPN, L2TP VPN, and dynamic routing protocols including OSPF and BGP allows the AR303W to connect a branch office securely back to headquarters or to other sites, without needing a separate VPN appliance.
Key specifications
- Forwarding performance: 1 Mpps (64-byte packets)
- Device capacity: 200 PCs (typical reference value)
- LAN ports: 4x GE electrical (switchable to WAN)
- WAN ports: 1x GE combo
- WiFi: 802.11b/g/n (2.4 GHz, 2x2 MIMO), 802.11ac (5 GHz, 2x2 MIMO)
- Memory / Flash: 1 GB / 1 GB
- VPN support: IPsec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, L2TPv3 VPN
- Routing: Static, RIP, OSPF, IS-IS, BGP (IPv4 and IPv6 variants)
- Power: AC 110V-220V, up to 24W
- Operating system: Huawei VRP
Simplifi Networks distributes Huawei networking equipment to businesses and network installers across Kenya, Uganda, and the wider East African region. The AR303W suits small businesses and branch offices that need a single, manageable device covering routing, switching, security, and WiFi, without the complexity of a larger enterprise router platform.
