About the Dream Router 7 (UDR7)

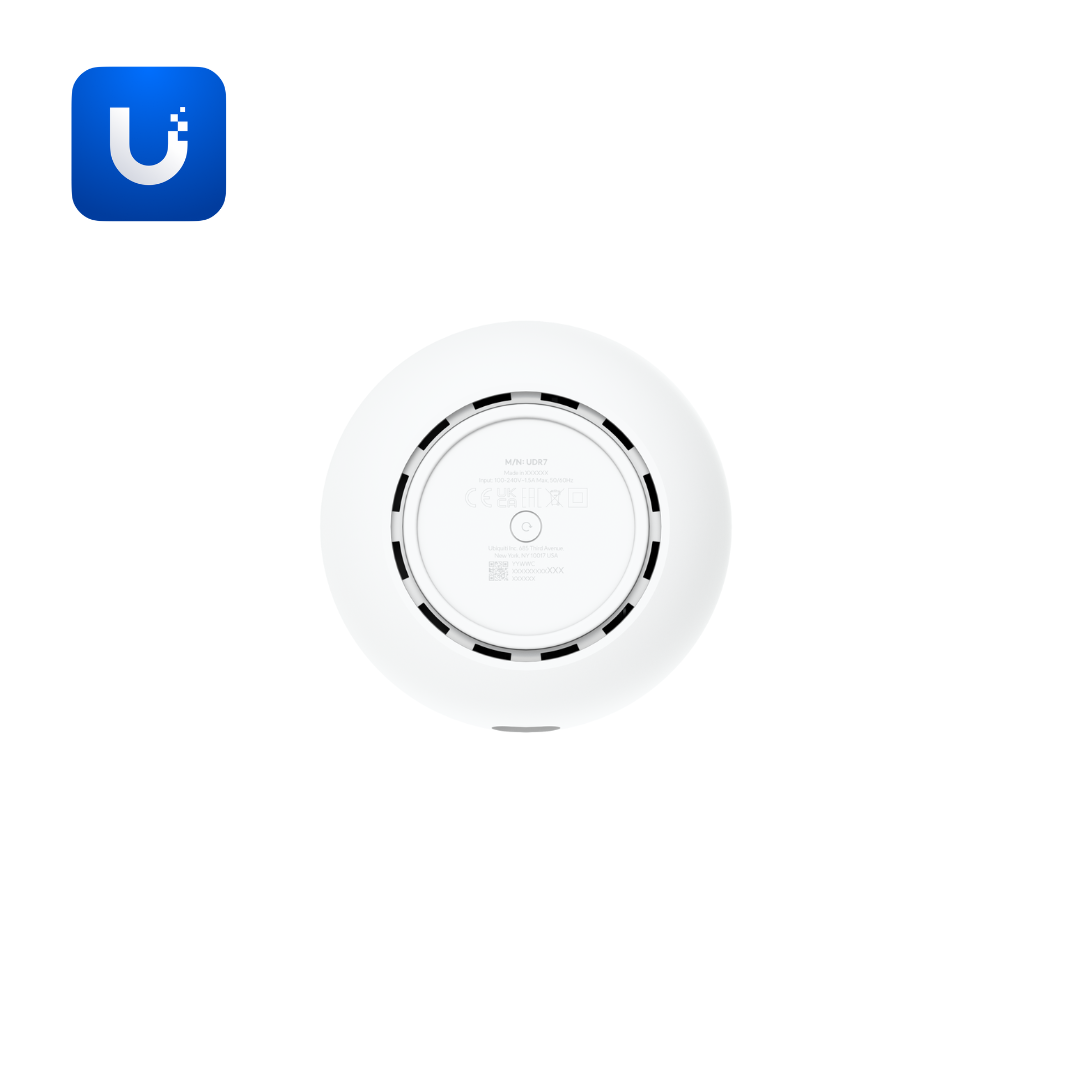

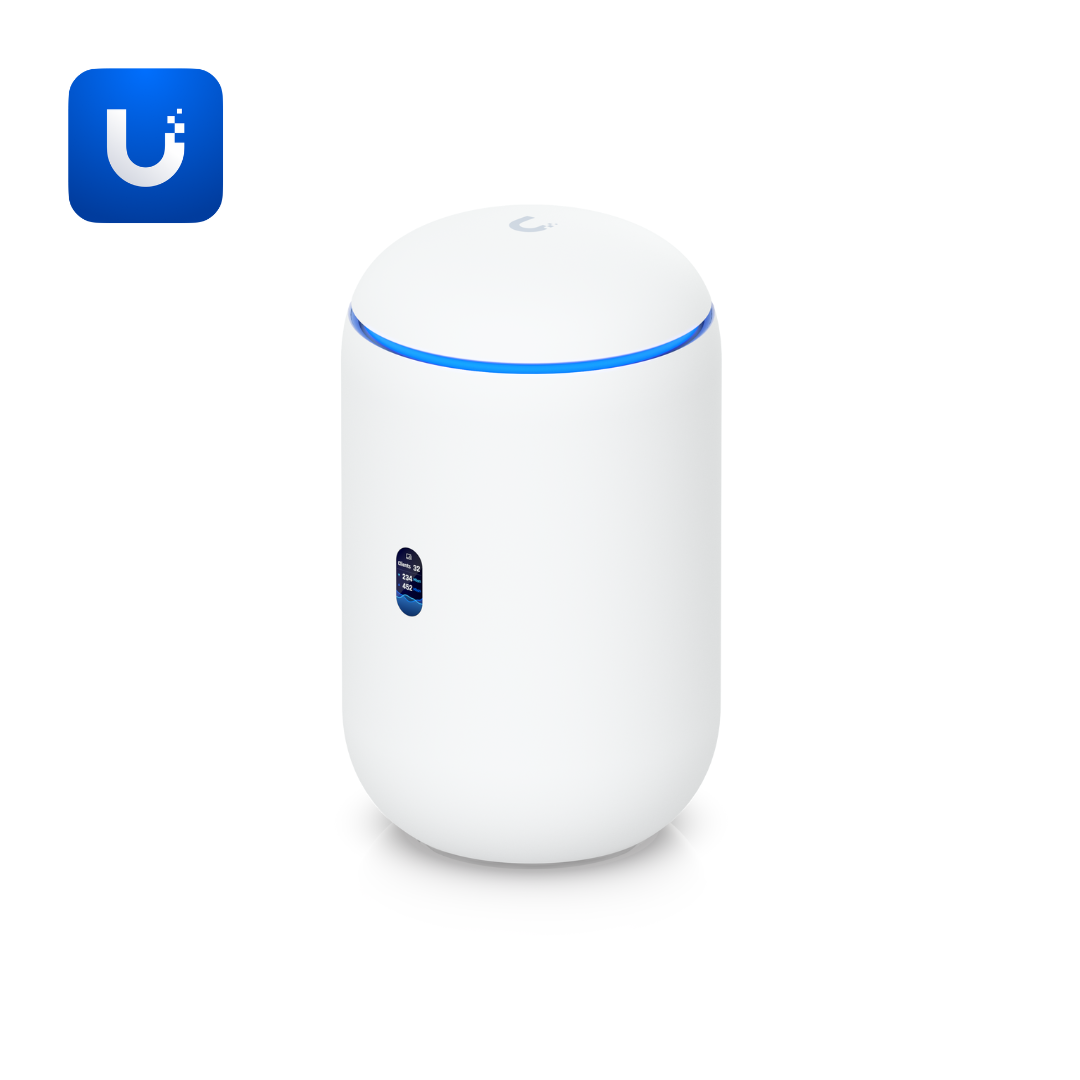

The UDR7 (Dream Router 7) is a next-generation, all-in-one desktop 10G Cloud Gateway combining a full-featured security gateway, tri-band WiFi 7 access point, integrated PoE switch, NVR storage, and complete UniFi application suite in a distinctive cylindrical compact desktop enclosure measuring ⌀110 × 184.1 mm (⌀4.3 × 7.3") and weighing 1.1 kg (2.4 lb). Powered by a Quad-core ARM® Cortex®-A53 processor at 1.5 GHz with 3 GB system memory, the UDR7 runs the full UniFi Application Suite — Network, Protect, Access, Talk, and Connect — managing 30+ UniFi devices and 300+ simultaneous clients without requiring separate controller hardware. Requires UniFi Network version 9.0.108 and later.
The UDR7 features integrated tri-band WiFi 7 (802.11a/b/g/n/ac/ax/be) across 6 GHz, 5 GHz, and 2.4 GHz with 2×2 DL/UL MU-MIMO on all three bands. Maximum throughput reaches 5.7 Gbps on 6 GHz, 4.3 Gbps on 5 GHz, and 688 Mbps on 2.4 GHz. Antenna gain of 6 dBi on 6 GHz, 7 dBi on 5 GHz, and 5 dBi on 2.4 GHz with maximum TX power of 24 dBm on 6 GHz, 26 dBm on 5 GHz, and 23 dBm on 2.4 GHz delivers reliable wireless coverage across 160 m² (1,750 ft²). Wireless security supports WPA-PSK and WPA-Enterprise (WPA/WPA2/WPA3/PPSK) with up to 4 BSSIDs per radio. UniFi Protect supports (5) HD, (2) 2K, and (1) 4K managed cameras with pre-installed 64 GB microSD NVR storage — expandable via the microSD card slot — for local surveillance recording without additional hardware.

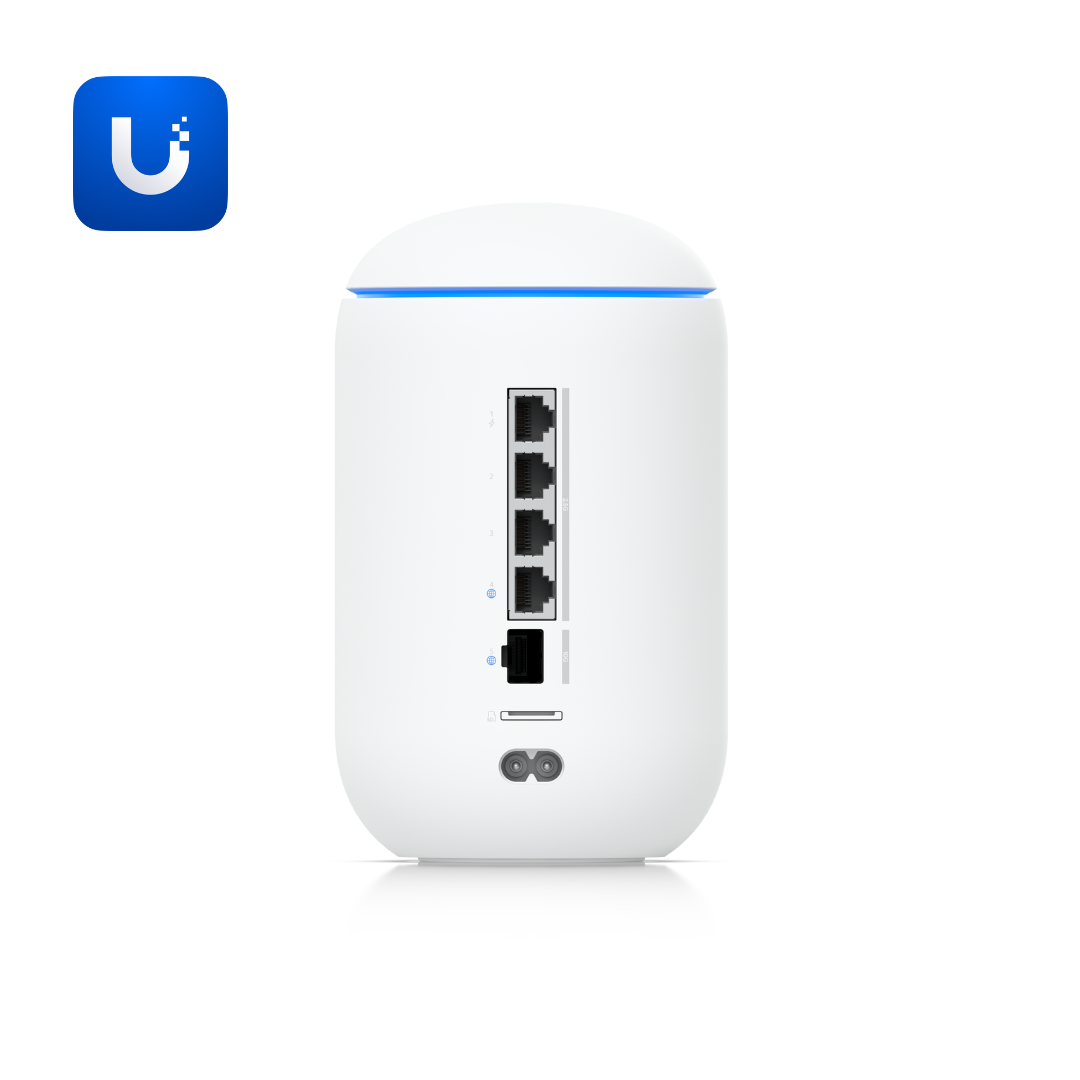

Wired connectivity includes (1) 10G SFP+ WAN port (10G/1G), (1) 2.5 GbE RJ45 WAN port (2.5G/1G/100M/10M) with support for up to 4 WAN ports total, and (4) 2.5 GbE RJ45 LAN ports including (1) PoE port at 15.4W with a 15.4W total PoE budget at 44–57V for powering access points, IP cameras, or VoIP phones directly. MAC address table supports 2,000 entries. IDS/IPS throughput of 2.3 Gbps with 20,000+ CyberSecure signatures provides enterprise-grade threat protection.
Advanced networking features include multi-WAN load balancing, OSPF dynamic routing, advanced QoS, multicast DNS (mDNS), advanced NAT (SNAT/DNAT/Masquerade/NAT Pooling/1-to-1 NAT), integrated RADIUS server with RADIUS over TLS (RadSec), LTE failover via UniFi LTE Backup, IPv6 ISP support, IGMP proxy, customisable DHCP server, policy-based WAN and VPN routing, virtual network override, internet quality and outage reporting, and 802.1Q VLAN with guest traffic isolation. Security features include a stateful firewall, application-aware Layer 7 firewall, DPI and traffic identification, zone-based firewall with advanced filtering across regions, domains, and applications, content filtering, IDS/IPS, ad blocking, and VLAN and subnet-based traffic segmentation. VPN capabilities include license-free SD-WAN, Site Magic site-to-site VPN, IPsec, OpenVPN, WireGuard, L2TP VPN server, Teleport zero-configuration VPN, Identity Endpoint one-click VPN, and OpenVPN and WireGuard VPN client support.
Maximum power consumption is 26W excluding PoE output via internal 50W AC/DC power supply supporting 100–240V AC universal input at 1.5A maximum, 50/60 Hz — fully compatible with power standards across all East African markets. Heat dissipation of 89 BTU/hr excluding PoE output. The polycarbonate enclosure features a 0.96" status display, system LED indicator, factory reset button, and management via Ethernet and Bluetooth. ESD/EMP protection: ±8 kV air, ±4 kV contact. Operating temperature -10°C to 40°C (14°F to 104°F) with 5–95% non-condensing humidity suits the full range of tropical and variable climates across East Africa. CE, FCC, IC, and Anatel certified, fully NDAA compliant.
Ideal for small to medium businesses, home offices, advanced home networks, remote branch locations, retail stores, hospitality environments, and distributed deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring WiFi 7 tri-band performance, 2.3 Gbps IDS/IPS security, 10G SFP+ uplink, integrated PoE switching, microSD NVR camera recording, and the complete UniFi application suite — Network, Protect, Access, Talk, and Connect — in a single compact desktop appliance.
