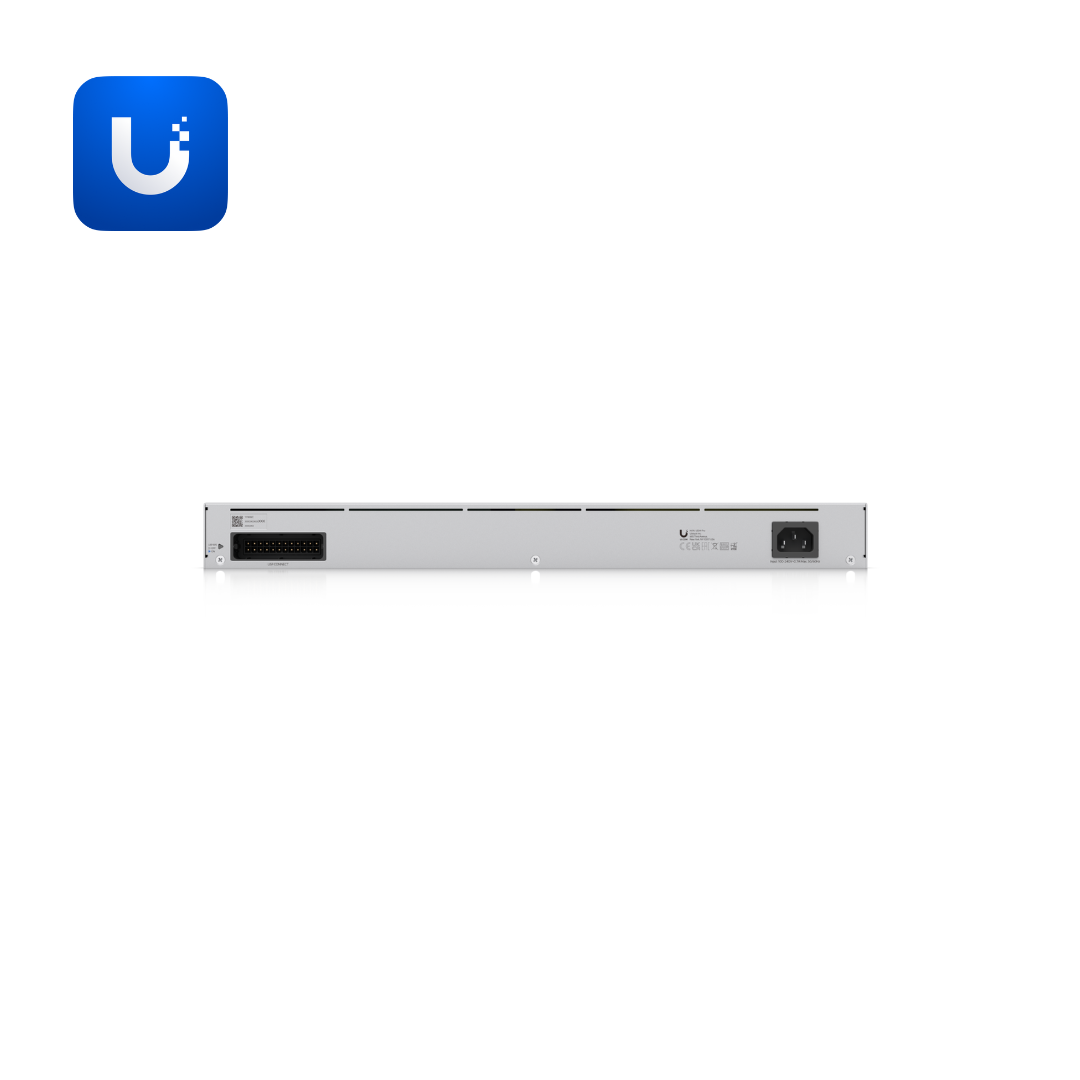

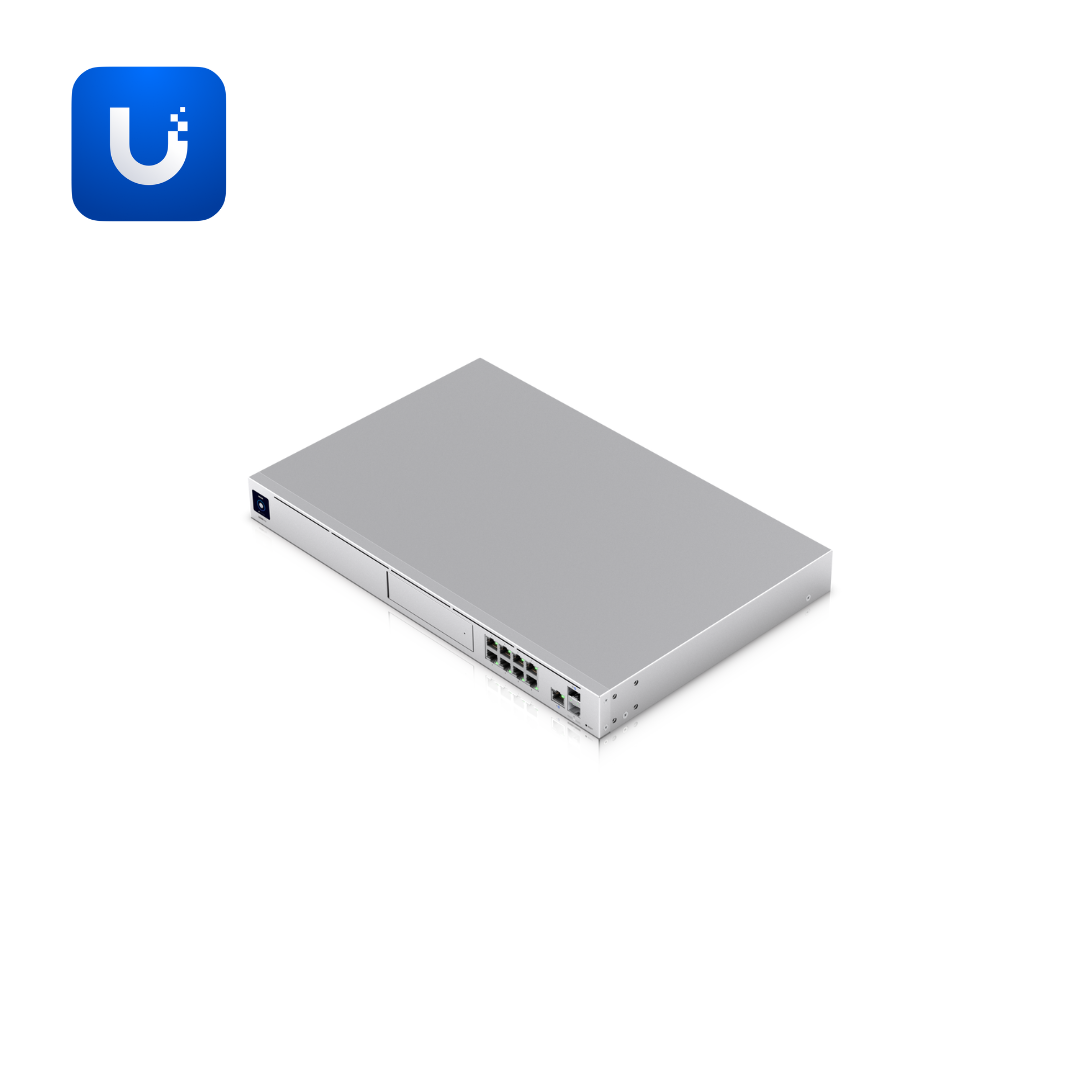

The UDM-Pro (Dream Machine Pro) is an enterprise-grade 1U rack-mount 10G Cloud Gateway combining high-performance security routing, integrated NVR storage, and the complete UniFi application suite in a single space-efficient appliance. Measuring 442.4 × 43.7 × 285.6 mm (17.4 × 1.7 × 11.2") and weighing 3.9 kg (8.6 lb), the UDM-Pro is powered by a Quad-core ARM® Cortex®-A57 processor at 1.7 GHz with 4 GB system memory and 16 GB on-board storage — delivering 3.5+ Gbps IDS/IPS routing throughput while simultaneously running the full UniFi application suite managing 100+ UniFi devices and 1,000+ simultaneous connected clients. The 1.3" touchscreen display provides at-a-glance system status directly on the unit.
The UDM-Pro runs the full UniFi Application Suite — Network, Protect, Access, Talk, and Connect. UniFi Protect supports (24) HD, (14) 2K, and (8) 4K managed cameras with a (1) 3.5" NVR HDD bay for local surveillance storage — accommodating standard desktop hard drives for extended recording capacity. UniFi Access supports up to 150 managed access hubs for door and physical access control across facilities. UniFi Power Backup (USP-RPS) ready with DC power input ensures continued operation during power interruptions — critical for mission-critical deployments across East Africa where power reliability can be variable.
Connectivity includes (1) 10G SFP+ and (1) GbE RJ45 WAN ports expandable to up to 8 WAN ports total for multi-WAN load balancing and redundancy, alongside (9) GbE RJ45 LAN ports (1G/100M/10M) and (1) 10G SFP+ LAN port (10G/1G) providing a comprehensive integrated switching fabric for direct device connections. IDS/IPS throughput of 3.5 Gbps with 55,000+ CyberSecure threat signatures delivers enterprise-grade intrusion protection. MAC address table supports 4,000 entries.
Advanced networking features include multi-WAN load balancing, Shadow Mode (VRRP) high availability gateway failover, LACP port aggregation, OSPF and BGP dynamic routing, advanced QoS, multicast DNS (mDNS), advanced NAT (SNAT/DNAT/Masquerade/NAT Pooling/1-to-1 NAT), integrated RADIUS server with RADIUS over TLS (RadSec), LTE failover via UniFi LTE Backup, IPv6 ISP support, IGMP proxy, customisable DHCP server, policy-based WAN and VPN routing, virtual network override, internet quality and outage reporting, and All Traffic Flows inspection. Security features include a stateful firewall, application-aware Layer 7 firewall, DPI and traffic identification, zone-based firewall with advanced filtering across regions, domains, and applications, content filtering, IDS/IPS, ad blocking, and VLAN and subnet-based traffic segmentation. VPN capabilities include license-free SD-WAN, Site Magic site-to-site VPN, IPsec, OpenVPN, WireGuard, L2TP VPN server, Teleport zero-configuration VPN, Identity Endpoint one-click VPN, and OpenVPN and WireGuard VPN client support.
Maximum power consumption is 33W via internal 50W AC/DC power supply supporting 100–240V AC universal input, 50/60 Hz — fully compatible with power standards across all East African markets. Heat dissipation of 112 BTU/hr. LED indicators cover Ethernet, SFP+, RPS, PSU, and HDD status for comprehensive monitoring. ESD/EMP protection: ±15 kV air, ±8 kV contact. The aluminium CNC and SGCC steel enclosure with SGCC steel mount material provides maximum structural rigidity for permanent rack installation. Management via Ethernet and Bluetooth with a factory reset button. Operating temperature -10°C to 40°C (14°F to 104°F) with 5–95% non-condensing humidity suits the full range of tropical and variable climates across East Africa. CE, FCC, IC, Anatel, and SRRC certified, fully NDAA compliant.
Ideal for small to medium businesses, professional offices, retail operations, educational facilities, healthcare practices, and growing enterprises across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 3.5+ Gbps IDS/IPS security, 55,000+ threat signatures, 100+ UniFi device management, 1,000+ client support, integrated NVR HDD storage, Shadow Mode high availability, BGP and OSPF dynamic routing, and the complete UniFi application suite — Network, Protect, Access, Talk, and Connect — in a single integrated 1U rack-mount appliance.
