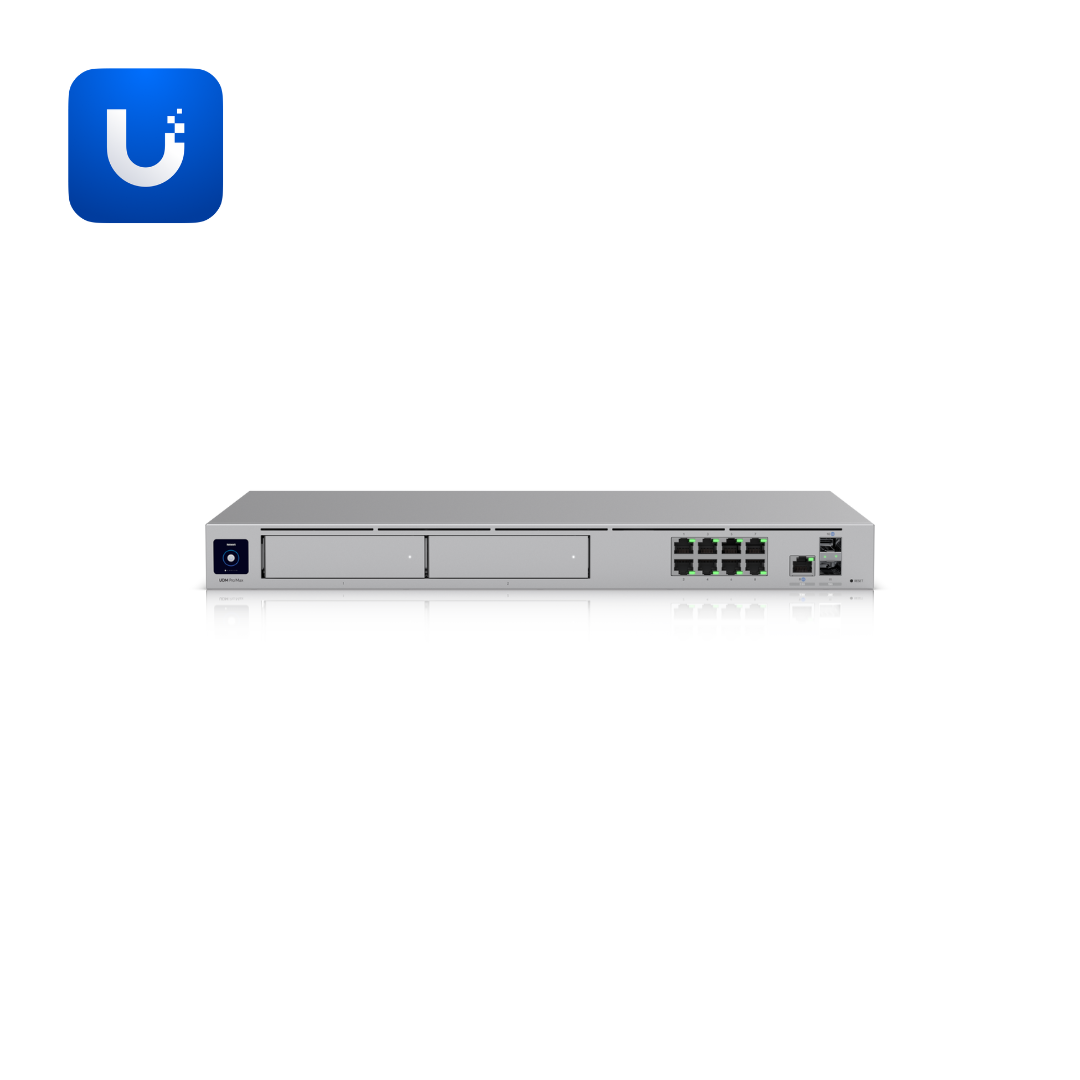

Dream Machine Pro Max (UDM Pro Max)

The UDM-Pro-Max (Dream Machine Pro Max) is a high-performance, enterprise-grade 1U rack-mount 10G Cloud Gateway engineered for organisations that have outgrown the Dream Machine Pro and SE and require double the device and client capacity in the same elegant form factor. Measuring 442.4 × 43.7 × 285.6 mm (17.4 × 1.7 × 11.2") and weighing 4.7 kg (10.4 lb), the UDM-Pro-Max is powered by a Quad-core ARM® Cortex®-A57 processor at 2.0 GHz with 8 GB system memory, 32 GB eMMC, and 128 GB integrated SSD — delivering the enhanced computing power required to simultaneously manage 200+ UniFi Network devices and 2,000+ simultaneous connected clients while running the full application suite. The 1.3" touchscreen display provides at-a-glance system status directly on the unit.

The UDM-Pro-Max runs the full UniFi Application Suite — Network, Protect, Access, Talk, and Connect. UniFi Protect supports (50) HD, (25) 2K, and (15) 4K managed cameras — nearly double the camera capacity of the UDM-SE — with (2) 3.5" NVR HDD bays offering RAID data protection for redundant surveillance storage, plus a built-in 128 GB SSD for instant detection recordings. UniFi Access supports up to 150 managed access hubs for comprehensive door and physical access control across large facilities. UniFi Power Backup (USP-RPS) ready with 11.5V DC, 8.7A DC input ensures continued operation during power interruptions — essential for mission-critical East African deployments.

Connectivity includes (1) 10G SFP+ and (1) 2.5 GbE RJ45 WAN ports expandable to up to 8 WAN ports total for maximum redundancy, alongside (8) GbE RJ45 LAN ports (1G/100M/10M) and (1) 10G SFP+ LAN port (10G/1G) for high-speed core switching integration. IDS/IPS throughput of 5 Gbps with 55,000+ CyberSecure threat signatures delivers enterprise-grade intrusion protection at wire speed. MAC address table supports 4,000 entries.

Advanced networking features include multi-WAN load balancing, Shadow Mode (VRRP) high availability gateway failover, LACP port aggregation, OSPF and BGP dynamic routing, advanced QoS, multicast DNS (mDNS), advanced NAT (SNAT/DNAT/Masquerade/NAT Pooling/1-to-1 NAT), integrated RADIUS server with RADIUS over TLS (RadSec), LTE failover via UniFi LTE Backup, IPv6 ISP support, IGMP proxy, customisable DHCP server, policy-based WAN and VPN routing, virtual network override, internet quality and outage reporting, and All Traffic Flows inspection. Security features include a stateful firewall, application-aware Layer 7 firewall, DPI and traffic identification, zone-based firewall with advanced filtering across regions, domains, and applications, content filtering, IDS/IPS, ad blocking, and VLAN and subnet-based traffic segmentation. VPN capabilities include license-free SD-WAN, Site Magic site-to-site VPN, IPsec, OpenVPN, WireGuard, L2TP VPN server, Teleport zero-configuration VPN, Identity Endpoint one-click VPN, and OpenVPN and WireGuard VPN client support.

Maximum power consumption is 60W via internal 100W AC/DC power supply supporting 100–240V AC universal input at 2A maximum, 50/60 Hz — fully compatible with power standards across all East African markets. Heat dissipation of 205 BTU/hr. LED indicators cover Ethernet, SFP+, RPS, PSU, and HDD status for comprehensive at-a-glance monitoring. ESD/EMP protection: ±15 kV air, ±8 kV contact. The aluminium CNC and SGCC steel enclosure with SGCC steel mount material provides maximum structural rigidity for permanent rack installation. Management via Ethernet and Bluetooth with a factory reset button. Operating temperature -10°C to 40°C (14°F to 104°F) with 5–95% non-condensing humidity suits tropical and variable climates across East Africa. CE, FCC, IC, Anatel, and SRRC certified, fully NDAA compliant.

Ideal for medium to large businesses, multi-tenant buildings, educational institutions, healthcare facilities, hotel and hospitality groups, enterprise campuses, and high-performance deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 5 Gbps IDS/IPS security, 200+ UniFi device management, 2,000+ client support, dual-bay RAID NVR storage, Shadow Mode high availability, BGP and OSPF dynamic routing, and the complete UniFi application suite — Network, Protect, Access, Talk, and Connect — in a single integrated 1U rack-mount appliance.
