The

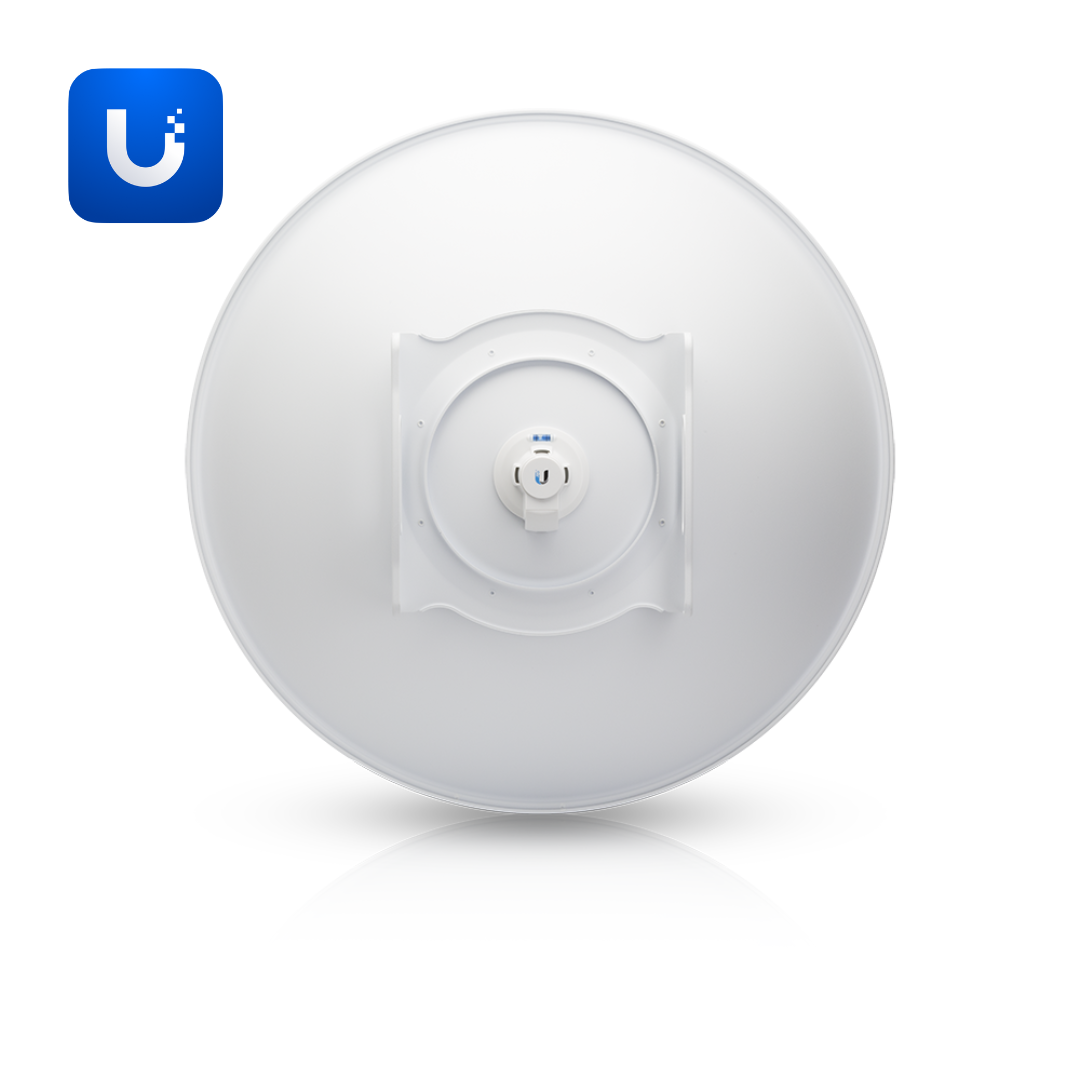

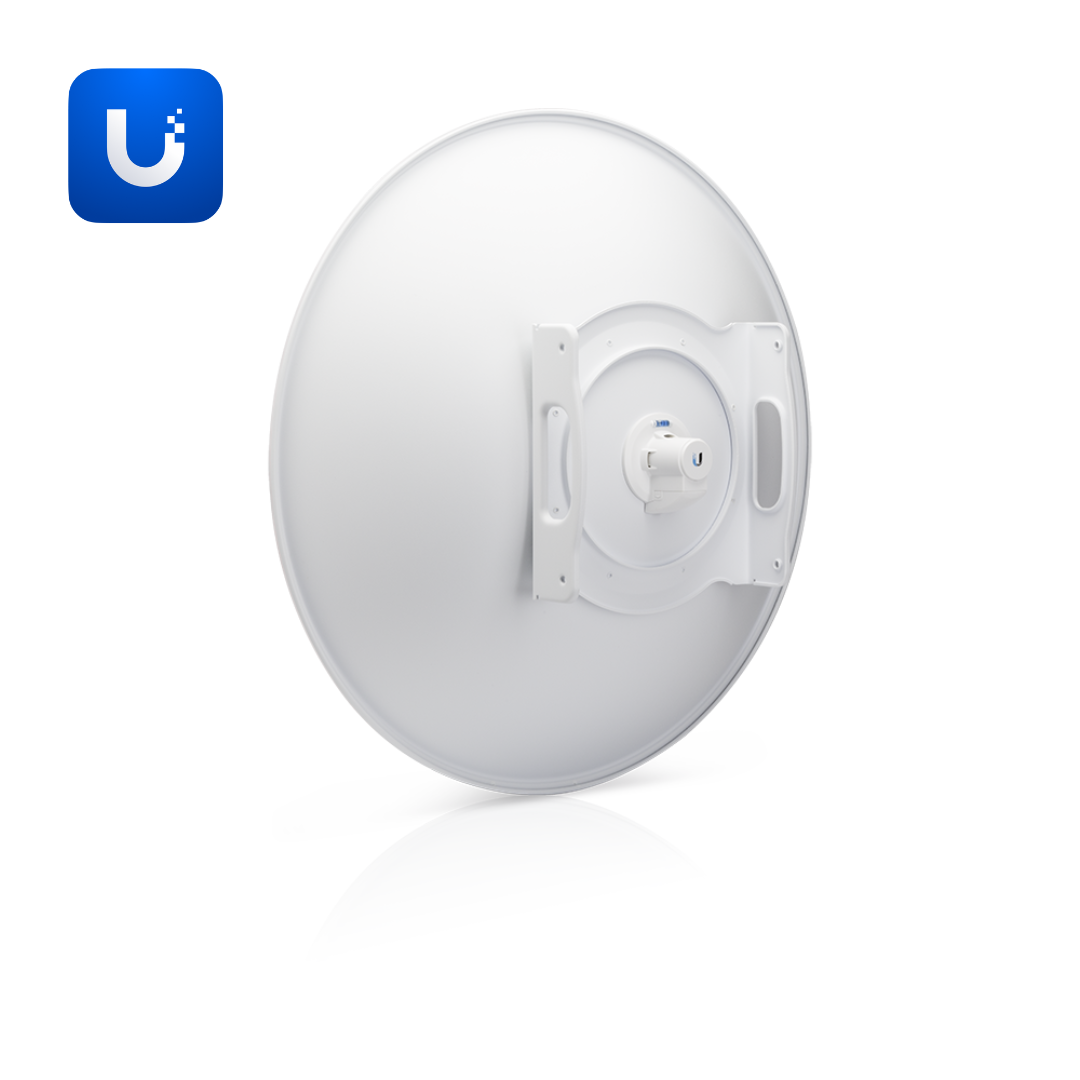

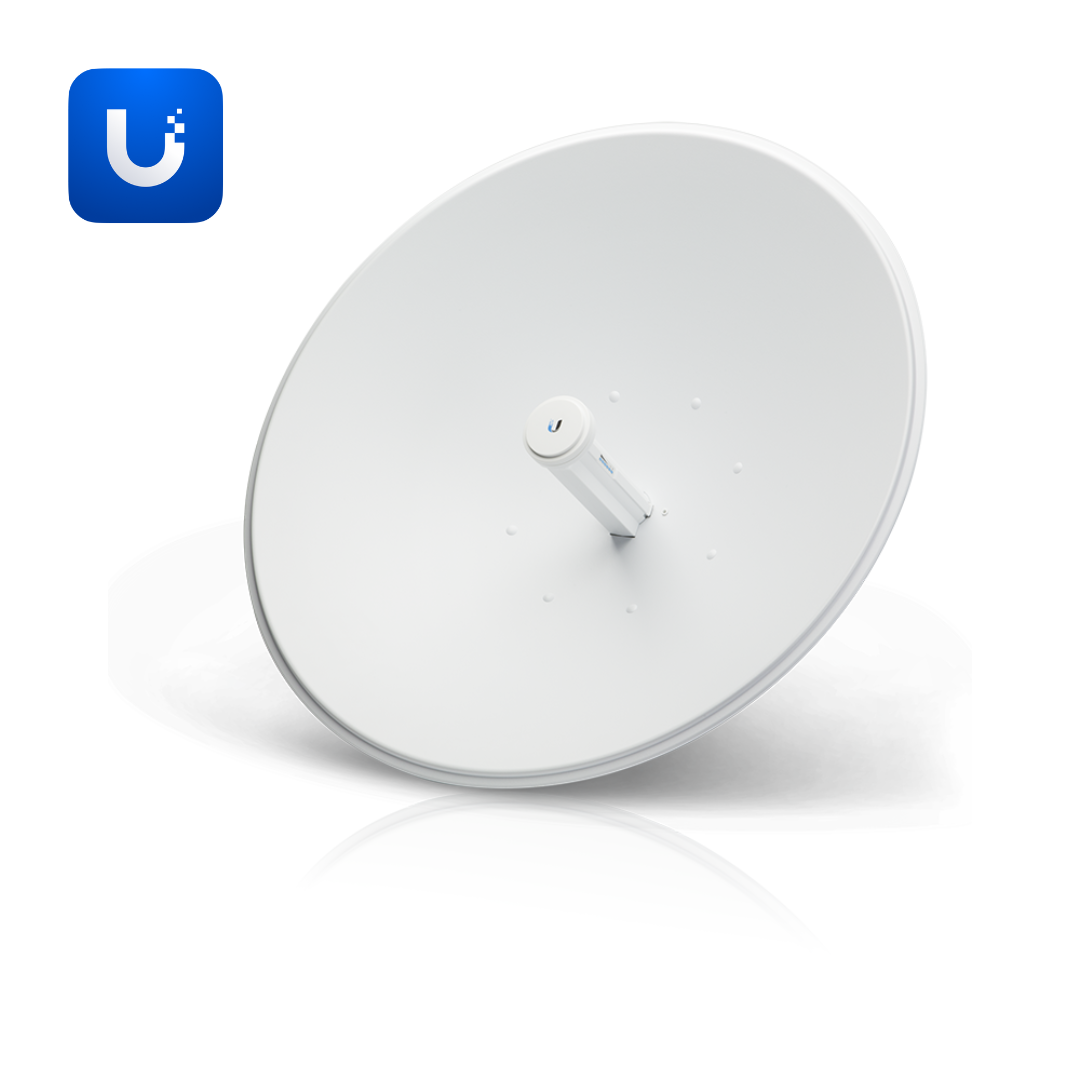

PBE-5AC-620 (airMAX PowerBeam 5AC 620) is a
high-performance 5 GHz PtP wireless bridge featuring a large 620 mm integrated dish reflector delivering
29 dBi gain — the highest gain in the PowerBeam 5AC lineup — for East African long-range wireless backhaul and connectivity deployments requiring maximum link budget. Measuring
620 × 620 × 386 mm (24.4 × 24.4 × 15.2") and weighing
6.4 kg (14.1 lb) in an
outdoor UV-stabilised plastic enclosure with included
pole mount kit.
Wind loading of 1,510 N at 200 km/h without radome (340 lbf) / 1,830 N with radome (411 lbf) at 125 mph.
±24 kV air/contact ESD/EMP protection. Environmental testing includes salt fog, vibration, temperature shock, UV, and wind-driven rain.
Operating temperature: -40°C to 70°C (-40°F to 158°F). Fully
NDAA compliant.
Must be purchased in pairs to form links.
The
PBE-5AC-620 operates across
5150–5875 MHz worldwide delivering
450+ Mbps throughput over 25+ km links with
29 dBi integrated dish gain, dual-linear polarization, and 1.6:1 maximum VSWR.
PtP channel sizes of 10/20/30/40/50/60/80 MHz and PtMP channel sizes of 10/20/30/40 MHz.
Software-adjustable signal strength LEDs corresponding to custom RSSI levels. Powered via
passive PoE 2-pair at 8.5W maximum (20–27V DC) with included
24V, 0.5A gigabit PoE adapter.
Additional specifications:
- FCC, IC, CE, and RoHS certified, fully NDAA compliant
Ideal for
long-range building-to-building links, enterprise wireless backhaul, ISP infrastructure, demanding PtP wireless deployments, and high-gain link applications across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring
5 GHz 29 dBi dish bridge performance with 25+ km range, 450+ Mbps throughput, dedicated spectral analysis, and dedicated WiFi management radio.
Purchased in pairs to form links.
