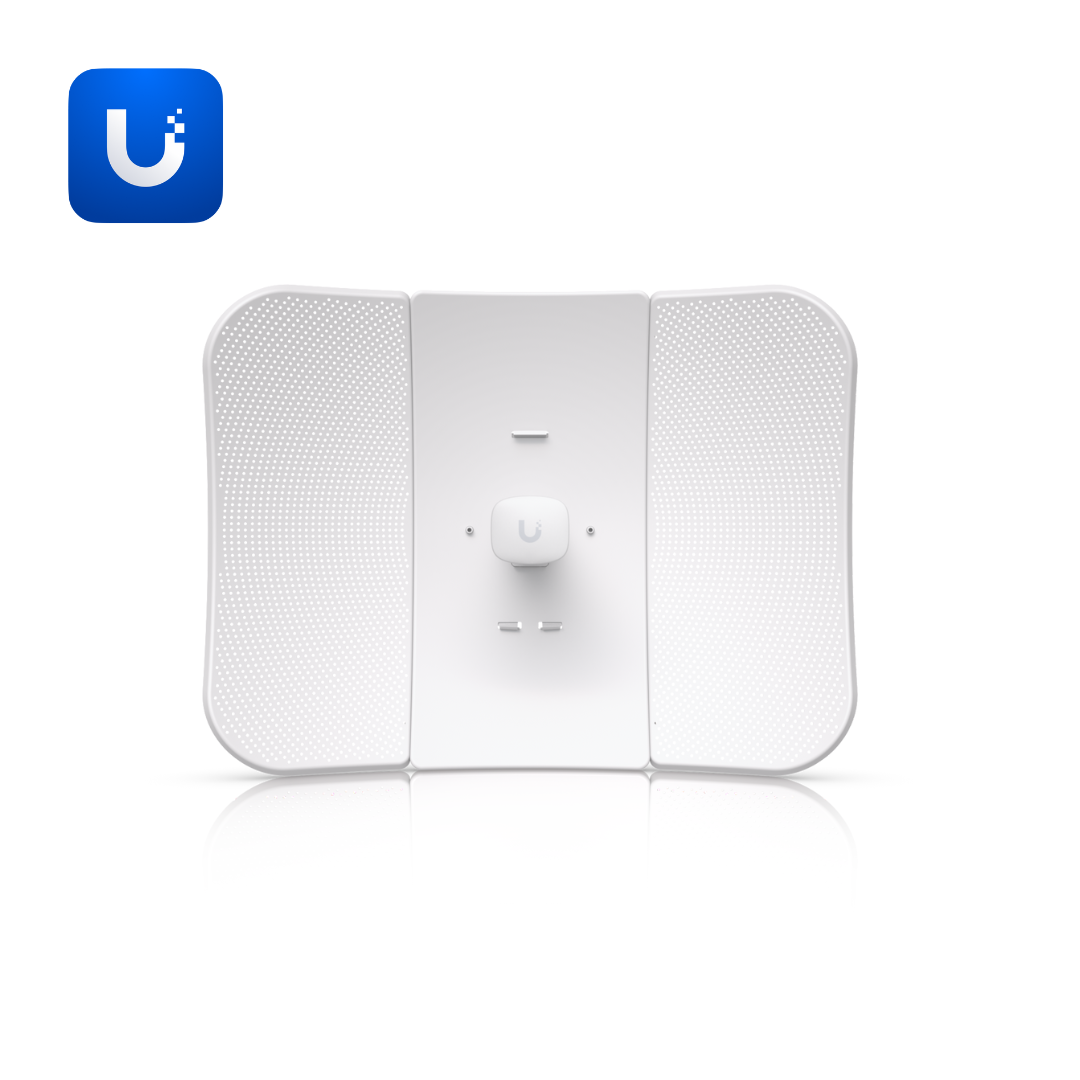

airMAX LiteBeam 5AC Long-Range

The LBE-5AC-LR (airMAX LiteBeam 5AC Long-Range) is an affordable airMAX AC CPE designed for long-distance wireless links with 26 dBi gain and 450+ Mbps throughput across East Africa. This 5 GHz 26 dBi long-range airMAX CPE delivers:
  • 26 dBi antenna gain across 5150–5875 MHz worldwide
  • 25+ km link range
  • 450+ Mbps throughput
  • PtP channel sizes: 10/20/30/40/50/60/80 MHz
  • PtMP channel sizes: 10/20/30/40 MHz
  • Dedicated WiFi management radio (2412–2472 MHz worldwide)
  • Passive PoE 2-pair powered at 7W maximum (20–27V DC)
  • 24V, 0.3A gigabit PoE adapter included
  • (1) GbE RJ45 networking interface
  • ±24 kV air/contact ESD/EMP protection
  • 200 km/h wind survivability — 550 N wind loading (123.6 lbf at 125 mph)
  • 512 × 385.8 × 258.3 mm (20.2 × 15.2 × 10.2") — 1.4 kg without / 1.7 kg with mount

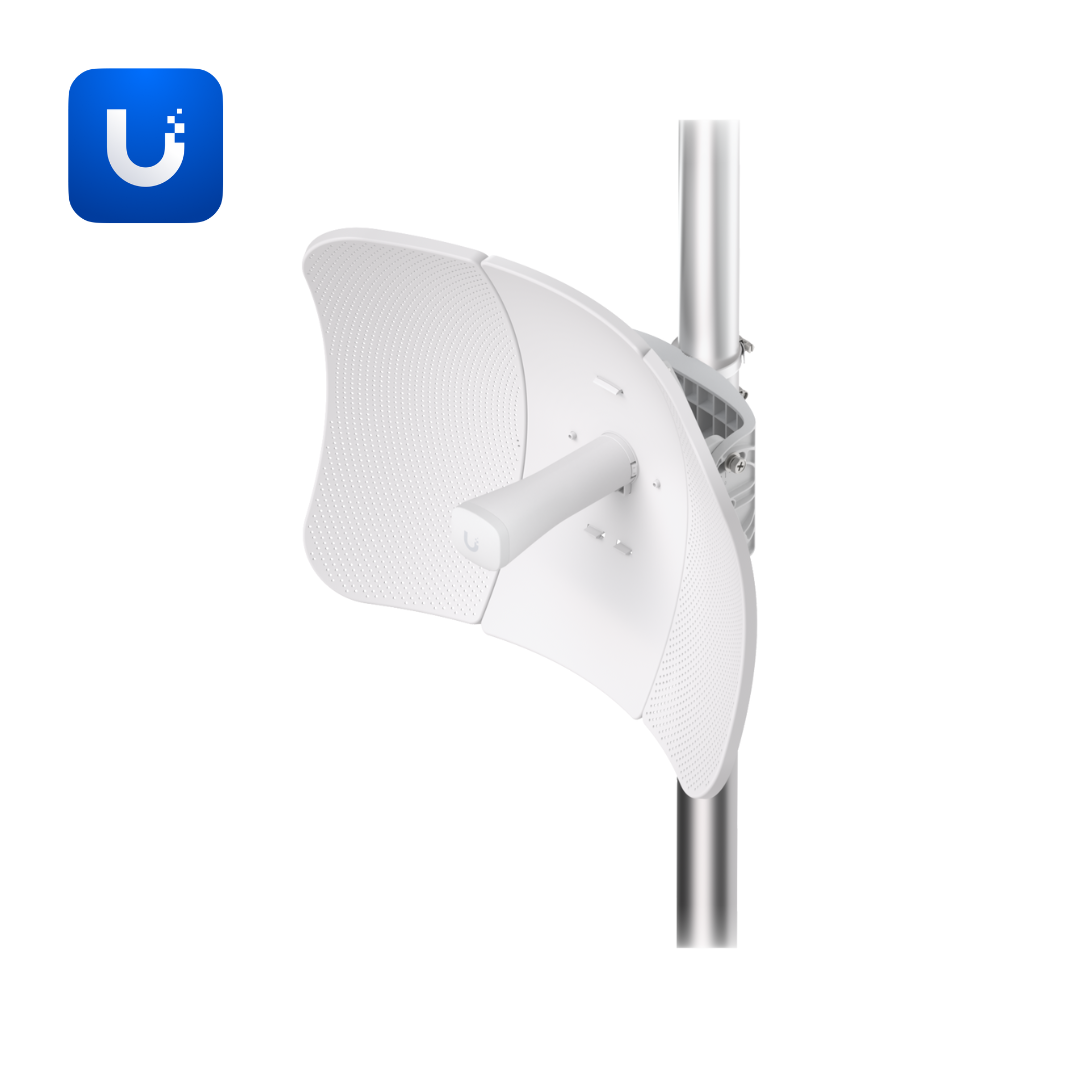

  • Aluminium and plastic enclosure — pole mount kit included
for long-distance ISP CPE deployments, rural subscriber connections, building-to-building links, and last-mile wireless access across Kenya, Uganda, and the region. ETA: 14 June 2026.
Perfect for long-distance ISP CPE deployments, rural subscriber connections, building-to-building links, last-mile wireless access, and any deployment requiring affordable 5 GHz 26 dBi CPE performance with 25+ km range and dedicated management radio across East and Central Africa.

DATASHEET

About the airMAX LiteBeam 5AC Long-Range

The LBE-5AC-LR (airMAX LiteBeam 5AC Long-Range) is an affordable airMAX AC CPE engineered to reach new subscribers at extended distances — providing East African ISPs with a cost-effective solution for long-range rural and semi-urban subscriber connections without sacrificing 450+ Mbps throughput capability. Measuring 512 × 385.8 × 258.3 mm (20.2 × 15.2 × 10.2") and weighing 1.4 kg (3 lb) without mount or 1.7 kg (3.8 lb) with mount in an aluminium and plastic enclosure, the LBE-5AC-LR ships with a pole mount kit included. 200 km/h wind survivability with 550 N wind loading. ±24 kV air/contact ESD/EMP protection. Operating temperature: -40°C to 70°C (-40°F to 158°F). Fully NDAA compliant. ETA: 14 June 2026.

The LBE-5AC-LR operates across 5150–5875 MHz worldwide delivering 450+ Mbps throughput over 25+ km links with 26 dBi integrated antenna gain. PtP channel sizes of 10/20/30/40/50/60/80 MHz and PtMP channel sizes of 10/20/30/40 MHz. The dedicated WiFi management radio (2412–2472 MHz) enables UISP mobile app management. Powered via passive PoE 2-pair at 7W maximum (20–27V DC) with included 24V, 0.3A gigabit PoE adapter. Power and Ethernet LEDs.
Additional specifications:
  • CE, FCC, and IC certified, fully NDAA compliant

Ideal for long-distance ISP CPE deployments, rural subscriber connections, building-to-building links, last-mile wireless access, and extended-range PtP deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring affordable 5 GHz 26 dBi CPE performance with 25+ km range, 450+ Mbps throughput, and dedicated WiFi management radio. ETA: 14 June 2026.
