The

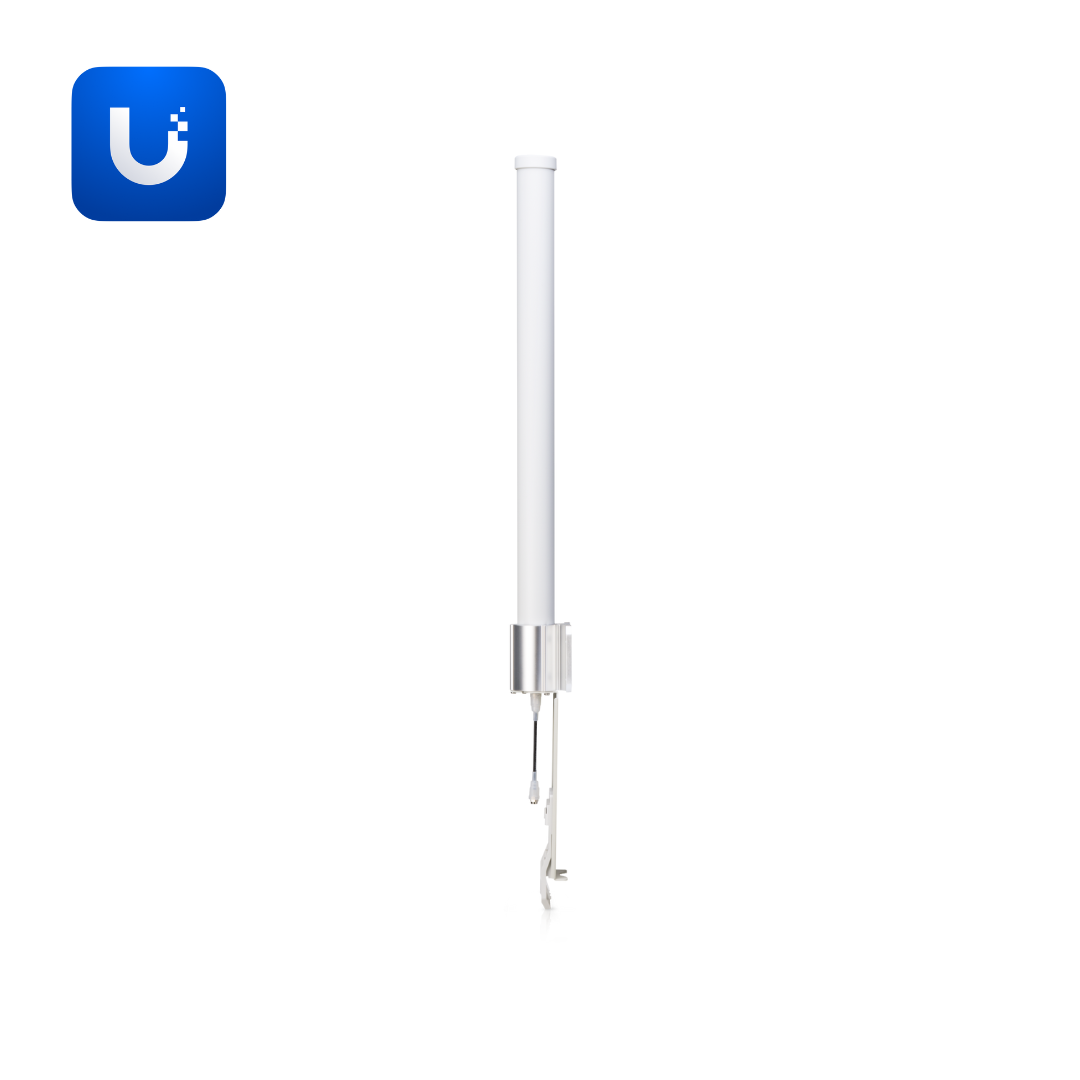

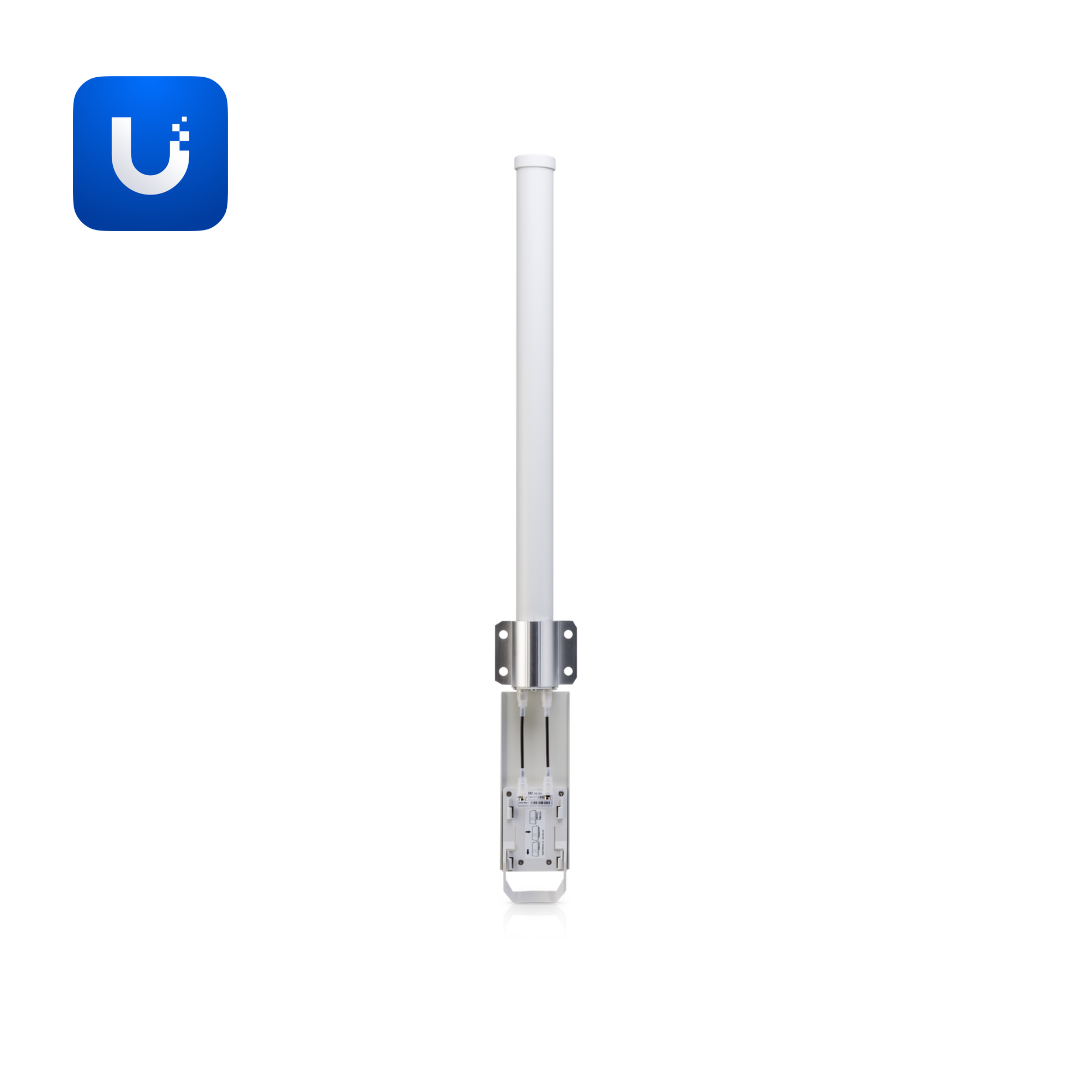

AMO-5G13 (airMAX 5 GHz 13 dBi Omni) is a
carrier-class 2×2 dual-polarity MIMO omnidirectional antenna engineered for point-to-multipoint base station deployments across East Africa where 360° 5 GHz sector coverage is required from a single antenna installation. Measuring
799 × 90 × 65 mm (31.5 × 3.5 × 2.6") and weighing
820 g (1.8 lb), the AMO-5G13 is designed for easy assembly and professional tower or mast installation.
Wind survivability of 200 km/h (125 mph) with 84.52 N wind loading ensures structural reliability in exposed East African tower environments including coastal and highland locations. Fully
NDAA compliant.
The
AMO-5G13 operates across
5.45–5.85 GHz delivering
13 dBi gain with a
360° omnidirectional coverage pattern and a
7° elevation beamwidth — concentrating RF energy horizontally for maximum range coverage of subscriber sites across East African towns, valleys, and rural areas from a single tower-mounted antenna.
2° electrical downtilt optimises signal distribution to ground-level subscribers.
2×2 dual-polarity MIMO with dual-linear polarization and 25 dB minimum cross-pol isolation maximises spectral efficiency and interference rejection in congested RF environments.
1.5:1 maximum VSWR ensures efficient power transfer.
ETSI EN 302 326 DN2 specification compliance supports regulatory approval across East African markets.
Additional specifications:
- Compatible with RocketPrism for PtMP deployments
- Wind loading: 84.52 N at 200 km/h (19 lbf at 125 mph)
- ETSI Specification: EN 302 326 DN2
- Fully NDAA compliant
Ideal for
WISP infrastructure, PtMP base station deployments, ISP tower installations, rural broadband coverage, and any deployment across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring
carrier-class 360° omnidirectional 5 GHz coverage with 13 dBi gain, 2×2 dual-polarity MIMO, and RocketPrism compatibility.
