airFiber X 5 GHz, 30 dBi, Slant 45

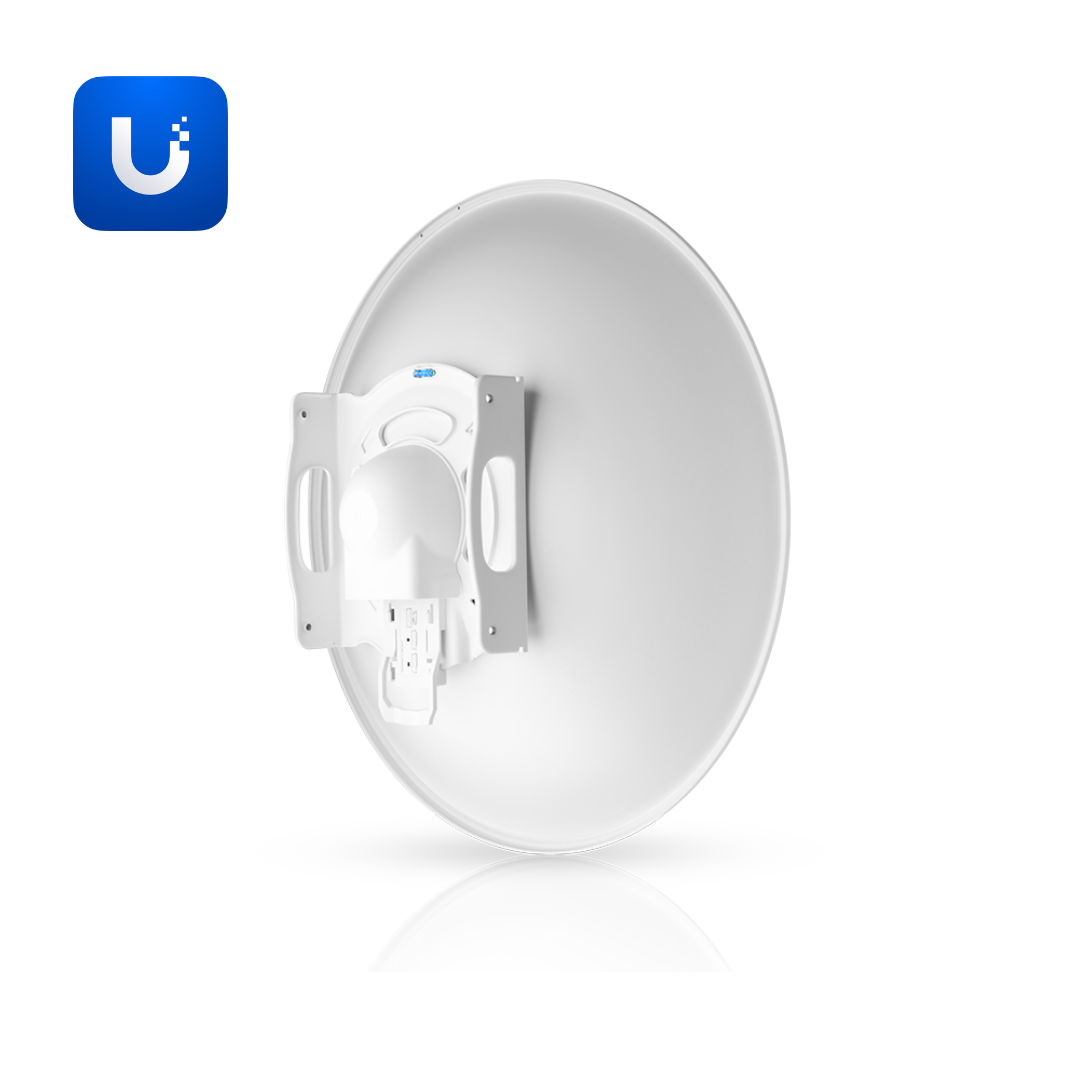

The AF-5G30-S45 (airFiber X 5 GHz 30 dBi Slant 45) is a high-gain 5 GHz dish antenna for long-range Point-to-Point wireless links compatible with airFiber X radios and Wave MLO5 across East Africa. This 5 GHz high-gain PtP dish antenna with Slant 45 polarization delivers:
Perfect for long-range PtP wireless backhaul, ISP infrastructure, enterprise links, carrier-grade deployments, building-to-building connectivity, and any deployment requiring 30 dBi 5 GHz dish antenna performance with Slant 45 polarization and airFiber X radio compatibility across East and Central Africa.
DATASHEET
- 30 dBi antenna gain across 5.1–5.9 GHz frequency range
- Slant 45 dual-linear polarization
- 30 dB front-to-back ratio
- 1.6:1 maximum VSWR
- 200 km/h wind survivability — 790 N wind loading (178 lbf at 125 mph)
- 650 × 650 × 386 mm (25.6 × 25.6 × 15.2") — 7.4 kg (16.31 lb) with mount
- Universal pole mount, airFiber radio bracket, and weatherproof RF jumpers included
- Secure pole-mounting with robust mechanical design
- Compatible with airFiber X radios and Wave MLO5
- ETSI Specification: EN 302 326 DN2
Perfect for long-range PtP wireless backhaul, ISP infrastructure, enterprise links, carrier-grade deployments, building-to-building connectivity, and any deployment requiring 30 dBi 5 GHz dish antenna performance with Slant 45 polarization and airFiber X radio compatibility across East and Central Africa.
DATASHEET
About the airFiber X 5 GHz, 30 dBi, Slant 45
The AF-5G30-S45 (airFiber X 5 GHz 30 dBi Slant 45) is a high-gain 5 GHz outdoor dish antenna purpose-designed for long-range PtP links using airFiber X radios and Wave MLO5 across East Africa. Measuring 650 × 650 × 386 mm (25.6 × 25.6 × 15.2") and weighing 7.4 kg (16.31 lb) with mount, the AF-5G30-S45 ships with a universal pole mount, airFiber radio bracket, and weatherproof RF jumpers included for complete secure outdoor installation. Wind survivability of 200 km/h (125 mph) with 790 N wind loading ensures structural reliability on East African towers, rooftops, and mast installations.
The AF-5G30-S45 operates across 5.1–5.9 GHz delivering 30 dBi gain with Slant 45 dual-linear polarization — designed to work optimally with the polarization characteristics of airFiber X radios for maximum link performance. 30 dB front-to-back ratio minimises interference pickup. 1.6:1 maximum VSWR ensures efficient power transfer between radio and antenna. ETSI EN 302 326 DN2 specification compliance supports regulatory approval across East African markets.
Additional specifications:
Ideal for long-range PtP wireless backhaul, ISP infrastructure, enterprise links, carrier-grade deployments, and building-to-building connectivity across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 30 dBi 5 GHz dish antenna performance with Slant 45 polarization, airFiber X radio bracket, and Wave MLO5 compatibility.
The AF-5G30-S45 operates across 5.1–5.9 GHz delivering 30 dBi gain with Slant 45 dual-linear polarization — designed to work optimally with the polarization characteristics of airFiber X radios for maximum link performance. 30 dB front-to-back ratio minimises interference pickup. 1.6:1 maximum VSWR ensures efficient power transfer between radio and antenna. ETSI EN 302 326 DN2 specification compliance supports regulatory approval across East African markets.
Additional specifications:
- Wind loading: 790 N at 200 km/h (178 lbf at 125 mph)
- ETSI Specification: EN 302 326 DN2
- Compatible with airFiber X radios and Wave MLO5
- Fully NDAA compliant
Ideal for long-range PtP wireless backhaul, ISP infrastructure, enterprise links, carrier-grade deployments, and building-to-building connectivity across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 30 dBi 5 GHz dish antenna performance with Slant 45 polarization, airFiber X radio bracket, and Wave MLO5 compatibility.
