UISP Console

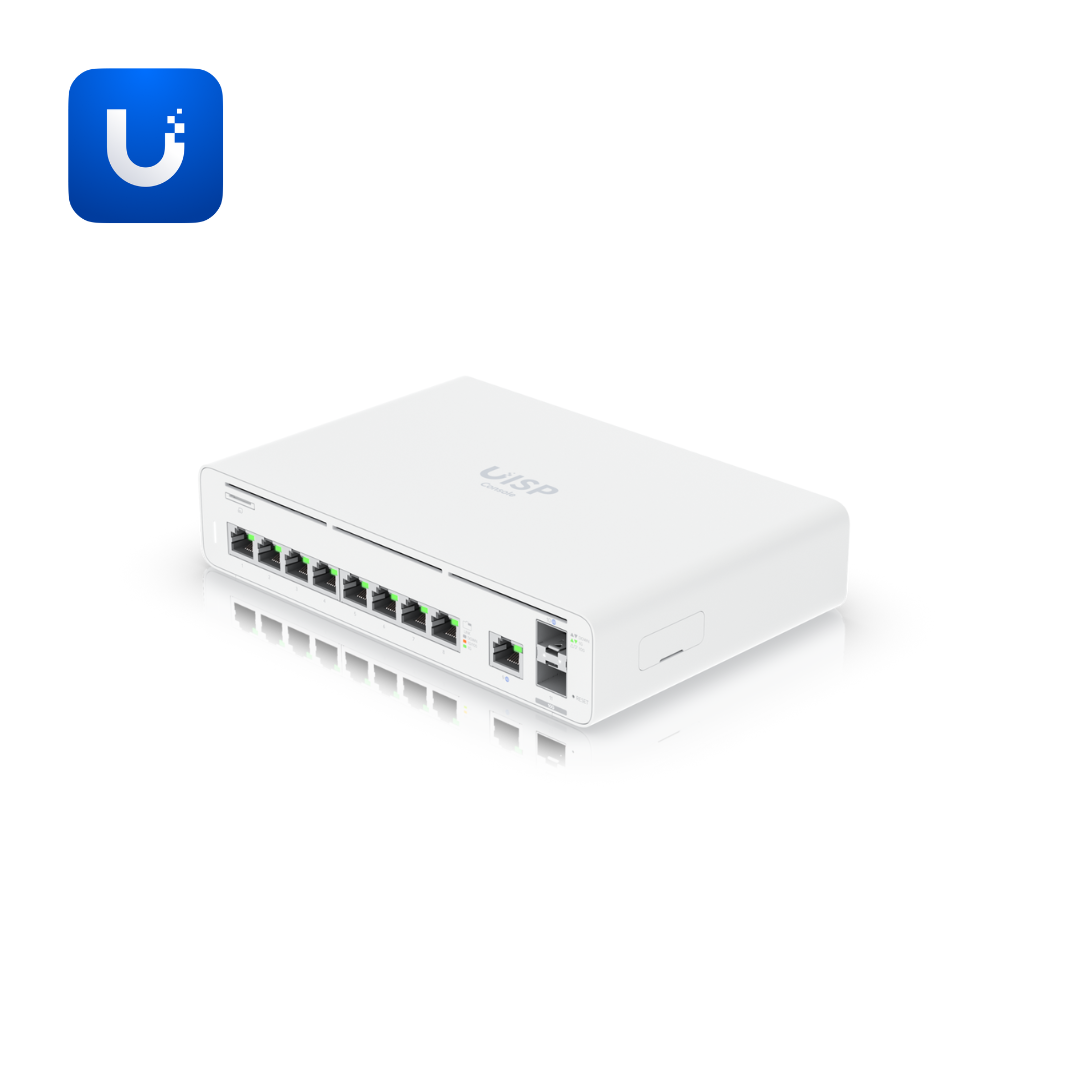

The UISP-Console (UISP Console) is a purpose-built UISP host console combining an integrated switch, multi-gigabit Ethernet gateway, and substantial on-board storage for centralised management of large-scale East African ISP and WISP network deployments. Measuring 210.4 × 140.2 × 43.7 mm (8.3 × 5.5 × 1.7") and weighing 1.5 kg (3.2 lb), the UISP-Console features an SGCC steel and polycarbonate enclosure and supports 1U rack or wall mounting with included mounting kits. Powered by a Quad-core ARM® Cortex®-A57 at 1.7 GHz with 4 GB DDR4 memory, 16 GB eMMC, and 128 GB SSD — providing ample processing power and storage for UISP application hosting. A microSD card slot supports up to 2 TB for expanded storage.

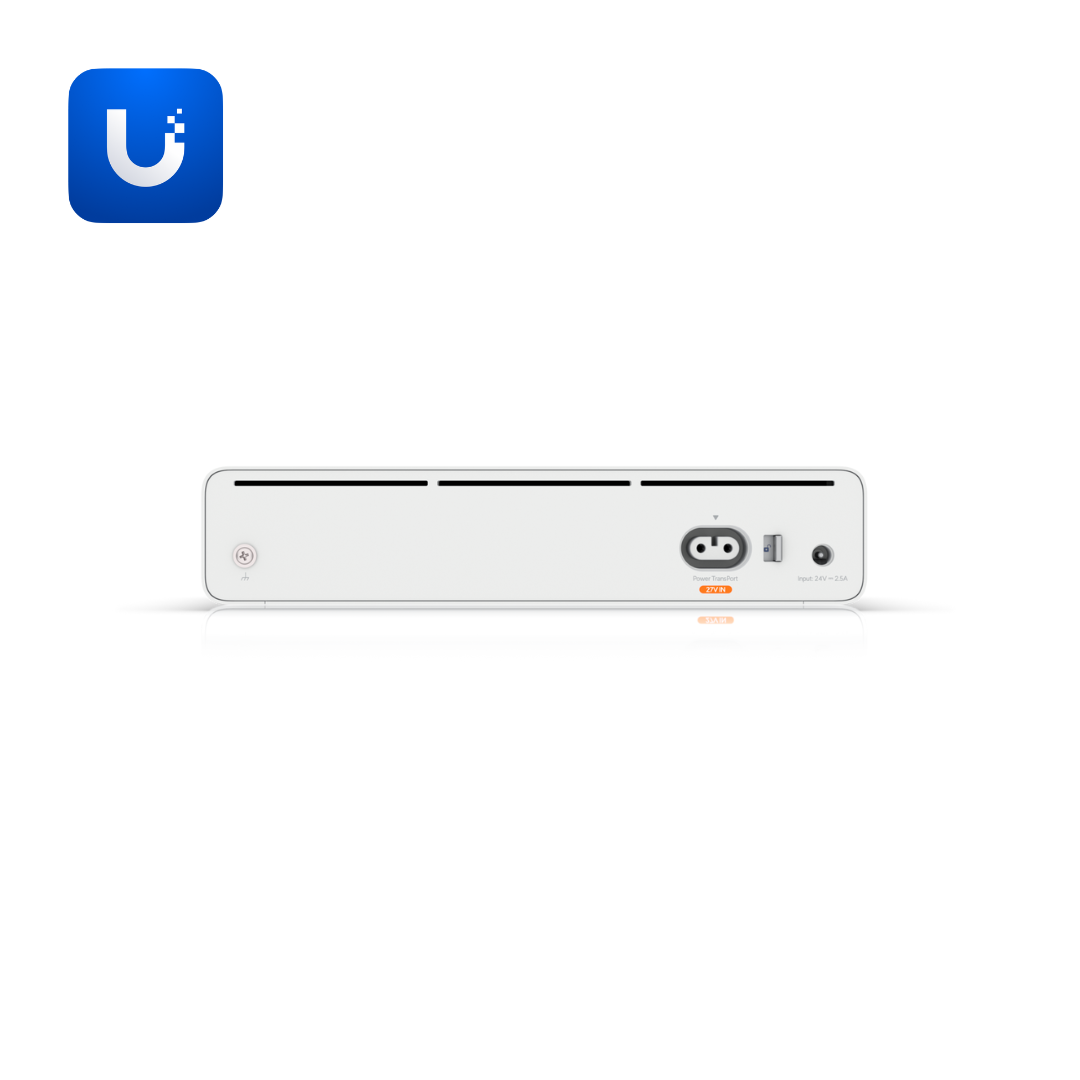

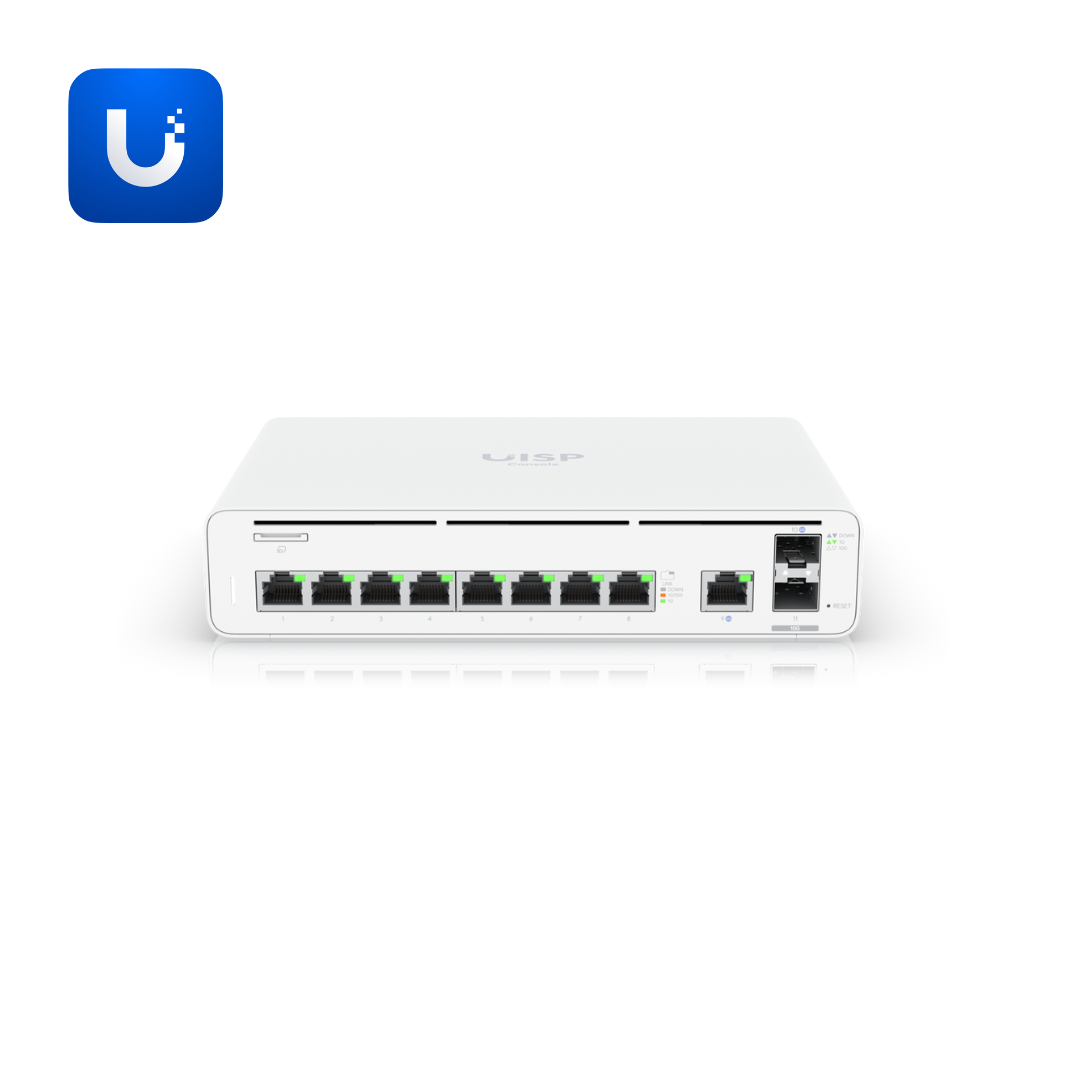

The UISP-Console provides (8) LAN GbE RJ45 ports, (1) WAN GbE RJ45 port, (1) LAN 1/10G SFP+ port, and (1) WAN 1/10G SFP+ port delivering up to 8,500 Mbps NAT throughput. The additional Power TransPort DC input (27V DC, 1.5A) provides power redundancy for mission-critical deployments — essential for East African networks requiring continuous uptime. Management via Ethernet in-band and Bluetooth. ±15kV air and ±8kV contact ESD/EMP protection.
Additional specifications:

• Max. power consumption: 30W
• Supported voltage range: 24–28V DC
• Operating temperature: -10°C to 50°C (14°F to 122°F)
• Operating humidity: 5–95% non-condensing
• LED indicators: system status, RJ45 speed/link/activity, SFP+ speed/link/activity
• CE, FCC, and IC certified, fully NDAA compliant

Ideal for ISP and WISP network management, centralised control of large-scale outdoor wireless networks, MicroPoP deployments, and enterprise network operations across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring a dedicated UISP host console with 8,500 Mbps NAT throughput, multi-gigabit SFP+ gateway, 128 GB SSD storage, microSD expansion, DC power redundancy, and 1U rack or wall-mount flexibility.
