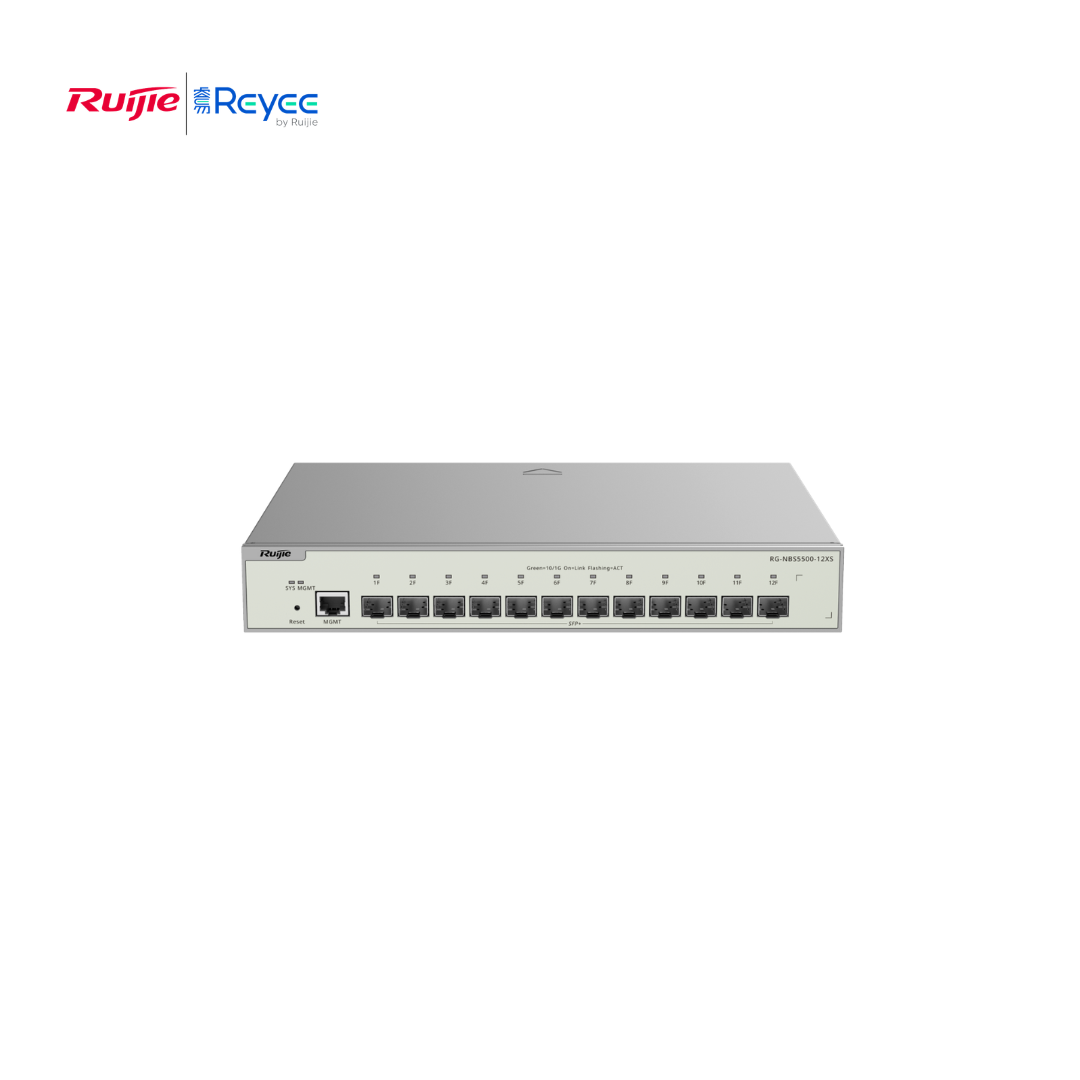

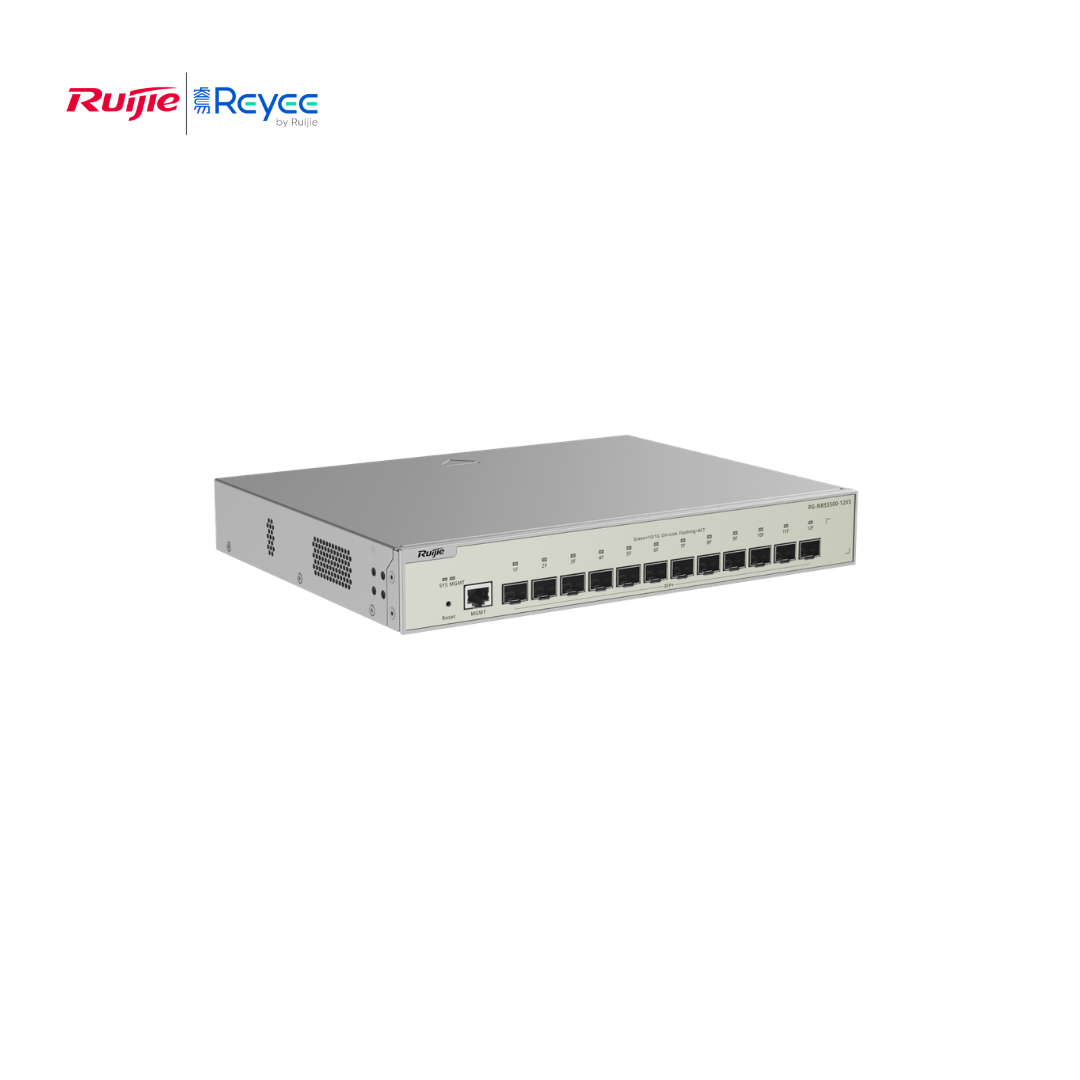

Name: Ruijie Reyee RG-NBS5500-12XS
Brand: Simplifi Networks
Availability: InStock

The Ruijie Reyee RG-NBS5500-12XS is a 12-port full 10 GbE SFP+ Layer 3 managed switch with 240 Gbps switching capacity, VCS stacking, full OSPF routing, DHCP server, and a dedicated management port — the aggregation-layer switch that ties your campus access switches together at 10G speed. Simplifi Networks — the Authorized Master Distributor for Ruijie Reyee in Kenya and Uganda — supplies the RG-NBS5500-12XS to enterprise network architects and system integrators across East Africa building high-speed distribution and aggregation layers where every uplink and downlink needs to be 10G.

Twelve 10G SFP+ ports in a compact 300 mm chassis — aggregate up to twelve access switches, connect to the core router, run OSPF, and stack with a second unit via VCS for logical scale — all managed from Ruijie Cloud without a dedicated NMS server.

Download the RG-NBS5500-12XS Datasheet

About the Ruijie Reyee RG-NBS5500-12XS

12× full 10 GbE SFP+ ports, 240 Gbps non-blocking — Every port runs at full 10G simultaneously — aggregate twelve 48-port access switches, connect servers, and uplink to the core router without any internal congestion, regardless of simultaneous traffic patterns across a busy East African enterprise campus at peak hours.
Rich Layer 3: VCS stacking, OSPF, RIP, static routing, DHCP server — Full enterprise routing at the aggregation layer — VCS stacking logically merges two switches without dedicated stack cables, OSPF handles dynamic route convergence, and the built-in DHCP server reduces dependency on a separate server appliance for IP address management across the campus.
VCS stacking without dedicated stack ports — Stack two RG-NBS5500-12XS units using standard SFP+ ports — doubles the aggregation port count to 24× 10G without purchasing a dedicated chassis or stacking hardware, protecting the investment as East African campus networks scale their access layer over time.
Dedicated management ETH port — Out-of-band management via a separate RJ45 management port — the switch remains accessible for configuration and monitoring even when all 12 service SFP+ ports are saturated, eliminating in-band management blackout during peak traffic at critical East African distribution layer switches.
±6 kV surge protection and 400,000-hour MTBF — Industrial-grade surge protection on all ports combined with an MTBF rating that exceeds most comparable aggregation switches — deploy with confidence in East African environments where grid power events are frequent and aggregation layer uptime is business-critical.

10G Aggregation for East African Enterprise Networks — Authorised, Genuine, and Locally Backed

Authorized Master Distributor — Simplifi is the official Ruijie Reyee distributor for Kenya and Uganda — VCS stacking and full Layer 3 OSPF on a 10G switch require genuine Reyee firmware to activate. Grey-market units may not support these features or require paid licence activation that isn't included.
Genuine Hardware — 240 Gbps non-blocking switching and 12× 10G SFP+ ports are high-value targets for grey-market misrepresentation — our NBS5500-12XS units are factory-genuine, CE/FCC/IC certified, and fully validated for continuous aggregation-layer operation.
Official Local Warranty — A failed aggregation switch brings down every access switch beneath it. Our Nairobi and Kampala warranty teams treat aggregation-layer failures as critical resolutions — fast swap, not international RMA queues, when your entire campus distribution layer is on the line.
B2B Technical Support — Campus aggregation topology design, VCS stacking configuration, OSPF area planning, SFP+ fibre module selection, and Ruijie Cloud multi-site management for enterprise and data centre integrators across East Africa.

Ruijie Reyee RG-NBS5500-12XS

Ruijie Reyee RG-NBS5500-12XS

About the Ruijie Reyee RG-NBS5500-12XS

More Products

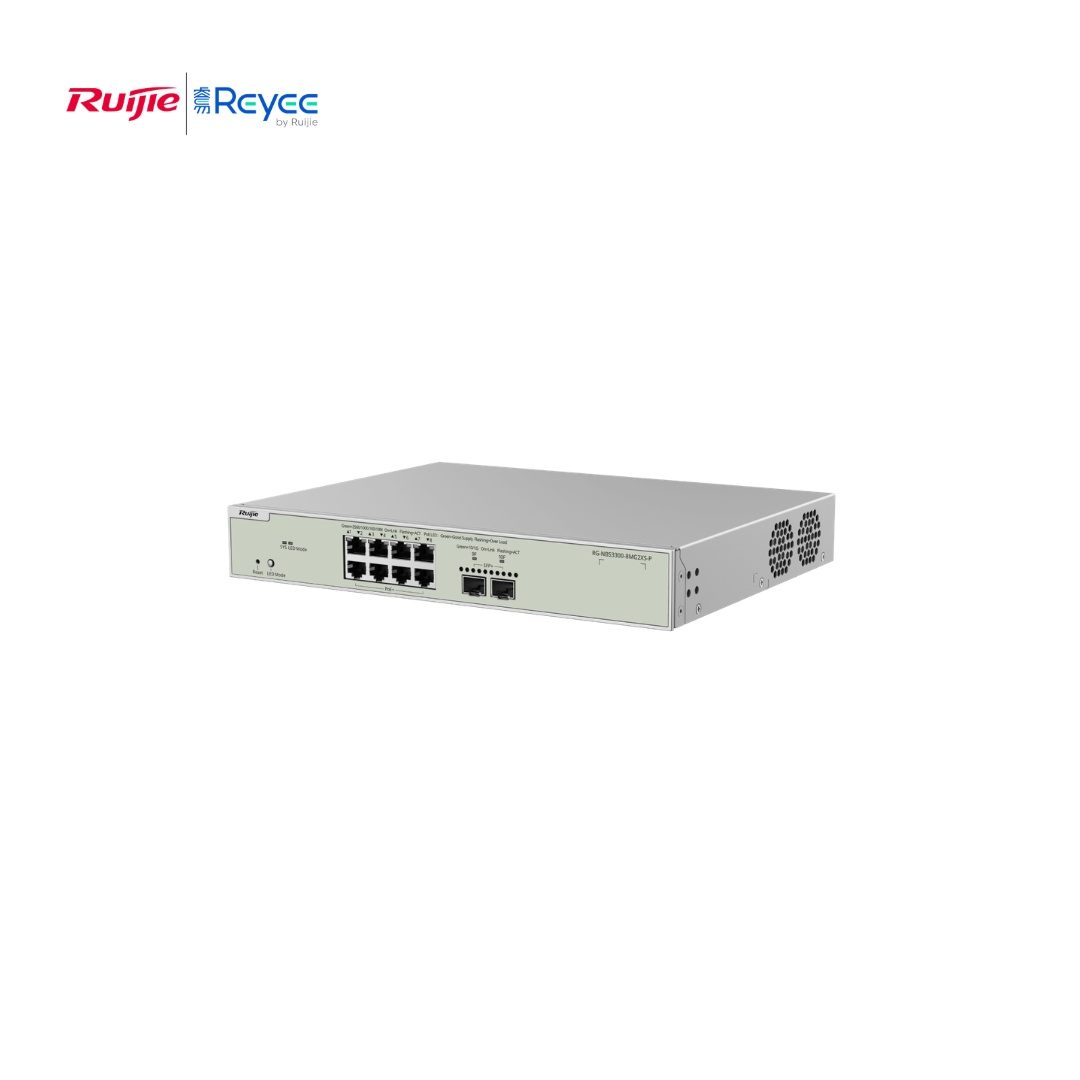

Ruijie Reyee RG-NBS3300-8MG2XS-P
