The

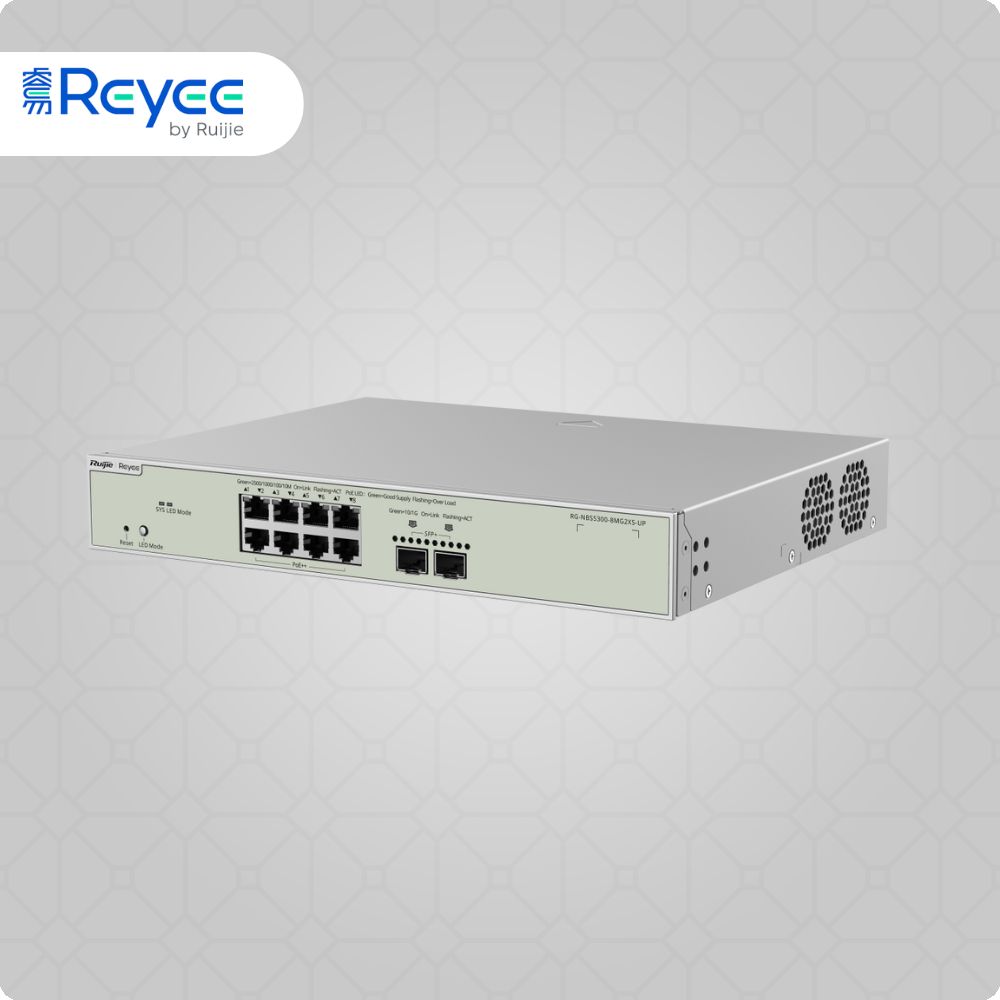

RG-NBS5300-8MG2XS-UP is a
premium 10-port Multi-Gigabit managed Layer 3 PoE++ switch with 10GbE uplinks and industry-leading 5-year warranty engineered for next-generation wireless networks requiring Multi-Gigabit connectivity, high-power PoE++, and advanced Layer 3 routing. This
Multi-Gigabit Layer 3 PoE++ managed switch features
8 × 10/100/1000/2500BASE-T Multi-Gigabit Ethernet PoE++ ports (2.5 Gbps) plus 2 × 10GbE SFP+ fiber uplink ports delivering
80 Gbps switching capacity and 59.52 Mpps forwarding rate for exceptional Multi-Gigabit performance.
2.5 Gbps Multi-Gigabit ports smash the traditional gigabit barrier and unlock the full potential of Wi-Fi 6/Wi-Fi 7 access points, enabling true multi-gigabit wireless speeds without bottlenecks.
370W PoE budget with PoE++/PoE+/PoE support (IEEE 802.3bt/at/af compliant) on all 8 ports, up to 90W per port via 802.3bt, PoE power delivery on pins 1-2 (-), 3-6 (+), 4-5 (+), 7-8 (-) supports high-power devices including Wi-Fi 6E/7 access points, PTZ cameras, high-performance IP cameras, LED displays, digital signage, and IoT devices.
Advanced Layer 3 routing features enable inter-VLAN routing, static routing, and comprehensive network segmentation for complex multi-subnet wireless environments.
Two 10GbE SFP+ uplink ports enable high-speed 10 Gigabit fiber connectivity to core network, eliminating uplink bottlenecks for multi-gigabit wireless traffic.
512 MB RAM and 256 MB Flash memory ensure robust operation and high-performance packet processing.
The
RG-NBS5300-8MG2XS-UP features
comprehensive security policies to protect your network including IP-MAC-Port Binding for device authentication, ACL (Access Control Lists) for granular traffic filtering, Port Security for MAC address limiting, DoS Defend for attack mitigation, Storm Control for broadcast/multicast suppression, DHCP Snooping for rogue DHCP prevention, 802.1X authentication (port-based and MAC address-based), and RADIUS authentication for centralized user access control.
Advanced Layer 3 switching capabilities provide comprehensive VLAN support, routing protocols, and traffic optimization for sophisticated wireless network deployments.
Flexible AC power input (100-240V AC, 50/60 Hz rated, 90-264V AC, 47-63 Hz maximum, 6A maximum input current) with fixed power supply, maximum 450W power consumption supports full PoE++ delivery.
Compact rack-mountable design (300mm × 233mm × 43.6mm) with lightweight 2.5 kg construction enables flexible deployment in small server rooms, network closets, or desktop installations.
Dual fixed fans with air cooling (left-to-right airflow) ensure reliable thermal management, quiet 40 dB acoustic noise at 25°C for office and commercial environments.
Industry-leading 5-year manufacturer warranty provides peace of mind and long-term investment protection for next-generation wireless deployments.
Operating across
enterprise-grade reliability standards with durable metal casing supports deployments across Kenya, Uganda, and East Africa.
Lifetime management on Ruijie Cloud platform enables remote monitoring, configuration, troubleshooting anytime anywhere via web or mobile app for centralized multi-site wireless network management.
Multi-Gigabit 2.5 Gbps ports future-proof Wi-Fi infrastructure by supporting current Wi-Fi 6/6E access points and next-generation Wi-Fi 7 devices without requiring costly switch replacements.
10GbE SFP+ uplinks eliminate bandwidth bottlenecks for high-density wireless environments with hundreds of concurrent users.
Professional compact design with comprehensive security features ensures enterprise-grade performance for mission-critical wireless networks.
Ideal for
Wi-Fi 6/Wi-Fi 6E/Wi-Fi 7 access point installations maximizing wireless performance, next-generation enterprise wireless network deployments, high-power PoE++ device installations (90W PTZ cameras, outdoor APs, LED displays), multi-gigabit campus Wi-Fi infrastructure upgrades, hotel and hospitality Wi-Fi 6 deployments, educational institution wireless networks, retail and commercial wireless environments, smart building wireless infrastructure requiring
premium managed Multi-Gigabit Layer 3 PoE++ switching with 8×2.5 Gbps PoE++ ports, 2×10GbE SFP+ uplinks, 370W PoE budget (up to 90W per port), advanced Layer 3 routing, comprehensive security (IP-MAC-Port Binding, ACL, DoS Defend, 802.1X, RADIUS), 80 Gbps switching capacity, lifetime Ruijie Cloud management, compact rack-mountable design, quiet operation (40 dB), and industry-leading 5-year warranty across East Africa.
✅ IN STOCK
