The

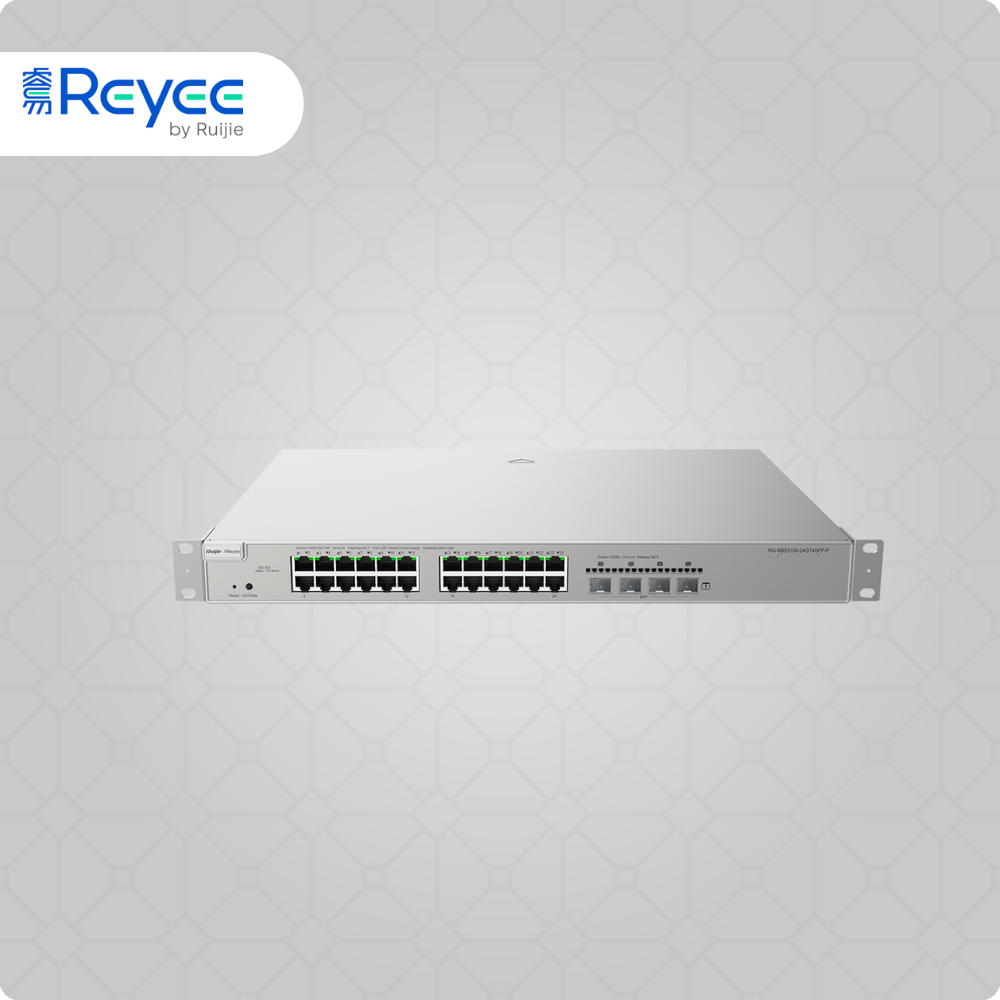

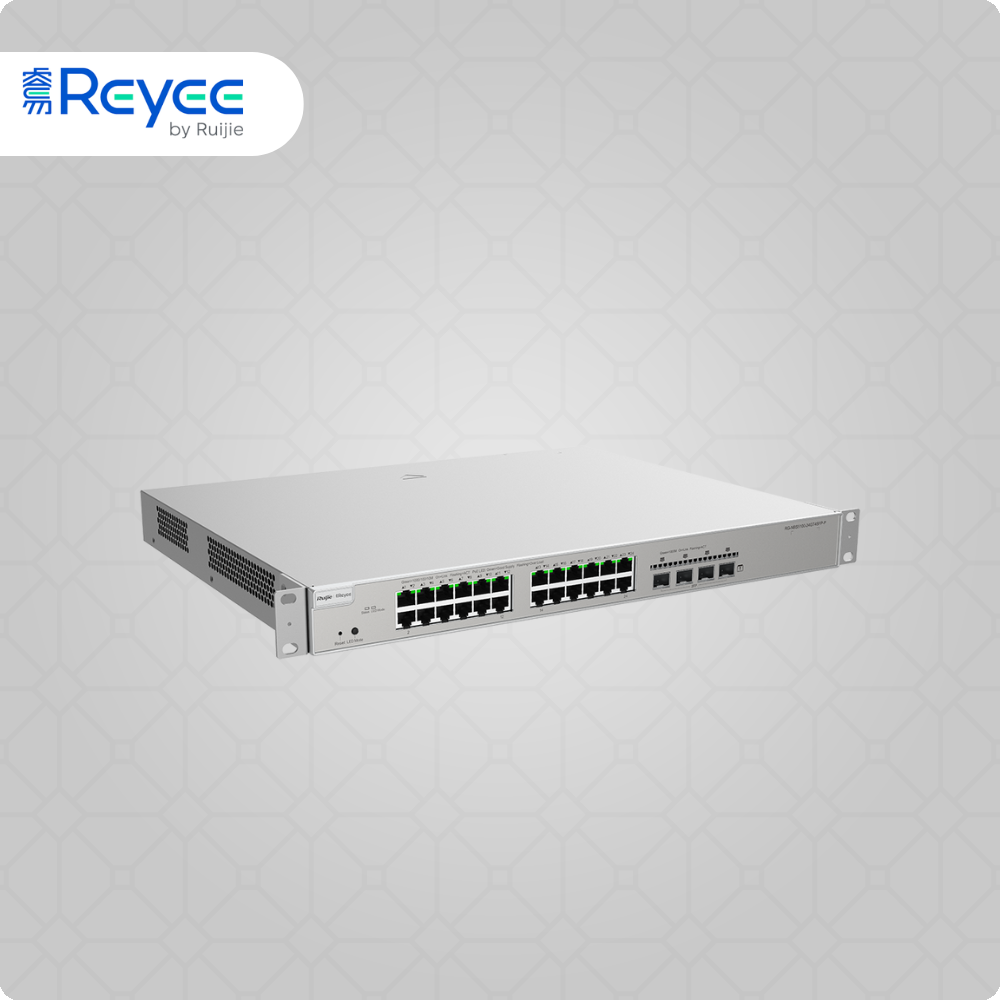

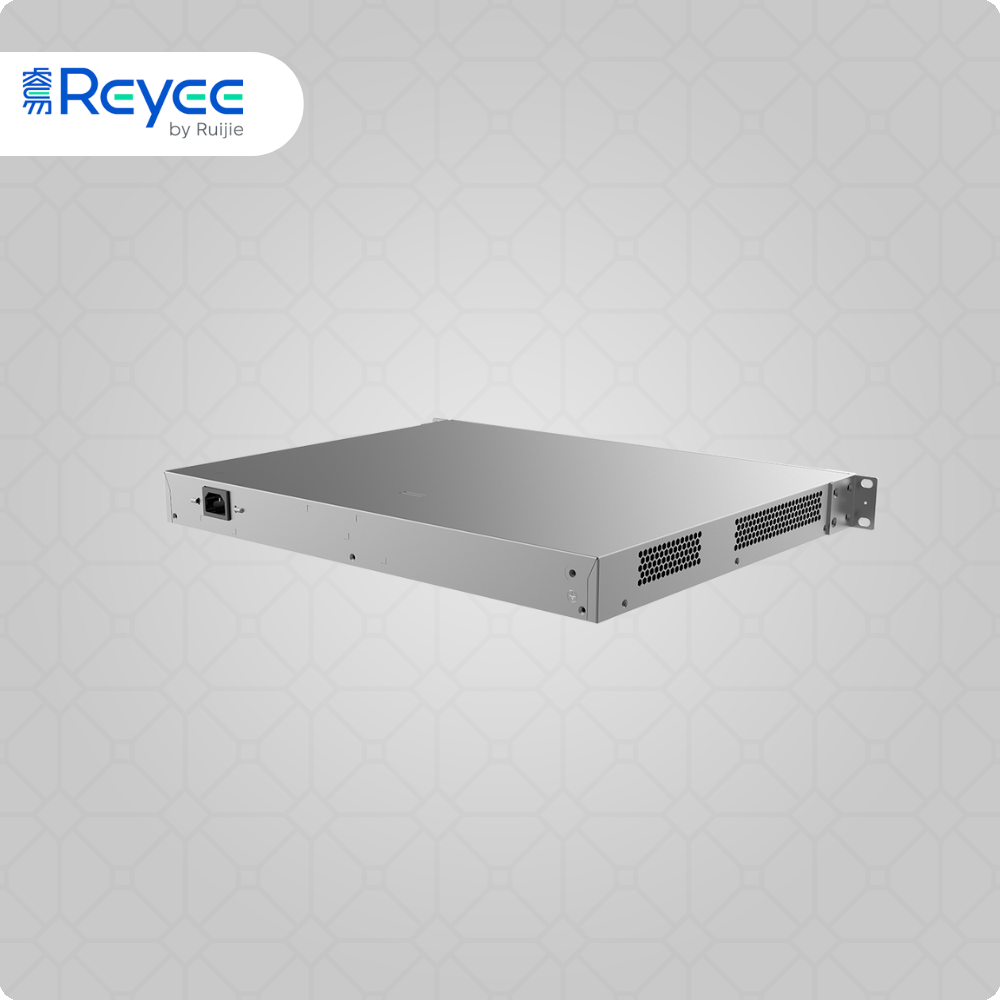

RG-NBS5200-24GT4XS-P is a
premium 28-port Gigabit managed Layer 3 PoE+ switch with 10GbE uplinks, advanced routing capabilities, and industry-leading 5-year warranty engineered for advanced enterprise networks requiring Layer 3 routing, high-density PoE connectivity, and high-bandwidth uplinks. This
Gigabit Layer 3 PoE+ managed switch features
24 × 10/100/1000BASE-T Gigabit Ethernet PoE+ ports plus 4 × 10GbE SFP+ fiber uplink ports delivering
128 Gbps switching capacity and 96 Mpps forwarding rate for exceptional Layer 3 enterprise performance.
370W PoE budget with PoE/PoE+ support (IEEE 802.3af/at) on all 24 ports, maximum 30W per port, PoE power pins 1-2 (+), 3-6 (-) supports high-density deployments of IP cameras, VoIP phones, wireless access points, and IoT devices.
Advanced Layer 3 routing features enable inter-VLAN routing, static routing, dynamic routing protocols, and comprehensive network segmentation for complex multi-subnet enterprise environments.
Four 10GbE SFP+ uplink ports enable high-speed 10 Gigabit fiber connectivity to core network, data center, or building-to-building links, eliminating bottlenecks and future-proofing Layer 3 infrastructure.
512 MB RAM and 256 MB Flash memory ensure robust operation and high-performance packet processing for demanding Layer 3 routing applications.
The
RG-NBS5200-24GT4XS-P features
flexible AC power input (100-240V AC, 50/60 Hz rated, 90-264V AC, 47-63 Hz maximum, 6A maximum input current) with fixed power supply, low 42.48W power consumption with no PoE load, maximum 431.8W consumption with full PoE load for efficient high-performance Layer 3 operation.
Enterprise-class quality ensures high performance and reliability for mission-critical Layer 3 deployments.
6kV surge protection reduces the possibility of port damage in harsh electrical environments, providing superior protection for valuable network equipment and connected devices.
Multiple security policies protect your network with comprehensive access control, authentication features, and Layer 3 security capabilities.
Lifetime management on Ruijie Cloud platform enables remote monitoring, configuration, troubleshooting anytime anywhere via web or mobile app for centralized multi-site Layer 3 network management.
Rack-mountable 1U design (440mm × 357.6mm × 43.6mm) enables professional installation in server rooms, data centers, and network closets.
Dual fixed fans with air cooling (left-to-right airflow) ensure reliable thermal management, 49 dB acoustic noise at 25°C for enterprise environments.
Durable metal casing with professional construction and robust 4.75 kg design ensures reliability and longevity.
Industry-leading 5-year manufacturer warranty provides peace of mind and long-term investment protection for mission-critical Layer 3 PoE deployments.
Operating across
wide environmental conditions with enterprise-grade reliability supports deployments in diverse climates across Kenya, Uganda, and East Africa.
Cloud-managed operation via Ruijie Cloud enables remote monitoring, configuration, troubleshooting, and firmware updates across multiple Layer 3 network sites anytime anywhere.
Advanced Layer 3 switching and routing features provide comprehensive network segmentation, inter-VLAN routing, static and dynamic routing protocols, VLAN support, and traffic optimization for complex multi-subnet enterprise networks.
10GbE SFP+ uplinks eliminate bandwidth bottlenecks for high-traffic Layer 3 applications including video surveillance, data center access, VDI deployments, and high-bandwidth cloud applications.
Professional rack-mountable design with metal construction ensures durability and reliability in enterprise Layer 3 network environments.
Ideal for
enterprise campus core and distribution networks requiring Layer 3 routing, multi-VLAN enterprise environments with inter-VLAN routing, network segmentation and multi-subnet deployments, data center access switching with Layer 3 capabilities, high-density IP camera surveillance systems (up to 24 PoE cameras), VoIP phone deployments with routing and QoS, wireless access point installations with 10GbE uplinks, branch office networks requiring Layer 3 routing requiring
premium managed Gigabit Layer 3 PoE+ switching with 24 PoE+ ports, 4×10GbE SFP+ fiber uplinks, 370W PoE budget, advanced Layer 3 routing features, 128 Gbps switching capacity, 96 Mpps forwarding rate, 6kV surge protection, enterprise-class quality, multiple security policies, lifetime Ruijie Cloud management, rack-mountable 1U design, dual-fan cooling, and industry-leading 5-year warranty across East Africa.
✅ IN STOCK
