The
RG-NBS3200-48GT4XS-P is a
premium 52-port Gigabit managed Layer 2+ PoE+ switch with 10GbE uplinks, IP Camera Recognition, and industry-leading 5-year warranty engineered for high-performance enterprise networks requiring high-density PoE connectivity and high-bandwidth uplinks. This
Gigabit PoE+ managed switch features
48 × 10/100/1000BASE-T Gigabit Ethernet PoE+ ports plus 4 × 10GbE SFP+ fiber uplink ports delivering
176 Gbps switching capacity and 131 Mpps forwarding rate for exceptional enterprise performance.
370W PoE budget with PoE/PoE+ support (IEEE 802.3af/at) on all 48 ports, maximum 30W per port, PoE power pins 1-2 (+), 3-6 (-) supports high-density deployments of IP cameras, VoIP phones, wireless access points, and IoT devices.
Unique IP Camera Recognition feature provides unique value for CCTV networks with intelligent camera identification and optimization.
Four 10GbE SFP+ uplink ports enable high-speed 10 Gigabit fiber connectivity to core network, data center, or building-to-building links, eliminating bottlenecks for high-bandwidth surveillance and data applications.
All service ports support hot swapping of cables for maintenance without network downtime.
512 MB RAM and 256 MB Flash memory ensure robust operation and high-performance packet processing.
The
RG-NBS3200-48GT4XS-P features
flexible AC power input (100-240V AC, 50/60 Hz rated, 90-264V AC, 47-63 Hz maximum, 7A maximum input current) with fixed power supply, low 61.57W power consumption with no PoE load, maximum 447.69W consumption with full PoE load for efficient high-performance operation.
Enterprise-class quality ensures high performance and reliability for mission-critical deployments.
Multiple security policies protect your network with comprehensive access control and authentication features.
Lifetime management on Ruijie Cloud platform enables remote monitoring, configuration, troubleshooting anytime anywhere via web or mobile app.
Rack-mountable 1U design (440mm × 357.6mm × 43.6mm) enables professional installation in server rooms, data centers, and network closets.

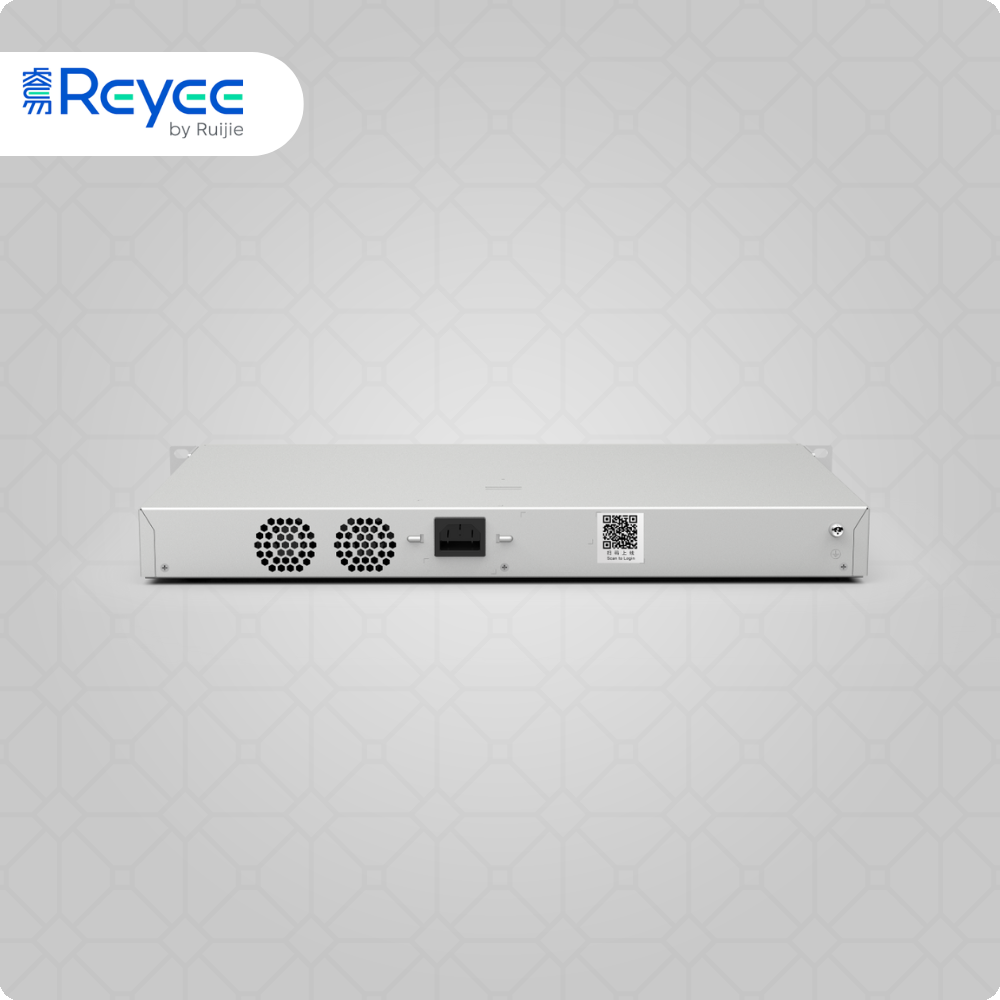

Dual fixed fans with air cooling (side-to-rear airflow) ensure reliable thermal management, 45 dB acoustic noise at 25°C for enterprise environments.
Durable metal casing with professional construction and robust 5.4 kg design ensures reliability and longevity.
Industry-leading 5-year manufacturer warranty provides peace of mind and long-term investment protection for mission-critical PoE deployments.
Operating across
wide environmental conditions: 0°C to +50°C operating temperature, -40°C to +70°C storage temperature, 10-90% RH operating humidity (non-condensing), wide altitude support (-500m to +5,000m) supports deployments in diverse climates across Kenya, Uganda, and East Africa.
ESD protection (Contact: 6 kV, Air: 8 kV), surge protection on service ports (±6 kV common mode) and power connector (±6 kV both common and differential mode), and MTBF of 400,000 hours ensure maximum reliability.
Cloud-managed operation via Ruijie Cloud enables remote monitoring, configuration, troubleshooting, and firmware updates across multiple sites anytime anywhere.
Advanced Layer 2+ switching features provide comprehensive network segmentation, VLAN support, routing capabilities, and traffic optimization for complex enterprise networks.
10GbE SFP+ uplinks eliminate bandwidth bottlenecks for high-traffic applications including video surveillance, data center access, VDI deployments, and high-bandwidth cloud applications.
Professional rack-mountable design with comprehensive certifications including CE, FCC, and international safety/EMC compliance (EN 55032, EN 61000-3-2/3-3, EN 55035, EN 300 386, IEC 62368-1).
Ideal for
enterprise campus core and distribution networks, high-density IP camera surveillance systems (up to 48 PoE cameras with IP Camera Recognition), data center access switching and top-of-rack deployments, high-bandwidth corporate offices and headquarters, campus building uplinks and network aggregation, VoIP phone deployments and unified communications, wireless access point installations with 10GbE uplinks, CCTV networks and video surveillance backbones requiring
premium managed Gigabit PoE+ switching with 48 PoE+ ports, 4×10GbE SFP+ fiber uplinks, 370W PoE budget, IP Camera Recognition for CCTV, 176 Gbps switching capacity, 131 Mpps forwarding rate, Layer 2+ features, enterprise-class quality, multiple security policies, lifetime Ruijie Cloud management, rack-mountable 1U design, dual-fan cooling, high reliability (400,000 hour MTBF), and industry-leading 5-year warranty across East Africa.
✅ IN STOCK
