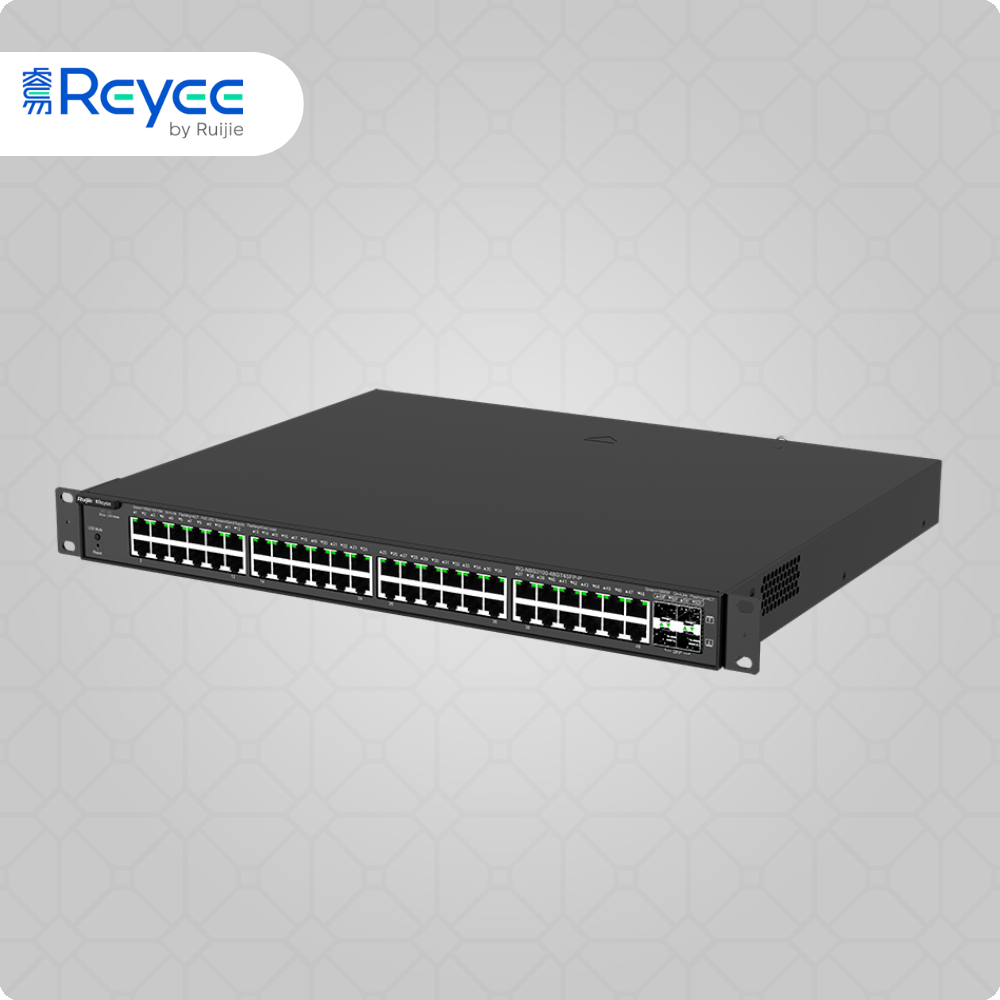

The
RG-NBS3100-48GT4SFP-P is a
high-performance 52-port Gigabit managed PoE+ switch with advanced Layer 2+ features engineered for enterprise networks requiring high-density PoE connectivity and comprehensive management. This
Gigabit PoE+ managed switch features
48 × 10/100/1000BASE-T Gigabit Ethernet PoE+ ports plus 4 × Gigabit SFP fiber uplink ports delivering
104 Gbps switching capacity and 77.38 Mpps forwarding rate for high-performance enterprise operations.
370W PoE budget with maximum 30W per port supports IEEE 802.3af/at PoE+ devices including IP cameras, VoIP phones, wireless access points, and IoT devices.
All service ports support hot swapping of cables for maintenance without network downtime.
Advanced Layer 2+ switching features include up to 4,094 VLANs, 16,000 MAC address entries, IEEE 802.1Q VLAN, Voice VLAN, STP/RSTP/MSTP (802.1d/w/s), LLDP, interface flow control, and VLAN configuration on LAN ports for comprehensive network segmentation and optimization.
The
RG-NBS3100-48GT4SFP-P features
comprehensive security with 802.1X authentication (port-based and MAC address-based), RADIUS authentication, Guest VLAN support, and advanced access control with
intelligent PoE watchdog for automatic device monitoring and recovery, online firmware upgrades for seamless updates, and Ruijie Cloud management for centralized monitoring and configuration.

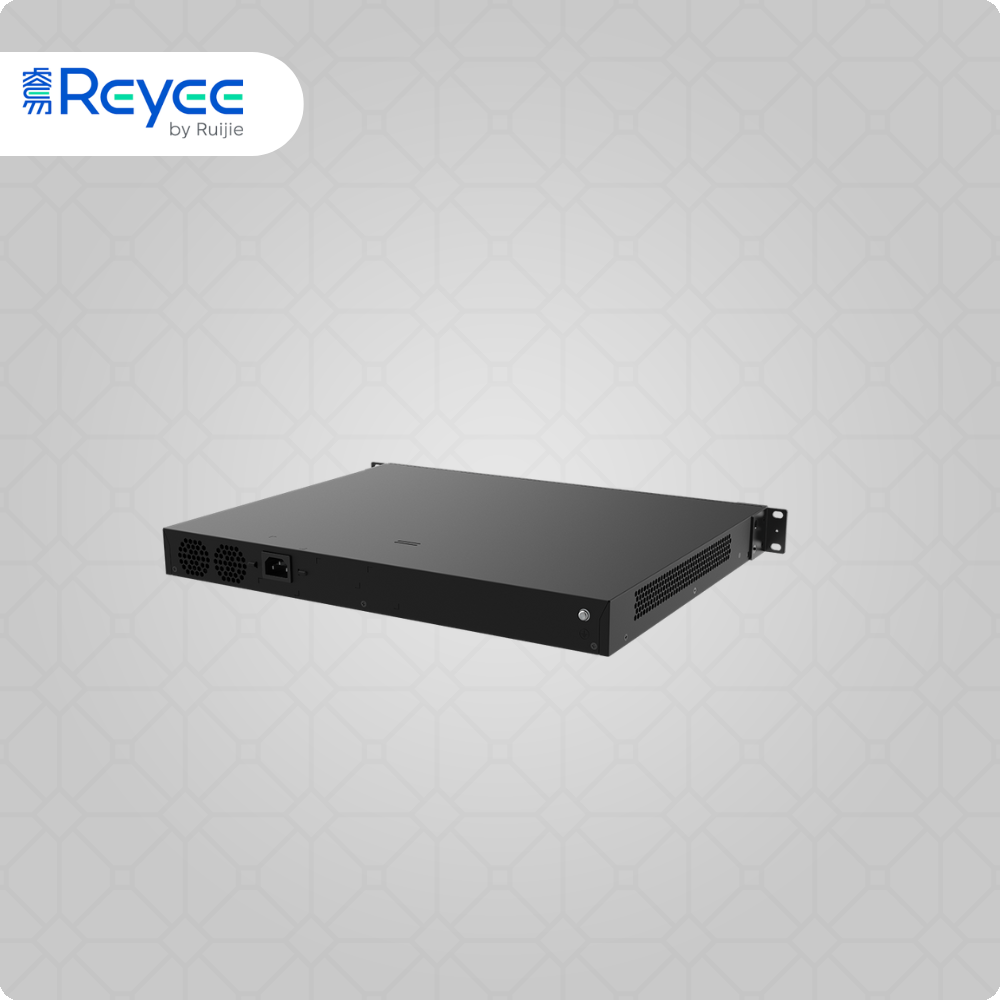

Rack-mountable 1U design enables professional installation in server rooms and network closets.
Fanless design ensures completely silent operation ideal for office environments.
Operating temperature range of 0°C to +50°C (32°F to 122°F) and wide altitude support (-500m to +5,000m) supports diverse deployment environments across Kenya, Uganda, and East Africa.
ESD protection (Contact: 6 kV, Air: 8 kV), surge protection on service ports (±6 kV common mode) and power connector (±6 kV both common and differential mode), and MTBF of 400,000 hours ensure maximum reliability and longevity.
Operating across
wide environmental conditions: 0°C to +50°C operating temperature, -40°C to +70°C storage temperature, 10-90% RH operating humidity (non-condensing) supports deployments in diverse climates.
Cloud-managed operation via Ruijie Cloud platform enables remote monitoring, configuration, troubleshooting, and firmware updates across multiple sites.
Advanced QoS, port mirroring, and traffic management features ensure optimal performance for voice, video, and data applications.
Four SFP fiber uplink ports enable high-speed fiber connectivity to core network or building-to-building links.
Professional rack-mountable design with comprehensive certifications including CE, FCC, and international safety/EMC compliance (EN 55032, EN 61000-3-2/3-3, EN 55035, EN 300 386, IEC 62368-1).
Ideal for
enterprise campus networks and corporate offices, SMB deployments and growing businesses, high-density IP camera surveillance systems (up to 48 PoE cameras), VoIP phone deployments and unified communications, wireless access point installations and Wi-Fi infrastructure, smart building automation and IoT networks, educational institutions and campus buildings, hospitality networks and hotel deployments requiring
managed Gigabit PoE+ switching with 48 PoE+ ports, 4 SFP fiber uplinks, 370W PoE budget, 104 Gbps switching capacity, advanced Layer 2+ features (4094 VLANs, STP/RSTP/MSTP), comprehensive security (802.1X, RADIUS), PoE watchdog, cloud management, fanless silent operation, rack-mountable 1U design, and high reliability (400,000 hour MTBF) across East Africa.
