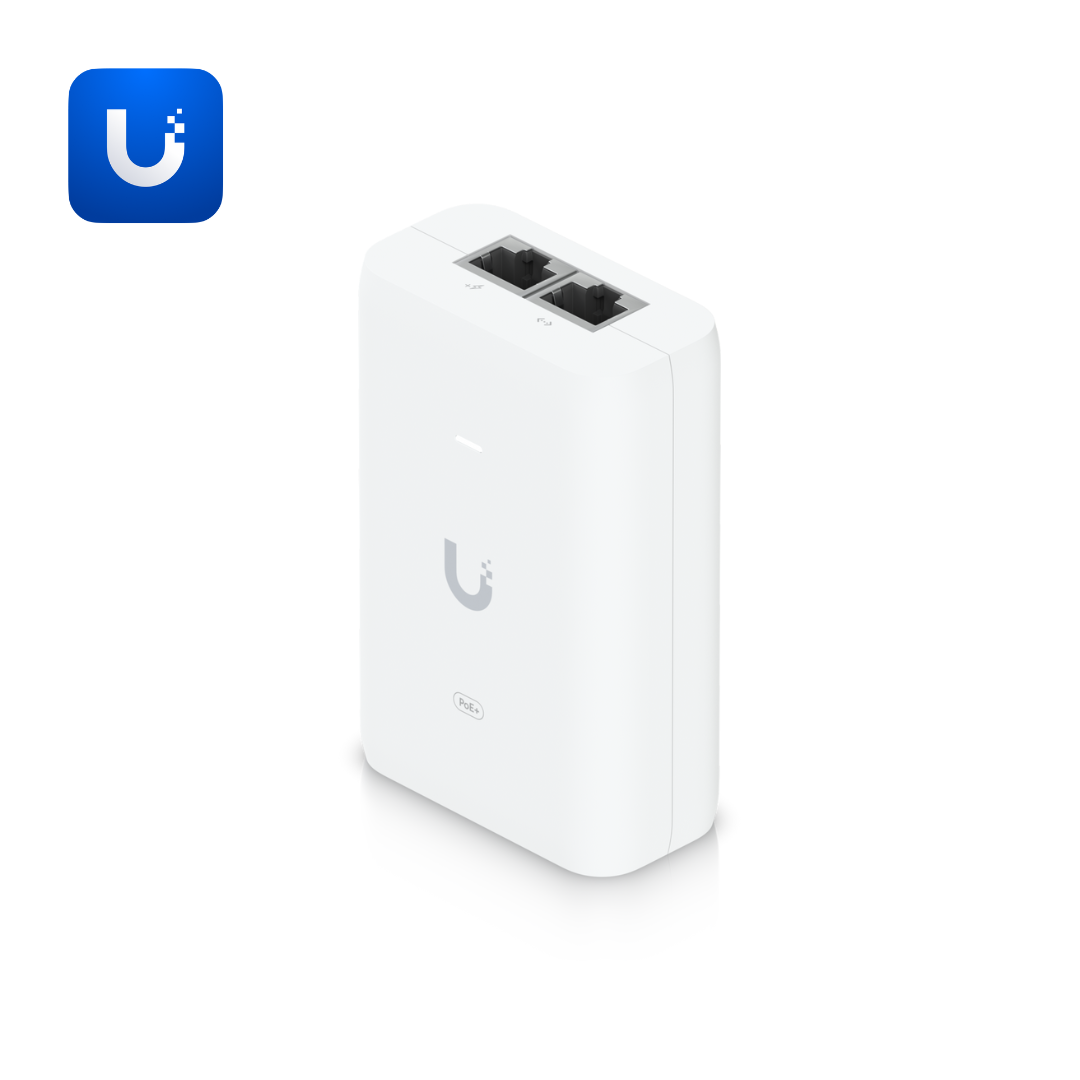

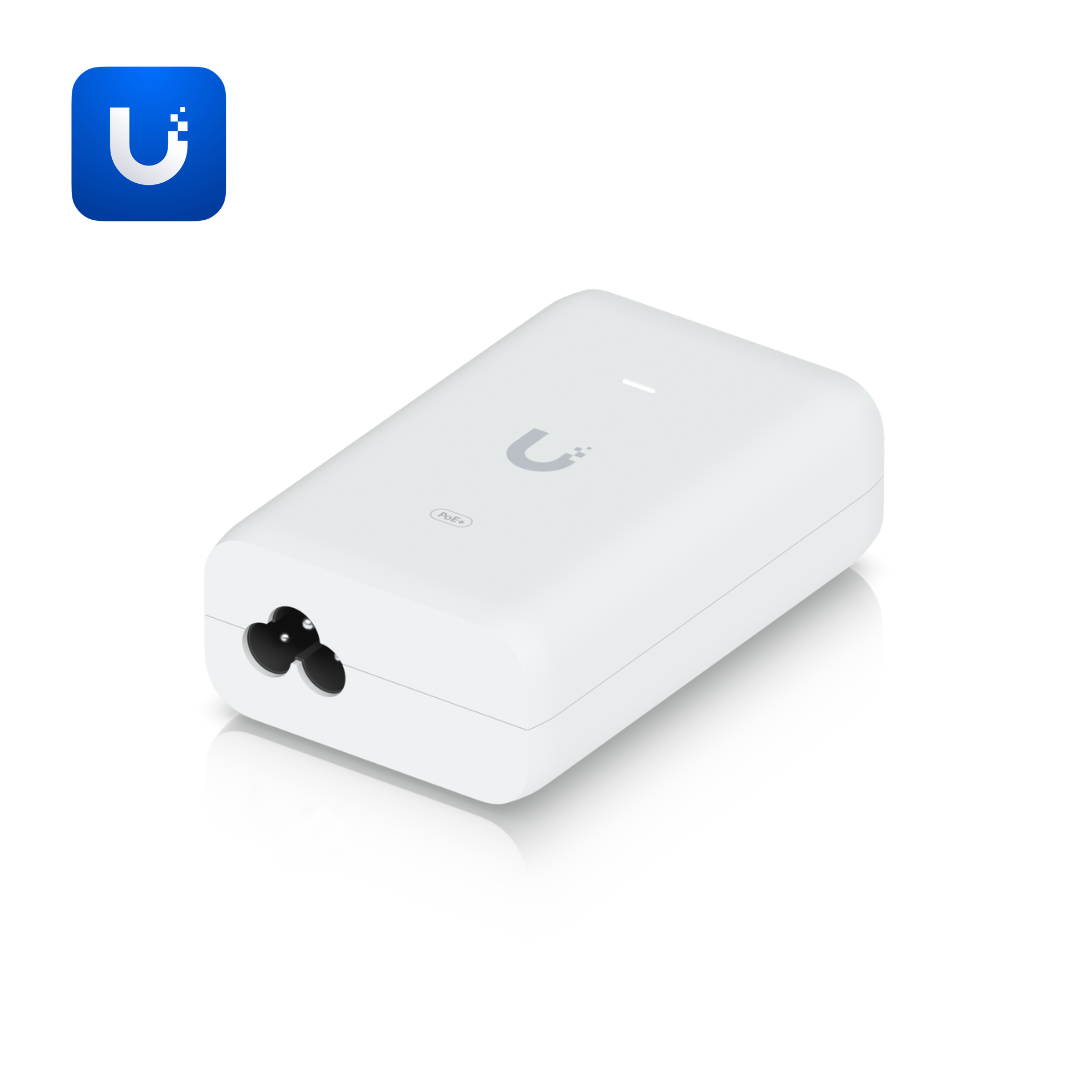

PoE+ Adapter

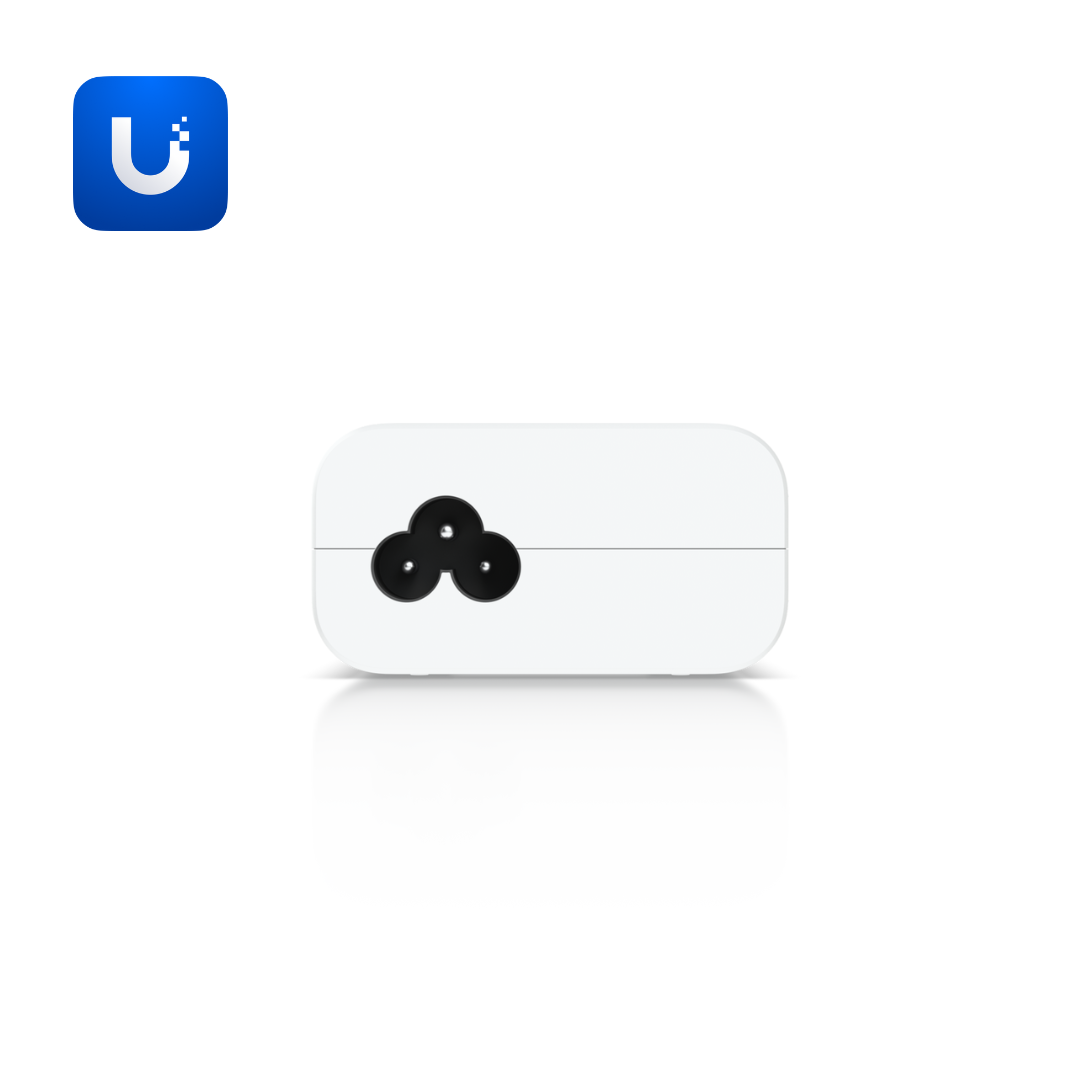

The PoE+ Adapter (30W) (U-PoE+) is a **PoE+ power injector** designed to power UniFi PoE+ devices and reduce dependency on PoE switch power. This 30W PoE+ adapter delivers 48V DC @ 0.65A output with 100-240V AC @ 50/60Hz rated input (IEC-320 C6 connector) for universal power compatibility. Gigabit LAN port with RJ45 shielded socket provides data connectivity alongside power injection. 2-pair powering (Pins 4, 5+; 7, 8-) enables PoE+ delivery.

The PoE+ Adapter provides comprehensive electrical protection including surge protection (difference and common mode), 1500A max surge discharge (8/20 μs) on power, 36A peak pulse current (10/1000 μs) on data, 11V data clamping and 60V power clamping protection. 87% efficiency with 70 kHz max switching frequency, 1% max output ripple, ≤3% line regulation, and ≤5% load regulation ensure stable power delivery. Response time <1 ns with shunt capacitance <5 pF on data lines maintains signal integrity.

Operating temperature range of 0°C to 40°C (32°F to 104°F) with -30°C to 70°C (-22°F to 158°F) storage temperature and 10-95% humidity tolerance support diverse installation environments. Input current 0.75A max with <100A peak inrush current at 26°C. LED indicator for status monitoring. Compact dimensions of 93 x 62 x 35 mm (3.7 x 2.4 x 1.4") and 156 g (5.5 oz) weight. NDAA compliant with CE, FCC, IC, UL, CCC certifications.

Ideal for UniFi access points, IP cameras, VoIP phones, remote network devices, and PoE+ equipment requiring 30W power injection with surge protection and Gigabit connectivity.
