NanoSwitch
The N-SW (NanoSwitch) is an outdoor 4-port Gigabit switch with 24V passive PoE, weather-resistant enclosure, and ±24kV ESD/EMP protection for outdoor network expansion across East Africa. This outdoor weatherproof 4-port GbE PoE switch delivers:
Perfect for outdoor IP camera installations, wireless mesh network extensions, remote device deployments, outdoor network expansion, and any outdoor application requiring weather-resistant PoE switching with ±24kV surge protection and extreme temperature tolerance across East and Central Africa. Note: POE-24-30W-G PoE adapter required — not included.
DATASHEET
- (1) GbE RJ45 PoE-in port
- (3) GbE RJ45 PoE passthrough ports
- 4 Gbps total non-blocking line rate
- 24V passive PoE at 24W per port (24V, 2-pair, 1A per port)
- 30W maximum total passive PoE (24V, 2-pair, 1A for 3 ports)
- ±24kV ESD/EMP protection on air and contact
- Weather-resistant white polycarbonate enclosure
- -30°C to 70°C extreme operating temperature range
- Typical 1.5W / maximum 30W power consumption
Perfect for outdoor IP camera installations, wireless mesh network extensions, remote device deployments, outdoor network expansion, and any outdoor application requiring weather-resistant PoE switching with ±24kV surge protection and extreme temperature tolerance across East and Central Africa. Note: POE-24-30W-G PoE adapter required — not included.
DATASHEET
About the NanoSwitch

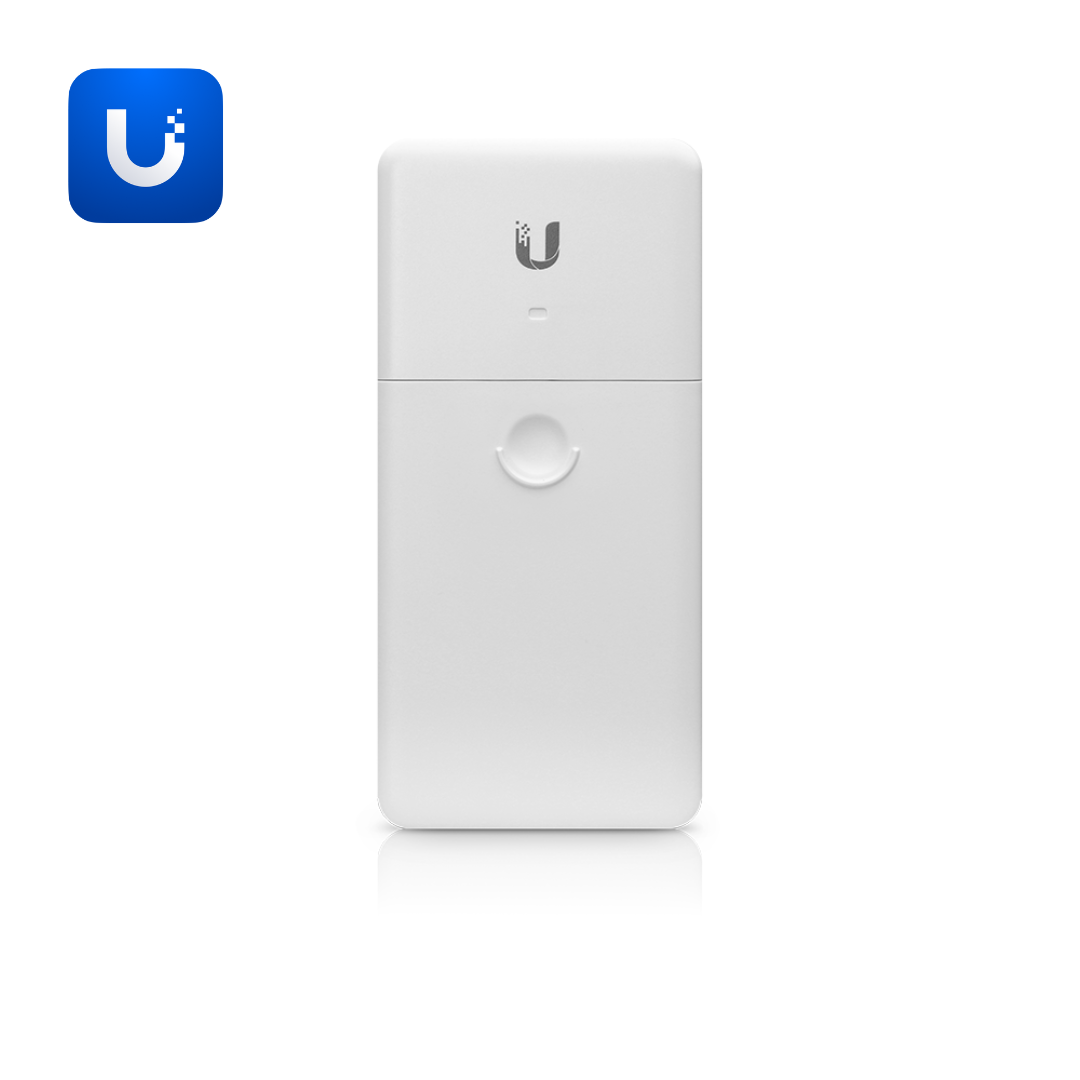

The N-SW (NanoSwitch) is an outdoor weather-resistant 4-port Gigabit PoE switch purpose-built for outdoor network expansion in East African environments where indoor switches cannot be deployed. Measuring 196 × 93 × 32 mm (7.7 × 3.7 × 1.3") and weighing just 269 g (9.5 oz), the NanoSwitch features a white polycarbonate weather-resistant enclosure and delivers 4 Gbps total non-blocking line rate across all four ports. Powered via 24V passive 2-pair PoE input (21.6–30V) from a separately purchased POE-24-30W-G PoE adapter — enabling deployment wherever a single PoE cable can reach without requiring a separate power source.

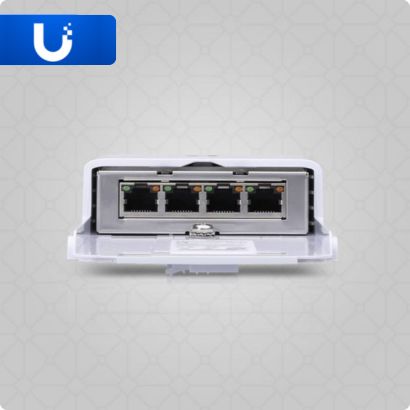

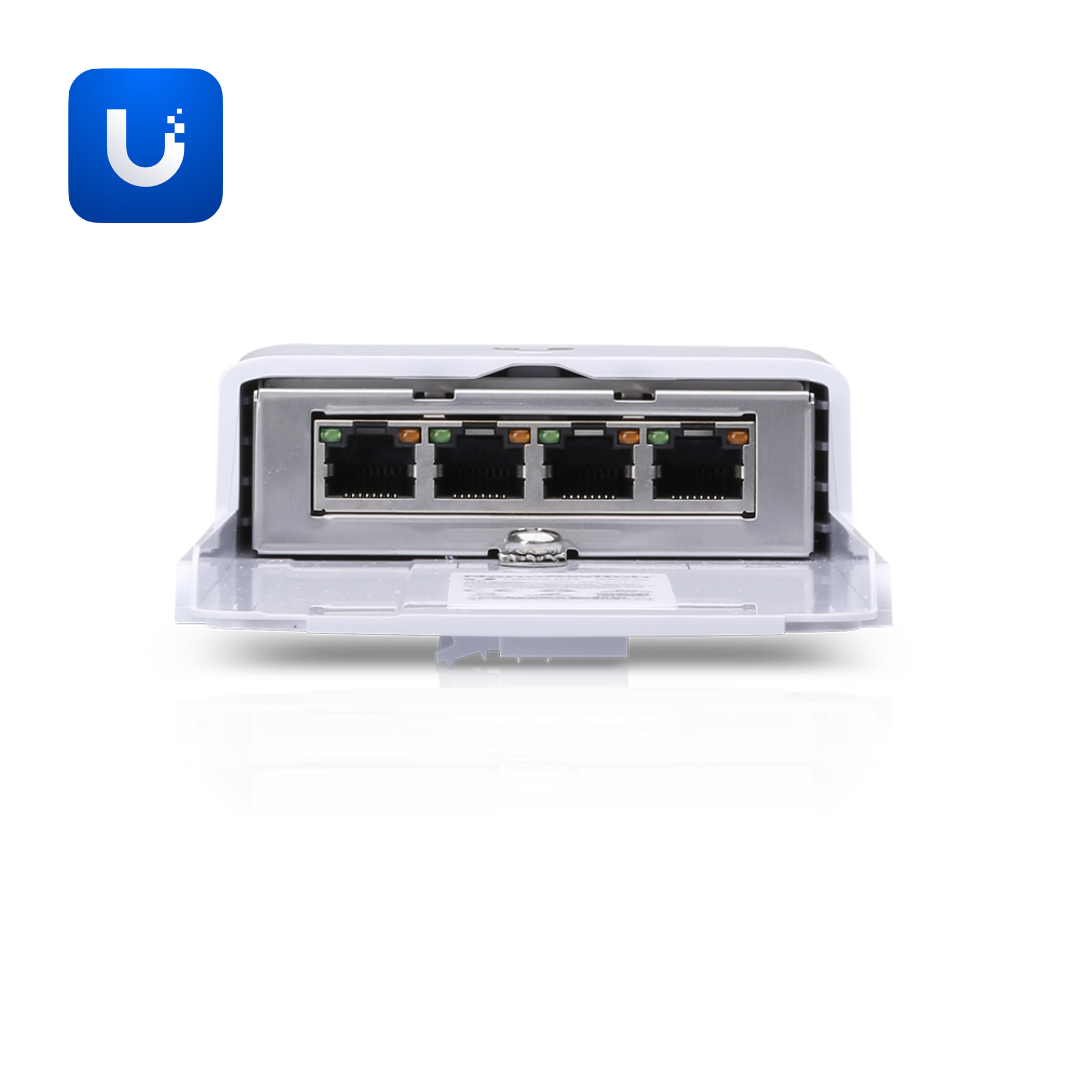

The N-SW provides (1) GbE RJ45 PoE-in port and (3) GbE RJ45 PoE passthrough output ports — each delivering 24V, 2-pair, 1A (24W) passive PoE — powering cameras, access points, and other outdoor PoE devices directly from the switch. ±24kV ESD/EMP protection on both air and contact safeguards all connected equipment against lightning-induced surges in exposed East African outdoor deployments. The extreme operating temperature range of -30°C to 70°C (-22°F to 158°F) handles the full spectrum of East African outdoor environments.
Additional specifications:
Ideal for outdoor IP camera installations, wireless mesh network extensions, remote device deployments, and outdoor network expansion across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring outdoor weather-resistant 4-port Gigabit PoE switching with 24V passive PoE passthrough, ±24kV ESD/EMP protection, and -30°C to 70°C extreme temperature tolerance.
The N-SW provides (1) GbE RJ45 PoE-in port and (3) GbE RJ45 PoE passthrough output ports — each delivering 24V, 2-pair, 1A (24W) passive PoE — powering cameras, access points, and other outdoor PoE devices directly from the switch. ±24kV ESD/EMP protection on both air and contact safeguards all connected equipment against lightning-induced surges in exposed East African outdoor deployments. The extreme operating temperature range of -30°C to 70°C (-22°F to 158°F) handles the full spectrum of East African outdoor environments.
Additional specifications:
- Power consumption: typical 1.5W / maximum 30W
- Supported voltage range: 21.6–30V
- LED indicators: speed/link/activity on all ports
- Operating humidity: 5–95% non-condensing
- Fully NDAA compliant
Ideal for outdoor IP camera installations, wireless mesh network extensions, remote device deployments, and outdoor network expansion across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring outdoor weather-resistant 4-port Gigabit PoE switching with 24V passive PoE passthrough, ±24kV ESD/EMP protection, and -30°C to 70°C extreme temperature tolerance.
