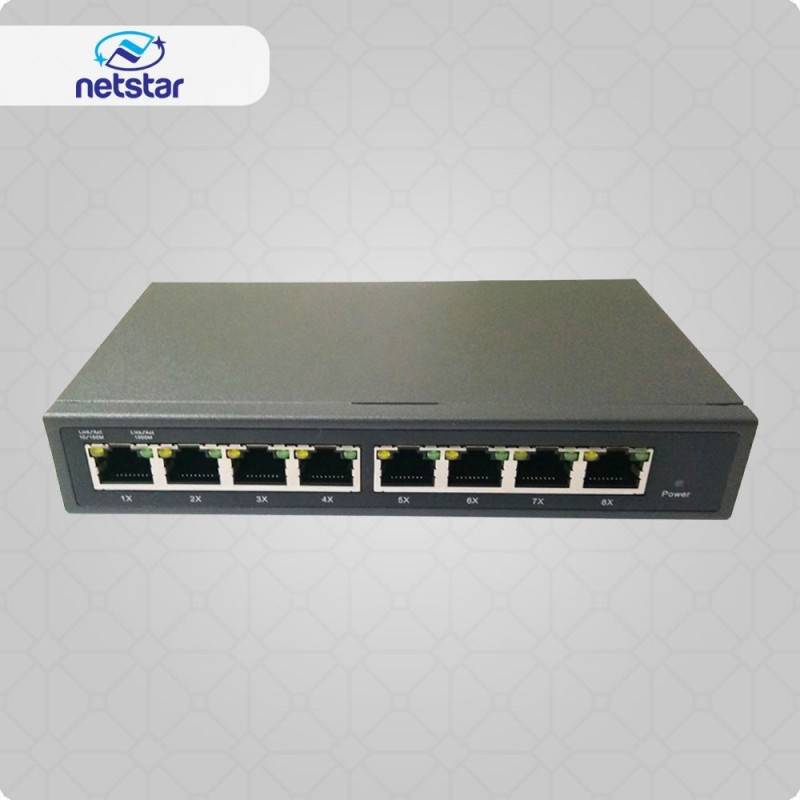

NSW-RPG071E-V12 - 8 Port Web Managed Ethernet Reverse PoE Switch

The NSW-RPG071EV12 Reverse PoE is a box-type device, providing 1 uplink ports and 8 LAN user ports, and is powered by the power sourcing equipment (PoE) deployed in users’ residences. The NSW-RPG071EV12 Reverse PoE is applied in scenarios where there is no alternating current (AC) power supply in corridors, featuring easy installation and maintenance, broad temperature range, low power consumption, mute design, high stability, environment-friendly, and energy conservation.

Pd  port 1-7 port

POE pin 45+，78-

PoE voltage 24-48VDC

Interface 8 10/100/1000Mbps RJ45 Ports

distance 100 meters

Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,

IEEE 802.3x, IEEE  802.1q, IEEE 802.1p

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum

100m)EIA/TIA-568 100Ω STP (maximum 100m)

Dimensions ( W x D x H ) 160*95*28 mm

Features

1. With 7 reverse incoming PoE Ports and 1 Uplink Port 2. Working with 24-48vdc reverse poe compliant PoE, expands LAN network 3. Output 12vdc power supply via dc jack, which can be supplied to ONU/ONT 4. Support L2 web management, QOS,VLAN, link aggregation 5. Plug and play
