airMAX PowerBeam M5 300
The PBE-M5-300 (airMAX PowerBeam M5 300) is a 5 GHz 22 dBi bridge delivering 150+ Mbps throughput over 3+ km links with integrated dish reflector design for cost-effective CPE and PtP wireless deployments across East Africa. This 5 GHz 22 dBi integrated dish CPE bridge delivers:
Perfect for ISP CPE installations, short-range building links, last-mile subscriber access, cost-effective wireless connectivity, and any deployment requiring compact 5 GHz 22 dBi dish bridge performance with 150+ Mbps throughput at competitive pricing across East and Central Africa.
DATASHEET
- 22 dBi integrated dish reflector antenna gain
- 5 GHz operation — 5150–5875 MHz worldwide
- 3+ km link range
- 150+ Mbps throughput
- Dual-linear polarization — 1.5:1 maximum VSWR
- Channel sizes: 5/8/10/20/30/40 MHz
- Passive PoE 2-pair powered at 6W maximum (20–27V DC)
- 24V, 0.5A PoE adapter included
- (1) 10/100 MbE networking interface
- ±24 kV air/contact ESD/EMP protection
- 200 km/h wind survivability — 200.2 N wind loading (45 lbf at 125 mph)
- 325 × 325 × 256 mm (12.8 × 12.8 × 10.1") — 1.2 kg (2.65 lb)

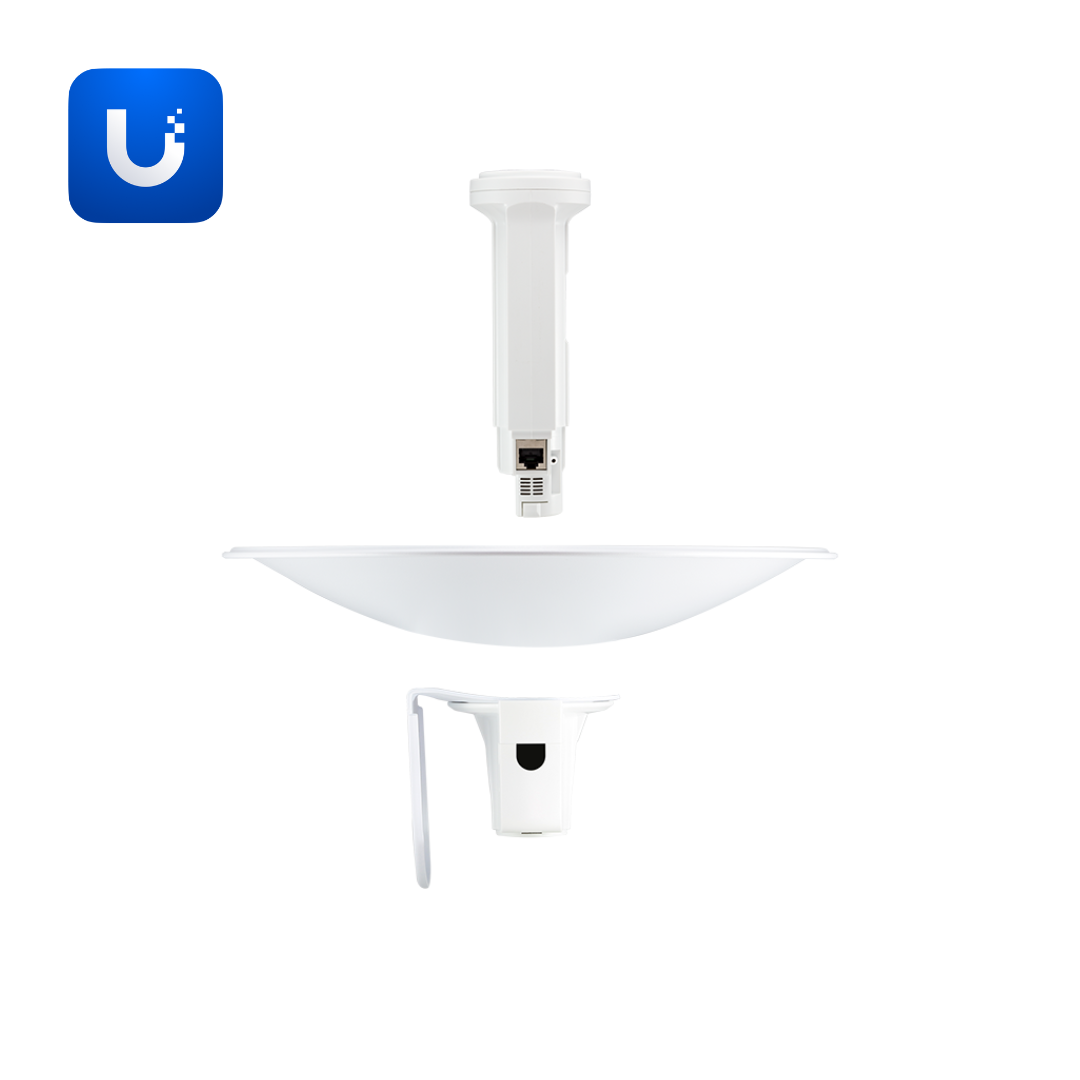

- Improved mounting — pole mount kit included
- UV-stabilised plastic enclosure — RoHS compliant
- Software-adjustable signal strength LEDs
Perfect for ISP CPE installations, short-range building links, last-mile subscriber access, cost-effective wireless connectivity, and any deployment requiring compact 5 GHz 22 dBi dish bridge performance with 150+ Mbps throughput at competitive pricing across East and Central Africa.
DATASHEET

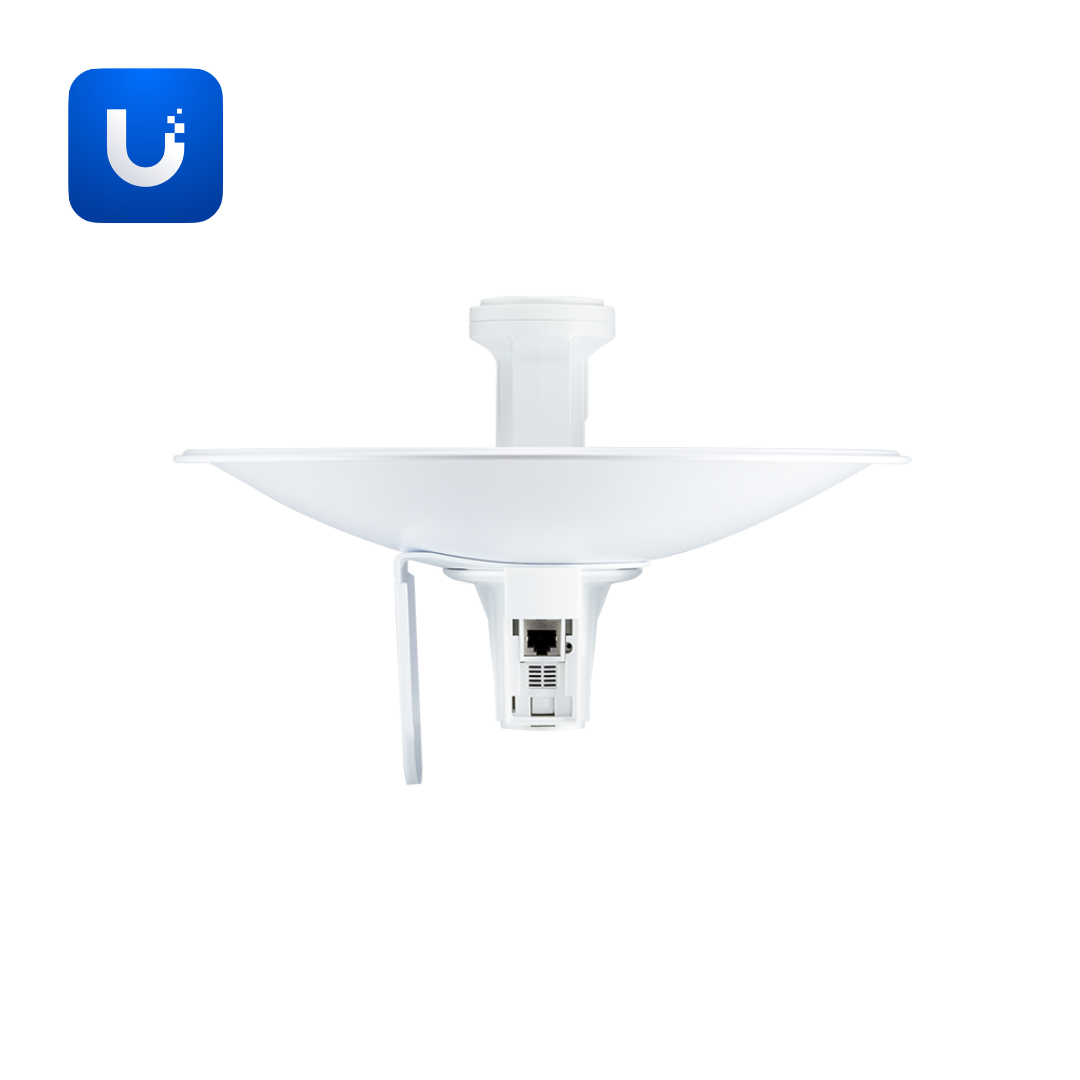

About the airMAX PowerBeam M5 300
The PBE-M5-300 (airMAX PowerBeam M5 300) is a cost-effective 5 GHz wireless bridge incorporating a dish reflector design with airMAX technology for customer premises deployments requiring reliable 150+ Mbps performance over short to medium range links across East Africa. Measuring 325 × 325 × 256 mm (12.8 × 12.8 × 10.1") and weighing 1.2 kg (2.65 lb) in a UV-stabilised plastic enclosure, the PBE-M5-300 ships with a pole mount kit included with improved mounting design for simplified installation. 200 km/h wind survivability with 200.2 N wind loading. ±24 kV air/contact ESD/EMP protection. Environmental testing includes salt fog, vibration, temperature shock, UV, and wind-driven rain. Operating temperature: -40°C to 70°C (-40°F to 158°F). Fully NDAA compliant and RoHS compliant.
The PBE-M5-300 operates across 5150–5875 MHz worldwide delivering 150+ Mbps throughput over 3+ km links with 22 dBi integrated dish reflector gain, dual-linear polarization, and 1.5:1 maximum VSWR. Channel sizes of 5/8/10/20/30/40 MHz. Software-adjustable signal strength LEDs corresponding to custom RSSI levels simplify field alignment. Powered via passive PoE 2-pair at 6W maximum (20–27V DC) with included 24V, 0.5A PoE adapter.
Additional specifications:
Ideal for ISP CPE installations, short-range building links, last-mile subscriber access, and cost-effective wireless deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 5 GHz 22 dBi dish bridge performance with 150+ Mbps throughput and airMAX CPE reliability.
The PBE-M5-300 operates across 5150–5875 MHz worldwide delivering 150+ Mbps throughput over 3+ km links with 22 dBi integrated dish reflector gain, dual-linear polarization, and 1.5:1 maximum VSWR. Channel sizes of 5/8/10/20/30/40 MHz. Software-adjustable signal strength LEDs corresponding to custom RSSI levels simplify field alignment. Powered via passive PoE 2-pair at 6W maximum (20–27V DC) with included 24V, 0.5A PoE adapter.
Additional specifications:
- CE, FCC, and IC certified, fully NDAA compliant, RoHS compliant
Ideal for ISP CPE installations, short-range building links, last-mile subscriber access, and cost-effective wireless deployments across Kenya, Uganda, Tanzania, Rwanda, and the wider East and Central Africa region requiring 5 GHz 22 dBi dish bridge performance with 150+ Mbps throughput and airMAX CPE reliability.
